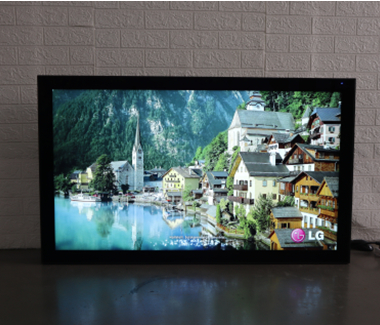

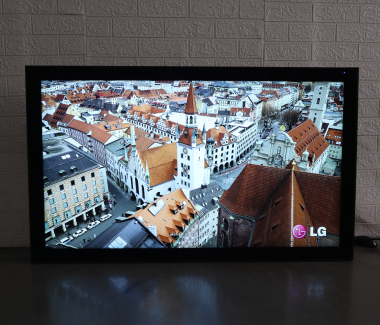

49 Inch 2000nit Outdoor Digital Signage Display
| Brand | LG/AUO/BOE |
| Model name | / |
| Screen size | 49" |
| Screen type | Outdoor LCD |
| Resolution | 3840(RGB)×2160 |
| Brightness (cd/m²) | 2000 |
Slim and Lightweight Design
A single monitor with a thin and light design. It can be easily customized to suit various external environments without the need for a separate enclosure.
Easy to Integrate and Customizable
Outdoor displays are readily customizable to suit your business needs. From outdoor menu boards to kiosks, outdoor displays can be installed and optimized for customers based on your industry and usage.
Excellent Visibility, Bright and Brilliant
With a powerful 3,000nits brightness, it provides clear and vivid picture quality even in direct
sunlight.
Wide Viewing Angle
IPS technology provides better control of the liquid crystals, allowing the screen to be viewed
from almost any angle.
Lasting Brightness

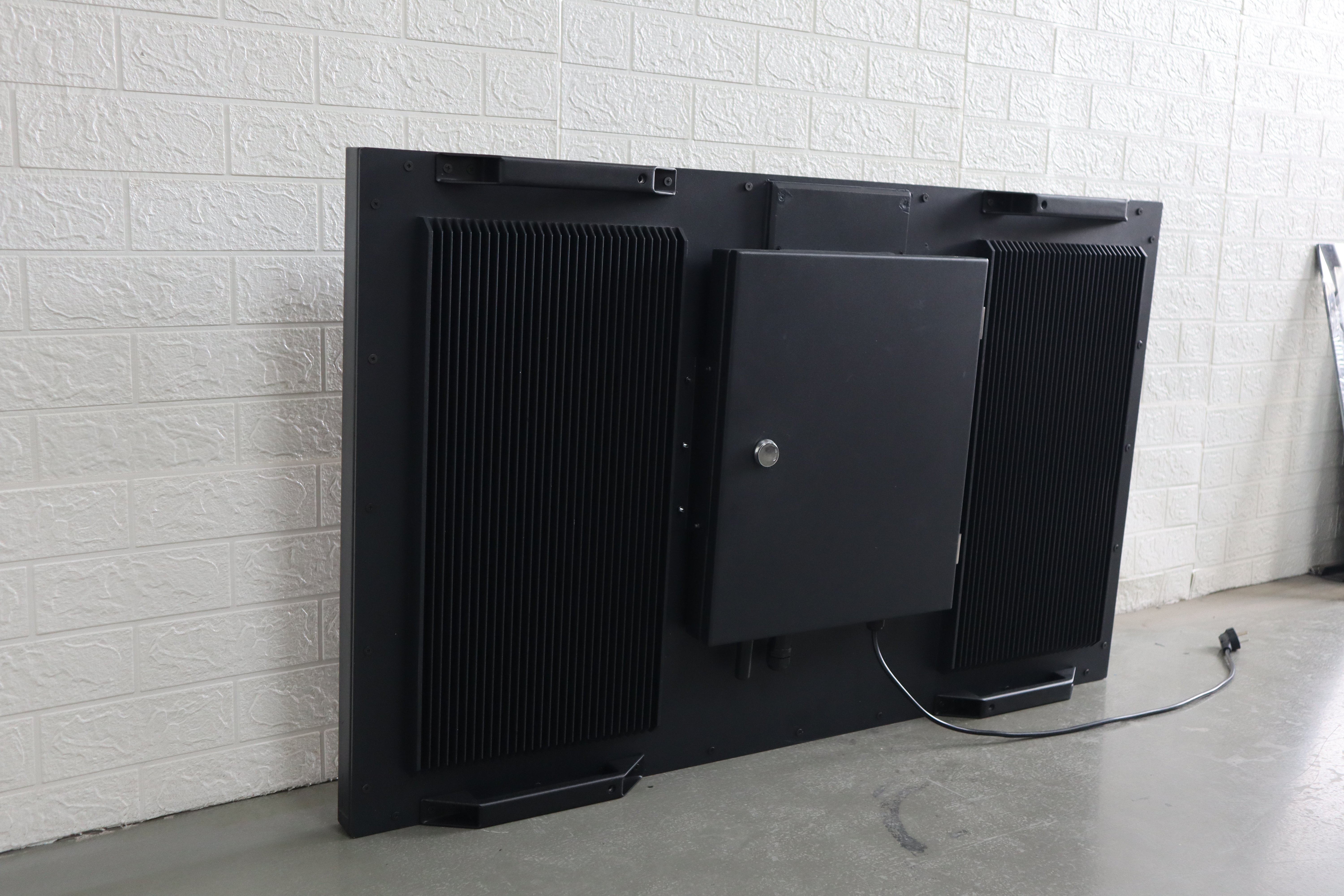

By adding more LED units, outdoor displays run brighter at lower temperatures and thus last
longer than traditional products.
Polarized Sunglasses Visible
QWP* is clearly visible even when the viewer is wearing polarized sunglasses.
Q：who are we?
A：R-star originated from Shenzhen, China, We are a professional manufacturer of high end highlight LCD, we can provide from 10.1 to 120 inch highlight TFT LCD modules, There are more than 100 employees, including 20 experienced engineers. The company has passed ISO9001/ISO14001/CCC/CE/FCC/ROHS/UL and other certifications, has a high-level R&D platform, and has become an ODM/OEM partner of many world-class companies.Our markets cover Asia, North America, Africa, Middle East, Europe, Central and South America and Oceania.We believe that if you give us a chance to serve, we will be your trusted supplier in China.
Q： Can I purchase a sample for my order?
A：Yes, please feel free to contact us.
| Size | 49 |
| Brand | LG/AUO/BOE |
| Display Area | 1074*604mm |
| Brightness | 2000nits |
| Resolution | 1920*1080/3840*2160 |
| Ratio | 16:9 |
| Contrast | 1300:1 |
| Respond time | 6/9 (Typ.)(Tr/Td) ms |
| View angle | 89/89/89/89 (Min.)(CR≥10) |
| Led | DLED |
| Lifetime | 50000H |
| Intelligent dimming | Support |
| Intelligent temperature control | Self cooling |
| Touch | Capacitive touch (optional) |
| input voltage | AC90-264V,50/60HZ |
| Maximum Power | 180W |
| IP rated | IP66 |
| shell material | Sheet metal / aluminum alloy |
| Outer Shell Size | 1170*700*120mm |
| Weight | 65KG |
| operating environment | Full outdoor |
| Operating temperature and humidity | -20 ~ 70 °C |
| Motherboard | Android /PC(optional) |
| IO Interface | USB/RJ45 |
01 / Chassis & Materials
Structural integrity for extreme environments.
Medical and Food grade SUS316L Stainless Steel, AL5052 Aluminum, or SECC Galvanized Steel.
Certified IP65 / IP69K waterproof sealing. Mechanical impact protection rated at IK10.
Industrial powder coating (RAL spectrum), sandblasting, and anti-acid marine painting.
Chassis-mount, Open-frame, Panel-mount, and VESA-integrated configurations.
02 / Optical & Display
Visibility optimization for extreme ambient lighting.
Scalable 1500 - 5000 Nits with integrated Hi-Tni (110掳C) anti-blackening technology.
Full Vacuum Optical Bonding (OCR) - eliminates air gaps, fogging, and maximizes contrast ratio.
Integrated AR (Anti-Reflective), AG (Anti-Glare), and AF (Anti-Fingerprint) nano-films.
03 / Interface & I/O
Industrial signal and power regulation.
Support for M12 Aviation Circular Connectors, DB9/RS232, and waterproof RJ45/USB.
Wide voltage DC 9V - 36V input with integrated surge and polarity protection.
Integrated ambient light sensors, thermal probes, and custom GPIO control protocols.
04 / Embedded & Data
Software architecture and data sync.
Full compatibility with Windows 7, 10/11 IoT; Linux support covering the last 3 generations (Ubuntu 20.04, 22.04, 24.04 LTS) and Debian; as well as comprehensive support for Android 11 through 14.
High-speed 4G/5G LTE modules, Dual-band Wi-Fi 6, and Gigabit Ethernet.
01 / Warranty Policy
Industry-leading protection for your investment.
3 Years Full Warranty for the complete machine assembly.
1 Year Warranty for the original LCD assembly.
Optional extended warranty programs (up to 5 years) available upon request.
02 / Field Support
Expert guidance throughout the product lifecycle.
24/7 technical support and configuration guidance via video link or remote access.
Local on-site installation and maintenance available for large-scale deployments.
03 / Production Timeline
Scalable manufacturing for urgent project schedules.
Verification and custom prototype delivery within 10 Working Days.
Standard bulk order fulfillment in 15 - 25 Working Days.
04 / Global Distribution
Reliable logistics via air, sea, or rail.
Door-to-door global delivery in 5 - 7 Working Days (DHL, FedEx, UPS).
Cost-optimized bulk shipping in 30 - 45 Days for global major ports.
