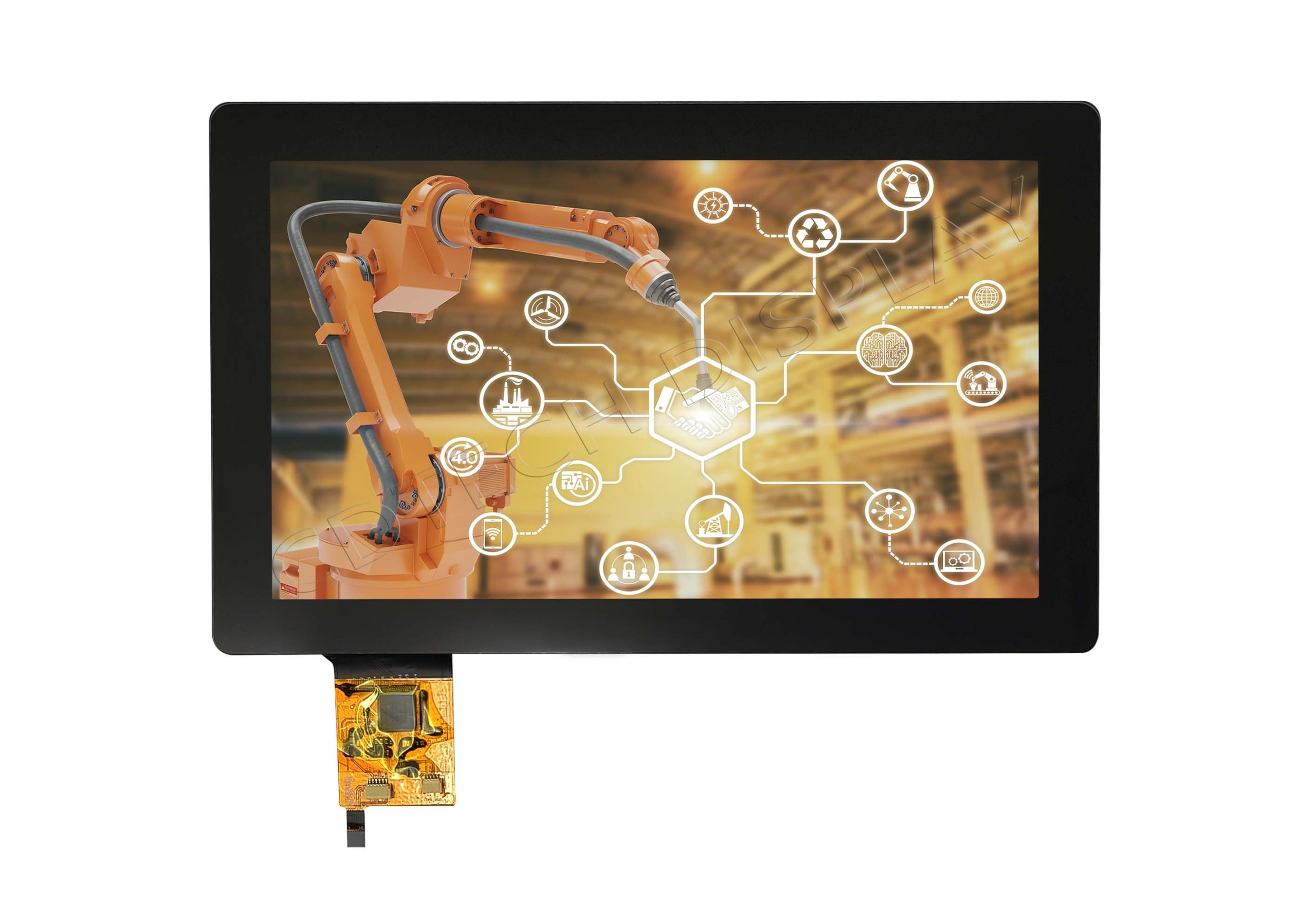

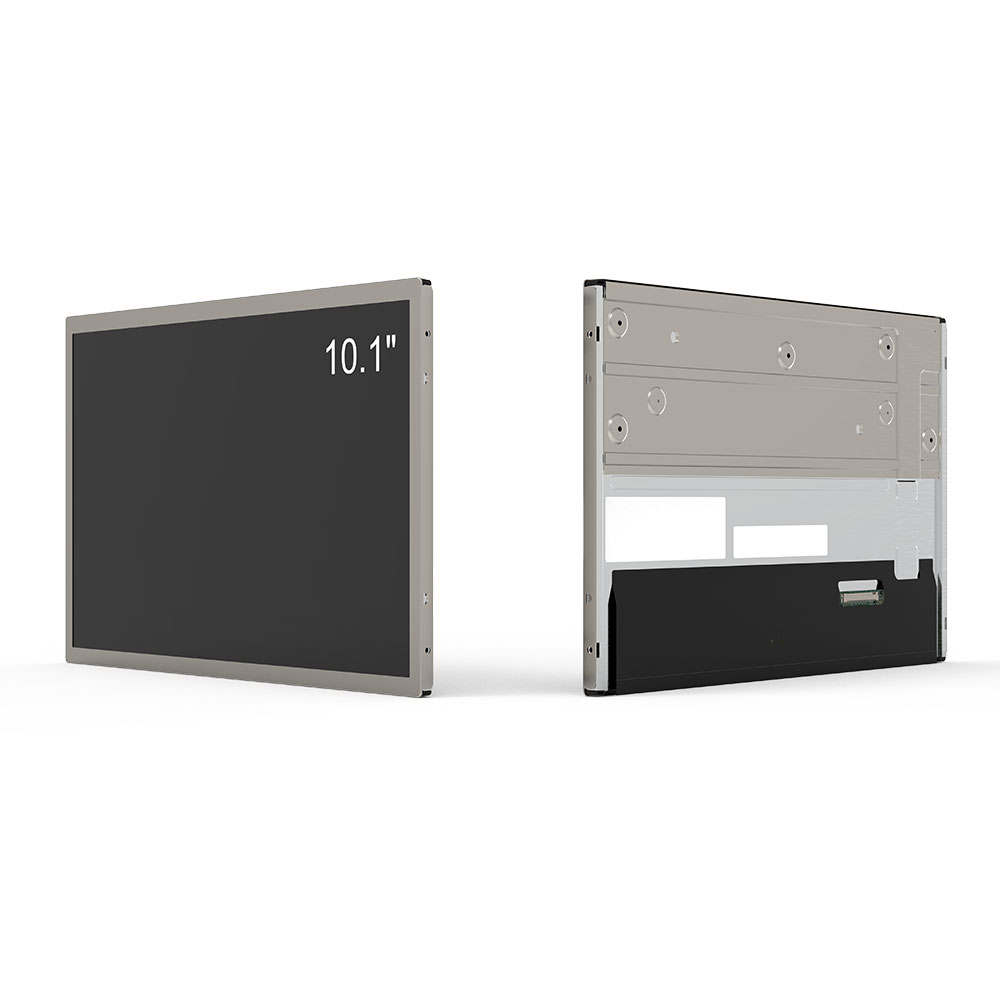

1000nits 10.1-inch Sunlight Readable IPS Display with PCAP Optical Bonding

Sunlight-Readable Optical Performance

Delivering up to 1000 nits of luminance, this 10.1-inch module overpowers ambient solar radiation to eliminate screen washout in direct sunlight. The IPS (In-Plane Switching) architecture preserves color accuracy and contrast beyond what conventional TN panels can achieve, while a 1200:1 contrast ratio ensures deep blacks and bright whites for superior readability in high-ambient-light environments.

• Anti-Glare & Anti-Reflective Treatment: Optional AG/AR surface coating reduces specular reflection; combined with optical bonding, total surface reflectivity is minimized for a true sunlight-readable experience.

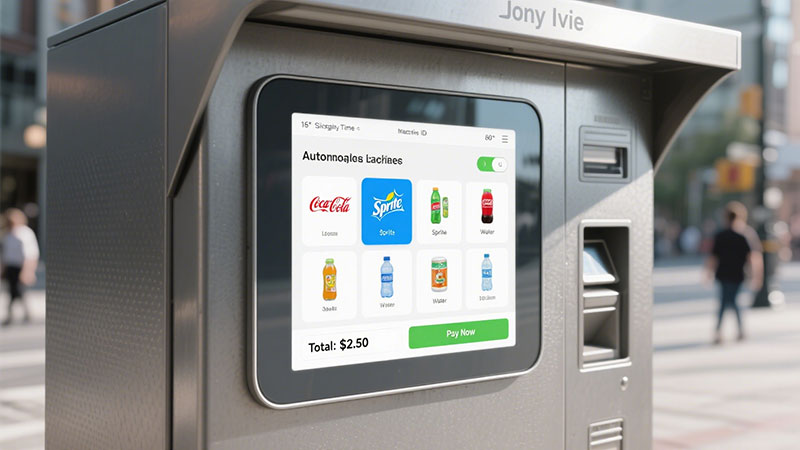

• Wide Viewing Integrity: 85°/85°/85°/85° viewing angles maintain image consistency across all directions—critical for public-facing kiosk and signage applications.

Full Optical Bonding (OCA)

The touch panel and LCD are fully bonded using Optically Clear Adhesive (OCA) lamination, eliminating the internal air gap that causes reflection and parallax in standard displays. The result:

• 80% reduction in internal reflections

• Prevention of condensation and internal fogging

• Enhanced contrast and perceived brightness

• Improved touch accuracy and glove-friendly responsiveness

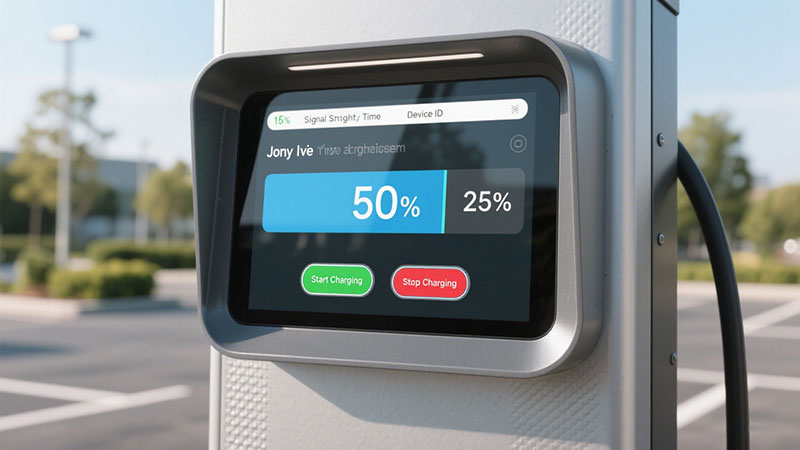

This bonding technique is essential for outdoor enclosures where temperature fluctuations would otherwise cause moisture accumulation between the LCD and cover glass.

Rugged Environmental Resilience

Operating reliably from -20°C to +70°C, this module exceeds the thermal envelope of standard consumer displays (0°C to 40°C). The Hi-Tni panel technology ensures the liquid crystal fluid maintains correct molecular alignment even when the display surface is subjected to intense thermal stress—a critical failure point for standard panels deployed in outdoor metal enclosures or direct-sun locations.

• Extended Range Available: Custom configurations support -30°C to +85°C upon OEM request.

• 3H Hard-Coated Protective Glass: Resists scratches and abrasions in high-traffic or industrial environments.

• EMI-Shielded FPC: Ensures signal integrity in electrically noisy environments.

10-Point Projected Capacitive Touch (PCAP)

The integrated 10-point multi-touch controller (USB/IIC dual protocol) enables precise, responsive interaction even in demanding field conditions. The capacitive layer is tuned to recognize input through typical industrial gloves and with light moisture present on the surface—removing operational friction in outdoor and factory-floor deployments.

• Glove & Wet-Hand Operation Supported

• Fast 10ms Response Time for real-time control interfaces

• Full Lamination: No air gap means no parallax offset between touch point and visual target

• USB + I²C Dual Interface: Flexible connectivity for embedded systems and single-board computers
