49" sunlight readable bus station interactive information screen
OEM / ODM Manufacturer
Factory Direct
Order & Lead Time
Need 50+ units? for framework agreements.
Global Shipping Options
Samples ship in ~10 working days; Bulk orders in 15-25 working days.
- Express: DHL/FedEx door-to-door delivery (5-7 days)
- Sea Freight: Cost-optimized bulk shipping (30-45 days)
- Rush Orders: Available upon request for urgent projects
Flexible Warranty Options (1 to 5 Years)
As an OEM/ODM manufacturer, we offer highly customizable warranty plans. Choose the standard coverage for cost-sensitive projects, or opt for our premium 3-5 year extended warranty for mission-critical digital signage deployments.
All products are manufactured in our ISO 9001-certified facility.
CE, FCC, RoHS Certified

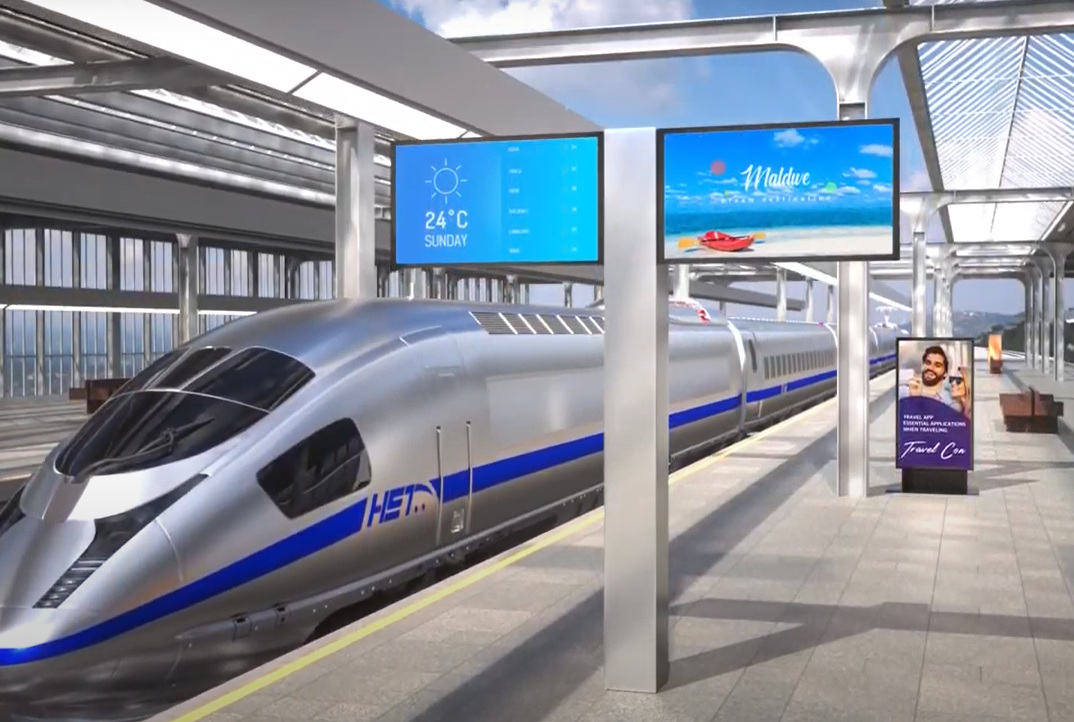

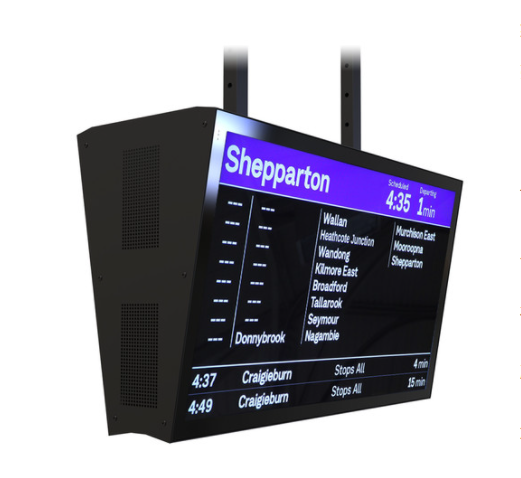

Risinglcd outdoor LCD screen is used in bus station digital signage, high brightness, 4k HD, support horizontal/vertical screen playback, maintenance-free design, wide temperature design, professional outdoor digital signage manufacturer
Functions and features:

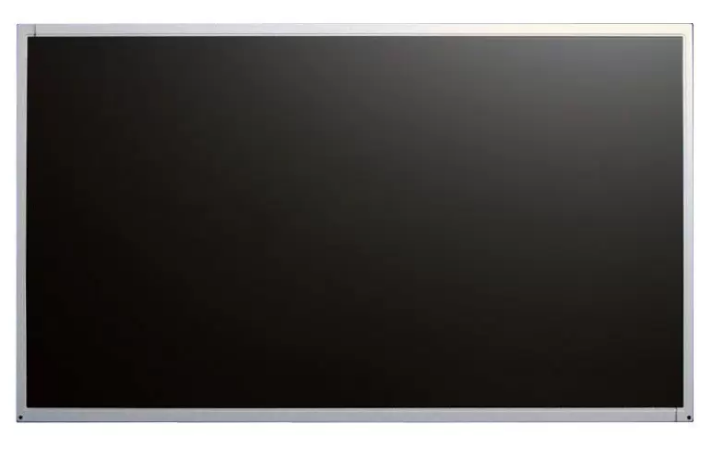

1. LG original LCD panel, industrial-grade LCD panel is better than ordinary LCD panel
2. Full screen high resolution 1920*1080/3840*2160
3. How high is the working temperature 105 degrees Celsius
4. Brightness up to 5000 nits
5. Long life 50k hours
6. Low maintenance cost, stable operation and maintenance-free
7. Waterproof rating: IP65/IP66/IP67
8. Protection level: IK10
9.Interface: HDMI(2) / DP / DVI-D / RJ45 / RS232C / USB
10. Android/windows/raspberry pi/display board
Techspecs:
Items | Specification | Note |
Panel Brand | LG | |
Diagonal Size | 49" | |
Panel Type | a-Si TFT-LCD | LCM |
Resolution | 1920(RGB)×1080, FHD, 80PPI | |
Pixel Format | RGB Vertical Stripe | |
Display Area | 1073.78(W)×604(H) mm | |

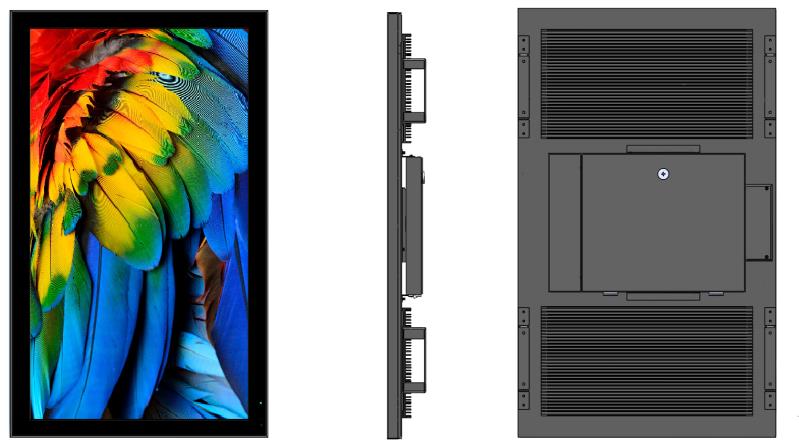

Outline Size: | 1196.2(W)×732.5(H) ×95(D) mm | |
Surface | Antiglare (Haze 1%), Hard coating (2H). | |
Brightness | 4000 cd/m² (Typ.) | |
Contrast Ratio | 1300:1 (Typ.) (TM) | |
waterproof level | IP65/ IP66/ IP67 | |
Protection level | IK10 | |
Support Color | 1.67B 72% NTSC | |
Viewing Angle | 89/89/89/89 (Min.)(CR≥10) | |
Display Mode | IPS, Normally Black, Transmissive . | |
Response Time | 5 (Typ.)(G to G); 8 (Typ.)(MPRT). | |
Lamp Type | WLED , 50K hours , With LED Driver | |
Frequency: | 60Hz | |
Panel Weight | 45.0/47.0Kgs (Typ./Max.) | |
Application | Outdoor Digital Signage | |
Signal Interface | HDMI/ DP / DVI / RJ45 / RS232 / USB | |
Input Voltage: | 110 to 260V (Typ.). | |
Operating Temperature | -20 ~ 70 °C | |
Storage Temperature | -30 ~ 80 °C |
01 / Chassis & Materials
Structural integrity for extreme environments.
| Enclosure Grade | Medical and Food grade SUS316L Stainless Steel, AL5052 Aluminum, or SECC Galvanized Steel. |
| Protection Rating | Certified IP65 / IP69K waterproof sealing. Mechanical impact protection rated at IK10. |
| Surface Finish | Industrial powder coating (RAL spectrum), sandblasting, and anti-acid marine painting. |
| Format Architecture | Chassis-mount, Open-frame, Panel-mount, and VESA-integrated configurations. |
03 / Interface & I/O
Industrial signal and power regulation.
| Connectors | Support for M12 Aviation Circular Connectors, DB9/RS232, and waterproof RJ45/USB. |
| Power Regulation | Wide voltage DC 9V - 36V input with integrated surge and polarity protection. |
| Sensor Suite | Integrated ambient light sensors, thermal probes, and custom GPIO control protocols. |
02 / Optical & Display
Visibility optimization for extreme ambient lighting.
| Luminance Output | Scalable 1500 - 5000 Nits with integrated Hi-Tni (110°C) anti-blackening technology. |
| Optical Bonding | Full Vacuum Optical Bonding (OCR) — eliminates air gaps, fogging, and maximizes contrast ratio. |
| Advanced Coating | Integrated AR (Anti-Reflective), AG (Anti-Glare), and AF (Anti-Fingerprint) nano-films. |
04 / Embedded & Data
Software architecture and data sync.
| Operating Systems | Full compatibility with Windows 7, 10/11 IoT; Linux support covering the last 3 generations (Ubuntu 20.04, 22.04, 24.04 LTS) and Debian; as well as comprehensive support for Android 11 through 14. |
| Communication | High-speed 4G/5G LTE modules, Dual-band Wi-Fi 6, and Gigabit Ethernet. |
