15 inch touch display monitor
OEM / ODM Manufacturer
Factory Direct
Order & Lead Time
Need 50+ units? for framework agreements.
Global Shipping Options
Samples ship in ~10 working days; Bulk orders in 15-25 working days.
- Express: DHL/FedEx door-to-door delivery (5-7 days)
- Sea Freight: Cost-optimized bulk shipping (30-45 days)
- Rush Orders: Available upon request for urgent projects
Flexible Warranty Options (1 to 5 Years)
As an OEM/ODM manufacturer, we offer highly customizable warranty plans. Choose the standard coverage for cost-sensitive projects, or opt for our premium 3-5 year extended warranty for mission-critical digital signage deployments.
All products are manufactured in our ISO 9001-certified facility.
CE, FCC, RoHS Certified
15 inch touch display monitor with USB interface 10point capacitive touch,Embedded touch display monitor,Square 4:3 lcd display monitor.This style lcd monitor Max brightness 1200 nts. 15 inch touch display monitor is widely used in tickets machine,maket query machine,industrial machine,self-servies oder and semi-outdoor ATM machine.
FQA:
1. Q: Are you a manufacturer or trading company?
A:We are ODM/OEM manufacturer .
2. Q: What is your after-sale service?
A: We offer 100% guarantee on our product .
3. Q: What is your MOQ?
A: 1 pc
4. Q: When will you make the delivery?
A: Conventional product the delivery 7 days, Customized product according required about 15days.
5.Q:what brand of screen are you using?
A:we are using BOE,LG,AUO .Innolux and CHIMEI screen.
6.Q:if you are not online,how can i get contact with you?
A:Pls contact with us by email,skype,WhatsApp,I will reply you ASAP.
Product specification | |
LCD panel | |
Panel size | 15 INCH |
Resulotion | 1024*768 |
Support Color | 16.7M colors |

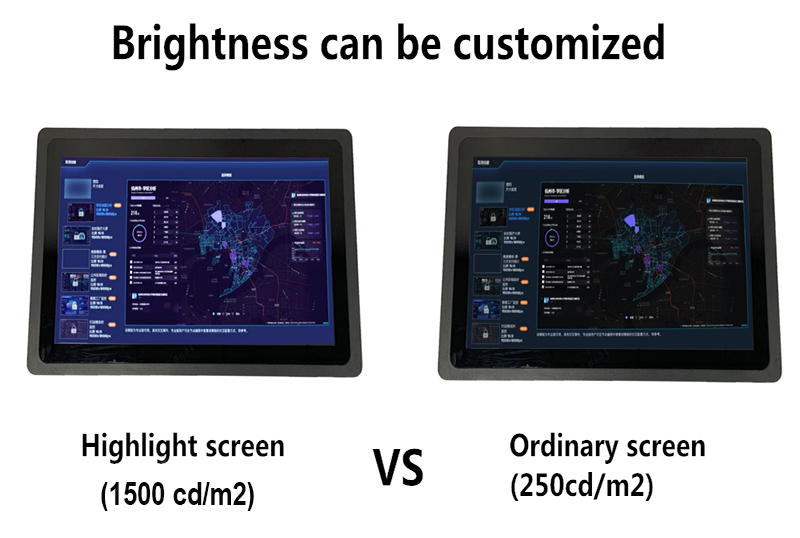

Brightness (cd/m²) | 1500 nits (can be customized) |
Contrast ratio | 1000:1 |
Touch panel | |

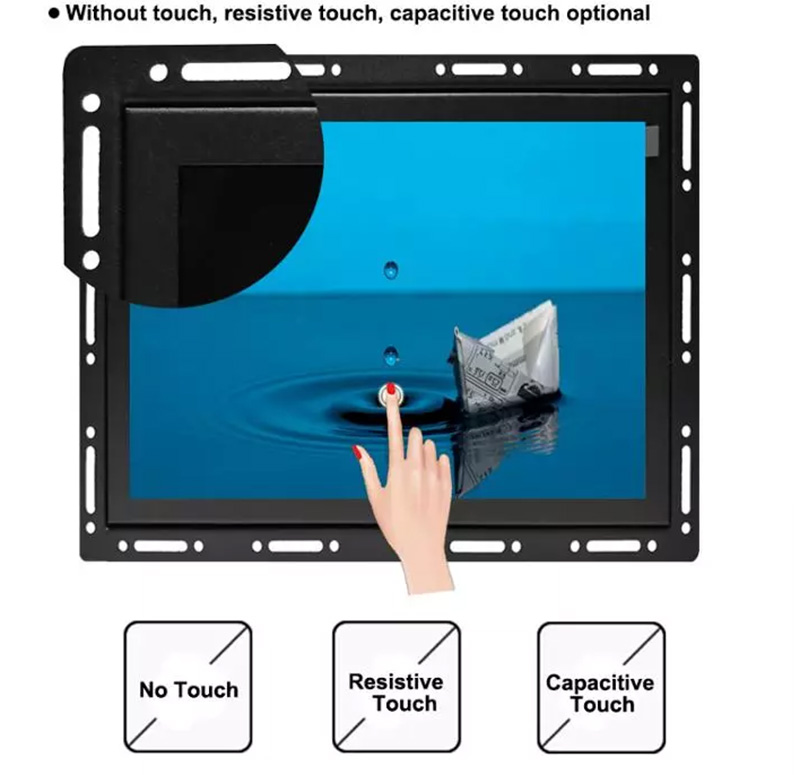

Touchscreen Type | Capacitive Touch (10 points ) |
Touch Interface | USB (RS232 optional) |
OSD | |

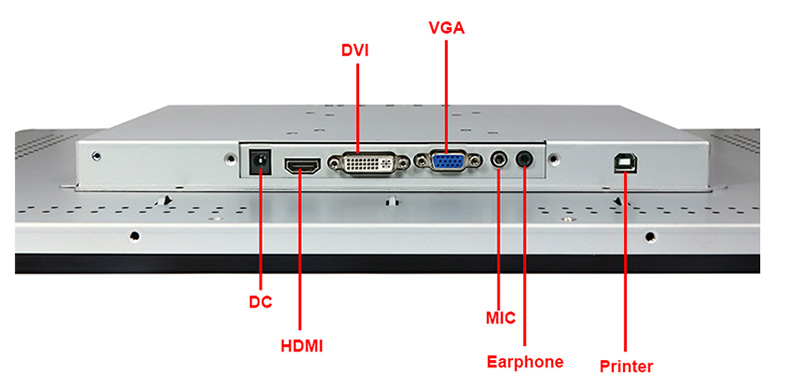

| signal ports | VGA/USB/HDMI/DVI |
Support OS | Windows ,HDMI, Android, ect. |
Power Supply | |
External Power Supply | AC 100 - 240V, 50-60Hz |
Working voltage | DC 12-24v |
Power consumption | ≤30W |
Enclosure | |
Material | Aluminum Alloy |
Color | Black, Silver or customized |
VESA mounting | 75x75mm/100x100mm |
Operating Environment | |
Operating Temperature | -20 ~ 70 °C |
Relative humidity | operating: 5% to 90%, storage: 5% to 90% |
Packing Details | |
Gross weight | about 4.2kg |
Product outer size | 351*275*52mm |
01 / Chassis & Materials
Structural integrity for extreme environments.
| Enclosure Grade | Medical and Food grade SUS316L Stainless Steel, AL5052 Aluminum, or SECC Galvanized Steel. |
| Protection Rating | Certified IP65 / IP69K waterproof sealing. Mechanical impact protection rated at IK10. |
| Surface Finish | Industrial powder coating (RAL spectrum), sandblasting, and anti-acid marine painting. |
| Format Architecture | Chassis-mount, Open-frame, Panel-mount, and VESA-integrated configurations. |
03 / Interface & I/O
Industrial signal and power regulation.
| Connectors | Support for M12 Aviation Circular Connectors, DB9/RS232, and waterproof RJ45/USB. |
| Power Regulation | Wide voltage DC 9V - 36V input with integrated surge and polarity protection. |
| Sensor Suite | Integrated ambient light sensors, thermal probes, and custom GPIO control protocols. |
02 / Optical & Display
Visibility optimization for extreme ambient lighting.
| Luminance Output | Scalable 1500 - 5000 Nits with integrated Hi-Tni (110°C) anti-blackening technology. |
| Optical Bonding | Full Vacuum Optical Bonding (OCR) — eliminates air gaps, fogging, and maximizes contrast ratio. |
| Advanced Coating | Integrated AR (Anti-Reflective), AG (Anti-Glare), and AF (Anti-Fingerprint) nano-films. |
04 / Embedded & Data
Software architecture and data sync.
| Operating Systems | Full compatibility with Windows 7, 10/11 IoT; Linux support covering the last 3 generations (Ubuntu 20.04, 22.04, 24.04 LTS) and Debian; as well as comprehensive support for Android 11 through 14. |
| Communication | High-speed 4G/5G LTE modules, Dual-band Wi-Fi 6, and Gigabit Ethernet. |
