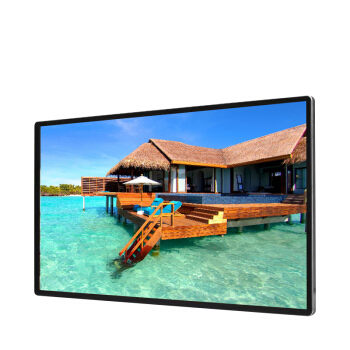

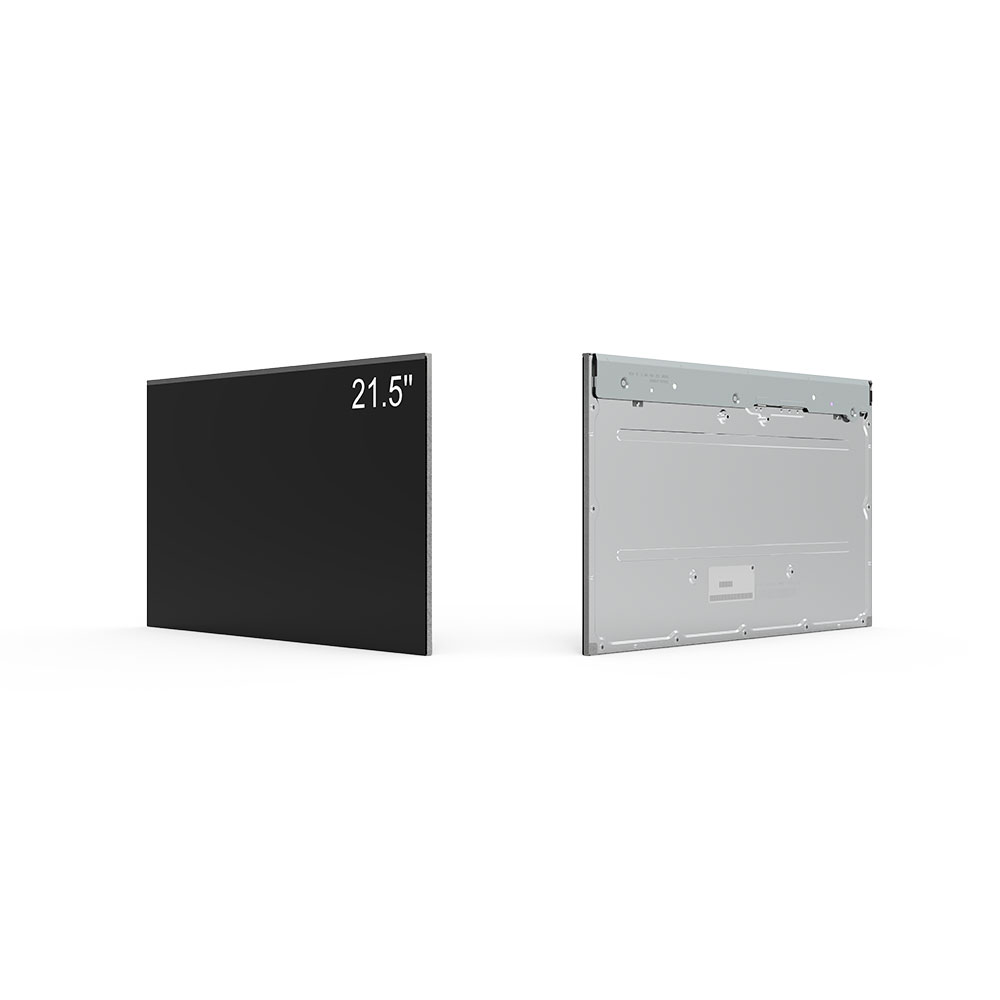

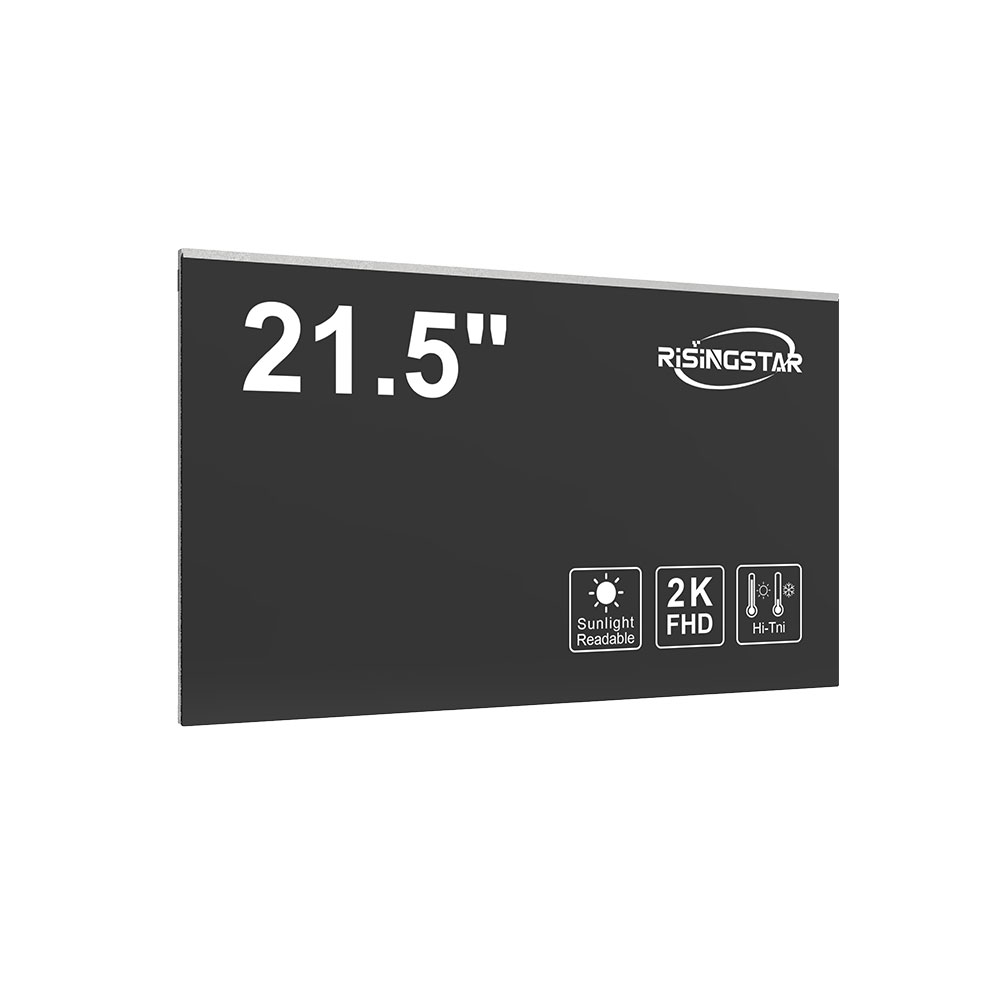

Elevate your EV charging experience with our 21.5″ high-brightness digital display, designed for outdoor charging stations, parking lots, and smart mobility hubs. Combining industrial-grade durability, superior brightness, and versatile content management, this display ensures clear visibility even in direct sunlight while providing interactive and dynamic content for users.
Ultra-High Brightness: 5000 nits for clear outdoor readability under direct sunlight
Rugged Outdoor Protection: IP66-rated weatherproof design, resistant to dust, rain, and harsh environments
Versatile Content Support: Video, image, and real-time charging status display; supports touch interaction and remote management
Industrial Reliability: Low power consumption, robust aluminum frame, tested for extreme temperatures and long-term operation
Flexible Installation: Wall-mount, pole-mount, embedded, or custom bracket options for diverse deployment scenarios
| Specification | Parameter |
|---|---|
| Screen Size | 21.5 inches, 16:9 aspect ratio |
| Resolution | 1920 × 1080 Full HD, IPS panel |
| Brightness | 5000 nits (typical) |
| Contrast Ratio | ≥ 3000:1 |
| Viewing Angle | 178° horizontal / 178° vertical |
| Response Time | ≤ 8 ms |
| Color Gamut | ≥ 72% NTSC / ≥ 90% sRGB |
| Backlight Lifetime | ≥ 50,000 hours |
| Interfaces | HDMI ×1, SDI ×1, RJ45, USB, RS485, optional Wi-Fi / 4G |
| Control Options | Local control, cloud platform, API integration |
| Operating Temperature | –20 °C to +70 °C |
| Operating Humidity | 10% – 90% non-condensing |
| Power Input | AC 100–240 V, 50/60 Hz |
| Power Consumption | Typical 60 W, Max 120 W |
| Protection Rating | IP66 weatherproof |
| Certifications | CE, FCC, RoHS, EMC compliance |
| Mounting Options | Wall, pole, embedded, custom brackets |
| Content Formats Supported | MP4, H.264/H.265, JPEG, PNG |
| System Platform | Supports remote upgrades, log tracking, CMS integration, OCPP compatibility |
Direct sunlight readability ensures clear visibility in outdoor environments.
Anti-glare glass and advanced backlight design optimize contrast and color accuracy.

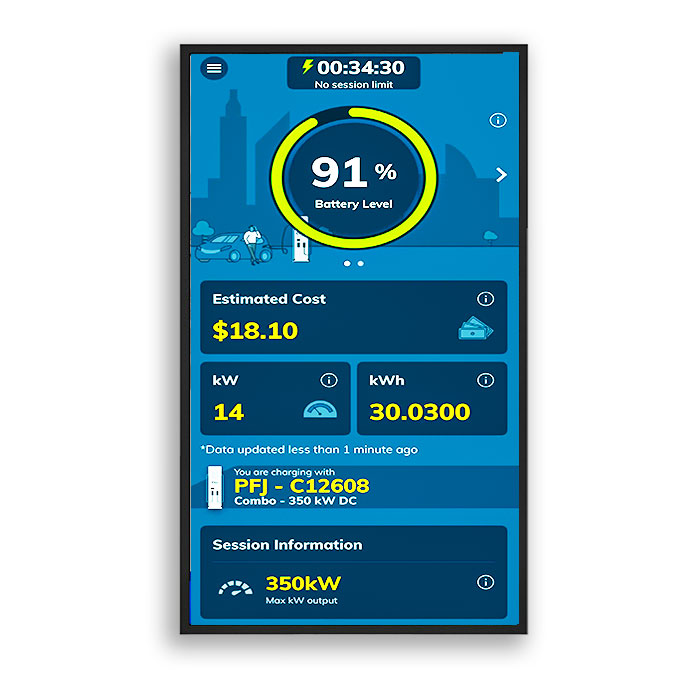

Displays charging voltage, current, power, charging duration, remaining time, and fault status.
Compatible with RS485, Modbus, and OCPP protocols for seamless EV station integration.
Supports videos, images, and interactive content scheduling.
Remote management through cloud platform or API for content updates.
Robust aluminum structure and IP66-rated enclosure protect against dust, water, and extreme temperatures.
Tested for vibration, shock, and UV resistance to ensure long-term reliability.
Supports over-the-air firmware updates and error logging for predictive maintenance.
Administrators can monitor device health and schedule content updates in real-time.

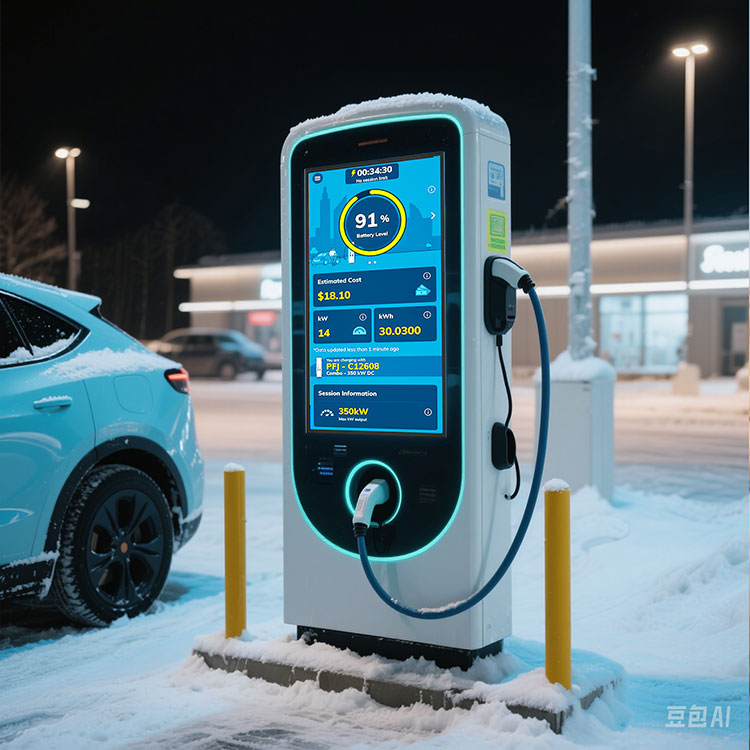

Public EV Charging Stations: Outdoor fast-charging hubs with high visibility for drivers.
Parking Lots & Commercial Spaces: Interactive advertising and real-time information for customers.
Smart Mobility Hubs: Integrated with digital signage networks for dynamic passenger information.
Community EV Charging Points: Weatherproof displays for residential and corporate EV facilities.
Case Example:
In a major city, 20 units of 21.5″ displays were deployed at a busy public charging station. After 2 years of continuous outdoor operation, the displays maintain consistent brightness, zero overheating incidents, and minimal maintenance requirements. Customer feedback highlighted clear visibility in sunlight and enhanced user engagement through dynamic content.
Ensure proper ventilation and secure power supply for stable operation.
Perform periodic cleaning of the anti-glare glass to maintain optimal display clarity.
Check IP66 seals and mounting brackets every 12 months for wear or damage.
Use CMS or remote management tools to update content without interrupting station operations.
EMC & Electrical Compliance: CE, FCC, RoHS certified.
Outdoor Durability Testing: High/low temperature cycles, UV exposure, vibration, and humidity testing.
Backlight Lifetime: ≥ 50,000 hours ensures extended service life and minimal maintenance.
High Visibility: Ultra-bright panel ensures optimal readability in all weather conditions.
Reliable & Durable: Engineered for industrial-grade performance and extended outdoor use.
Flexible & Compatible: Multiple interfaces, mounting options, and integration protocols.
Trusted & Tested: Third-party certifications, extensive field testing, and long-term customer satisfaction.
Specially designed to provide a perfect solution for EV Charging Station Digital Display

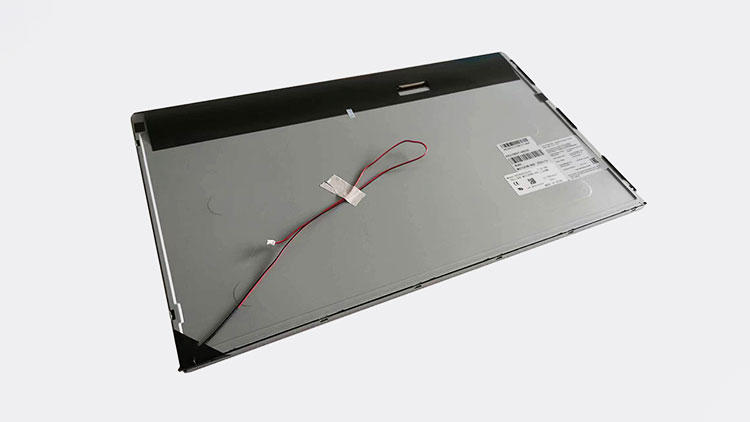

A+ grade wide temperature LCD panel
Normal operation in an environment of 24H -20 ℃ to 80 ℃.

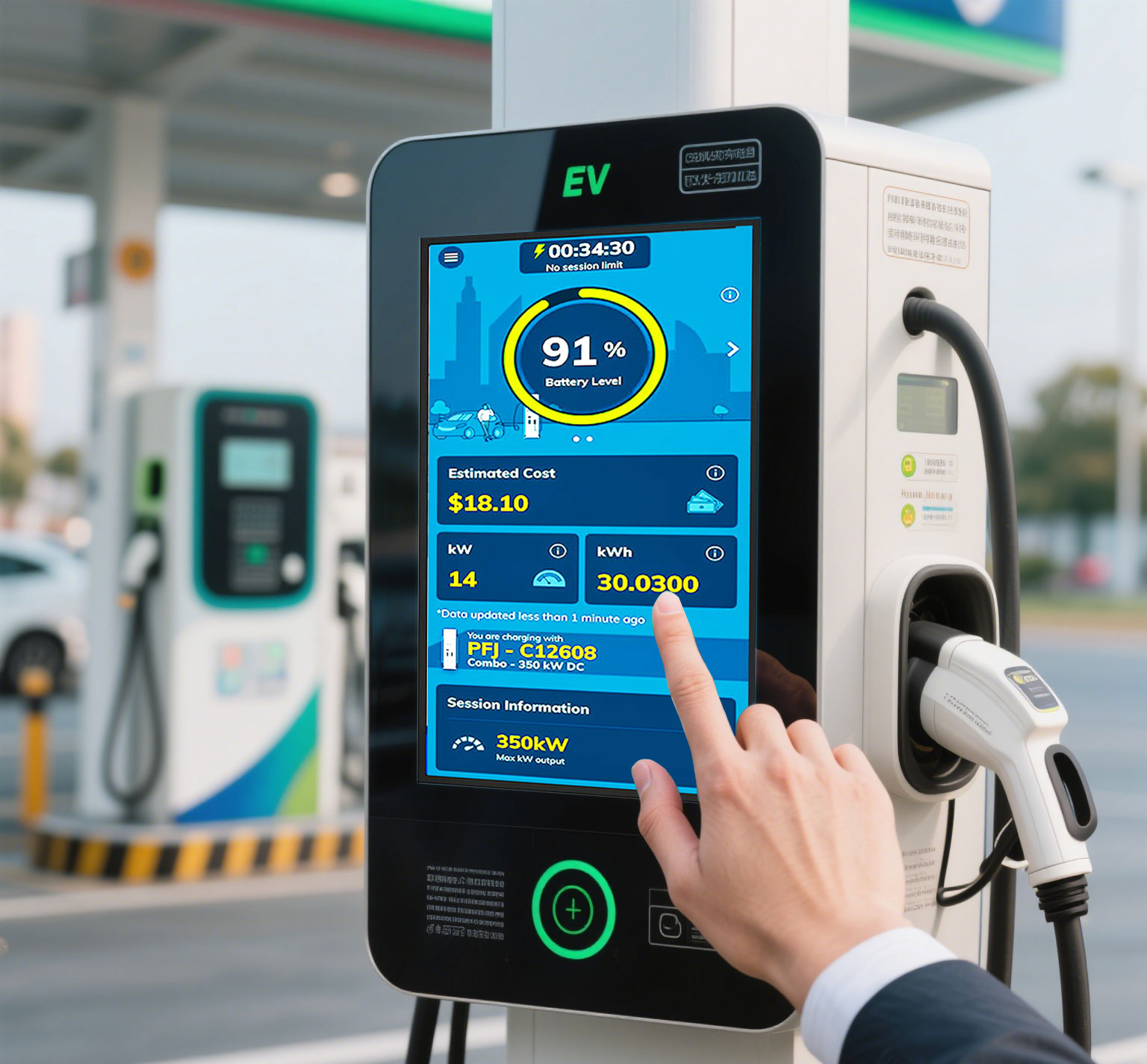

Designed for electric vehicle charging stations, this touchscreen responds instantly to the lightest touch, featuring multi-touch capability and a dustproof, waterproof design. Its anti-glare display ensures crystal-clear visibility even under direct sunlight, enabling effortless navigation, real-time charging monitoring, and instant payment processing
Optically bonded IK10 tempered glass effectively resists violent impacts
Having multiple national patent certificates
