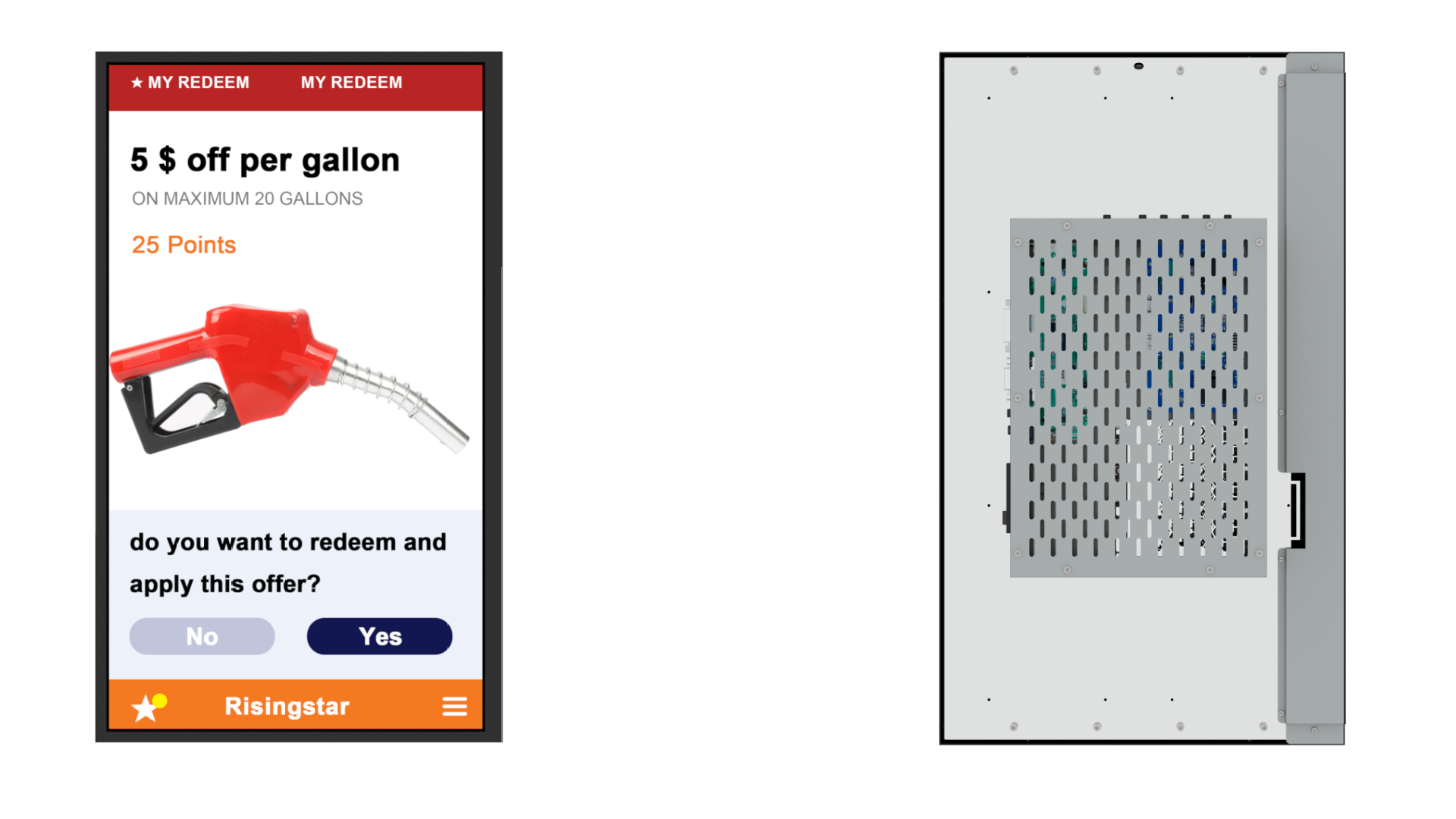

RisingStar 21.5 inch high brightness open frame monitor

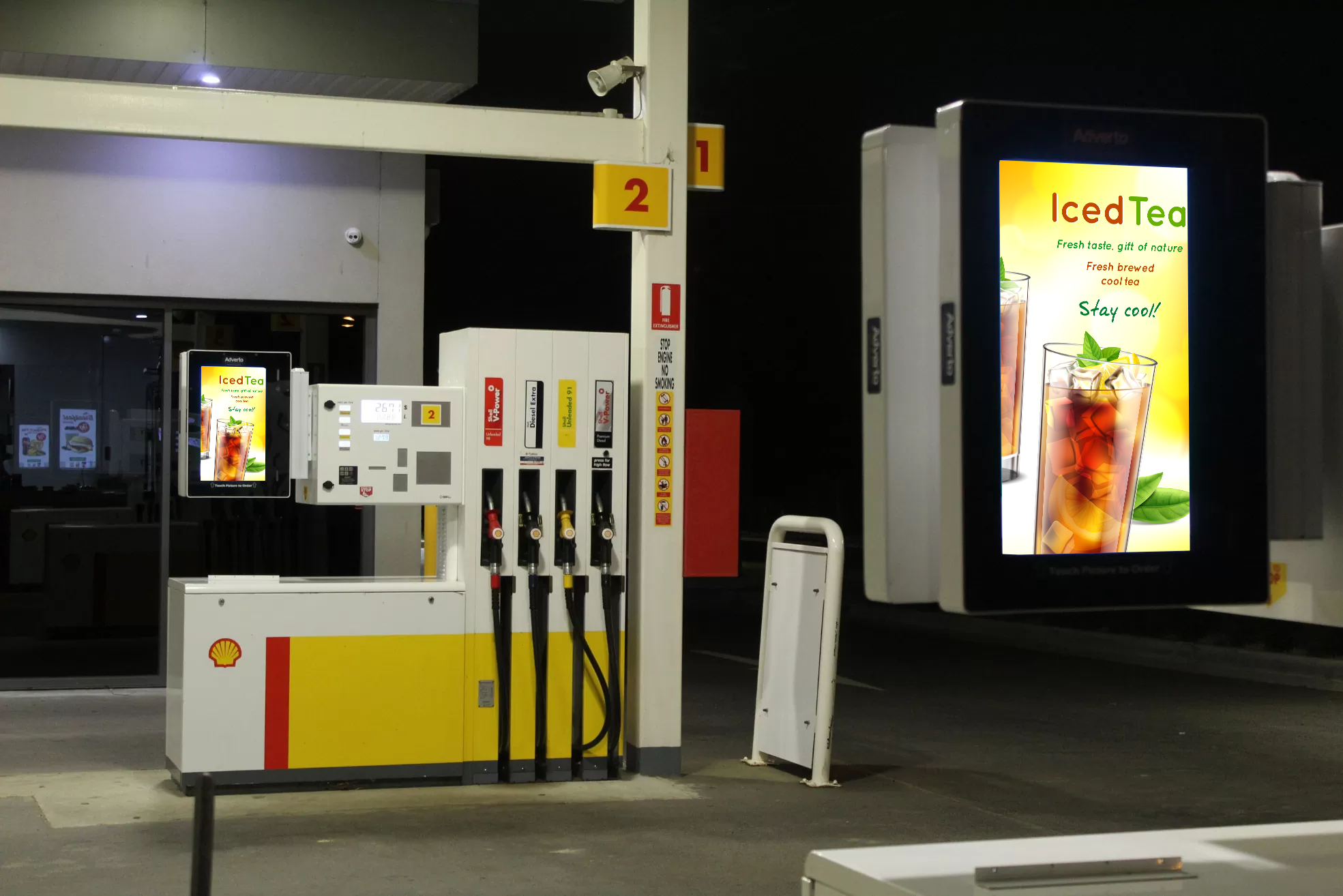

Designed for the gas station Gas pump TV.
A+ grade wide temperature LCD panel can keep working through
-20℃ to 70℃ environment without the cooling system.
Featured with IK10 tempered glass with optical bonding gives the best protection.
Multi-points P-CAP touch screen ensure the optimal reliability
CE certification | ISO9001 QMS | Rohs compliant
And any other test report or certification you need
For more detail please contact with us via the info@risinglcd.com
| Screen Diagonal | 21.5 inch |
| Brand | RisingStar |
| Model No | RS215ENT-GE10-OP |
| Active Area | 476.64(W)×268.11(H) mm |
| Resolution | 1920(RGB)×1080, FHD, 102PPI |
| Physical Size | 495.6(W)×292.2(H)×51.8(D) mm |
| Pixel Arrangement | R.G.B. Vertical Stripe |
| Display Mode | a-Si TFT-LCD, LCM |
| Contrast Ratio : | 3000:1 |
| White Luminance ( Center ) | 1000 cd/m2 (Typ.) [cd/m2 ] |
| Optical Response Time | 13/5 (Typ.)(Tr/Td) ms |
| Nominal Input Voltage | 5.0V (Typ.) |
| Frame Rate | 60Hz |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Weight [kg] | 1.67kgs |
| Interface Type | 30 pins LVDS (2 ch, 8-bit) |
| Support Color | 16.7M , 72% sRGB |
| Surface Treatment | Matte, Hard coating (3H) |
| RoHS Compliance | RoHS Compliance |
| Temperature Range | -20 ~70 °C |
| Storage (Non-Operating) | -30 ~ 80 °C |
Ask a quote for the latest price and one of our team members will respond as soon as possible.
