27 Inch 4k EDP interface 1500 nits outdoor LCD module
OEM / ODM Manufacturer
Factory Direct
Order & Lead Time
Need 50+ units? for framework agreements.
Global Shipping Options
Samples ship in ~10 working days; Bulk orders in 15-25 working days.
- Express: DHL/FedEx door-to-door delivery (5-7 days)
- Sea Freight: Cost-optimized bulk shipping (30-45 days)
- Rush Orders: Available upon request for urgent projects
1-3 Year Standard Warranty
3 years for Display Units and 1 year for LCD modules. Extendable to 5 years. Includes 24/7 support, remote troubleshooting, and long-term spare parts availability.
All products are manufactured in our ISO 9001-certified facility.
CE, FCC, RoHS Certified

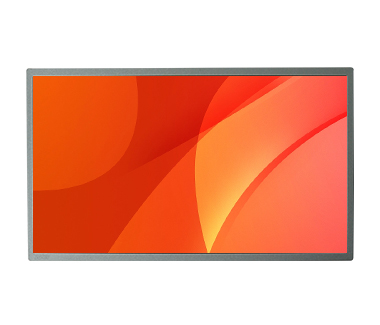

27" Full HD Lcd screen ,The brightness can be customized ,The brightness from 500-2000nits ,They have high quality metal frame high color saturation. original design, Stability highlight Full size design New original package display module structure and installation method thereof High flexibility, excellent heat dissipation and convenient maintenance.
Full HD Resolution
1920*1080 2K resolution, 3840*2160 4k resolution are optional
High brightness LCD module can provide customers with ultra sharp images, easy to read, optimize promotional effects, enhance customer experience.
OEM and ODM are welcomed!
RisingLCD Advantage:
OEM/ODM is acceptable!
Small MOQ is acceptable!
Competitive price!
Fast Delivery time!
RisingLCD is your best choice!
Size | 27inch | |||
Panel item | RS270NET-N15 | |||
Panel type | a-Si TFT-LCD | |||
Display mode | IPS,Normally black，transmissive display | |||
Pixels | 3840*2160 | |||
brightness | 1500cd/m2 | |||
Constrast Ratio | 1000:1 | |||
Response Time | 6ms | |||
View angle | 89/89/89/89 (Min) | |||
View area | 601.7*340.7mm(H*V) | |||
Dispaly area | 597.888*336.312mm(H*V) | |||
Outline Size | 611.5*355.8*13.5mm(H*V*D) | |||
Signal Type | LVDS | |||
Working freqyency | 60Hz | |||
Working temperature | 0- 50ﾟC | |||
Storage Temperature | -30 ~ 80 °C | |||
Display ratio | 16:9 | |||
Display color | 16.7m | |||
Backlight Voltage | 5V | |||
Backlight Power Consumption | 18.8/23.12w | |||
Surface Treatment | Haze ,Hard coating(2H) | |||
Weight | 3.49kgs | |||
01 / Chassis & Materials
Structural integrity for extreme environments.
| Enclosure Grade | Medical and Food grade SUS316L Stainless Steel, AL5052 Aluminum, or SECC Galvanized Steel. |
| Protection Rating | Certified IP65 / IP69K waterproof sealing. Mechanical impact protection rated at IK10. |
| Surface Finish | Industrial powder coating (RAL spectrum), sandblasting, and anti-acid marine painting. |
| Format Architecture | Chassis-mount, Open-frame, Panel-mount, and VESA-integrated configurations. |
03 / Interface & I/O
Industrial signal and power regulation.
| Connectors | Support for M12 Aviation Circular Connectors, DB9/RS232, and waterproof RJ45/USB. |
| Power Regulation | Wide voltage DC 9V - 36V input with integrated surge and polarity protection. |
| Sensor Suite | Integrated ambient light sensors, thermal probes, and custom GPIO control protocols. |
02 / Optical & Display
Visibility optimization for extreme ambient lighting.
| Luminance Output | Scalable 1500 - 5000 Nits with integrated Hi-Tni (110°C) anti-blackening technology. |
| Optical Bonding | Full Vacuum Optical Bonding (OCR) — eliminates air gaps, fogging, and maximizes contrast ratio. |
| Advanced Coating | Integrated AR (Anti-Reflective), AG (Anti-Glare), and AF (Anti-Fingerprint) nano-films. |
04 / Embedded & Data
Software architecture and data sync.
| Operating Systems | Full compatibility with Windows 7, 10/11 IoT; Linux support covering the last 3 generations (Ubuntu 20.04, 22.04, 24.04 LTS) and Debian; as well as comprehensive support for Android 11 through 14. |
| Communication | High-speed 4G/5G LTE modules, Dual-band Wi-Fi 6, and Gigabit Ethernet. |
