The RS215ENT-N10 is a 21.5-inch industrial grade LCD panel. It features a rugged design, –20 °C to 70 °C high Tni operating temperature, and low power consumption. It is reliable and ideal for industrial applications in harsh environments.
This High Tni industrial LCD panel comes with an anti-glare surface treatment.
The 2K high-definition screen delivers delicate picture quality, and with the RisingLCD customized LED backlight, the display achieves more realistic visuals.
It can also remain readable even under direct sunlight.
Versatile display size: 21.5 inch
Wide Viewing Angle: 178° × 178° (H × V)
High Tni 110 ℃ industrial LCD panel to avoid blackening under direct sunlight
Sunlight-readable brightness: 1000 to 5000nits
Contrast ratio: 1000:1
Auto brightness control
Application: Advertising displays, retail stores, shopping malls
This industrial LCD panel can operate stably and failure-free over long periods within a wide temperature range of –20 °C to 70 °C.
Thanks to this capability, it can be successfully applied in transportation and automotive industries.
In contrast, most residential and commercial displays may blacken or suffer isotropic failure if they overheat for extended periods.
Different external lighting conditions require different brightness levels.
The built-in onboard light sensor in RisingLCD’s outdoor digital signage automatically measures ambient light and adjusts screen brightness accordingly.
Provides the best viewing experience
Saves energy costs
Reduces heat generation
Extends screen lifespan

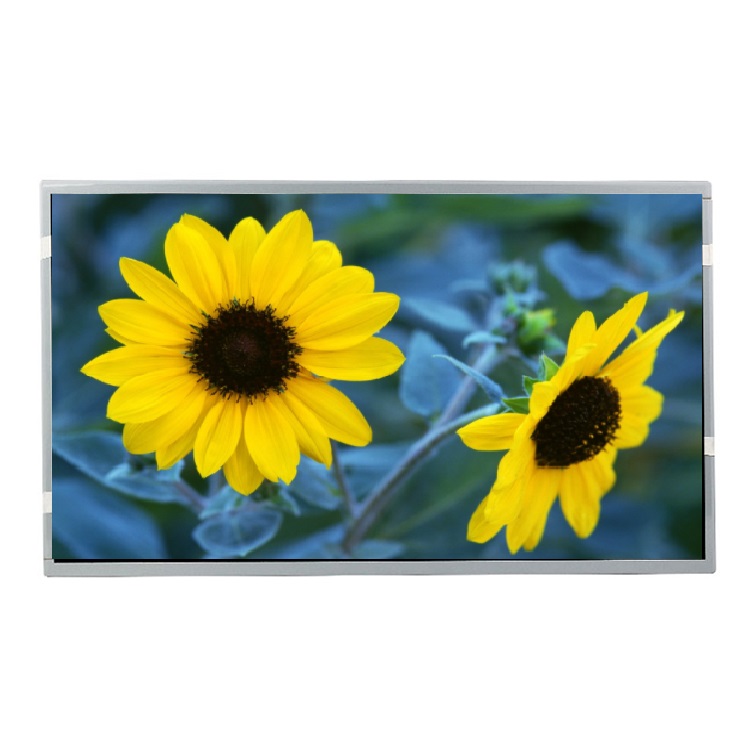

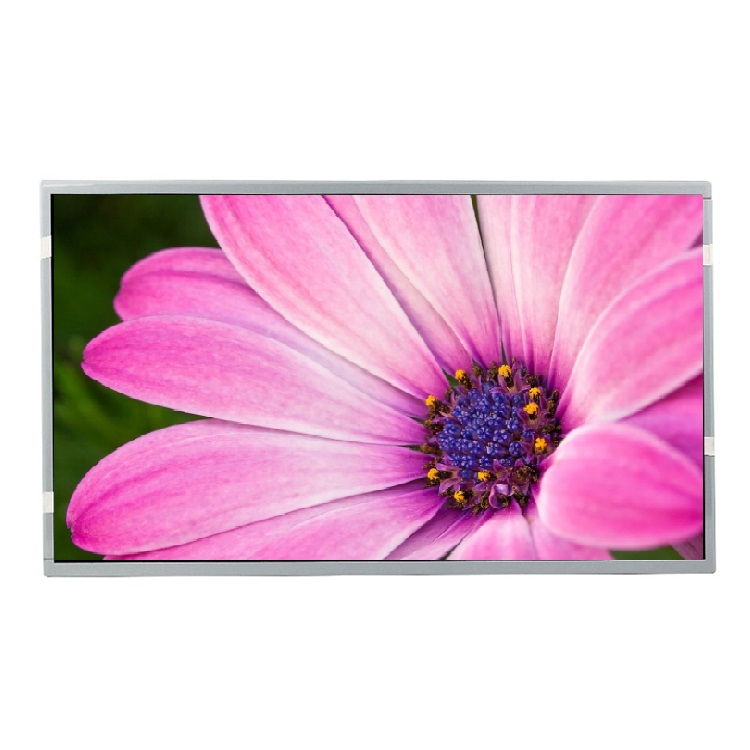

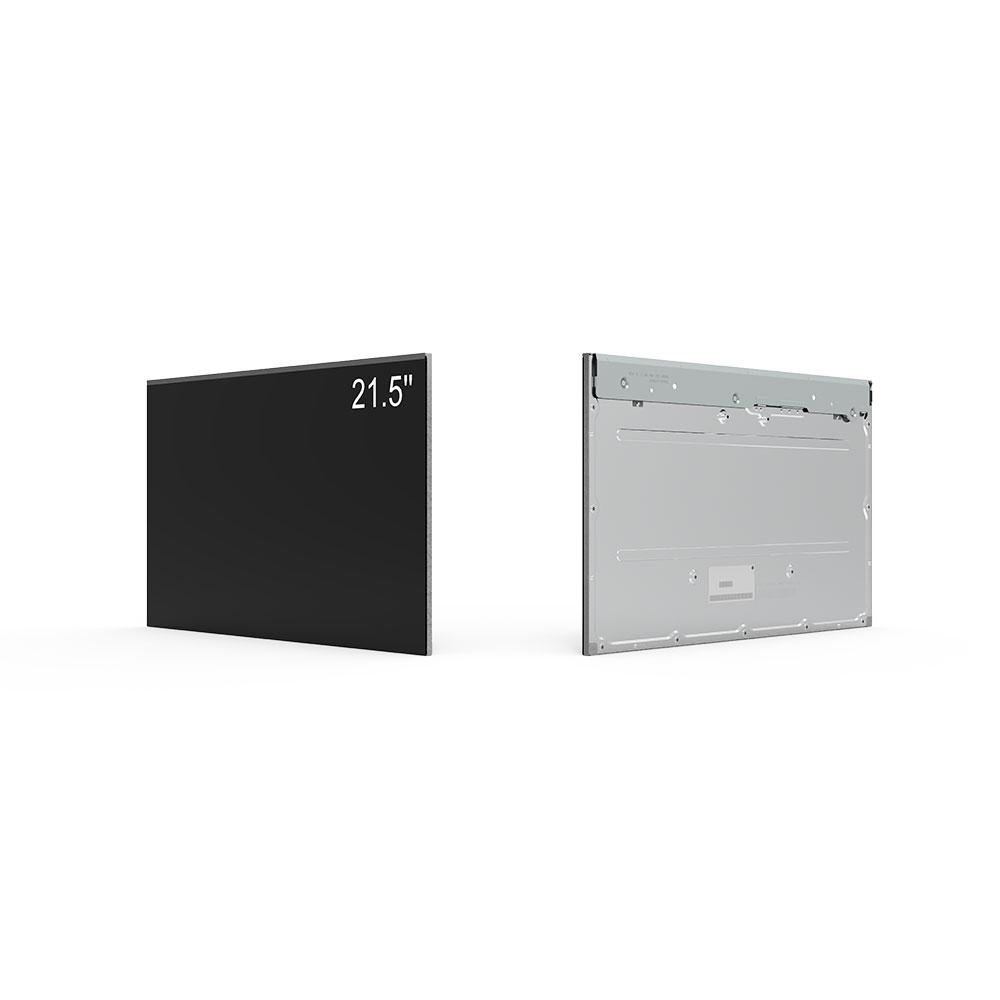

Physical product

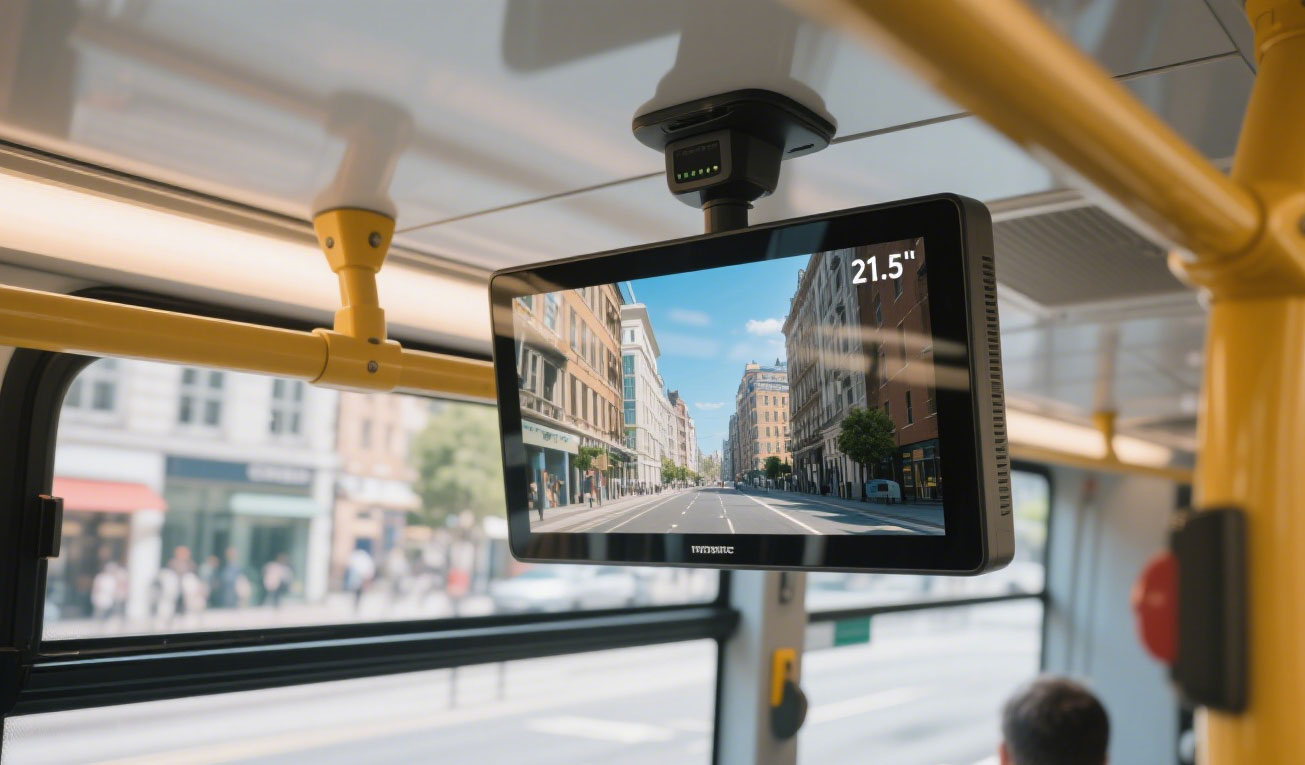

Application examples
Technical parameters
| Factory Item No | RS215ENT-N10 |
| Panel Brand | RisingStar |
| Panel Model | DV215FHM-R10 |
| Size | 21.5 inch |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution: | 1920(RGB)×1080 [FHD] 102PPI |
| Pixel Format | RGB Horizontal Stripe |
| Display Area | 478.66 × 260.28 mm (H×V) |
| Outline Size | 481.1*262.7mm (H×V) |
| Bezel Area | 499*286.2*15.2mm |
| Surface Treatment | Antiglare, Hard coating (3H) |
| Brightness | 1000 to 5000nits |
| Constrast Ratio. | 1000:1 |
| Aspect Ratio: | 16:9 |
| View Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Display Model | ADS, Normally Black, Transmissive |
| Response Time | 14(Typ.)( G to G) |
| Display Color | 16.7B 72% NTSC |
| Backlight | WLED , 50K hours , W/O LED Driver |
| Interface Type | LVDS (2 ch, 8-bit) , 30 pins Connector |
| Panel Weight | 2.0KGS (Typ./Max.) |
| Frame Rate | 60Hz |
| Working Temperature | -20 ~ 70°C |
| Storage Temperature | -20 ~ 70 °C |
The RisingStar 21.5-inch Industrial High-TNi Sunlight Readable LCD Panel is engineered for environments where conventional displays fail. With superior high-brightness backlight technology, advanced optical bonding, and anti-reflection treatment, this panel ensures clear, vivid visibility even under direct sunlight. Designed for industrial applications, it offers outstanding durability, energy efficiency, and customizable options for demanding projects.
Ultra High Brightness: ≥1,500 nits standard (customizable up to 2,500–3,000 nits) for reliable visibility in full daylight.
Excellent Contrast Performance: Enhanced Effective Contrast Ratio (ECR ≥10:1) ensures crisp readability outdoors.
Optical Enhancement: Anti-reflective (AR) / anti-glare (AG) coating with optical bonding for reduced glare and dust protection.
Rugged Design: Wide operating temperature range (-20 °C to +70 °C), IP65-rated protection against water and dust.
Energy Efficient: Industrial-grade low power consumption and optimized heat dissipation.
Customization Ready: Touch options (PCAP, glove-friendly), multiple interfaces (HDMI, LVDS, DisplayPort), mounting choices.
Long Lifetime: Backlight lifespan of 50,000+ hours for extended industrial use.
Panel Size: 21.5″ (diagonal)
Brightness: ≥1,500 nits (custom up to 3,000 nits)
Contrast / ECR: Optimized for sunlight readability
Surface Treatment: AR/AG coating, optical bonding available
Operating Temperature: -20 °C to +70 °C
Ingress Protection: IP65 or higher (on request)
Certifications: CE, RoHS (others optional)
Mounting: VESA / panel integration options
The 21.5″ High-TNi Sunlight Readable Display is ideal for:
Transportation & Passenger Information Systems – railway, metro, and bus station signage.

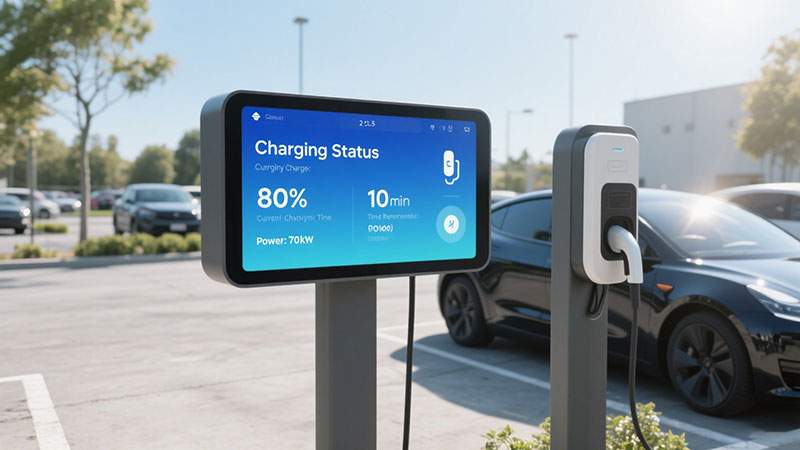

Outdoor Digital Signage – advertising kiosks, real estate displays, EV charging stations.
Industrial & Military Use – oil and gas, marine navigation, rugged outdoor control systems.
Retail & Public Information – storefront windows, interactive kiosks, wayfinding systems.
| Environment | Recommended Brightness | Example Applications |
|---|---|---|
| Indoor bright areas | 1,000–1,500 nits | Shopping malls, retail displays |
| Semi-outdoor / shaded | ~2,000 nits | Bus shelters, transport hubs |
| Direct sunlight | 2,500–3,000 nits | Outdoor billboards, marine & energy sites |
With years of expertise in industrial high brightness LCD manufacturing, RisingStar is trusted by global clients across transportation, energy, retail, and outdoor media sectors. Every panel undergoes strict reliability testing, including thermal shock, vibration, and extended burn-in verification, to ensure stable performance in extreme conditions.
Proven experience in sunlight readable display technology
ISO-certified manufacturing and global industry compliance
Professional R&D and customization support
2-year warranty with lifetime technical support
“Our transit displays remain perfectly visible even in direct sunlight. RisingStar’s panels are the most reliable we have deployed in outdoor environments.” – Transportation Operator, Europe
“After one year in a harsh oilfield installation, the display continues to perform flawlessly. A true industrial-grade solution.” – Energy Equipment Integrator
Experience the performance of RisingStar’s 21.5″ Sunlight Readable LCD Panel in your application. Samples and customized options are available upon request.
📞 Tel/WhatsApp: +86-158-8946-9208
📧 Email: ai@risinglcd.com
| Factory Item No | RS215ENT-N10 |
| Panel Brand | RisingStar |
| Panel Model | DV215FHM-R10 |
| Size | 21.5 inch |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution: | 1920(RGB)×1080 [FHD] 102PPI |
| Pixel Format | RGB Horizontal Stripe |
| Display Area | 478.66 × 260.28 mm (H×V) |
| Outline Size | 481.1*262.7mm (H×V) |
| Bezel Area | 499*286.2*15.2mm |
| Surface Treatment | Antiglare, Hard coating (3H) |
| Brightness | 1000 to 5000nits |
| Constrast Ratio. | 1000:1 |
| Aspect Ratio: | 16:9 |
| View Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Display Model | ADS, Normally Black, Transmissive |
| Response Time | 14(Typ.)( G to G) |
| Display Color | 16.7B 72% NTSC |
| Backlight | WLED , 50K hours , W/O LED Driver |
| Interface Type | LVDS (2 ch, 8-bit) , 30 pins Connector |
| Panel Weight | 2.0KGS (Typ./Max.) |
| Frame Rate | 60Hz |
| Working Temperature | -20 ~ 70° |
| Storage Temperature | -20 ~ 70 °C |
