32 inch 1500 nits industrial outdoor high brightness LCD module
OEM / ODM Manufacturer
Factory Direct
Order & Lead Time
Need 50+ units? for framework agreements.
Global Shipping Options
Samples ship in ~10 working days; Bulk orders in 15-25 working days.
- Express: DHL/FedEx door-to-door delivery (5-7 days)
- Sea Freight: Cost-optimized bulk shipping (30-45 days)
- Rush Orders: Available upon request for urgent projects
1-3 Year Standard Warranty
3 years for Display Units and 1 year for LCD modules. Extendable to 5 years. Includes 24/7 support, remote troubleshooting, and long-term spare parts availability.
All products are manufactured in our ISO 9001-certified facility.
CE, FCC, RoHS Certified
32-Inch 1500 nits Industrial Outdoor High Brightness LCD Module
Product Overview
The RisingStar 32-inch industrial-grade high brightness LCD module delivers 1500 nits of luminance, ensuring excellent sunlight readability in outdoor and high-ambient-light environments. Designed with an advanced direct-lit LED backlight and industrial-grade components, this display achieves long-term stability, low power consumption, and extended lifespan of up to 50,000 hours. Its ultra-thin aluminum housing provides efficient heat dissipation, while the rugged design guarantees reliable performance in harsh environments, from high temperatures to humidity and dust exposure.
This model is purpose-built for system integrators, solution providers, and distributors who require a balance of brightness, durability, and energy efficiency in mission-critical applications.

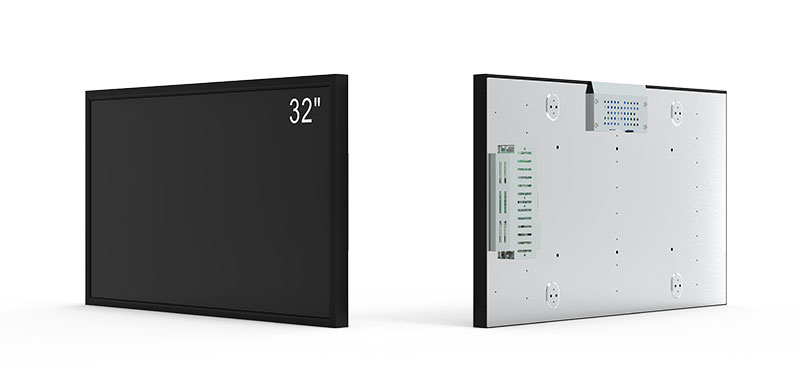

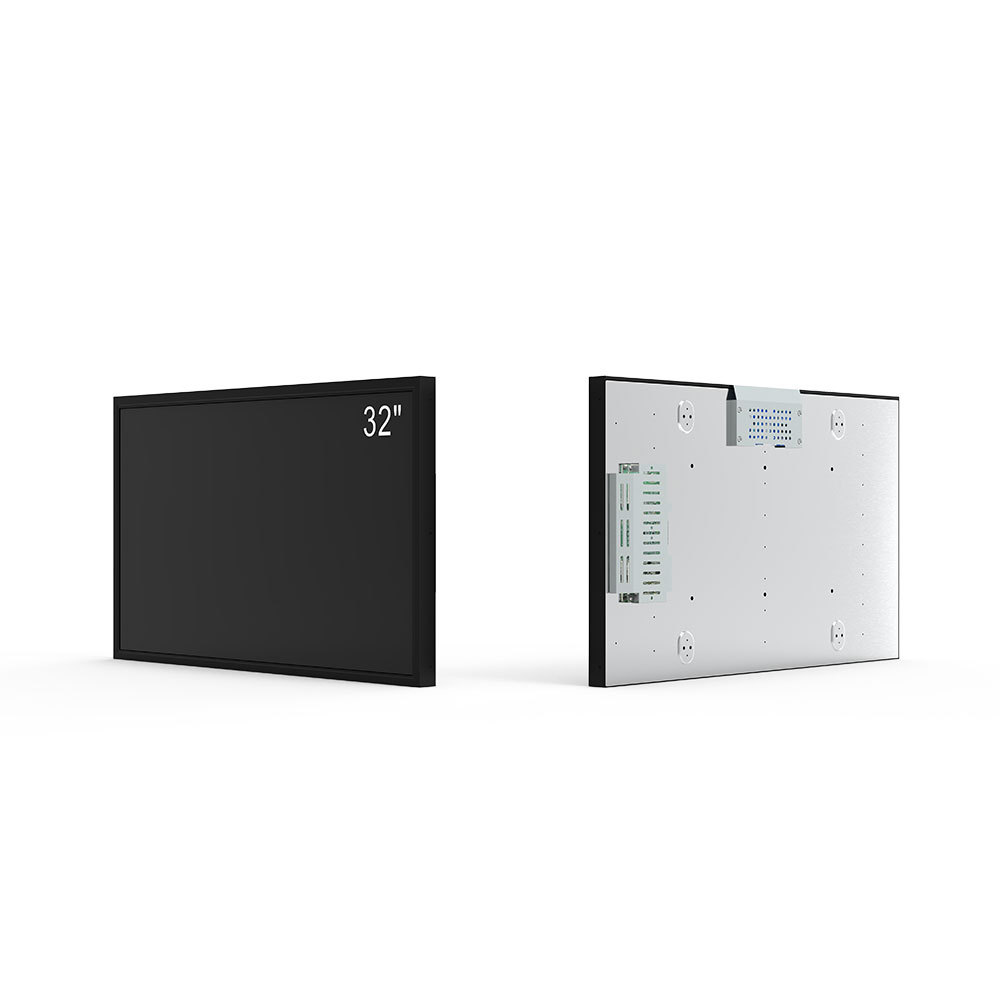

Product examples

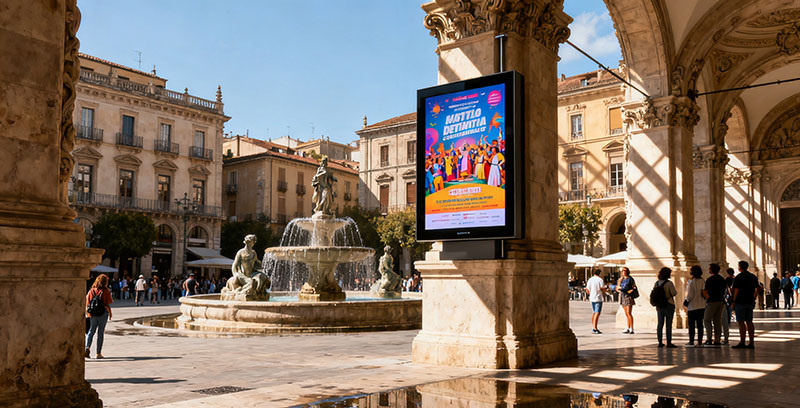

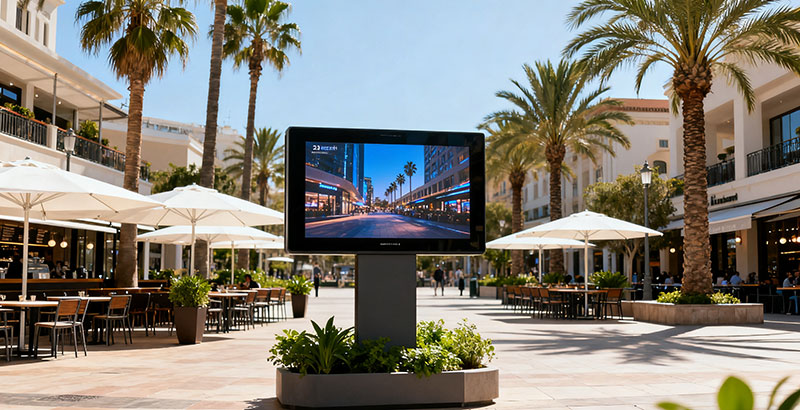

Application cases
Key Features & Benefits
Ultra High Brightness (1500 nits) – Ensures clear visibility even under direct sunlight.
Full HD Resolution (1920 × 1080) – Sharp image quality for text, video, and dynamic content.
Wide Viewing Angles (89/89/89/89) – Consistent readability across different angles.
Industrial Durability – Engineered for 24/7 continuous operation with tested thermal stability.
Energy-Efficient LED Backlight – Reduces power consumption while maintaining brightness.
Customizable Options – Supports tailored brightness levels, touch integration, or protective glass.
Extended Lifespan – 50,000+ hours operating life minimizes maintenance and replacement costs.
Lightweight Aluminum Structure – Easy for integration into kiosks, enclosures, and signage housings.
Applications
This 32-inch sunlight readable LCD is optimized for:
Passenger Information Displays in railway stations, airports, and metro systems.
EV Charging Kiosks & Fuel Dispensers requiring outdoor visibility and robust performance.
Outdoor Digital Signage & Retail Displays for advertising in high-traffic environments.
Industrial Control Terminals exposed to sunlight and variable temperature ranges.
Marine & Navigation Systems where reliability and brightness are essential.
32.0" a-Si TFT-LCD Module Specifications
| Category | Specification |
|---|---|
| Panel Size | 32.0 inch |
| Panel Type | a-Si TFT-LCD Module |
| Resolution | 3840 (RGB) × 2160, UHD, 139 PPI |
| Pixel Arrangement | RGB Vertical Stripe |
| Active Area | 698.4 (W) × 392.85 (H) mm |
| Viewing Area | 703.4 (W) × 397.85 (H) mm |
| Surface Treatment | Matte (Haze 25%), Hard Coating (3H) |
| Brightness | 500 – 5000 nits |
| Contrast Ratio | 3000:1 (Typ., Transmissive) |
| Viewing Angle (CR≥10) | 89/89/89/89 (L/R/U/D, Typ.) |
| Recommended Viewing | All Viewing Directions |
| Response Time | 9.5 ms (Typ., G to G) |
| Display Mode | MVA, Normally Black, Transmissive |
| Panel Technologies | IPS Hard Screen: AAS, ADS, AHVA, FFS, HFS, HIS, IPS, New Mode2, PLS, SFT, Vistarich VA Soft Screen: ASV, FSA, HVA, MVA, PVA, SVA, UV²A, VA |
| Supported Colors | 1.07B, 98% DCI-P3 |
| Backlight Type | WLED [4 strings], 30,000 hrs, No Driver |
| Weight | 3.46 ± 0.18 kg |
| Frame Frequency | 60 Hz 120 Hz (60 Hz input): Built-in MEMC 120 Hz + 120 Hz: 120 Hz Panel + 120 Hz Backlight 240 Hz (60 Hz input): Built-in MEMC |
| Touch Function | None |
| Signal Interface | V-by-One, 8 lanes, 51 pins, Terminal |
| Power Supply Voltage | 12.0 V (Typ.) |
| Operating Temperature | -20 ~ 70 °C |
| Storage Temperature | -30 ~ 80 °C |
| Application | Computer Monitor |
Certifications & Quality Assurance
To guarantee safety, compliance, and reliability, the 32-inch LCD module meets international standards:
CE / FCC / RoHS Compliant
ISO 9001:2015 Certified Production
Environmental & durability tests for temperature, UV resistance, and humidity
Optional IP-rated integration support for waterproof/dustproof applications
Each display is tested under extreme lighting and temperature simulations to ensure consistent readability and performance.
Why Choose RisingStar?
20+ Years of Expertise in industrial and outdoor LCD technology.
Proven track record supplying global integrators and OEMs in transportation, energy, and retail industries.
Custom engineering support for tailored solutions (brightness, housing, interface, or touch options).
Global distribution & technical support network for fast response and after-sales service.
Trusted by leading system integrators and distributors worldwide.
FAQ – For Integrators & Distributors
Q: Can this display operate in direct sunlight for extended periods?
A: Yes. The 1500 nits brightness combined with anti-glare coating ensures visibility in direct sunlight. It has been tested for outdoor conditions including high temperature and UV exposure.
Q: What customization options are available?
A: We offer brightness adjustment, optical bonding, touch screen integration, protective glass, and enclosure compatibility for different applications.
Q: How is heat managed in outdoor environments?
A: The module features an aluminum housing with optimized thermal dissipation. For fully enclosed installations, we recommend pairing with active cooling systems.
Q: What warranty is provided?
A: Standard warranty is 12 months, with extended warranty options available upon request.
Q: Can RisingStar support bulk orders for distributors?
A: Yes. We work closely with distributors and system integrators to provide volume pricing, fast lead times, and technical integration support.
Call to Action
Ready to enhance your outdoor or industrial project with reliable high brightness displays?
📩 Request a Quote Today or contact our engineering team for technical consultation. RisingStar is committed to supporting integrators and distributors with industrial-grade display solutions built for performance and longevity.
32.0" a-Si TFT-LCD Module Specifications
| Category | Specification |
|---|---|
| Panel Size | 32.0 inch |
| Panel Type | a-Si TFT-LCD Module |
| Resolution | 3840 (RGB) × 2160, UHD, 139 PPI |
| Pixel Arrangement | RGB Vertical Stripe |
| Active Area | 698.4 (W) × 392.85 (H) mm |
| Viewing Area | 703.4 (W) × 397.85 (H) mm |
| Surface Treatment | Matte (Haze 25%), Hard Coating (3H) |
| Brightness | 500 – 5000 nits |
| Contrast Ratio | 3000:1 (Typ., Transmissive) |
| Viewing Angle (CR≥10) | 89/89/89/89 (L/R/U/D, Typ.) |
| Recommended Viewing | All Viewing Directions |
| Response Time | 9.5 ms (Typ., G to G) |
| Display Mode | MVA, Normally Black, Transmissive |
| Panel Technologies | IPS Hard Screen: AAS, ADS, AHVA, FFS, HFS, HIS, IPS, New Mode2, PLS, SFT, Vistarich VA Soft Screen: ASV, FSA, HVA, MVA, PVA, SVA, UV²A, VA |
| Supported Colors | 1.07B, 98% DCI-P3 |
| Backlight Type | WLED [4 strings], 30,000 hrs, No Driver |
| Weight | 3.46 ± 0.18 kg |
| Frame Frequency | 60 Hz 120 Hz (60 Hz input): Built-in MEMC 120 Hz + 120 Hz: 120 Hz Panel + 120 Hz Backlight 240 Hz (60 Hz input): Built-in MEMC |
| Touch Function | None |
| Signal Interface | V-by-One, 8 lanes, 51 pins, Terminal |
| Power Supply Voltage | 12.0 V (Typ.) |
| Operating Temperature | -20 ~ 70 °C |
| Storage Temperature | -30 ~ 80 °C |
| Application | Computer Monitor |
01 / Chassis & Materials
Structural integrity for extreme environments.
| Enclosure Grade | Medical and Food grade SUS316L Stainless Steel, AL5052 Aluminum, or SECC Galvanized Steel. |
| Protection Rating | Certified IP65 / IP69K waterproof sealing. Mechanical impact protection rated at IK10. |
| Surface Finish | Industrial powder coating (RAL spectrum), sandblasting, and anti-acid marine painting. |
| Format Architecture | Chassis-mount, Open-frame, Panel-mount, and VESA-integrated configurations. |
03 / Interface & I/O
Industrial signal and power regulation.
| Connectors | Support for M12 Aviation Circular Connectors, DB9/RS232, and waterproof RJ45/USB. |
| Power Regulation | Wide voltage DC 9V - 36V input with integrated surge and polarity protection. |
| Sensor Suite | Integrated ambient light sensors, thermal probes, and custom GPIO control protocols. |
02 / Optical & Display
Visibility optimization for extreme ambient lighting.
| Luminance Output | Scalable 1500 - 5000 Nits with integrated Hi-Tni (110°C) anti-blackening technology. |
| Optical Bonding | Full Vacuum Optical Bonding (OCR) — eliminates air gaps, fogging, and maximizes contrast ratio. |
| Advanced Coating | Integrated AR (Anti-Reflective), AG (Anti-Glare), and AF (Anti-Fingerprint) nano-films. |
04 / Embedded & Data
Software architecture and data sync.
| Operating Systems | Full compatibility with Windows 7, 10/11 IoT; Linux support covering the last 3 generations (Ubuntu 20.04, 22.04, 24.04 LTS) and Debian; as well as comprehensive support for Android 11 through 14. |
| Communication | High-speed 4G/5G LTE modules, Dual-band Wi-Fi 6, and Gigabit Ethernet. |
