RisingLCD can offer a series of stretch TFT LCD bar, with customized backlight, these stretch LCD bar are recommended for digital signage, public transportation, t gaming machine, vending machines, control rooms.

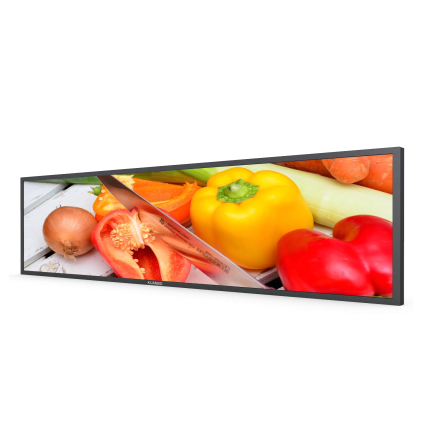

RisingLCD 58.4 inch stretch bar TFT LCD display, high resolution 3840*1080, high contrast ratio 2000:1, Brightness 400 nits; View Area 1428*402mm, Out Dimension 1471*445*55mm, support wall mounted.
58.4 inch stretch TFT LCD bar display Main features:
More sizes are available from 10.1 inch to 86 inch
Unique aspect ratio to catch viewers attention
Brightness can be customized from 400 nits to 3000nits.
Up to 4K UHD resolution
Optional PCAP and IR Multi Touch Screens
Available as enclosed monitors or component parts for integration
Stretch bar TFT LCD display features diverse stretched resolutions, boast an ultra-wide aspect ratio that will easily captivate your audience’s attention and these stretch bar TFT LCD display are perfect for transportation, museum, gaming devices
| Display | |
| Screen Size | 58.4 inch |
| Active Area | 1428*402(mm) |
| Products Outline | 1471*445*55(mm) |
| Screen Type | a-Si TFT-LCD |
| Pixel Number | 3840*1080 |
| Aspect Ratio | 32:9 |
| Brightness | 400 cd/m2 |
| Contrast Ratio | 2000:1 |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Color Depth | 1.07B 68% NTSC |
| Response | 8 (Typ.)(G to G) ms |
| Pixel Pitch | 0.372*0.372(mm) |
| Mainboard） | |
| CPU | MST98A0Q1 |
| Interface | HDMI*3/USB*1/DP/DC |
| Machine | |
| Appearance and Structure | Sheet Metal |
| Color | Black |
| Peripheral | WIFI/Speaker*2 |
| Power supply | AC100~230V |
| Power consumption | ≦60W |
| Operating Temperature | -N410℃~50℃ |
| Storage Temperature | -20℃~60℃ |
| Installation method | Wall hanging |
| 净重(Net weight) | 25Kg |
| Carton size | 1560*400*160 |
| Number of boxes | 1PCS/Corton |
| Carton weight | 28Kg |
Ask a quote for the latest price and one of our team members will respond as soon as possible.
