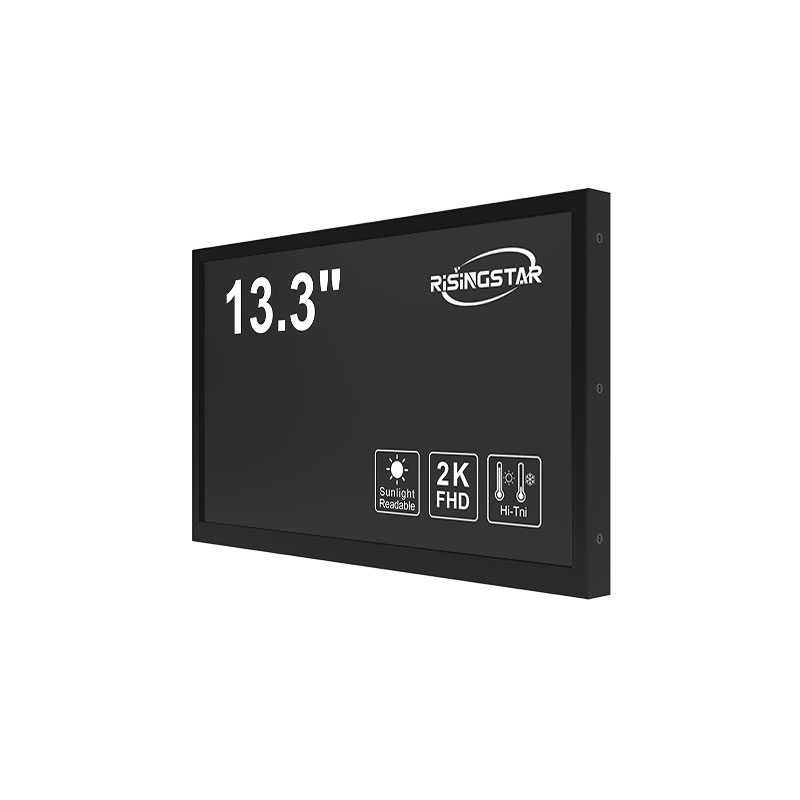

13.3 Inch Open Frame LCD Monitor
OEM / ODM Manufacturer
Factory Direct
Order & Lead Time
Need 50+ units? for framework agreements.
Global Shipping Options
Samples ship in ~10 working days; Bulk orders in 15-25 working days.
- Express: DHL/FedEx door-to-door delivery (5-7 days)
- Sea Freight: Cost-optimized bulk shipping (30-45 days)
- Rush Orders: Available upon request for urgent projects
1-3 Year Standard Warranty
3 years for Display Units and 1 year for LCD modules. Extendable to 5 years. Includes 24/7 support, remote troubleshooting, and long-term spare parts availability.
All products are manufactured in our ISO 9001-certified facility.
CE, FCC, RoHS Certified
Model: RS133FNX01D01-BK
Key Features
High brightness 2000 nits, fully sunlight readable
LED backlight with industrial-grade stability
Ultra-wide viewing angle: 178°(H) / 178°(V)
Wide operating temperature: --20 ~ 70 °C
LCD blacking defect free for harsh-sunlight protection
Low power consumption
BL MTBF: 50,000 hours

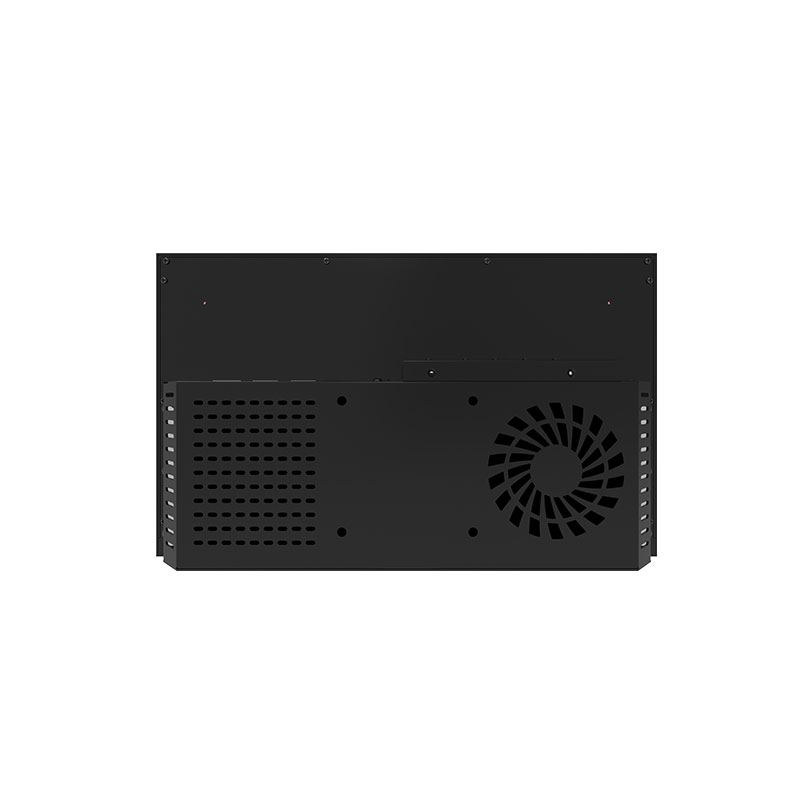

Intelligent temperature control system, active heat dissipation

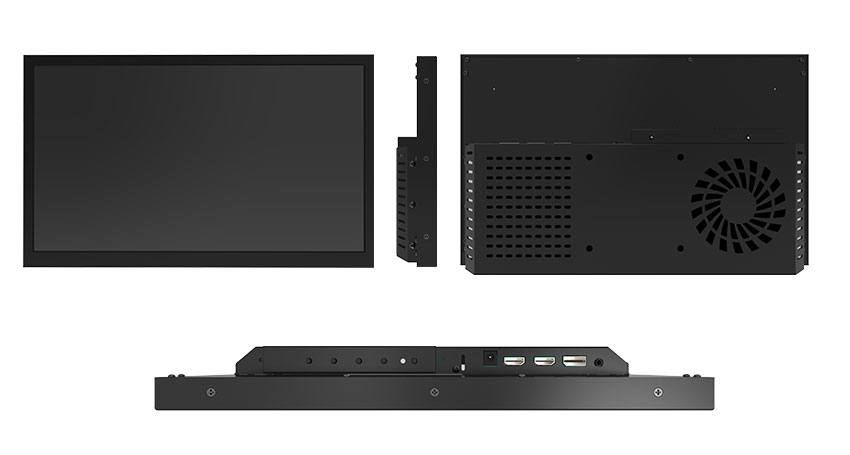

Compact, slim, and durable open-frame structure
Specifications
DLD = Panel + LED Driving Board + AD Control Board + Housing
| Item | Specification |
|---|---|
| Model Name | RS133FNX01D01-BK |
| Screen Size | 13.3" |
| Display Area (mm) | 293.76(H) × 165.24(V) |
| Brightness | 2000 cd/m² |
| Resolution | 3840 × 2160 |
| Aspect Ratio | 16:9 |
| Contrast Ratio | 1800:1 |
| Pixel Pitch (mm) | 0.0765(H) × 0.0765(V) |
| Viewing Angle | 89/89/89/89 (Min.) (CR ≥ 10) |
| Color Saturation (NTSC) | 71% |
| Display Colors | 16.7M |
| Response Time (Tr/Td) | 30 ms (Typical) |

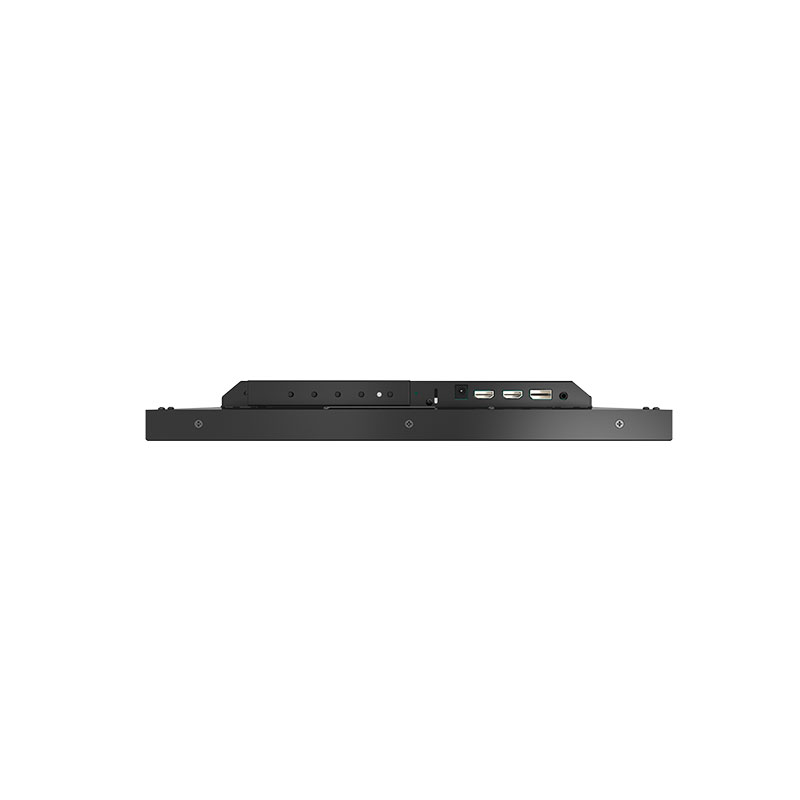

| Input Interface | Earphone Out ×1, HDMI ×2, DP ×1, DC IN ×1 |
| OSD Keys | Power / Menu / Right / Left / Exit / Down / Up |
| Input Power | DC 12V ~ 5A |
| Power Consumption | 22W |
| Radiator System | Automatic heat dissipation |
| Dimensions (mm) | 313 × 189.5 × 40 |
| Mounting | 75 × 75mm, Screws M4 |
| Weight (Net) | TBD |
| Operating Temperature | -20 ~ 70 °C |
| Storage Temperature | -30 ~ 80 °C |
Specifications
DLD = Panel + LED Driving Board + AD Control Board + Housing
| Item | Specification |
|---|---|
| Model Name | RS133FNX01D01-BK |
| Screen Size | 13.3" |
| Display Area (mm) | 293.76(H) × 165.24(V) |
| Brightness | 2000 cd/m² |
| Resolution | 3840 × 2160 |
| Aspect Ratio | 16:9 |
| Contrast Ratio | 1800:1 |
| Pixel Pitch (mm) | 0.0765(H) × 0.0765(V) |
| Viewing Angle | 89/89/89/89 (Min.) (CR ≥ 10) |
| Color Saturation (NTSC) | 71% |
| Display Colors | 16.7M |
| Response Time (Tr/Td) | 30 ms (Typical) |
| Input Interface | Earphone Out ×1, HDMI ×2, DP ×1, DC IN ×1 |
| OSD Keys | Power / Menu / Right / Left / Exit / Down / Up |
| Input Power | DC 12V ~ 5A |
| Power Consumption | 22W |
| Radiator System | Automatic heat dissipation |
| Dimensions (mm) | 313 × 189.5 × 40 |
| Mounting | 75 × 75mm, Screws M4 |
| Weight (Net) | TBD |
| Operating Temperature | -20 ~ 70 °C |
| Storage Temperature | -30 ~ 80 °C |
01 / Chassis & Materials
Structural integrity for extreme environments.
| Enclosure Grade | Medical and Food grade SUS316L Stainless Steel, AL5052 Aluminum, or SECC Galvanized Steel. |
| Protection Rating | Certified IP65 / IP69K waterproof sealing. Mechanical impact protection rated at IK10. |
| Surface Finish | Industrial powder coating (RAL spectrum), sandblasting, and anti-acid marine painting. |
| Format Architecture | Chassis-mount, Open-frame, Panel-mount, and VESA-integrated configurations. |
03 / Interface & I/O
Industrial signal and power regulation.
| Connectors | Support for M12 Aviation Circular Connectors, DB9/RS232, and waterproof RJ45/USB. |
| Power Regulation | Wide voltage DC 9V - 36V input with integrated surge and polarity protection. |
| Sensor Suite | Integrated ambient light sensors, thermal probes, and custom GPIO control protocols. |
02 / Optical & Display
Visibility optimization for extreme ambient lighting.
| Luminance Output | Scalable 1500 - 5000 Nits with integrated Hi-Tni (110°C) anti-blackening technology. |
| Optical Bonding | Full Vacuum Optical Bonding (OCR) — eliminates air gaps, fogging, and maximizes contrast ratio. |
| Advanced Coating | Integrated AR (Anti-Reflective), AG (Anti-Glare), and AF (Anti-Fingerprint) nano-films. |
04 / Embedded & Data
Software architecture and data sync.
| Operating Systems | Full compatibility with Windows 7, 10/11 IoT; Linux support covering the last 3 generations (Ubuntu 20.04, 22.04, 24.04 LTS) and Debian; as well as comprehensive support for Android 11 through 14. |
| Communication | High-speed 4G/5G LTE modules, Dual-band Wi-Fi 6, and Gigabit Ethernet. |
