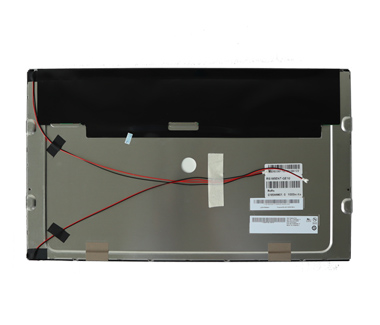

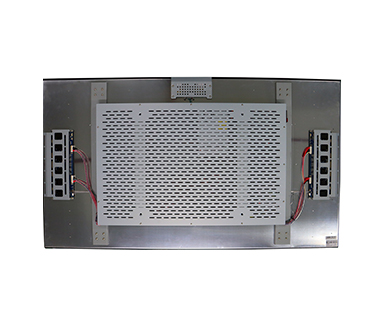

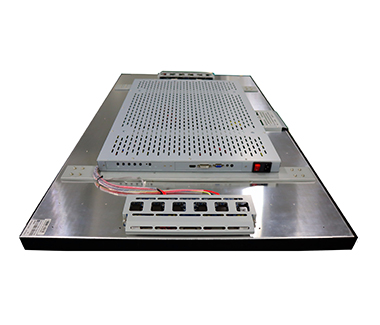

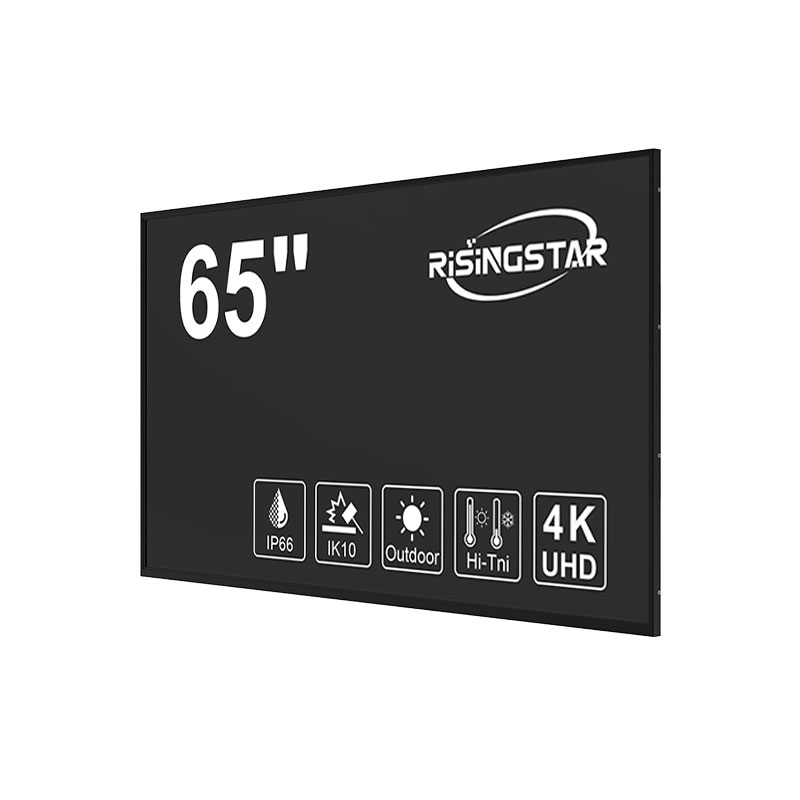

65 inch high brightness open frame TFT LCD monitor
| Brand | RisingStar |
| Model name | RS650FNX01D01 |
| Screen size | 65" |
| Screen type | open frame display |
| Resolution | 3840(RGB)×2160 |
| Brightness (cd/m²) | 1000 to 5000nits |
65" Open Frame Monitor
Key Features
High brightness 2000 nits
Sunlight Readable
LED Backlight
Wide Viewing Angle of 178°(H), 178°(V)
Wide Operating Temperature (-20˚C ~ 60˚C)
LCD Blacking Defect Free
Low Power Consumption
BL MTBF: 50,000 hours
Intelligent temperature control system, active heat dissipation
Specifications
| Item | Description |
|---|---|
| Model Name | RS650FNX01D01 |
| Screen Size | 65" |
| Display Area (mm) | 1428.48(H) × 803.52(V) |
| Brightness | 2000 cd/m² |
| Resolution | 3840 × 2160 |
| Aspect Ratio | 16:9 |
| Contrast Ratio | 1200:1 |
| Pixel Pitch (mm) | 0.372(H) × 0.372(V) |
| Viewing Angle | 89/89/89/89 (Min.)(CR≥10) |
| Color Saturation (NTSC) | 72% |
| Display Colors | 16.7M |
| Response Time | 8 ms (Typ., Tr/Td) |
| Input Interface | USB ×1, HDMI ×2, AC IN ×1 |
| OSD Key | INPUT / MENU / VOL- / VOL+ / CH- / CH+ / POWER / IR Remote Control |
| Glass | N/A |
| Touch Type | N/A |
| Input Power | AC 200–240V |
| Power Consumption | 530W |
| Radiator System | N/A |
| Dimensions (mm) | 1461 × 843.1 × 86 |
| Mounting | N/A |
| Weight (Net) | TBD |
| Operating Temperature | -20 ~ 70 °C |
| Storage Temperature | -30 ~ 80 °C |
Specifications
| Item | Description |
|---|---|
| Model Name | RS650FNX01D01 |
| Screen Size | 65" |
| Display Area (mm) | 1428.48(H) × 803.52(V) |
| Brightness | 2000 cd/m² |
| Resolution | 3840 × 2160 |
| Aspect Ratio | 16:9 |
| Contrast Ratio | 1200:1 |
| Pixel Pitch (mm) | 0.372(H) × 0.372(V) |
| Viewing Angle | 89/89/89/89 (Min.)(CR≥10) |
| Color Saturation (NTSC) | 72% |
| Display Colors | 16.7M |
| Response Time | 8 ms (Typ., Tr/Td) |
| Input Interface | USB ×1, HDMI ×2, AC IN ×1 |
| OSD Key | INPUT / MENU / VOL- / VOL+ / CH- / CH+ / POWER / IR Remote Control |
| Glass | N/A |
| Touch Type | N/A |
| Input Power | AC 200–240V |
| Power Consumption | 530W |
| Radiator System | N/A |
| Dimensions (mm) | 1461 × 843.1 × 86 |
| Mounting | N/A |
| Weight (Net) | TBD |
| Operating Temperature | -20 ~ 70 °C |
| Storage Temperature | -30 ~ 80 °C |
01 / Chassis & Materials
Structural integrity for extreme environments.
Medical and Food grade SUS316L Stainless Steel, AL5052 Aluminum, or SECC Galvanized Steel.
Certified IP65 / IP69K waterproof sealing. Mechanical impact protection rated at IK10.
Industrial powder coating (RAL spectrum), sandblasting, and anti-acid marine painting.
Chassis-mount, Open-frame, Panel-mount, and VESA-integrated configurations.
02 / Optical & Display
Visibility optimization for extreme ambient lighting.

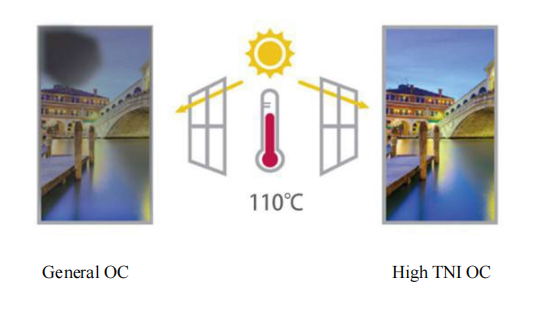

Scalable 1500 - 5000 Nits with integrated Hi-Tni (110掳C) anti-blackening technology.
Full Vacuum Optical Bonding (OCR) - eliminates air gaps, fogging, and maximizes contrast ratio.
Integrated AR (Anti-Reflective), AG (Anti-Glare), and AF (Anti-Fingerprint) nano-films.
03 / Interface & I/O
Industrial signal and power regulation.
Support for M12 Aviation Circular Connectors, DB9/RS232, and waterproof RJ45/USB.
Wide voltage DC 9V - 36V input with integrated surge and polarity protection.
Integrated ambient light sensors, thermal probes, and custom GPIO control protocols.
04 / Embedded & Data
Software architecture and data sync.
Full compatibility with Windows 7, 10/11 IoT; Linux support covering the last 3 generations (Ubuntu 20.04, 22.04, 24.04 LTS) and Debian; as well as comprehensive support for Android 11 through 14.
High-speed 4G/5G LTE modules, Dual-band Wi-Fi 6, and Gigabit Ethernet.
01 / Warranty Policy
Industry-leading protection for your investment.
3 Years Full Warranty for the complete machine assembly.
1 Year Warranty for the original LCD assembly.
Optional extended warranty programs (up to 5 years) available upon request.
02 / Field Support
Expert guidance throughout the product lifecycle.
24/7 technical support and configuration guidance via video link or remote access.
Local on-site installation and maintenance available for large-scale deployments.
03 / Production Timeline
Scalable manufacturing for urgent project schedules.
Verification and custom prototype delivery within 10 Working Days.
Standard bulk order fulfillment in 15 - 25 Working Days.
04 / Global Distribution
Reliable logistics via air, sea, or rail.
Door-to-door global delivery in 5 - 7 Working Days (DHL, FedEx, UPS).
Cost-optimized bulk shipping in 30 - 45 Days for global major ports.
