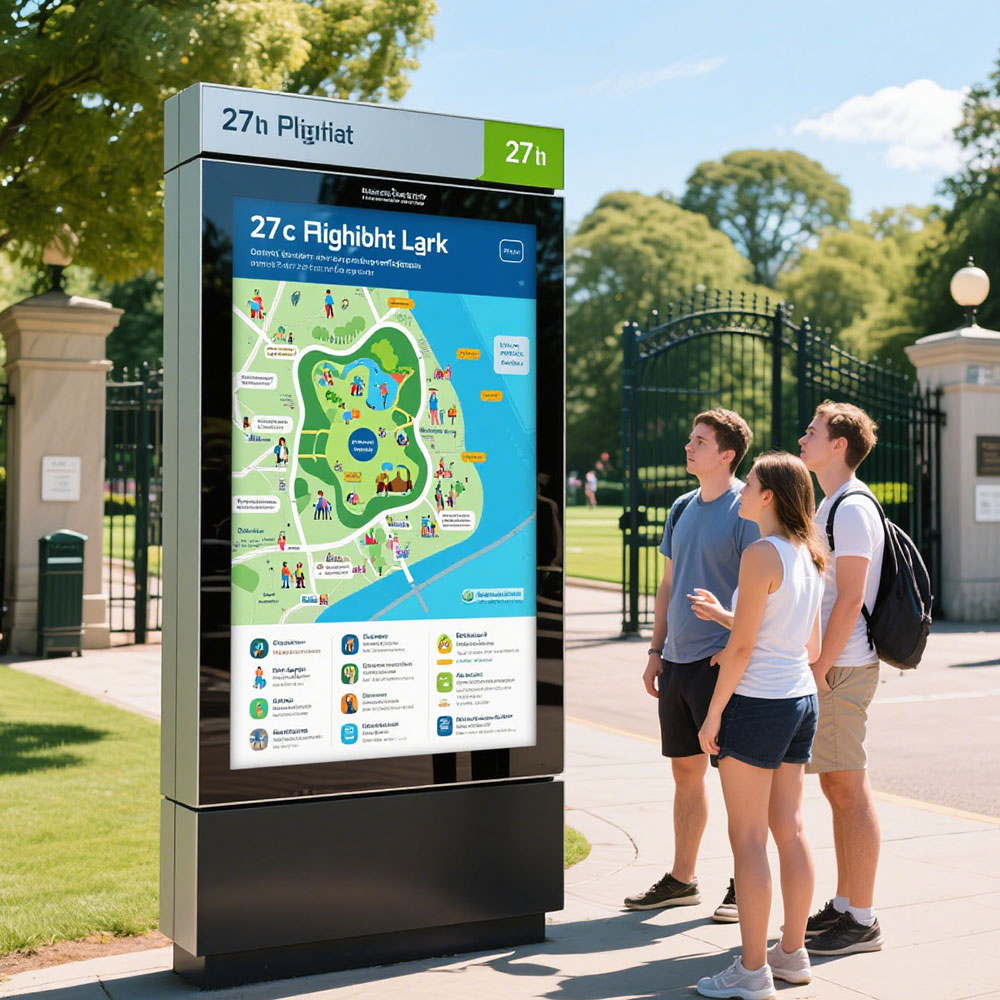

86 inch high brightness passenger information display

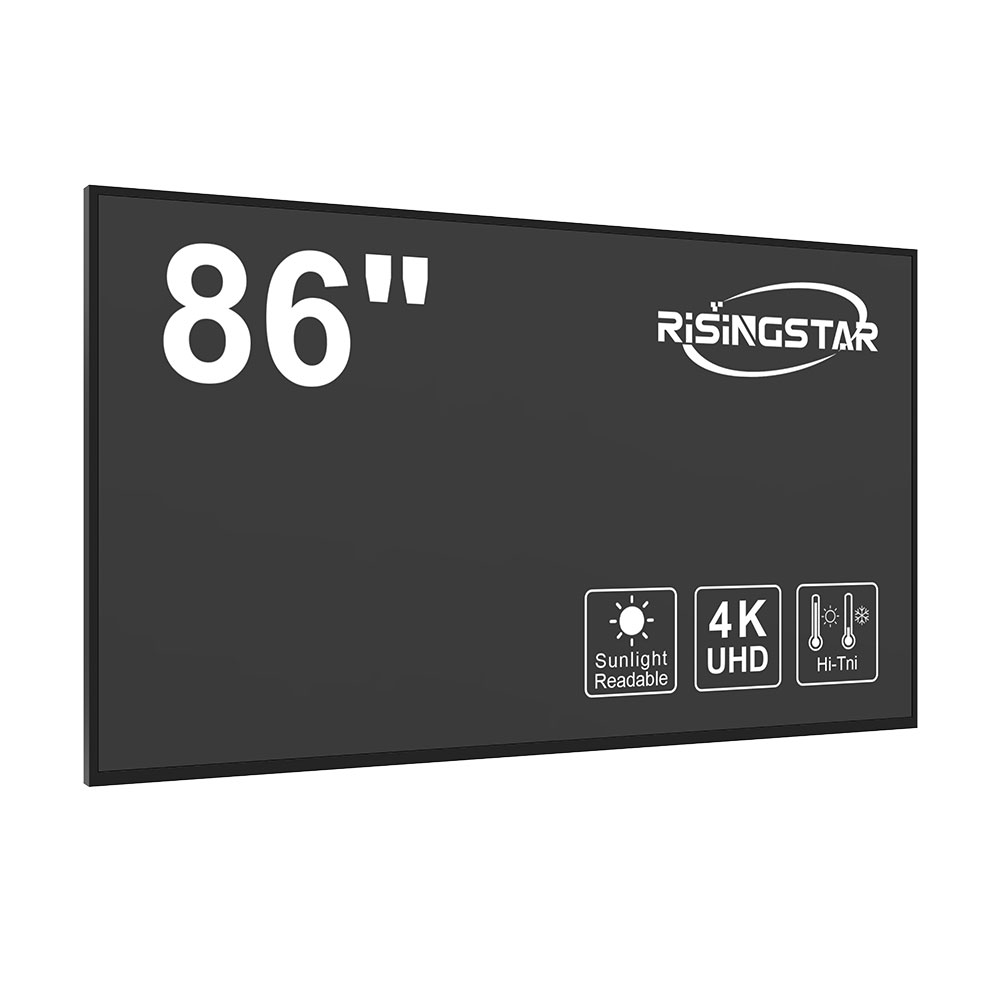

RisingStar® 86 inch RS860FNX01D01 sunlight readable display. 5000 nits high brightness, 1920(RGB)×1080 resolution, Hi-Tni solar-resilient for 24/7 outdoor use.
OEM / ODM Manufacturer
Factory Direct
Order & Lead Time
Sample Order
1 Unit MOQ
Bulk Order
10+ Units
Tiered Discounts
Need 50+ units? for framework agreements.
Global Shipping Options
Samples ship in ~10 working days; Bulk orders in 15-25 working days.
- Express: DHL/FedEx door-to-door delivery (5-7 days)
- Sea Freight: Cost-optimized bulk shipping (30-45 days)
- Rush Orders: Available upon request for urgent projects
1-3 Year Standard Warranty
3 years for Display Units and 1 year for LCD modules. Extendable to 5 years. Includes 24/7 support, remote troubleshooting, and long-term spare parts availability.
All products are manufactured in our ISO 9001-certified facility.
CE, FCC, RoHS Certified

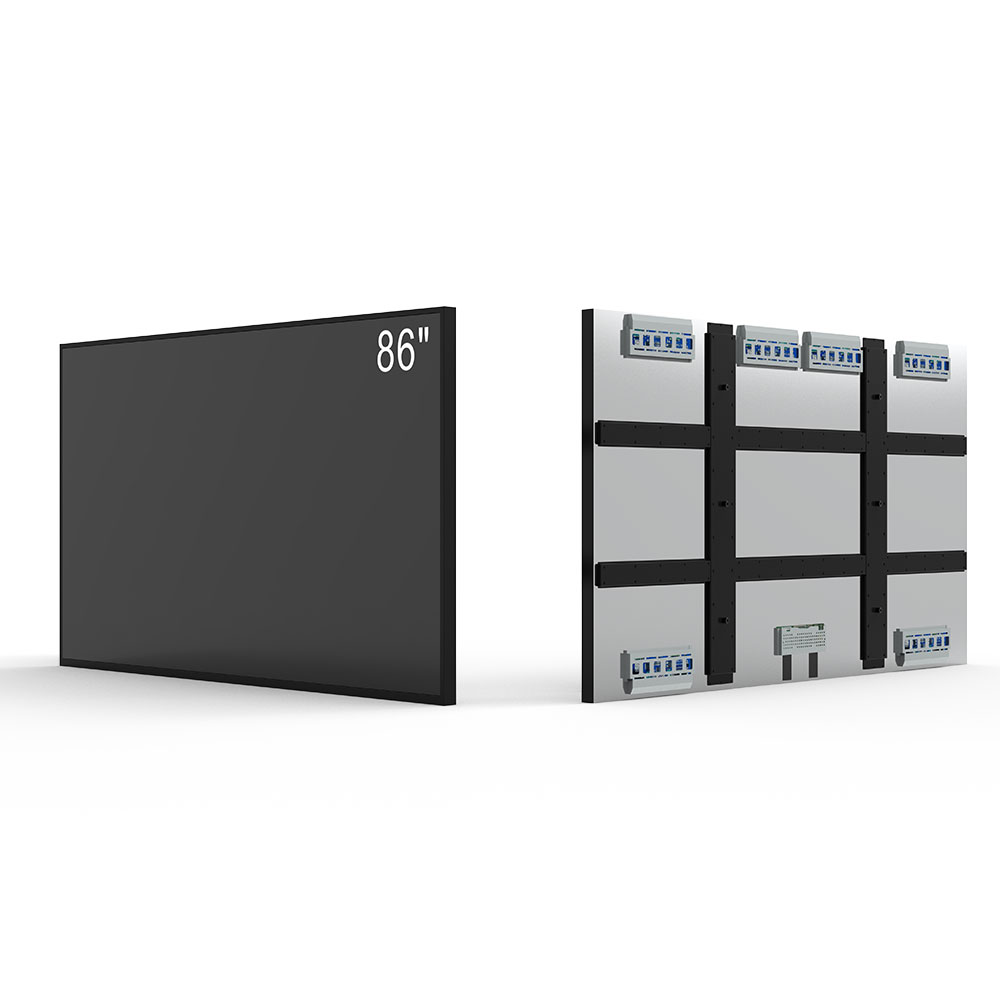

86" Open Frame Monitor
Key Features
High brightness 500 nits
LED Backlight
Wide Viewing Angle of 178°(H), 178°(V)
Wide Operation Temperature (0˚C ~ 50˚C)
LCD Blacking Defect Free
Low Power Consumption
BL MTBF: up to 50,000 hoursours
Specifications
| Item | Description |
|---|---|
| Model Name | RS860FNX01D01 |
| Screen Size | 86" |
| Display Area (mm) | 1895.04(H) × 1065.96(V) |
| Brightness | 500 cd/m² |
| Resolution | 3480 × 2160 |
| Aspect Ratio | 16:9 |
| Contrast Ratio | 1000:1 |
| Pixel Pitch (mm) | 0.4935(H) × 0.4935(V) |
| Viewing Angle | 89/89/89/89 (Min.) (CR ≥ 10) |
| Color Saturation (NTSC) | 68% |
| Display Colors | 16.7M |
| Response Time (Typical) | 8 ms (Tr/Td) |
| Input Interface | USB ×1 / HDMI ×2 / AC IN ×1 |
| OSD Key | INPUT / MENU / VOL− / VOL+ / CH− / CH+ / POWER / IR Remote Control |
| Glass | N/A |
| Touch Type | N/A |
| Input Power | AC 200–240V |
| Power Consumption | TBD |
| Radiator System | N/A |
| Dimensions (mm) | 1930.04 × 1110.96 × 75.5 |
| Mounting | N/A |
| Weight (Net) | TBD |
| Operating Temperature | -20 ~ 70 °C |
| Storage Temperature | -30 ~ 80 °C |
| Item | Description |
|---|---|
| Model Name | RS860FNX01D01 |
| Screen Size | 86" |
| Display Area (mm) | 1895.04(H) × 1065.96(V) |
| Brightness | 5000 cd/m² |
| Resolution | 3480 × 2160 |
| Aspect Ratio | 16:9 |
| Contrast Ratio | 1000:1 |
| Pixel Pitch (mm) | 0.4935(H) × 0.4935(V) |
| Viewing Angle | 89/89/89/89 (Min.) (CR ≥ 10) |
| Color Saturation (NTSC) | 68% |
| Display Colors | 16.7M |
| Response Time (Typical) | 8 ms (Tr/Td) |
| Input Interface | USB ×1 / HDMI ×2 / AC IN ×1 |
| OSD Key | INPUT / MENU / VOL− / VOL+ / CH− / CH+ / POWER / IR Remote Control |
| Glass | N/A |
| Touch Type | N/A |
| Input Power | AC 200–240V |
| Power Consumption | TBD |
| Radiator System | N/A |
| Dimensions (mm) | 1930.04 × 1110.96 × 75.5 |
| Mounting | N/A |
| Weight (Net) | TBD |
| Operating Temperature | -20 ~ 70 °C |
| Storage Temperature | -30 ~ 80 °C |
RS860FNX01D01
86 inch high brightness display
86 inch sunlight readable LCD
High brightness display
Sunlight readable display
Outdoor waterproof display
01 / Chassis & Materials
Structural integrity for extreme environments.
| Enclosure Grade | Medical and Food grade SUS316L Stainless Steel, AL5052 Aluminum, or SECC Galvanized Steel. |
| Protection Rating | Certified IP65 / IP69K waterproof sealing. Mechanical impact protection rated at IK10. |
| Surface Finish | Industrial powder coating (RAL spectrum), sandblasting, and anti-acid marine painting. |
| Format Architecture | Chassis-mount, Open-frame, Panel-mount, and VESA-integrated configurations. |
03 / Interface & I/O
Industrial signal and power regulation.
| Connectors | Support for M12 Aviation Circular Connectors, DB9/RS232, and waterproof RJ45/USB. |
| Power Regulation | Wide voltage DC 9V - 36V input with integrated surge and polarity protection. |
| Sensor Suite | Integrated ambient light sensors, thermal probes, and custom GPIO control protocols. |
02 / Optical & Display
Visibility optimization for extreme ambient lighting.
| Luminance Output | Scalable 1500 - 5000 Nits with integrated Hi-Tni (110°C) anti-blackening technology. |
| Optical Bonding | Full Vacuum Optical Bonding (OCR) — eliminates air gaps, fogging, and maximizes contrast ratio. |
| Advanced Coating | Integrated AR (Anti-Reflective), AG (Anti-Glare), and AF (Anti-Fingerprint) nano-films. |
04 / Embedded & Data
Software architecture and data sync.
| Operating Systems | Full compatibility with Windows 7, 10/11 IoT; Linux support covering the last 3 generations (Ubuntu 20.04, 22.04, 24.04 LTS) and Debian; as well as comprehensive support for Android 11 through 14. |
| Communication | High-speed 4G/5G LTE modules, Dual-band Wi-Fi 6, and Gigabit Ethernet. |
