Specification
| Specification | Description |
|---|---|
| Panel Size | 98 inches |
| Panel Type | a-Si TFT-LCD, Module |
| Resolution | 3840(RGB) × 2160, UHD, 45 PPI |
| Pixel Layout | RGB vertical stripe |
| Active Area | 2158.85 mm (W) × 1214.35 mm (H) |
| Opening Size | - |
| Surface Treatment | Anti-glare (Haze 25%) |
| Brightness | 500 ~ 5000 NITS (Typ.) |
| Contrast Ratio | 1200:1 (Typ.) |
| Viewing Angle | 89°/89°/89°/89° (L/R/U/D, Typ., CR≥10) |
| Viewing Direction | Full angle |
| Response Time | 8 ms (Typ., G-to-G) |
| Display Colors | 1.07B colors, 74% NTSC |
| Backlight | WLED, 50,000 hrs, with LED driver |
| Operating Frequency | 60Hz (with MEMC: 120Hz input → 120Hz panel/backlight; 240Hz possible with 60Hz input) |
| Panel Weight | 61.0 kg (Typ.) |
| Applications | Digital signage |
| Signal Interface | V-by-One 8 lane, 51 pins |
| Drive Voltage | 12.0V (Typ.) |
| Operating Environment | Operation: -20 ~ 70 °C; Storage: -20 ~ 60 °C |

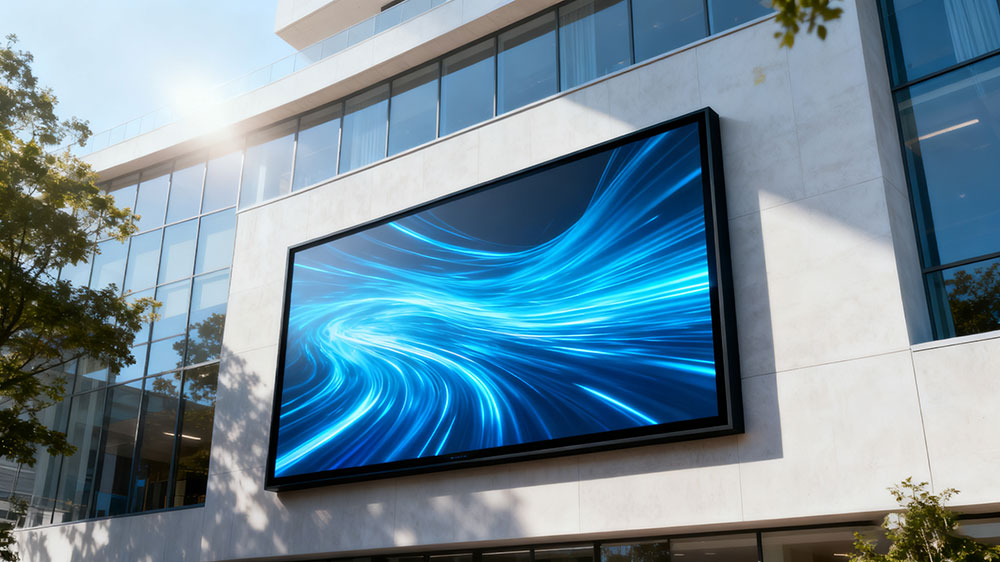

This 98-inch a-Si TFT-LCD panel is designed for high-brightness digital signage applications, suitable for indoor and outdoor use due to its wide operating temperature and high luminance range. The panel features full viewing angles, fast response time, and a large 1.07 billion color gamut, making it ideal for advertising displays, information boards, transportation terminals, and public spaces. The V-by-One interface supports high-speed video transmission, and the integrated WLED backlight ensures a long lifespan of 50,000 hours. Its industrial-grade design and anti-glare coating make it practical for high-traffic areas under varying lighting conditions.
Specification
| Specification | Description |
|---|---|
| Panel Size | 98 inches |
| Panel Type | a-Si TFT-LCD, Module |
| Resolution | 3840(RGB) × 2160, UHD, 45 PPI |
| Pixel Layout | RGB vertical stripe |
| Active Area | 2158.85 mm (W) × 1214.35 mm (H) |
| Opening Size | - |
| Surface Treatment | Anti-glare (Haze 25%) |
| Brightness | 500 ~ 5000 NITS (Typ.) |
| Contrast Ratio | 1200:1 (Typ.) |
| Viewing Angle | 89°/89°/89°/89° (L/R/U/D, Typ., CR≥10) |
| Viewing Direction | Full angle |
| Response Time | 8 ms (Typ., G-to-G) |
| Display Colors | 1.07B colors, 74% NTSC |
| Backlight | WLED, 50,000 hrs, with LED driver |
| Operating Frequency | 60Hz (with MEMC: 120Hz input → 120Hz panel/backlight; 240Hz possible with 60Hz input) |
| Panel Weight | 61.0 kg (Typ.) |
| Applications | Digital signage |
| Signal Interface | V-by-One 8 lane, 51 pins |
| Drive Voltage | 12.0V (Typ.) |
| Operating Environment | Operation: -20 ~ 70 °C; Storage: -20 ~ 60 °C |
