Specifications

Items

  Specification

  Note

Panel Brand

RisingStar


Diagonal Size

21.5"


Panel Type

a-Si TFT-Module


Resolution

1920(RGB)×1080   102PPI


Pixel Format

    RGB Vertical Stripe


Display Area

   476.64×268.11mm (H×V)


Outline Size

495.6×292.2×7.2mm (H×V×D)


Surface

Antiglare (Haze 1%), Hard coating (2H).


Brightness500 nits standard, up to 2000 nits optional

Contrast Ratio

1400:1


waterproof level

   /


Protection level

   /


Support Color

1.67B   100% NTSC


Viewing Angle

    89/89/89/89 (Min.)(CR≥10)


Display Mode

IPS, Normally Black, Transmissive .


Response Time

5 (Typ.)(G to G); 8 (Typ.)(MPRT).


Lamp Type

WLED, 50K hours, With LED Driver


Frequency

    60Hz


Panel Weight

1.67Kgs (Typ./Max.)


Application

Outdoor digital signage


Signal Interface

LVDS


Input Voltage

24V ,110 to 260V (Typ.).


Operating Temperature

-20~70 °C

Storage Temperature

-30~80 °C

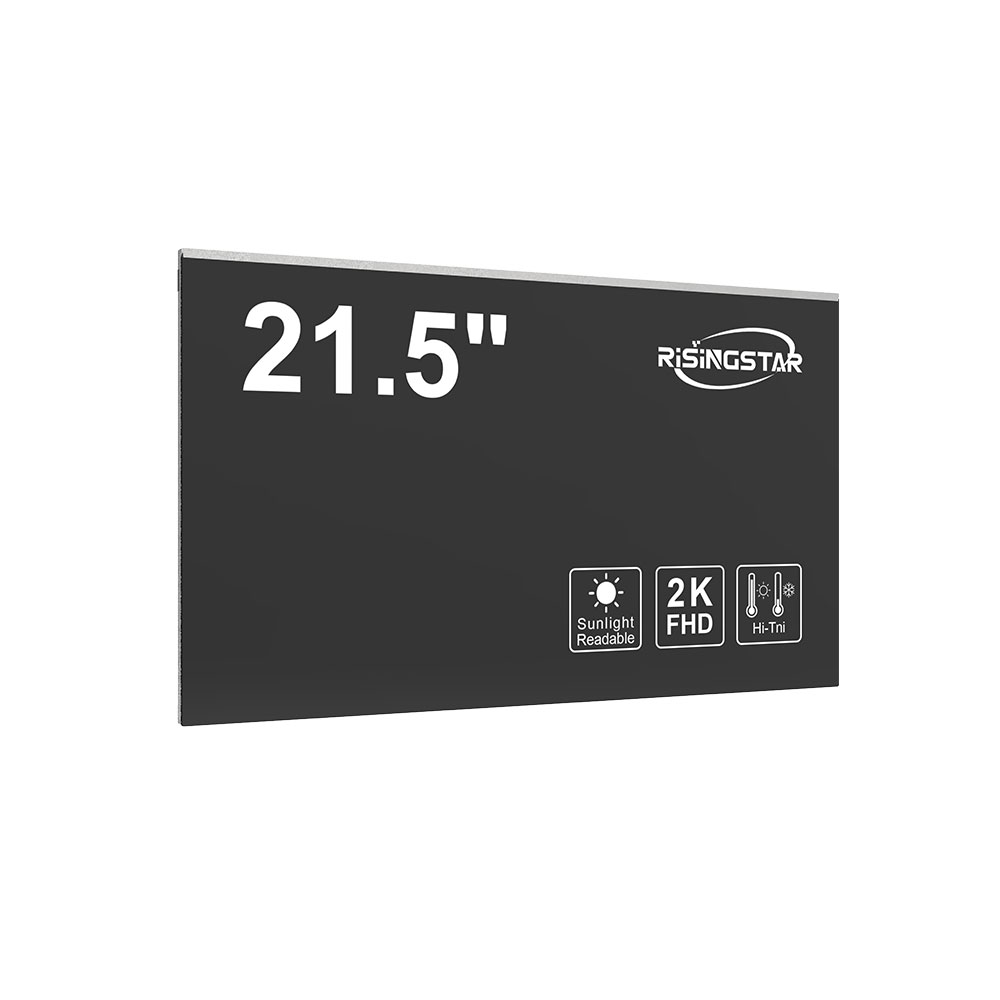

RS215NET-N00 is a 21.5-inch LCD display with 500 nits brightness, 1920×1080 resolution and 1400:1 contrast ratio. Its operating temperature range is -20 °C to 70 °C.

21.5 inch LCD module, 16:9 1920*1080 500 to 2000 nits 60 Hz Screen drive voltage: 5v, Backlight drive voltage: 12v, Signal interface: LVDS, full viewing angle

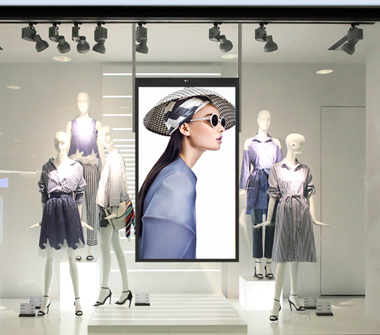

Application areas: outdoor monitors, outdoor advertising screens, bus station information screens, open monitors, mirror monitors, waterproof monitors, waterproof TVs.

Functions and features:

1. Sunlight readable, 500 to 2000 nits.

2. Brightness adjustment method: automatic adjustment, manual adjustment, pwm adjustment.

3. The backlight structure adopts double-sided LED light source, the heat is lower, and the product is more stable.

4. The backlight driver adopts dual output voltage to be more stable

5. The backlight adopts 3M brightness enhancement technology, and the brightness is increased by 40% under the same power consumption.

6. The annual shipment of the same product is more than 100,000 units, which has been verified by the market.

#89

Product FAQs

  • It is rated at 500 nits (cd/m²) brightness.

  • It uses a 21.5-inch panel, 1920×1080 resolution, 1400:1 contrast ratio.

  • The operating temperature range is -20 °C to 70 °C.

  • Yes. RisingStar is an OEM/ODM manufacturer and accepts customization requirements for volume orders; contact the sales team with your target specification.

  • It adopts LVDS interface.

  • The power input requirement is 24V, 110 to 260V (Typ.)..

  • The viewing angle is 89/89/89/89 (Min.)(CR≥10).

  • The panel surface treatment is Antiglare (Haze 1%), Hard coating (2H)..

  • It uses a-Si TFT-Module.
