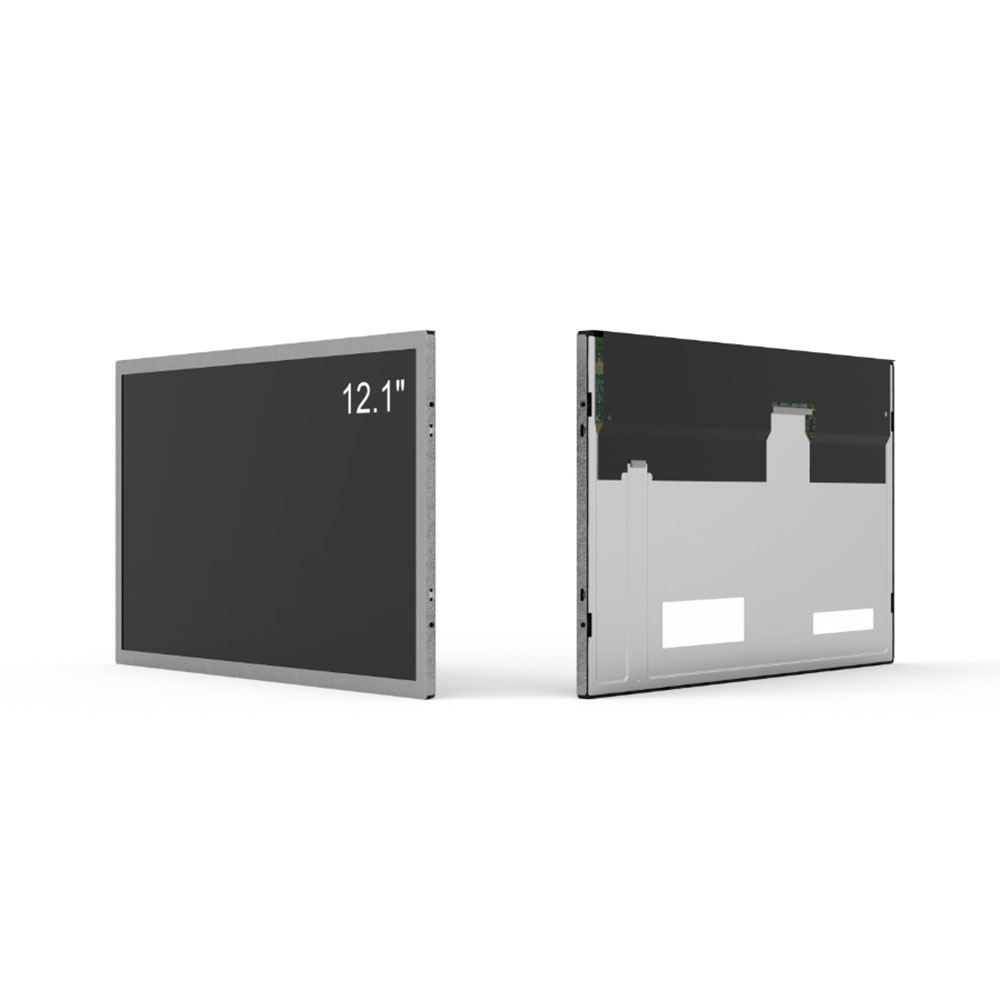

1500 nits 12.1 inch high brightness TFT LCD module

The RS121ICE-GE15 represents the pinnacle of RisingStar''s 12.1-inch industrial display lineup. Part of the ICE (Industrial Climate Endurance) series, this 1500-nit ultra-bright LCD module is engineered for the harshest outdoor environments—mining operations, desert solar farms, offshore platforms, and heavy construction machinery—where standard displays fail within weeks.

Unlike consumer-grade panels that black out under solar radiation, the RS121ICE-GE15 uses Hi-Tni high-temperature liquid crystal to maintain image integrity at cell temperatures exceeding 110°C. Combined with a reinforced thermal management architecture and a 50,000-hour industrial backlight, this module delivers years of uninterrupted 24/7 operation in conditions that would destroy standard equipment.

Key Features

• 1500 nits Maximum Luminance: Visible under direct tropical sun, noon desert glare, and reflective snow conditions.
• ICE Wide-Temperature Architecture: Operational from -20°C to 70°C ambient, with Hi-Tni liquid crystal rated to 110°C cell temperature.
• 1280×800 WXGA IPS Panel: Wide-viewing-angle IPS technology with 1000:1 contrast and 16.7M colors for critical data visualization.
• Industrial-Grade WLED Backlight: Custom-designed for uniform luminance across the full active area with minimal degradation over time.
• Standard LVDS Interface: Compatible with industrial embedded systems, simplifying integration into existing control architectures.
• Vibration & Shock Resistant: Solid-state WLED architecture inherently more durable than CCFL designs for heavy machinery applications.

Extreme Environment Applications

• Mining & Quarrying Equipment: Operator displays on excavators, haul trucks, and drilling rigs exposed to dust, vibration, and direct sun.
• Desert & Tropical Kiosks: Unshaded outdoor terminals in extreme-heat climates where internal enclosure temperatures regularly exceed 60°C.
• Offshore & Marine Platforms: Bridge displays and deck-mounted monitors requiring salt-spray resistance and wide-angle readability.
• Heavy Construction Machinery: Cranes, bulldozers, and agricultural equipment operating in full sun with no cabin climate control.

Built for the Long Haul

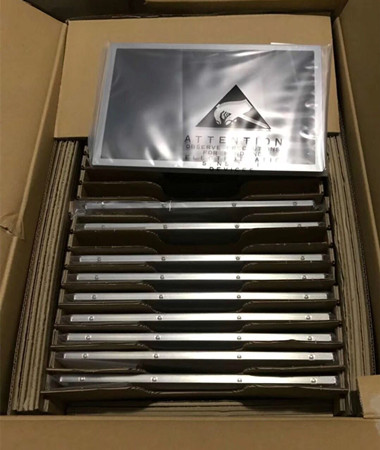

Every RS121ICE-GE15 undergoes extended thermal cycling, 72-hour burn-in, and luminance uniformity mapping before leaving our Shenzhen facility. CE, RoHS, and ISO 9001 certified. Custom optical bonding, ruggedized touch integration, and conformal coating options available for the most demanding field conditions. Contact our industrial display team for a project-specific qualification sample.
