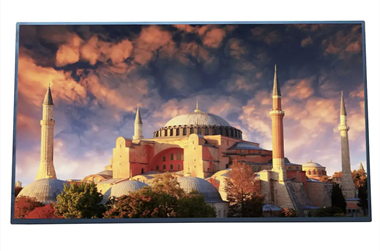

P550HVN06.8 is a 55 inch hi-tni industrial tft lcd display from AUO, it is with an integral WLED backlight system, With LED Driver, without touch screen. 1920*1080 full high resolution, 2500 nits high brightness, 4000:1 contrast ratio, LVDS interface, it features an operating temperature range of 0 ~ 60°C , a storage temperature range of -20 ~ 60°C , and the maximal vibration level of 1.0G (9.8 m/s²). Landscape / Portrait, 2500 nits High Brightness, WLED Backlight, Life ≥ 70K hours, With LED Driver, Bar Display, Matte, Liquid crystal: Advanced wide temperature LC (-40-110°C), hi- tni panel. Based on its features, it is ideal to be applied to Digital Signage, Outdoor High Brightness etc.
55 inch TFT LCD, 2500 nits LED Backlight , 1920*1080 FHD resolution
55” hi-tni tft LCD
High Brightness 2500 nits
LED Backlight
LCD blacking defect free (Hi-Tni 110 ˚C)
Low Power Consumption
Main features
1.Hi-tni Blackening Defect Free
A hi-Tni panel is a type of display panel that is specifically designed to prevent blackening when the display operates under elevated temperature conditions. This is particularly important for displays that are used outdoors, where there are high ambient temperatures and a high bright backlight, which can cause the display to overheat and become damaged.
2.Full viewing angles,
Thanks to using a matrix with IPS/MVA technology, our high brightness display is readable from any angle. There is no gray scale inversion effect which is a normal feature of popular TN matrixes. A decrease in contrast when increasing the viewing angle is also significantly lower. Superior image quality and color depth at 178 degree ultra-wide portrait orientations. It does not produce image distortion and minimizes color shift when viewed from different angles, it provides clear images and instantly optimizes screen color and brightness.
3. Outstanding visibility high brightness
With a great brightness of 2500nits, this hi-tni LCD are well equipped to make the contents and images vividly stand out in any commercial location, you can experience superior pictures quality and optimized visibility
| Screen Diagonal | 55 inch |
| Auo panel no | P550HVN06.8 |
| Model No | RS550NET-GE25 |
| Active Area | 1209.6(W)×680.4(H) mm |
| Pixels | 1920(RGB)×1080, FHD 40PPI |
| Physical Size | 1235.6(H)×706.4(V) ×58.2(D) mm |
| Pixel Arrangement | R.G.B. Vertical Stripe |
| Display Mode | a-Si TFT-LCD, LCM |
| White Luminance ( Center ) | 2500 cd/m2 (Typ.) [cd/m2 ] |
| Contrast Ratio | 4000:1 (Typ.) |
| Optical Response Time | 8 (Typ.)(G to G) |
| Nominal Input Voltage | 12V (Typ.) |
| Frame Rate | 60Hz |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) Left / Right / Up / Down |
| Weight [g] | 15Kgs |
| Interface Type | LVDS (2 ch, 10-bit) , 51 pins Connector |
| Support Color | 1.07B 100% NTSC |
| Surface Treatment | Reflection 1.45% (Max.) |
| RoHS Compliance | RoHS Compliance |
| Temperature Range | 0 ~50 °C |
| Storage (Non-Operating) | -20 ~ 60 °C |
