49 inch daylight readable outdoor tv screen
| Brand | Risinglcd |
| Model name | RS490NET-N25 |
| Screen size | 49 " |
| Screen type | LCD Monitor |
| Resolution | 1920 1080(RGB) |
| Brightness (cd/m²) | 2500 nits |

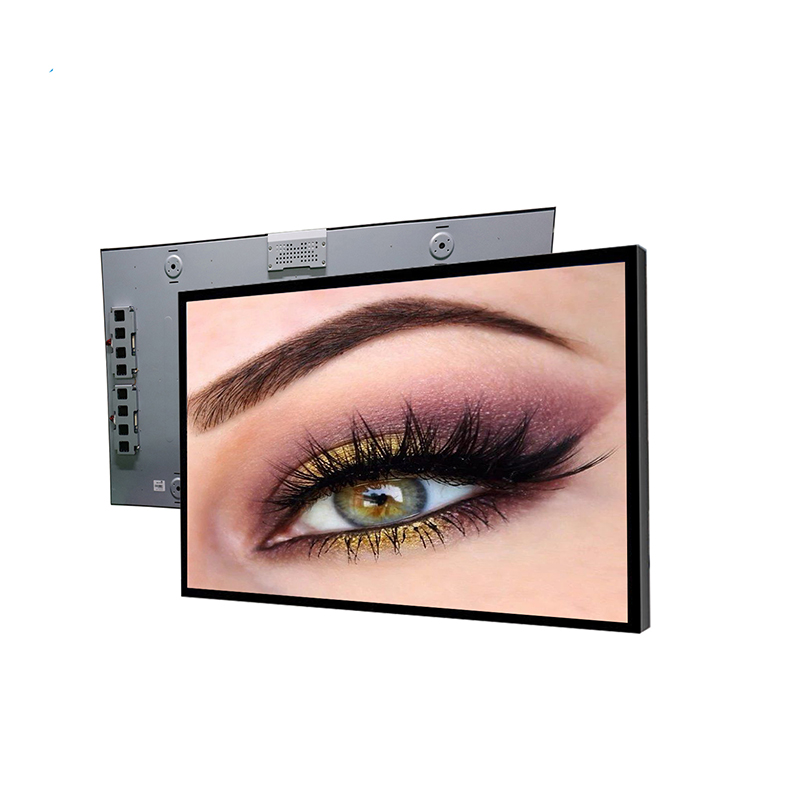

49 inch daylight readable outdoor tv screen,the brightness 2500 nits.
Product feacture:
1. LG original LCD panel, industrial-grade LCD panel is better than ordinary LCD panel
2. High resolution 1920*1080/3840*2160
3. Operating Temperature: -20 ~ 70 °Cdegrees Celsius
4. Brightness up to 1000-5000 nits
5. 50,000 hours long life
| Size | 49 inch |
| Panel Item | RS490NET-N25 |
| Panel Type | a-Si TFT-LCD |
| Display Mode | IPS ,Normally Black,Transmissive Display |
| Pixels | 1920*1080 |
| Brightness | 2500 cd/m2 |
| Constrast Ratio | 1300:1 |
| Response Time | 6ms |
| View Angle | 89/89/89/89 |
| View Area | 1078.6*609.5mm(H*V) |
| Display Area | 1076.9*607 mm(H*V) |
| Outline Size | 1106.4*641.6*47mm(H*V*D) |
| Signal Type | LVDS |
| Working Freqyency | 60Hz |
| Operating Temperature | -20 ~ 70 °C |
| Storage Temperature | -30 ~ 80 °C |
| Display Ratio | 16:9 |
| Display Color | 16.7m |
| Backlight Voltage | 24V |
| Backlight Power Consumption | 220W |
| Surface Treatment | Haze 3%,Hard Coating(2H) |
| Weight | 17.28 kgs |
01 / Chassis & Materials
Structural integrity for extreme environments.
Medical and Food grade SUS316L Stainless Steel, AL5052 Aluminum, or SECC Galvanized Steel.
Certified IP65 / IP69K waterproof sealing. Mechanical impact protection rated at IK10.
Industrial powder coating (RAL spectrum), sandblasting, and anti-acid marine painting.
Chassis-mount, Open-frame, Panel-mount, and VESA-integrated configurations.
02 / Optical & Display
Visibility optimization for extreme ambient lighting.
Scalable 1500 - 5000 Nits with integrated Hi-Tni (110掳C) anti-blackening technology.
Full Vacuum Optical Bonding (OCR) - eliminates air gaps, fogging, and maximizes contrast ratio.
Integrated AR (Anti-Reflective), AG (Anti-Glare), and AF (Anti-Fingerprint) nano-films.
03 / Interface & I/O
Industrial signal and power regulation.
Support for M12 Aviation Circular Connectors, DB9/RS232, and waterproof RJ45/USB.
Wide voltage DC 9V - 36V input with integrated surge and polarity protection.
Integrated ambient light sensors, thermal probes, and custom GPIO control protocols.
04 / Embedded & Data
Software architecture and data sync.
Full compatibility with Windows 7, 10/11 IoT; Linux support covering the last 3 generations (Ubuntu 20.04, 22.04, 24.04 LTS) and Debian; as well as comprehensive support for Android 11 through 14.
High-speed 4G/5G LTE modules, Dual-band Wi-Fi 6, and Gigabit Ethernet.
01 / Warranty Policy
Industry-leading protection for your investment.
3 Years Full Warranty for the complete machine assembly.
1 Year Warranty for the original LCD assembly.
Optional extended warranty programs (up to 5 years) available upon request.
02 / Field Support
Expert guidance throughout the product lifecycle.
24/7 technical support and configuration guidance via video link or remote access.
Local on-site installation and maintenance available for large-scale deployments.
03 / Production Timeline
Scalable manufacturing for urgent project schedules.
Verification and custom prototype delivery within 10 Working Days.
Standard bulk order fulfillment in 15 - 25 Working Days.
04 / Global Distribution
Reliable logistics via air, sea, or rail.
Door-to-door global delivery in 5 - 7 Working Days (DHL, FedEx, UPS).
Cost-optimized bulk shipping in 30 - 45 Days for global major ports.
