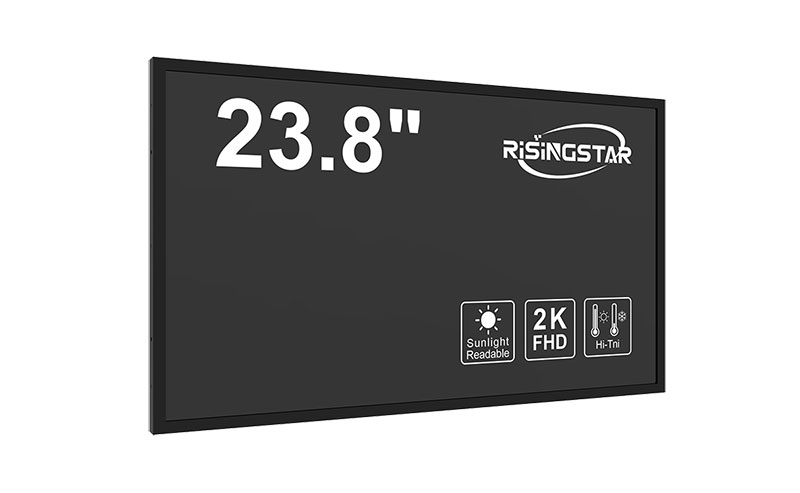

23.8 Inch Outdoor High Brightness LCD Display
Designed for professional outdoor applications, RisingStar’s 23.8-inch industrial-grade LCD delivers exceptional visibility even in direct sunlight with brightness up to 2500–5000 nits. The lightweight aluminum housing, IP65-rated waterproof structure, and low-power direct-lit LED backlight ensure reliable 24/7 operation in extreme temperatures.
Perfect for EV charging stations, gas pumps, passenger information systems, and outdoor digital signage, this display offers high contrast, anti-glare glass, and a lifespan exceeding 50,000 hours. Engineered for easy integration, it meets the needs of global OEMs and distributors seeking sunlight readable displays that combine durability, energy efficiency, and outstanding image clarity.

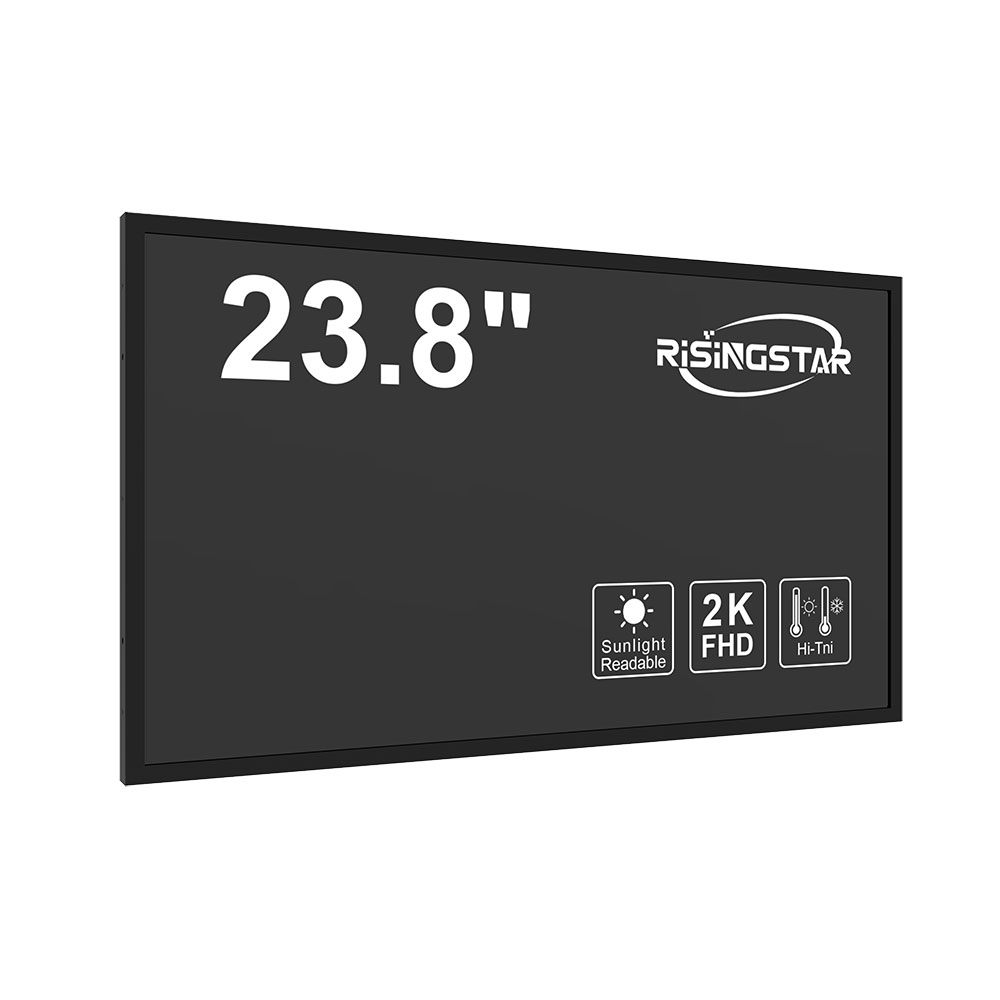

23.8 inch high brightness LCD screen
23.8 inch high brightness LCD screen

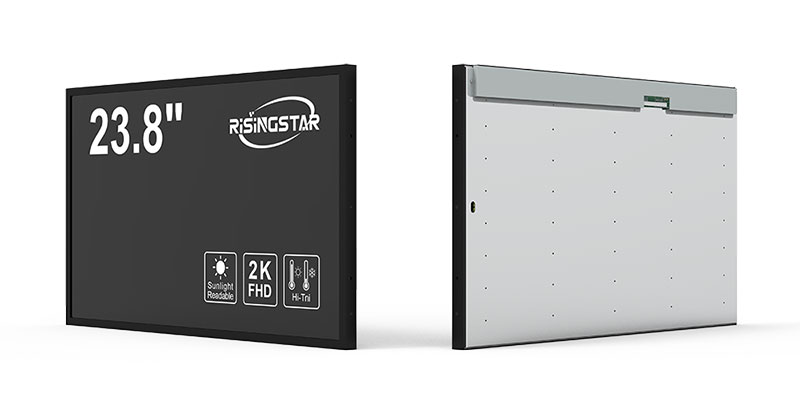

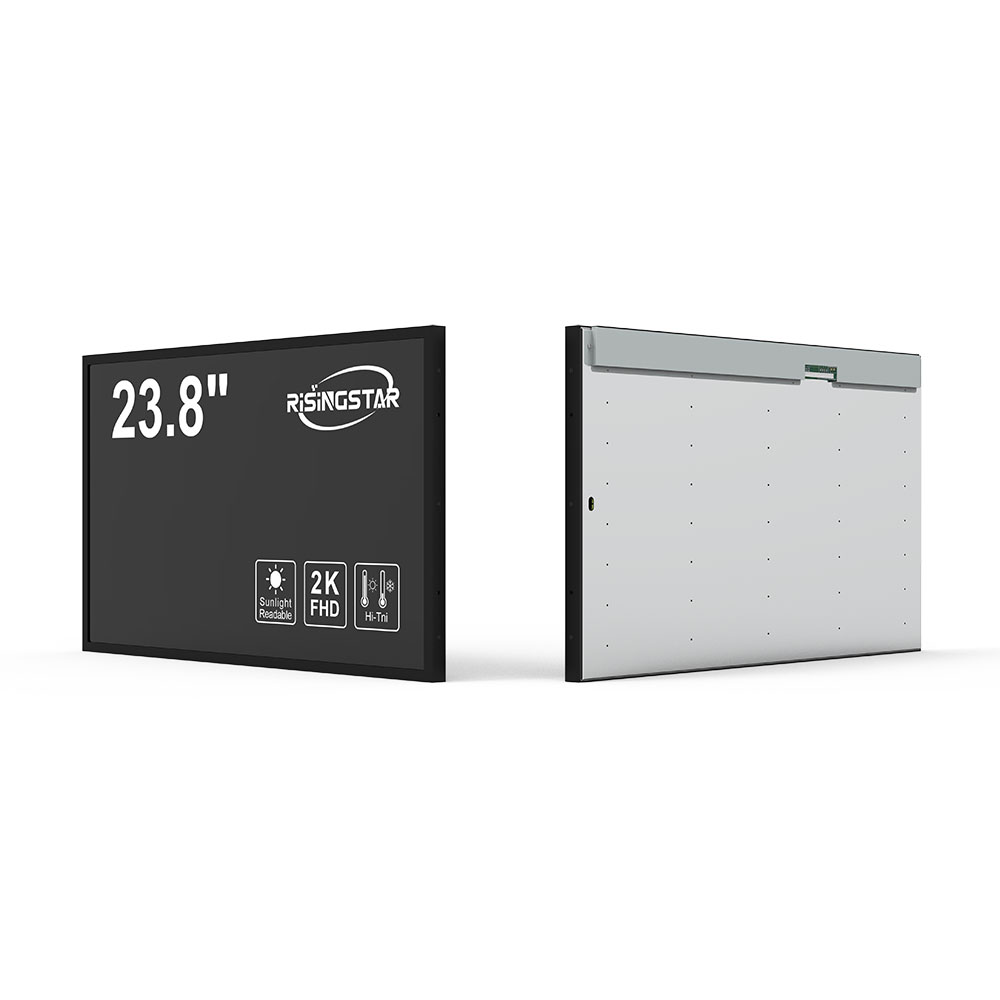

23.8 inch high brightness LCD screen case
| Specification | Details |
|---|---|
| Panel Size | 23.8 inch |
| Panel Type | a-Si TFT-LCD, LCD Module |
| Resolution | 1920 (RGB) × 1080, FHD, 92 PPI |
| Pixel Arrangement | RGB Vertical Stripe |
| Active Area | 527.04 (W) × 296.46 (H) mm |
| Viewing Area | 530.2 (W) × 299.6 (H) mm |
| Surface Treatment | Matte, Hard Coating (3H) |
| Brightness | 1000 to 5000 nits |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| Viewing Angle (CR≥10) | 89/89/89/89 (Typ.) – Left / Right / Up / Down |
| Display Mode | IPS, Normally Black, Transmissive |
| Response Time (G to G) | 14 ms (Typ.) |
| Display Colors | 16.7M, 72% NTSC |
| Backlight Type | 18S2P WLED, 30,000 hrs (without driver) |
| Refresh Rate | 75Hz (Standard), Optional 120Hz/240Hz with MEMC |
| Touch Screen | Touch |
| Panel Weight | 2.00 / 2.10 kg (Typ. / Max.) |
| Applications | Computer Monitor, Industrial Display, Digital Signage, Healthcare |
| Signal Interface | LVDS (2 ch, 8-bit), 30 pins, Terminal |
| Power Supply Voltage | 5.0V (Typ.) |
| Operating Temp. | -20°C ~ 50°C |
| Storage Temp. | -20°C ~ 60°C |
Ultra High Brightness – Available in 2500, 3000, 4000, and 5000 nits options for optimal sunlight readability.
Full HD Resolution – Crisp 1920×1080 display for sharp text and vibrant images.
Industrial-Grade Reliability – Designed for 24/7 continuous operation with a lifespan exceeding 50,000 hours.
Low Power Consumption – Advanced direct-lit LED backlight for reduced heat and energy savings.
Wide Operating Temperature – Functions reliably in –20°C to +60°C environments.
Slim & Lightweight Design – Easy to integrate into outdoor enclosures or custom housings.
Multiple Interfaces – HDMI, VGA, DisplayPort, and custom input options.
Outdoor Digital Signage
QSR Drive-Thru Menu Boards
Transportation Hubs (Bus, Train, Airport)

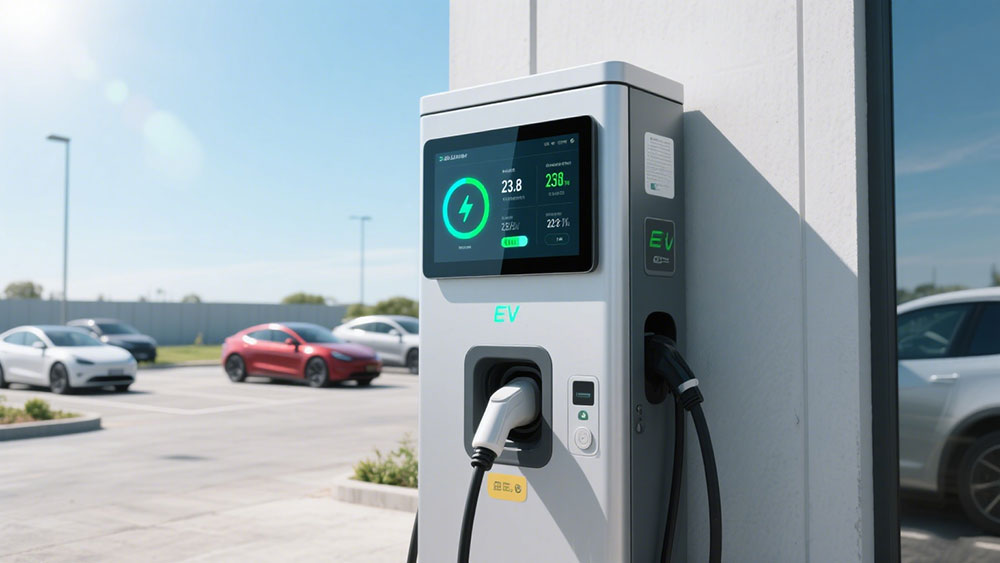

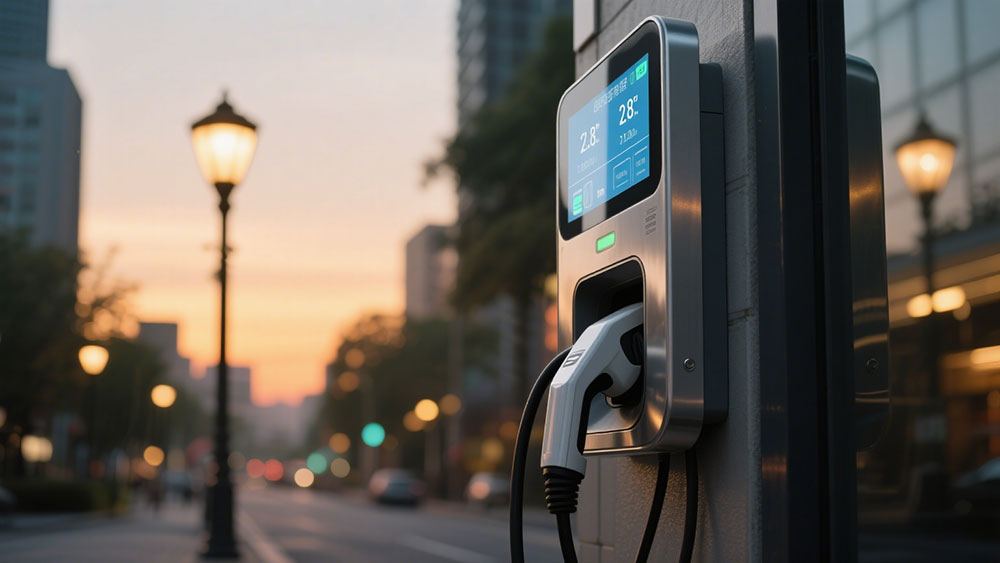

EV Charging Stations
Retail Storefront Window Displays
Industrial Control Panels in Outdoor Facilities
With over 12 years of experience in high-brightness LCD manufacturing, RisingStar has supplied industrial display solutions to 500+ global brands across retail, transportation, and smart city projects. Our R&D team, comprised of senior display engineers, ensures every unit meets stringent ISO9001, CE, and RoHS quality standards. From custom OEM designs to turnkey signage systems, we provide end-to-end support to guarantee your project’s success.
“The 23.8-inch sunlight readable display from RisingStar has been a game changer for our outdoor kiosks. Zero downtime, even in peak summer heat.” – Technical Manager, Outdoor Retail Chain
“Exceptional visibility and durability. Our digital menu boards have never looked better.” – Project Engineer, QSR Franchise
Q1: Can this display operate in direct sunlight all day?
A1: Yes. With up to 5000 nits brightness and industrial cooling design, it remains clear and stable even in full sunlight.
Q2: Can I customize the brightness or interface?
A2: Absolutely. We offer customization for brightness levels, signal inputs, and enclosure designs.
Q3: What’s the lead time for bulk orders?
A3: Standard lead time is 2–3 weeks, with expedited options available.
Ready to upgrade your outdoor display solution? Contact our sales team for a free consultation and competitive pricing.
[high brightness dispaly solution →]
| Specification | Details |
|---|---|
| Panel Size | 23.8 inch |
| Panel Type | a-Si TFT-LCD, LCD Module |
| Resolution | 1920 (RGB) × 1080, FHD, 92 PPI |
| Pixel Arrangement | RGB Vertical Stripe |
| Active Area | 527.04 (W) × 296.46 (H) mm |
| Viewing Area | 530.2 (W) × 299.6 (H) mm |
| Surface Treatment | Matte, Hard Coating (3H) |
| Brightness | 1000 to 5000 nits |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| Viewing Angle (CR≥10) | 89/89/89/89 (Typ.) – Left / Right / Up / Down |
| Display Mode | IPS, Normally Black, Transmissive |
| Response Time (G to G) | 14 ms (Typ.) |
| Display Colors | 16.7M, 72% NTSC |
| Backlight Type | 18S2P WLED, 30,000 hrs (without driver) |
| Refresh Rate | 60Hz |
| Touch Screen | No Touch |
| Panel Weight | 2.00 / 2.10 kg (Typ. / Max.) |
| Applications | Computer Monitor, Industrial Display, Digital Signage, Healthcare |
| Signal Interface | LVDS (2 ch, 8-bit), 30 pins, Terminal |
| Power Supply Voltage | 5.0V (Typ.) |
| Operating Temp. | -20°C ~ 50°C |
| Storage Temp. | -20°C ~ 60°C |
Ask a quote for the latest price and one of our team members will respond as soon as possible.
