Specifications
| Size | 15.6 inch |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1920(RGB)*1080 70PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 344.232 × 193.59 mm |
| Outline Size | 363.8 × 215.98 mm |
| Surface Treatment | AG (Haze 28%) Hard coating(3H) |
| Brightness | 2000 nits |
| Contrast Ratio. | 800:1 |
| Viewing Angle | 89/89/89/89(Min) |
| Best View on | Symmetry |
| Response Time | 25 ms |
| Display Color | 16.7M 72% NTSC |
| Backlight | WLED, 50K hours |
| Touch Screen | PCAP |
| Panel Weight | 4.25 kg |
| Frame Rate | 60Hz |
| Signal Interface | LVDS(2ch,8-bit), 51 pins connector |
| Input Voltage | 3.3V(Typ.) |
| Operating Temperature | -20~70 °C |
| Storage Temperature | -30~80 °C |

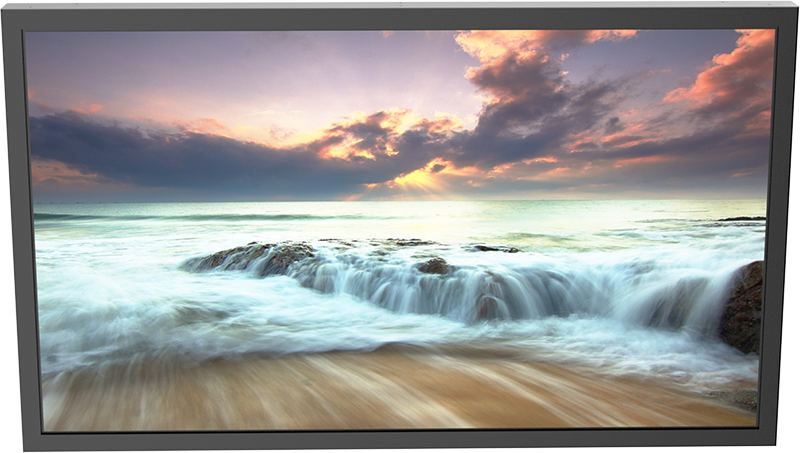

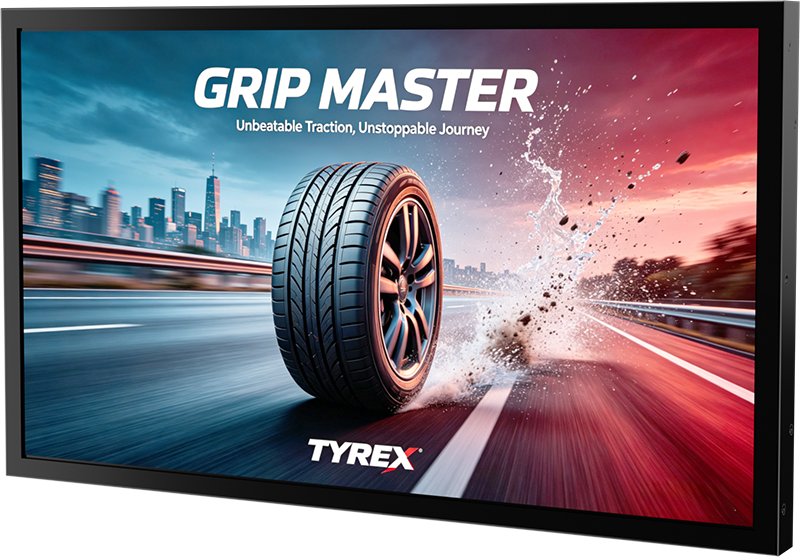

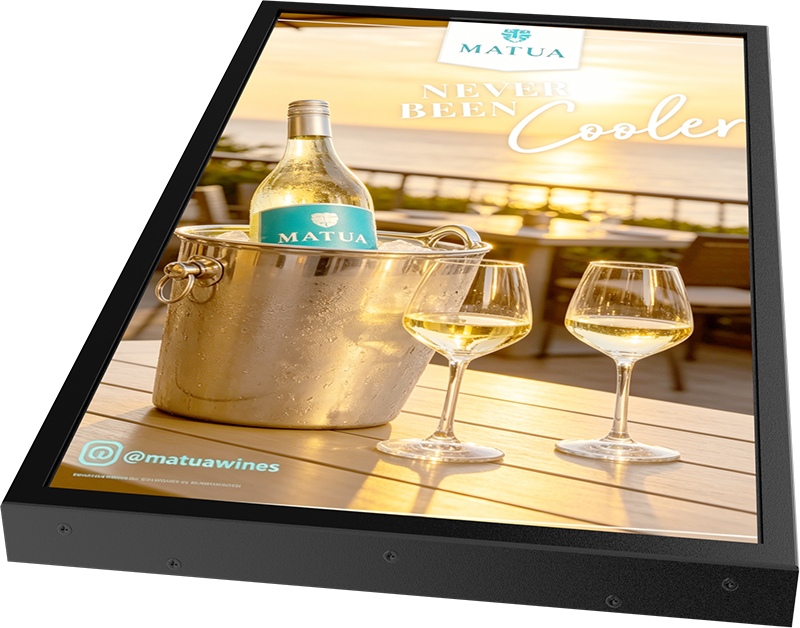

RS156MNX01D01 is a 15.6-inch LCD display with 2,000 nits brightness, 1920×1080 resolution and 800:1 contrast ratio. Its operating temperature range is -20 °C to 70 °C.
The RS156MNX01D01 is an open-frame touch screen monitor from RisingStar, featuring an original LCD panel from AU Optronics. This display is capable of operating in a wide temperature range, from -20℃ to 60℃, and offers easy connectivity. Due to these features, it is widely used in industrial settings, particularly in manufacturing.

Product FAQs
-
It is rated at 2,000 nits (cd/m²) brightness.
-
It uses a 15.6-inch panel, 1920×1080 resolution, 800:1 contrast ratio.
-
The operating temperature range is -20 °C to 70 °C.
-
Yes. RisingStar is an OEM/ODM manufacturer and accepts customization requirements for volume orders; contact the sales team with your target specification.
-
It adopts LVDS(2ch,8-bit), 51 pins connector interface.
-
The power input requirement is 3.3V(Typ.).
-
The viewing angle is 89/89/89/89(Min).
-
Yes. Rated at 2,000 nits, it is a high-brightness panel built for sunlight-readable and outdoor applications.
-
The panel surface treatment is AG (Haze 28%) Hard coating(3H).
-
It uses a-Si TFT-LCD, LCM.
