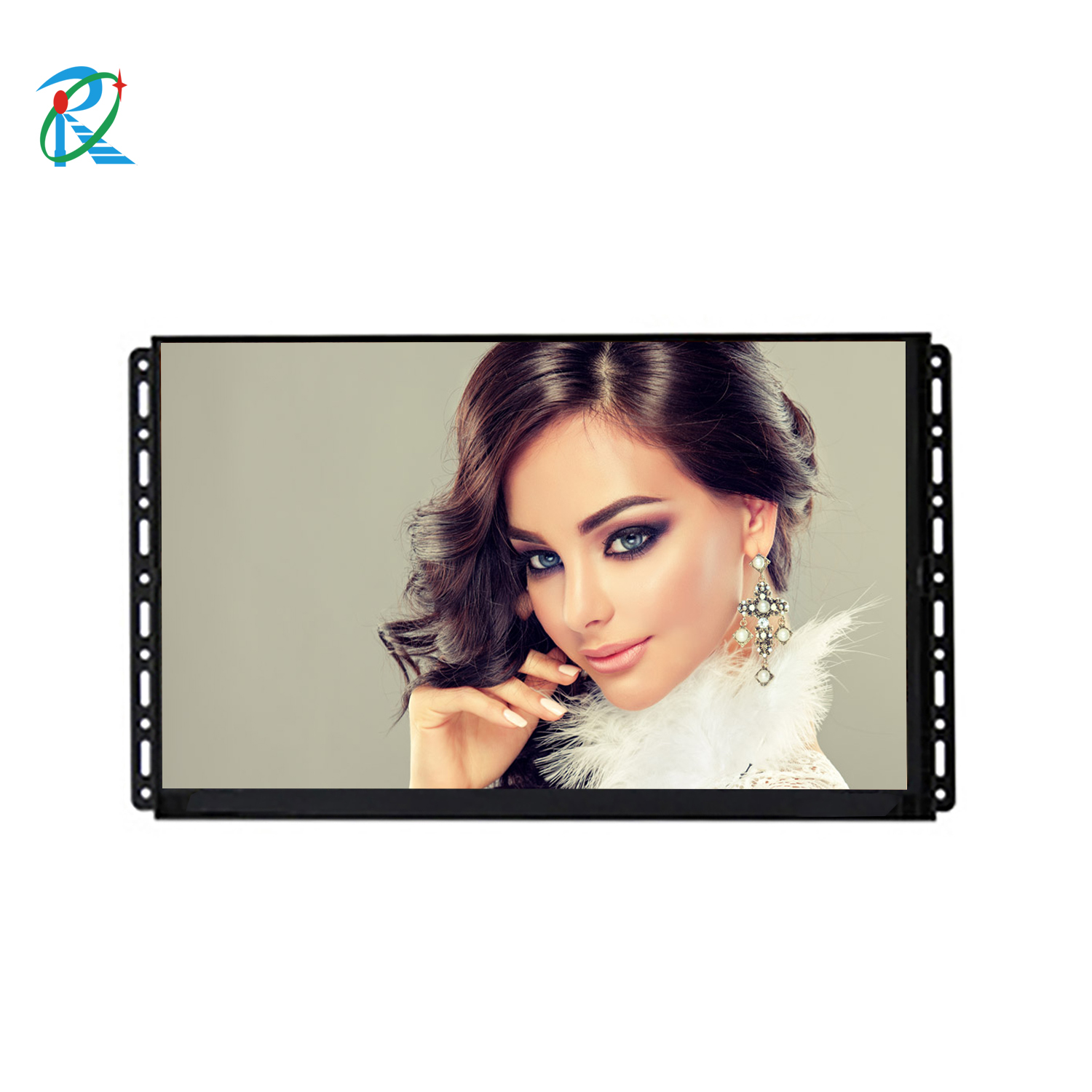

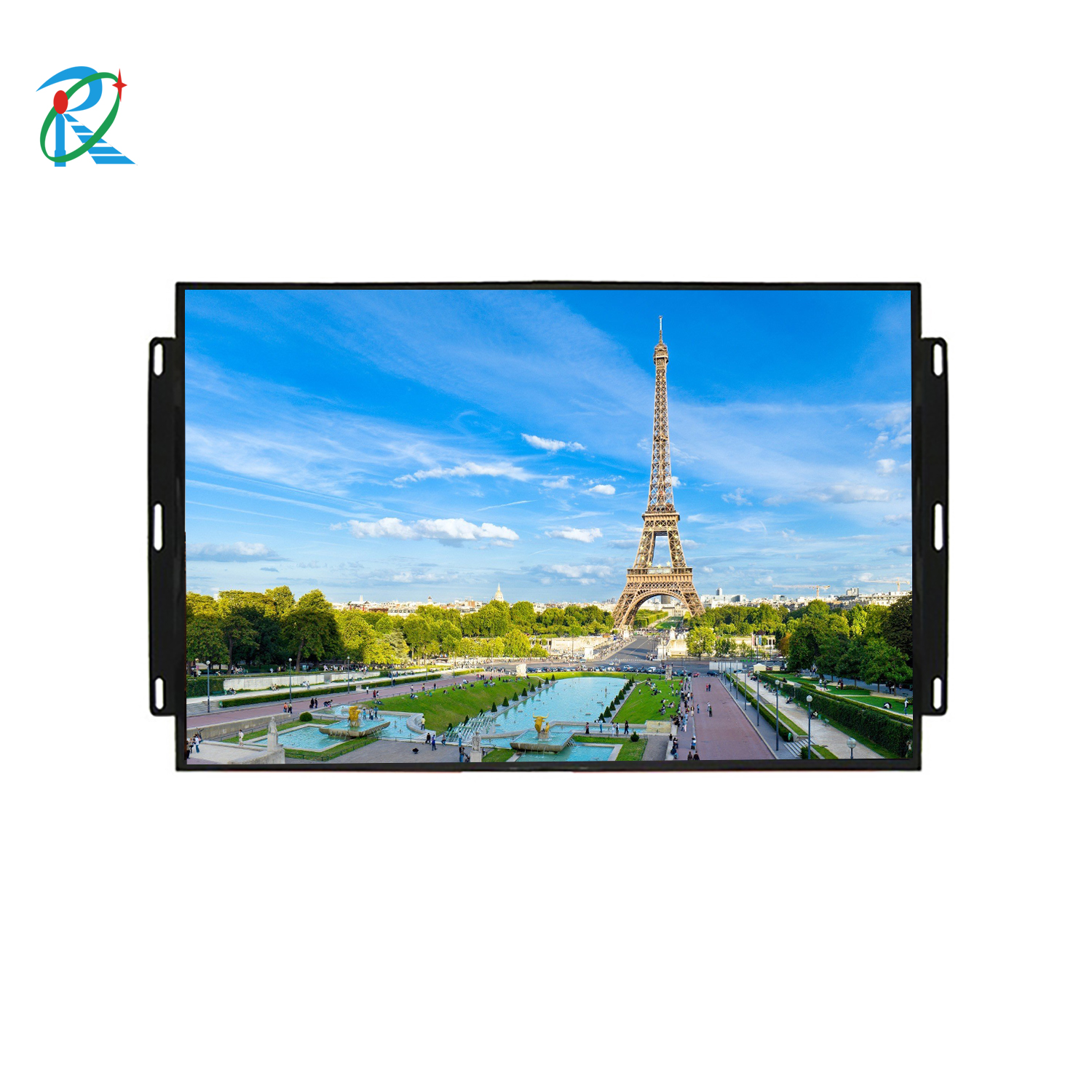

21.5"-43" open frame lcd monitor
OEM / ODM Manufacturer
Factory Direct
Order & Lead Time
Need 50+ units? for framework agreements.
Global Shipping Options
Samples ship in ~10 working days; Bulk orders in 15-25 working days.
- Express: DHL/FedEx door-to-door delivery (5-7 days)
- Sea Freight: Cost-optimized bulk shipping (30-45 days)
- Rush Orders: Available upon request for urgent projects
Flexible Warranty Options (1 to 5 Years)
As an OEM/ODM manufacturer, we offer highly customizable warranty plans. Choose the standard coverage for cost-sensitive projects, or opt for our premium 3-5 year extended warranty for mission-critical digital signage deployments.
All products are manufactured in our ISO 9001-certified facility.
CE, FCC, RoHS Certified
21.5"-43" open frame lcd monitor,open frame lcd display module for using semi-outdoor /indoor advertising display,Usually used in Payment Kiosk, Embeded Into Machines,Industrial Automation, Medical Treatment etc.
Open frame lcd module product features:
21.5"-43" available,open frame design
Save cost and time on flxing,can be easily installed.
Low power consumption
Support USB2.0/SD/MMC(accept customized)
Auto play video/music/picture when insert memory card
Support HD video up to 1920*1080p
Built-in clock,calendar and alarm clock
Androis OS(optional)

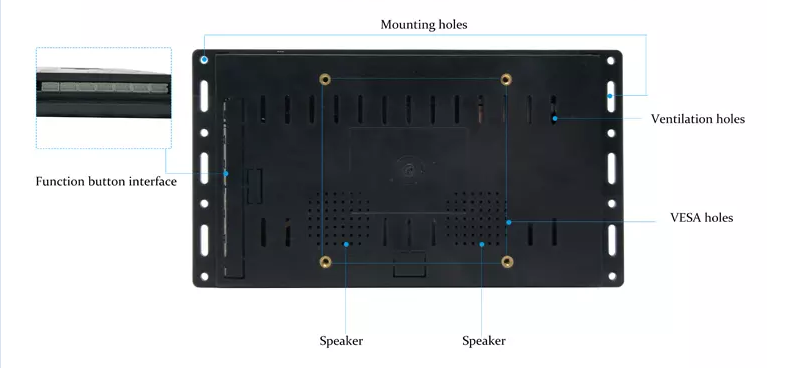

Standard hanging mounting VESA holes.
Widely used in the supermarket,exhibition ,restaurant
Panel Size | 21.5-43 inch |
Panel item | RS 215ENT-N00 |
Panel type | a-Si TFT-LCD |
panel resolution | 1920*1080 |
brightness | 500-2500cd/m2(optinal) |
Constrast Ratio | 1200:1 |
View angle | 89/89/89/89 (Min) |
Frame material | metal |
Interface | USB,HDMI,SD,RJ45,Power input |
Photo Format | JPEG,BMP,GIF,PNG |
Audio Format | MP3,WMA,OGG,FLAC |
Video Format | AVI,MKV,MOV,MP4,RMVB,MPG,VOB,WMV,MPEG,TS,DIVX,XVID ect |
Main Features | Auto play video from SD/USB |
Auto copy from USB to SD card or built-in memory | |
Built-in clock,calendar,alarm with slideshow window,schedule auto on/off | |
Support Extenal push button for changing different video | |
Support connect with LED strips | |
OSD language:Elglish and other languages selectable |
01 / Chassis & Materials
Structural integrity for extreme environments.
| Enclosure Grade | Medical and Food grade SUS316L Stainless Steel, AL5052 Aluminum, or SECC Galvanized Steel. |
| Protection Rating | Certified IP65 / IP69K waterproof sealing. Mechanical impact protection rated at IK10. |
| Surface Finish | Industrial powder coating (RAL spectrum), sandblasting, and anti-acid marine painting. |
| Format Architecture | Chassis-mount, Open-frame, Panel-mount, and VESA-integrated configurations. |
03 / Interface & I/O
Industrial signal and power regulation.
| Connectors | Support for M12 Aviation Circular Connectors, DB9/RS232, and waterproof RJ45/USB. |
| Power Regulation | Wide voltage DC 9V - 36V input with integrated surge and polarity protection. |
| Sensor Suite | Integrated ambient light sensors, thermal probes, and custom GPIO control protocols. |
02 / Optical & Display
Visibility optimization for extreme ambient lighting.
| Luminance Output | Scalable 1500 - 5000 Nits with integrated Hi-Tni (110°C) anti-blackening technology. |
| Optical Bonding | Full Vacuum Optical Bonding (OCR) — eliminates air gaps, fogging, and maximizes contrast ratio. |
| Advanced Coating | Integrated AR (Anti-Reflective), AG (Anti-Glare), and AF (Anti-Fingerprint) nano-films. |
04 / Embedded & Data
Software architecture and data sync.
| Operating Systems | Full compatibility with Windows 7, 10/11 IoT; Linux support covering the last 3 generations (Ubuntu 20.04, 22.04, 24.04 LTS) and Debian; as well as comprehensive support for Android 11 through 14. |
| Communication | High-speed 4G/5G LTE modules, Dual-band Wi-Fi 6, and Gigabit Ethernet. |
