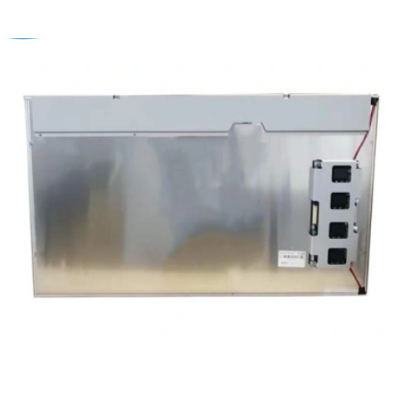

27 inch 4K 2000 nits high brightness LCD panel

27 inch 4K 2000 nits high brightness LCD panel

BrandRisingstar
Model nameRS270QUM-ND20
Screen size27"
Screen typeOutdoor LCD Panel
Resolution3840(RGB)×2160
Brightness (cd/m²)2000
Overview Specifications Customized Services Support & Shipping

RS270QUM-ND20 Risingstar 27 inch high brightness LCD panel, 20.8mm ultra thin thickness, 4K ultra HD 3840*2160 resolution, 2000 nits high brightness, high contrast ration 1000:1, wide viewing 178/178 angle.

27 inch high brightness LCD panel Main Features:

Ultra HD resolution: 3840*2160

Long-Life Advanced LED Backlight, over 50,000 Hours Half-Life

2000 nits (cd/m2) sunlight readable Brightness

Wide view angel: 178/178

RisingLCD brand new 27-inch display with an impressive 3840*2160 resolution and 2000 nits of brightness! This product is definitely a game-changer and will elevate your viewing experience to a whole new level.

With such a high resolution, every image displayed on the screen will be crystal clear and incredibly detailed. This panel is perfect for anyone who requires sharp, accurate and stunning visuals, whether it be for gaming, graphic design, video editing, or simply watching your favourite movies and TV shows.

27 inch high brightness 4K LCD modules-4

Applications:

Traffic control centers,media centers, metro, Airports, , military systems, public space, shopping areas, banks, schools, hospitals, Stock exchanges,special circumstances etc.

RS270QUM-ND20 27 inch high brightness display 27 inch sunlight readable LCD High brightness display Sunlight readable display Outdoor waterproof display
Screen Diagonal27 inch
Brand Risingstar
Model NoRS270QUM-ND20
Active Area596.736(W)×335.664(H) mm
Resolution3840(RGB)×2160, UHD, 163PPI
Physical Size618（H）*360(V)*20.8(D)mm
Pixel ArrangementR.G.B. Vertical Stripe
Display Modea-Si TFT-LCD, LCM
Contrast Ratio :1000:1
White Luminance ( Center )2000 cd/m2 (Typ.)  [cd/m2 ]
Optical Response Time6.5 (Typ.)(G to G) ms
Nominal Input Voltage10.0V (Typ.)
Frame Rate60Hz
Viewing Angle89/89/89/89 (Typ.)(CR≥10)
Weight [kg]TBA(Typ.)
Interface TypeeDP (4 Lanes) , HBR2 (5.4G/lane) ,
Support Color1.07B , 100% sRGB
Surface TreatmentAntiglare (Haze 25%),Hard coating (3H)
RoHS ComplianceRoHS Compliance
Operating Temperature-20 ~ 70 °C
Storage Temperature-30 ~ 80 °C
inventory_2

01 / Chassis & Materials

Structural integrity for extreme environments.

Enclosure Grade

Medical and Food grade SUS316L Stainless Steel, AL5052 Aluminum, or SECC Galvanized Steel.

Protection Rating

Certified IP65 / IP69K waterproof sealing. Mechanical impact protection rated at IK10.

Surface Finish

Industrial powder coating (RAL spectrum), sandblasting, and anti-acid marine painting.

Format Architecture

Chassis-mount, Open-frame, Panel-mount, and VESA-integrated configurations.

blur_on

02 / Optical & Display

Visibility optimization for extreme ambient lighting.

Luminance Output

Scalable 1500 - 5000 Nits with integrated Hi-Tni (110掳C) anti-blackening technology.

Optical Bonding

Full Vacuum Optical Bonding (OCR) - eliminates air gaps, fogging, and maximizes contrast ratio.

Advanced Coating

Integrated AR (Anti-Reflective), AG (Anti-Glare), and AF (Anti-Fingerprint) nano-films.

settings_input_component

03 / Interface & I/O

Industrial signal and power regulation.

Connectors

Support for M12 Aviation Circular Connectors, DB9/RS232, and waterproof RJ45/USB.

Power Regulation

Wide voltage DC 9V - 36V input with integrated surge and polarity protection.

Sensor Suite

Integrated ambient light sensors, thermal probes, and custom GPIO control protocols.

dns

04 / Embedded & Data

Software architecture and data sync.

Operating Systems

Full compatibility with Windows 7, 10/11 IoT; Linux support covering the last 3 generations (Ubuntu 20.04, 22.04, 24.04 LTS) and Debian; as well as comprehensive support for Android 11 through 14.

Communication

High-speed 4G/5G LTE modules, Dual-band Wi-Fi 6, and Gigabit Ethernet.

Sampling
10-15 Working Days
Standard
SUS316L / IP69K
Certifications
CE / FCC / UKCA
Response
8H Expert Team
verified

01 / Warranty Policy

Industry-leading protection for your investment.

Complete System

3 Years Full Warranty for the complete machine assembly.

LCD Module

1 Year Warranty for the original LCD assembly.

Extended Support

Optional extended warranty programs (up to 5 years) available upon request.

support_agent

02 / Field Support

Expert guidance throughout the product lifecycle.

Remote Assistance

24/7 technical support and configuration guidance via video link or remote access.

On-site Services

Local on-site installation and maintenance available for large-scale deployments.

schedule

03 / Production Timeline

Scalable manufacturing for urgent project schedules.

Sample Prototyping

Verification and custom prototype delivery within 10 Working Days.

Bulk Production

Standard bulk order fulfillment in 15 - 25 Working Days.

public

04 / Global Distribution

Reliable logistics via air, sea, or rail.

Express & Air

Door-to-door global delivery in 5 - 7 Working Days (DHL, FedEx, UPS).

Ocean & Rail

Cost-optimized bulk shipping in 30 - 45 Days for global major ports.
