55 Inch Open Frame LCD display with 4000 nits brightness

55 Inch Open Frame LCD display with 4000 nits brightness

RS43-OEM: 43" 1000-nit open frame LCD. FHD 1920x1080, WLED, LVDS. For outdoor advertising and retail kiosk integration.

OEM / ODM Manufacturer

Factory Direct

Order & Lead Time

Sample Order 1 Unit MOQ
Bulk Order 10+ Units Tiered Discounts

Need 50+ units? for framework agreements.

Global Shipping Options

Samples ship in ~10 working days; Bulk orders in 15-25 working days.

  • Express: DHL/FedEx door-to-door delivery (5-7 days)
  • Sea Freight: Cost-optimized bulk shipping (30-45 days)
  • Rush Orders: Available upon request for urgent projects

1-3 Year Standard Warranty

3 years for Display Units and 1 year for LCD modules. Extendable to 5 years. Includes 24/7 support, remote troubleshooting, and long-term spare parts availability.

All products are manufactured in our ISO 9001-certified facility.
CE, FCC, RoHS Certified

Get Started

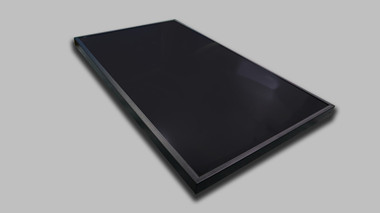

Risingstar 55 inch open frame LCD display is with 4000 nits high brightness, it can be read in the directly sunlight, perfect for outdoor industrial applications. This monitors come with HDMI, VGA, DVI video input and a rugged open frame metal construction.

55 inch open frame description:

1 )Different sizes available

2)Industrial A+ grade LCD panel

3)4000 nits high brightness,vivid image layout,bets details performance.

4)Open frame design

5)High operation temperature, Hi-Tni screen .

6)Auto brightness adjustment.

7)Wide visual angle 178°

8)Build-in stable power,low consumption,long life span>60000hours

Applications:

Stock exchanges, Traffic control centers, metro, Airports, media centers, military systems, public space, shopping areas, banks, schools, hospitals, special circumstances etc.

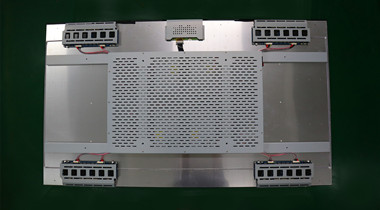

Open Frame Monitor

An Open Frame Monitor provides an LCD with the supporting structure to protect electronic components without using an enclosure or bezel. VESA mounting makes this monitor easy to install, making it the perfect solution for ATMs, vending machines, casino monitors, airport information displays, and mall kiosks.

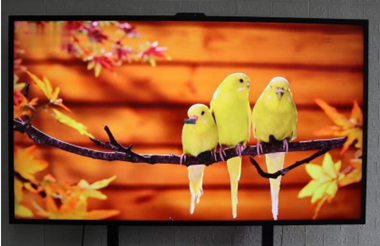

High brighness open frame display

With a great brightness of 4,000 nits, RisingLCD 55 inch display clearly delivers contents and attract public attention, which is the ultimate display for outdoor visibility. this series is optically bonded which increases the perceived contrast ratio and cuts down on glare, providing amazing picture quality, even in direct sunlight.

4000 nits high brightness

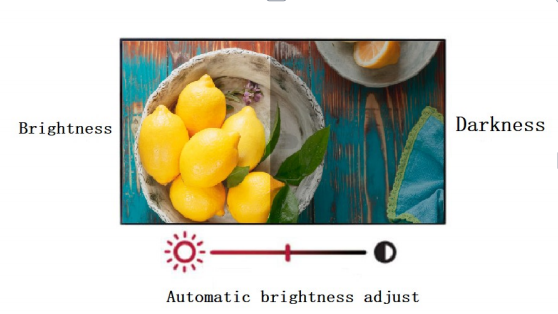

Auto brightness adjustment and Low Power Consumption

The built-in light sensor continuously detects the ambient light intensity and adjusts the brightness of the device to save the operation expenses and power consumption, the auto brightness adjustment function helps to reduce its brightness at night to avoid light pollution and to extend its life time.

brightness

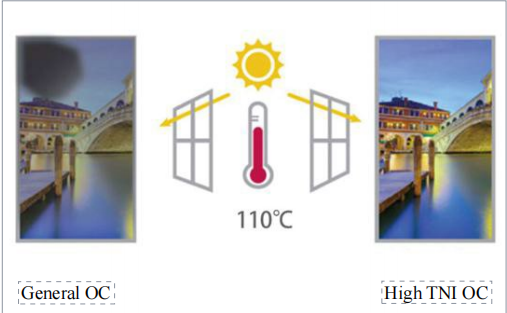

1.Hi-tni Blackening Defect Free

A hi-Tni panel is a type of display panel that is specifically designed to prevent blackening when the display operates under elevated temperature conditions. This is particularly important for displays that are used outdoors, where there are high ambient temperatures and a high bright backlight, which can cause the display to overheat and become damaged.

high tni

PanelScreen Size55inch
Resolution1920*1080 FHD
Brightness (nits)4000 nits (Typ.) 3600 nits(Min.)
Display Area(mm)1209.6(W) X 680.4(H) mm
Viewing Angle89/89/89/89 (Min.)(CR≥10)
Color1.07B
View angle (H x V)178/178
Ratio 16:9
Contrast Ratio1100:1
Portrait/LandscapeYes/Yes
Product
Specification
Products Size
(H*V*D)(mm)
1242.1(H) *718(V) * 83(D)
Brightness ControlAuto-Sensitivity
Power SupplyAC 110V/240V
50Hz/60Hz
Cooling SystemSmart Direct Ventilation
Power Consumption300W (Typ.)
Operation Temperature-20℃ to  70℃
Operation Humidity5%-90%RH
VESA standard mount interface 400 * 400mm
Gross WeightTBD
Cooling FanNO
ConnectivityInputHDMI, DVI, VGA, PC, AUDIO
Output Earphone
RS55-OEM 55 inch Open Frame LCD Display 4000 nits Ultra Bright Open Frame Monitor Large Format Open Frame Display 55 inch Outdoor Open Frame LCD Open Frame Display for Advertising Signage High brightness display Sunlight readable display Outdoor waterproof display

01 / Chassis & Materials

Structural integrity for extreme environments.

Enclosure Grade Medical and Food grade SUS316L Stainless Steel, AL5052 Aluminum, or SECC Galvanized Steel.
Protection Rating Certified IP65 / IP69K waterproof sealing. Mechanical impact protection rated at IK10.
Surface Finish Industrial powder coating (RAL spectrum), sandblasting, and anti-acid marine painting.
Format Architecture Chassis-mount, Open-frame, Panel-mount, and VESA-integrated configurations.

03 / Interface & I/O

Industrial signal and power regulation.

Connectors Support for M12 Aviation Circular Connectors, DB9/RS232, and waterproof RJ45/USB.
Power Regulation Wide voltage DC 9V - 36V input with integrated surge and polarity protection.
Sensor Suite Integrated ambient light sensors, thermal probes, and custom GPIO control protocols.

02 / Optical & Display

Visibility optimization for extreme ambient lighting.

Luminance Output Scalable 1500 - 5000 Nits with integrated Hi-Tni (110°C) anti-blackening technology.
Optical Bonding Full Vacuum Optical Bonding (OCR) — eliminates air gaps, fogging, and maximizes contrast ratio.
Advanced Coating Integrated AR (Anti-Reflective), AG (Anti-Glare), and AF (Anti-Fingerprint) nano-films.

04 / Embedded & Data

Software architecture and data sync.

Operating Systems Full compatibility with Windows 7, 10/11 IoT; Linux support covering the last 3 generations (Ubuntu 20.04, 22.04, 24.04 LTS) and Debian; as well as comprehensive support for Android 11 through 14.
Communication High-speed 4G/5G LTE modules, Dual-band Wi-Fi 6, and Gigabit Ethernet.
