55 inch Open Frame touch screen for digital signage - 1000 nit high brightness

55 inch Open Frame touch screen for digital signage - 1000 nit high brightness

BrandBOE
Model No.DV550FHB-R01
Screen size55 "
Resolution1920 1080(RGB)
Brightness (cd/m²)1000

RS550ENT-N10 open-frame touch screen that is with equipped with BOE origial panel, 1920*1080 resolution, and 1000:1 contrast ratio and 16:9 aspect Ratio, and wide industrial operation temperature, -20 ~ 80 °C , this is designed to be easily integrated into (or replacing your existing defective LCD monitor) kiosks, gaming and security monitor, no technical skills requires.

55 inch Open Frame touch screen Main Feature:

1. Incorporate with touch screen so that it can be used as touch screen open frame,

2. Special Designed for easy integration into industrial machinery and kiosks.

3. With a high resolution panel and wide wiewing angles

4. Multi-touch, 10 point capacitive touch and resistive touch optional

5. Built with WIFI and Ethernet(lan) internet connection

6. The outer frame can be customized

7. The brightness can be customized to 700nits, 1000nits, 1500nits.

8. Ideal for retail, hospitality, healthcare and digital signage applications requiring gesture.

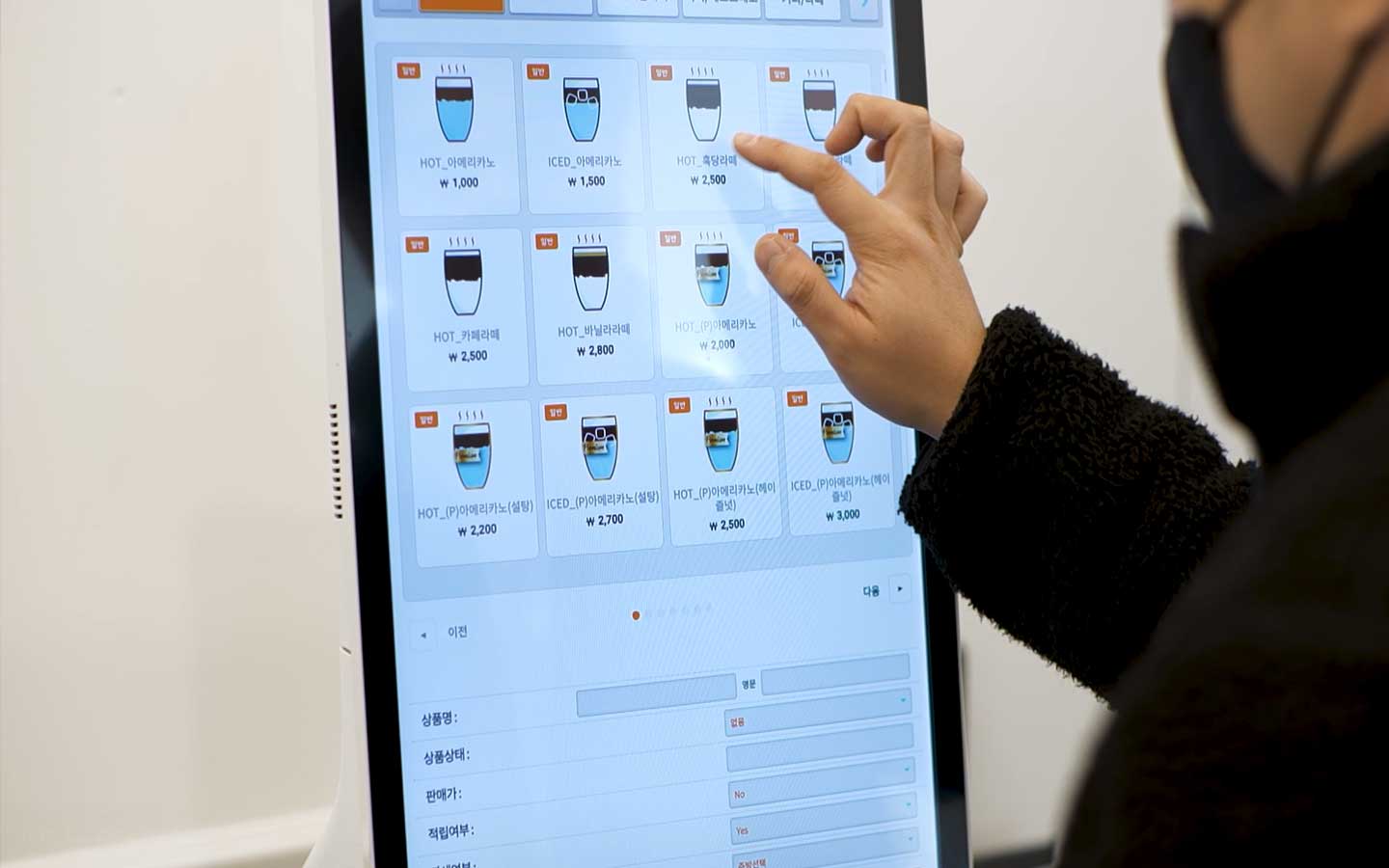

This open frame touch screen with PCAP touch screen, that not easy to touch by mistake, precise positioning, high light transmittance and clarity, lets you take advantage of touch features and navigate web pages, flick through photos, paint and play games, all with your finger tips, that is suitable for various commercial and industrial environments,

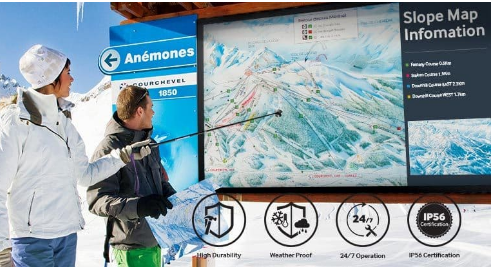

High visibility with eye-catching brightness

RS550ENT-N10 open-frame screen features brilliant image presentation with an impressive 1000 nit brightness allowing businesses to deliver clear information 24/7. The screen’s non-glare panels provide better visibility regardless of ambient light, ensuring critical information is always visible,Idea for the window shipping display, digital signage to prompt business and brand.

DV550FHB-R01   Interactive display -

Industrial operating temperature range

This module can operate in a stable and failure-free way for a long period within wide range of temperatures, thanks sto such option, it may be successfully applied, e.g in transportation and automotive industry.

DV550FHB-R01  wide temperature

OEM and ODM are welcomed!

RisingLCD is a professional highlight LCD manufacturer from China, specializes in manufacturing and distributing all types of LCD module, LCD monitors, open frame monitor, outdoor and indoor digital signage and goods are exported all of the world, could customize the products based on the customer needs with a competitive price, RisingLCD is your best choice!

DV550FHB-R01 55 inch high brightness display 55 inch sunlight readable LCD High brightness display Sunlight readable display Outdoor waterproof display
Factory   Model No: RS550ENT-N10
Panel Brand BOE   Display
Panel No.: DV550FHB-R01
Screen Size55"
Panel TechnologyIPS, M+ (WRGB)
Active Area(mm)1209.6*680.4   (H×V)
Panel Type. a-Si   TFT-LCD,
Aspect Ratio16:09
Native Resolution1920*1080,   40PPI
Refresh Rate60Hz
Brightness1000nit   (Typ, w/ Glass)
Contrast Ratio1000:1   (Typ)
Dynamic CR500,000:1
Color gamutNTSC   74%
Viewing Angle (H x V)89/89/89/89   (Typ.)(CR≥10)
Support Color: 16.7M   ,  74% NTSC
Response Time14   (Typ.) (G to G)ms
Surface Treatment (Haze)AntiGlare   (Haze 25%), Hard Coating (3H)
Transmittance: 5.8% (Typ.) (with Polarizer)
Life time50,000   Hrs (Typ)
Operation Hours (Hours/Day)24/7
Operating Temperature:-20 ~ 70 °C
Storage Temperature:-30 ~ 80 °C
Frame materialmetal
InterfaceUSB,HDMI,SD,RJ45,Power   input
Photo FormatJPEG,BMP,GIF,PNG
Audio FormatMP3,WMA,OGG,FLAC
Video FormatAVI,MKV,MOV,MP4,RMVB,MPG,VOB,WMV,MPEG,TS,DIVX,XVID   ect
inventory_2

01 / Chassis & Materials

Structural integrity for extreme environments.

Enclosure Grade

Medical and Food grade SUS316L Stainless Steel, AL5052 Aluminum, or SECC Galvanized Steel.

Protection Rating

Certified IP65 / IP69K waterproof sealing. Mechanical impact protection rated at IK10.

Surface Finish

Industrial powder coating (RAL spectrum), sandblasting, and anti-acid marine painting.

Format Architecture

Chassis-mount, Open-frame, Panel-mount, and VESA-integrated configurations.

blur_on

02 / Optical & Display

Visibility optimization for extreme ambient lighting.

Luminance Output

Scalable 1500 - 5000 Nits with integrated Hi-Tni (110掳C) anti-blackening technology.

Optical Bonding

Full Vacuum Optical Bonding (OCR) - eliminates air gaps, fogging, and maximizes contrast ratio.

Advanced Coating

Integrated AR (Anti-Reflective), AG (Anti-Glare), and AF (Anti-Fingerprint) nano-films.

settings_input_component

03 / Interface & I/O

Industrial signal and power regulation.

Connectors

Support for M12 Aviation Circular Connectors, DB9/RS232, and waterproof RJ45/USB.

Power Regulation

Wide voltage DC 9V - 36V input with integrated surge and polarity protection.

Sensor Suite

Integrated ambient light sensors, thermal probes, and custom GPIO control protocols.

dns

04 / Embedded & Data

Software architecture and data sync.

Operating Systems

Full compatibility with Windows 7, 10/11 IoT; Linux support covering the last 3 generations (Ubuntu 20.04, 22.04, 24.04 LTS) and Debian; as well as comprehensive support for Android 11 through 14.

Communication

High-speed 4G/5G LTE modules, Dual-band Wi-Fi 6, and Gigabit Ethernet.

Sampling
10-15 Working Days
Standard
SUS316L / IP69K
Certifications
CE / FCC / UKCA
Response
8H Expert Team
verified

01 / Warranty Policy

Industry-leading protection for your investment.

Complete System

3 Years Full Warranty for the complete machine assembly.

LCD Module

1 Year Warranty for the original LCD assembly.

Extended Support

Optional extended warranty programs (up to 5 years) available upon request.

support_agent

02 / Field Support

Expert guidance throughout the product lifecycle.

Remote Assistance

24/7 technical support and configuration guidance via video link or remote access.

On-site Services

Local on-site installation and maintenance available for large-scale deployments.

schedule

03 / Production Timeline

Scalable manufacturing for urgent project schedules.

Sample Prototyping

Verification and custom prototype delivery within 10 Working Days.

Bulk Production

Standard bulk order fulfillment in 15 - 25 Working Days.

public

04 / Global Distribution

Reliable logistics via air, sea, or rail.

Express & Air

Door-to-door global delivery in 5 - 7 Working Days (DHL, FedEx, UPS).

Ocean & Rail

Cost-optimized bulk shipping in 30 - 45 Days for global major ports.
