Full Specifications
| Item | Details |
|---|---|
| Model Name | RS430HNX03-D01-BK |
| Screen Size | 43" |
| Display Area (mm) | 940.896(H)×529.254(V) mm |
| Brightness | 2000 cd/m2 |
| Resolution | 1920 x 1080 |
| Aspect Ratio | 16 : 9 |
| Contrast Ratio | 1200 : 1 |
| Response Time (Typical) | 8(Typ.)(Tr/Td) (ms) |
| Viewing Angle | 89/89/89/89 (Min.)(CR≥10) |
| Display Colors | 16.7M |
| OS | N/A |
| Glass | N/A |
| Touch Type | N/A |
| Input Power | AC 100~240V |
| Power Consumption | TBD |
| Radiator System | The fan will automatically start to cool down when the temperature exceeds 35℃ |
| Input Interface | TBD |
| Dimensions (mm) | 1011*599.8*94 mm |
| Mounting | 400x400mm 4-M8 |
| Weight (Net) | TBD |
| IP（Ingress Protection） | N/A |
| Operating Temperature | 0 ℃~50 ℃ |
| Storage Temperature | -20 ℃~ 60 ℃ |
Product Overview

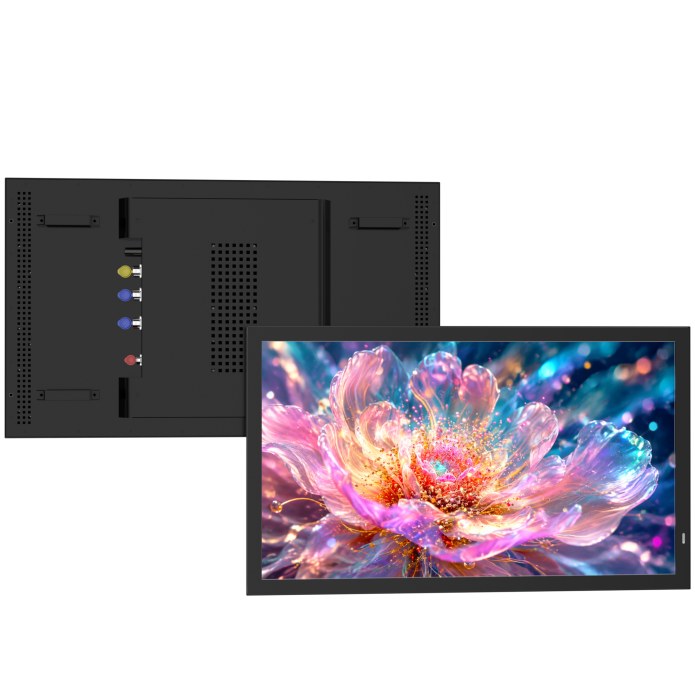

The 43-inch Outdoor LCD Signage Display RS430HNX03-D01-BK from RisingStar is a fully self-contained outdoor display: panel, housing, cooling and power are integrated into one unit ready for wall or pole mounting. The FHD 1920 × 1080 panel produces 2000 nits with a 1200:1 contrast ratio, keeping content legible under strong ambient light.
An IP-rated aluminium enclosure with automatic fan cooling and laminated anti-reflective glass protects the panel year round. The unit accepts AC 100~240V and is rated for 0℃ to 50℃ operation, with storage from -20℃ to 60℃.
Key FeaturesHigh brightness2000nits
LED Backlight
Sunlight Readable
The light sensor automatically adjusts the brightness
LCD Blacking Defect Free
Low Power Consumption
BL MTBF: 50,000 hours
Typical Applications
- outdoor advertising and DOOH billboards
- transit hubs, bus stops and roadside information poles
- EV charging stations and fuel forecourt signage
- smart city information points and wayfinding kiosks
Physical product
High brightness2000nits
LED Backlight
Sunlight Readable
The light sensor automatically adjusts the brightness
LCD Blacking Defect Free
Low Power Consumption
BL MTBF: 50,000 hours
