Specifications
| Parameter | Value |
|---|---|
| Model Name | RS550FHB-GD20 |
| Screen Size | 55" |
| Display Area (mm) | 1209.6 (H) * 680.4 (V) mm |

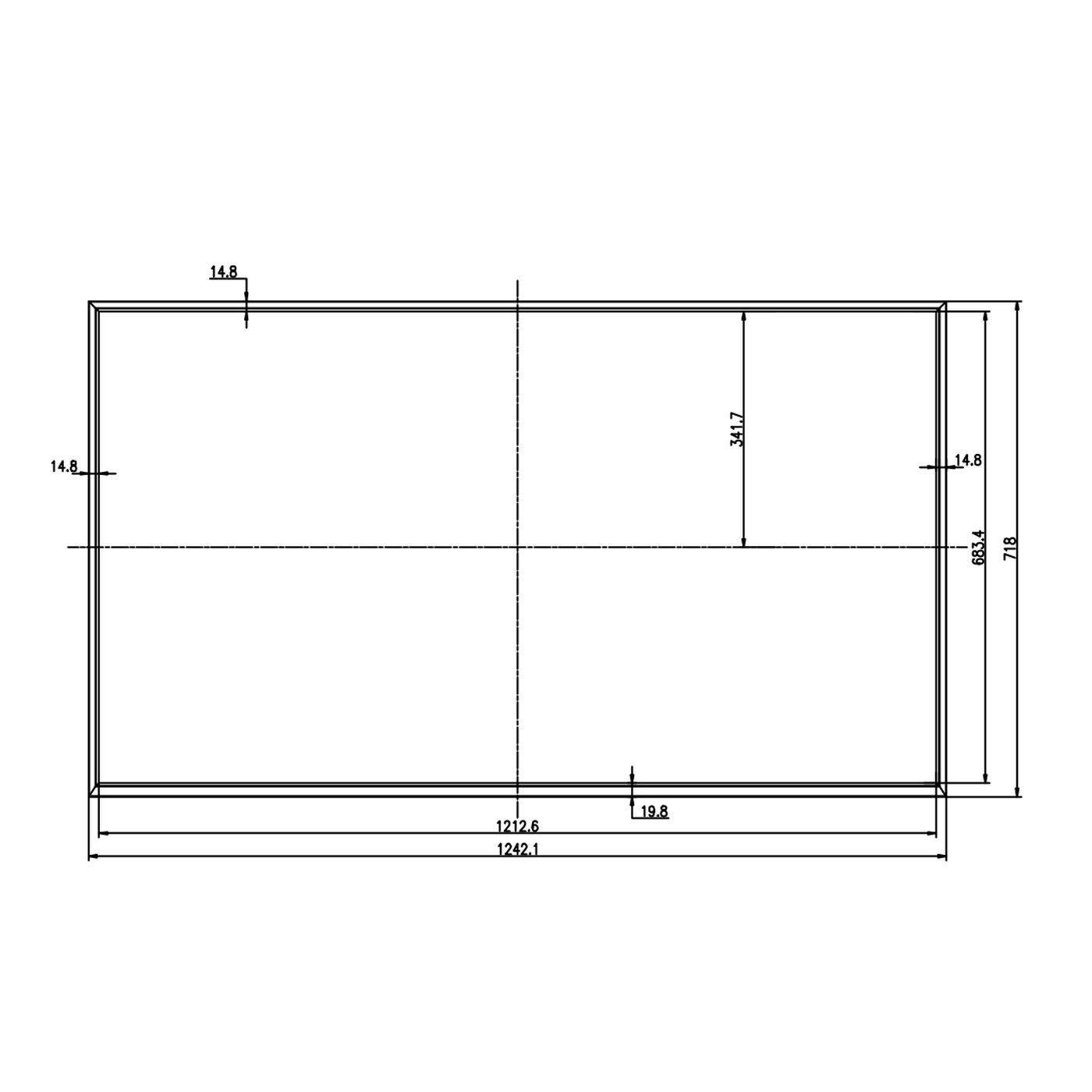

| Dimensions (mm) | 1242.1 (H)* 718 (V)* 51.6 (D) mm |
| Brightness | 2000 cd / m2 |
| Resolution | 1920 * 1080 |
| Aspect Ratio | 16: 9 |
| Pixel Pitch (mm) | 0.63 (H) * 0.63(V) mm |
| Pixel Per Inch (PPI) | 40.05 |
| Pixel Arrangement | RGB Vertical strip |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Contrast Ratio | TBD |
| Display Colors | 8-bit , 16.7 M |
| Response Time (Typical) | 14 (Typ.) (G to G) ms |
| Input Power | DC 24V for Backlight /12V for LVDS |
| Power Consumption | 290 W |
| Driver Element | a-Si TFT - LCD |
| Surface Treatment | Haze 25%,Hard coating (3H) |
| Interface | LVDS(2 ch , 10-bit) ,51 pins 0.5 mm |
| Weight (Net) | 14.1 kg |
| Operating Temperature | -20 ℃ ~ 70 ℃ |
| Storage Temperature | -20 ℃ ~ 70 ℃ |
| Backlight life | 50K(Typ.) |
Product Overview
The 55 inch High Brightness TFT LCD Panel RS550FHB-GD20 from RisingStar is a 55 inch industrial panel for large-format outdoor signage and video walls. 2000 cd/m2 of brightness, 1920 x1080 resolution and a 89/89/89/89 viewing angle make it a dependable building block for equipment makers that need a readable panel without a full enclosure.
Key Features
- Brightness 2000nits
- LED Backlight
- Low Power Consumption
- BL MTBF: 50,000 hours
Typical Applications
Typical uses include digital signage controllers, industrial HMIs, transport information displays, retail POS terminals and in-store video walls. Custom brightness, interface and bezel options are available on request.
