Specifications
| Parameter | Value |
|---|---|
| Model Name | RS215HAN-GD15 |
| Screen Size | 21.5" |

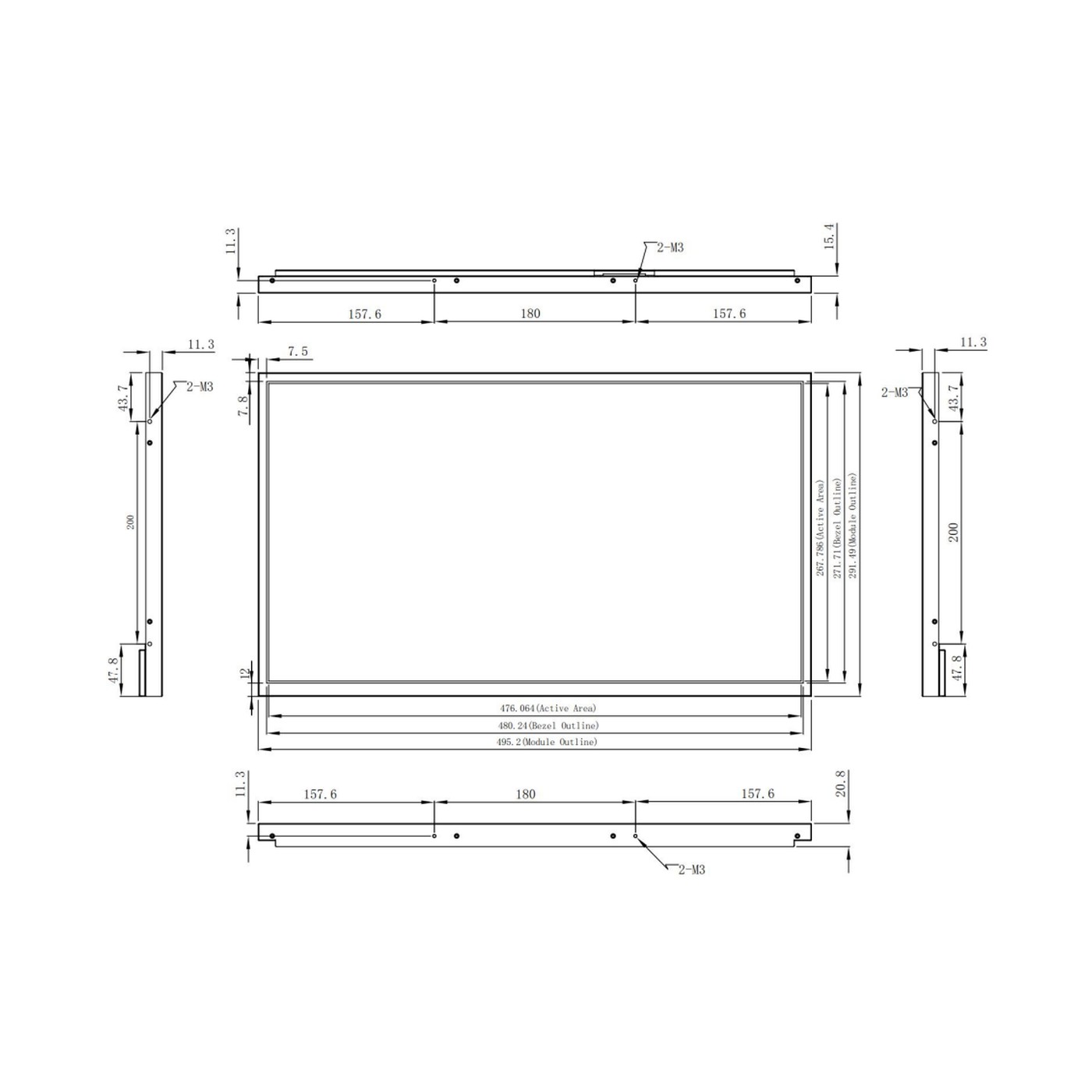

| Display Area (mm) | 476.064(H) * 267.786(V) |
| Dimensions (mm) | 495.2 x 291.49 x 20.8 mm |
| Brightness | 1500 cd / m2 |
| Resolution | 1920 * 1080 |
| Aspect Ratio | 16:9 |
| Pixel Pitch (mm) | 0.248 (H) x 0.248(V) |
| Pixel Per Inch (PPI) | 102.5 |
| Pixel Arrangement | RGB Vertical strip |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Contrast Ratio | 1000:1 |
| Display Colors | 8-bit, 16.7 M |
| Response Time (Typical) | 25 (Typ.) (Tr+Td) ms |
| Input Power | DC 12V for Backlight /5V for LVDS |
| Power Consumption | 28 W |
| Driver Element | a-Si TFT - LCD |
| Surface Treatment | Anti-Glare,Haze 25%,Hard coating (3H) |
| Interface | LVDS(2 ch,8-bit),30 pins 1.0mm |
| Weight (Net) | 2KG |
| Operating Temperature | -20~70 °C |
| Storage Temperature | -30~80 °C |
| Backlight life | 50K(Typ.) |
RS215HAN-GD15 is a 21.5-inch LCD display with 1,500 nits brightness, 1920×1080 resolution and 1000:1 contrast ratio. Its operating temperature range is -20 °C to 70 °C.
Product Overview

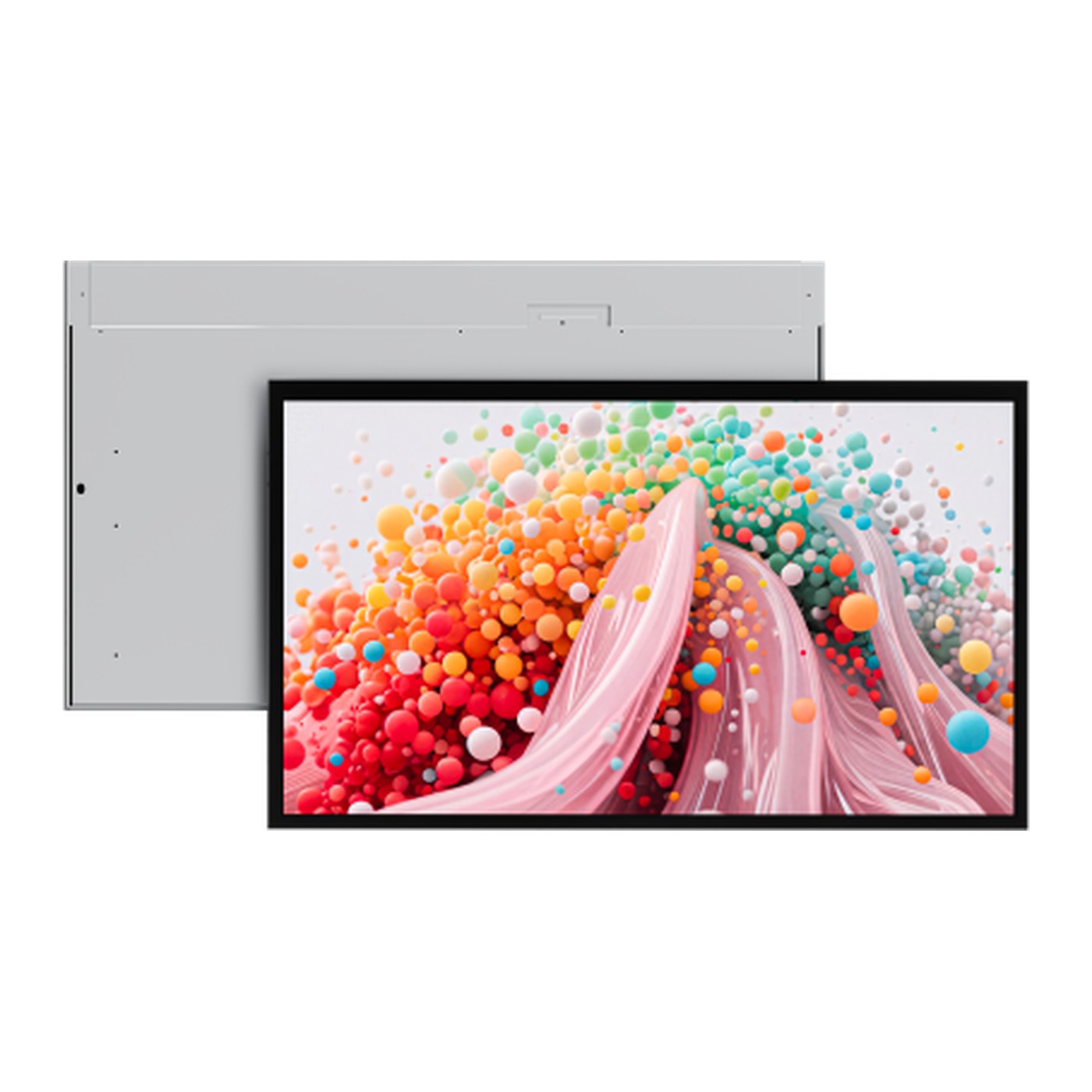

The 21.5 inch Sunlight Readable TFT LCD Panel RS215HAN-GD15 from RisingStar is a 21.5 inch panel for industrial HMIs, machine interfaces and compact outdoor terminals. 1500 cd/m2 of brightness, 1920x1080 resolution and a 89/89/89/89 viewing angle make it a dependable building block for equipment makers that need a readable panel without a full enclosure.
Key Features
- Brightness 1500nits
- LED Backlight
- Low Power Consumption
- BL MTBF: 50,000 hours
Typical Applications
Typical uses include digital signage controllers, industrial HMIs, transport information displays, retail POS terminals and in-store video walls. Custom brightness, interface and bezel options are available on request.
Product FAQs
How bright is the RS215HAN-GD15?
It is rated at 1,500 nits (cd/m²) brightness.
What are the main display specifications?
It uses a 21.5-inch panel, 1920×1080 resolution, 1000:1 contrast ratio.
What is the operating temperature range?
The operating temperature range is -20 °C to 70 °C.
Is this product available for OEM or ODM customization?
Yes. RisingStar is an OEM/ODM manufacturer and accepts customization requirements for volume orders; contact the sales team with your target specification.
What interface does the RS215HAN-GD15 use?
It adopts LVDS(2 ch,8-bit),30 pins 1.0mm interface.
What is the power input requirement for the RS215HAN-GD15?
The power input requirement is DC 12V for Backlight /5V for LVDS.
What is the pixel pitch of the RS215HAN-GD15?
The pixel pitch is 0.248 (H) x 0.248(V).
What is the viewing angle?
The viewing angle is 89/89/89/89 (Typ.)(CR≥10).
Is the RS215HAN-GD15 suitable for outdoor or high-ambient-light use?
Yes. Rated at 1,500 nits, it is a high-brightness panel built for sunlight-readable and outdoor applications.
How is the screen surface treated?
The panel surface treatment is Anti-Glare,Haze 25%,Hard coating (3H).
