Specifications
| Parameter | Value |
|---|---|
| Model Name | RS650EGY-GD20 |
| Screen Size | 65" |
| Display Area (mm) | 1428.48 (H) * 803.52 (V) mm |

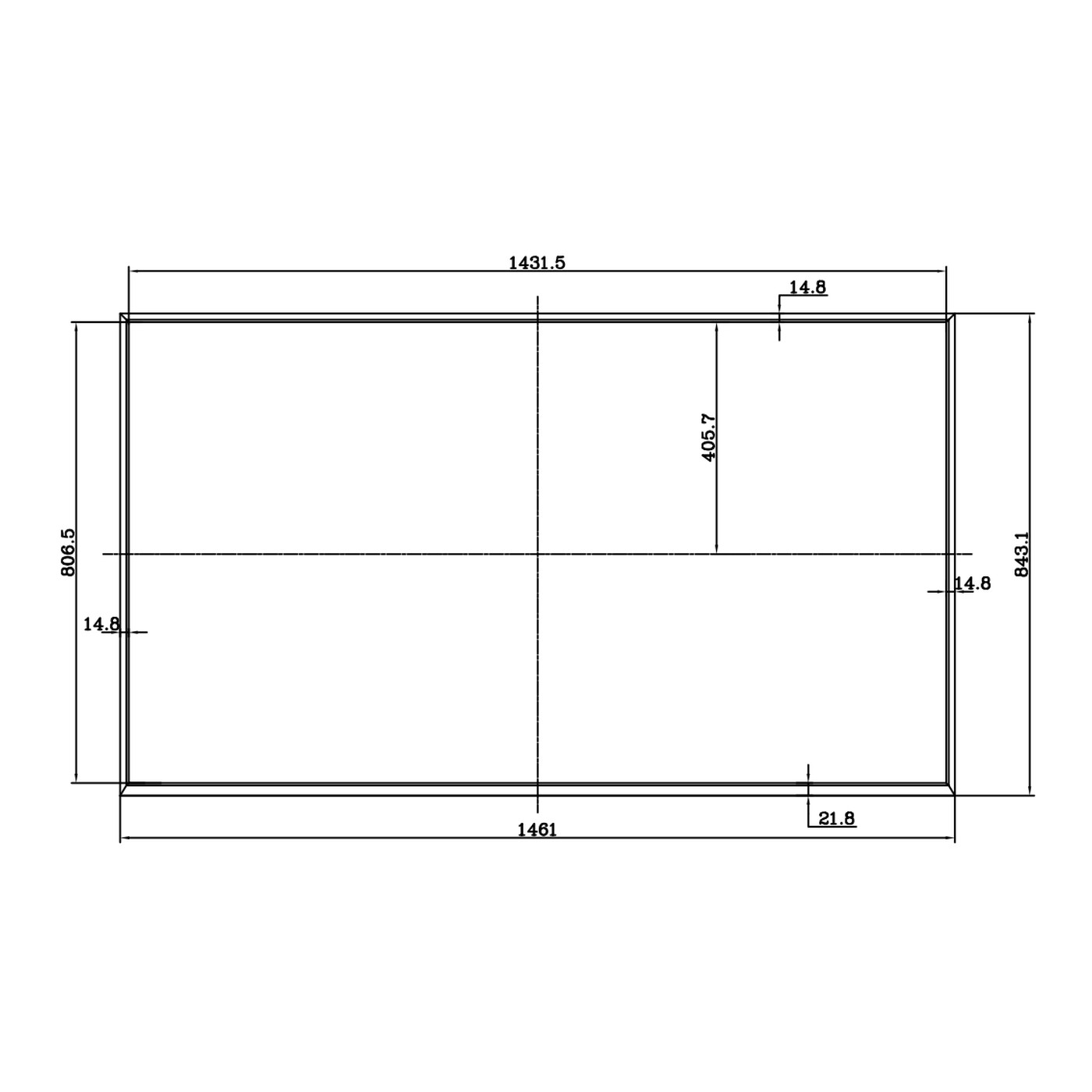

| Dimensions (mm) | 1461 (H)* 843.1 (V)* 63 (D) mm |
| Brightness | 2000 cd / m2 |
| Resolution | 3840 * 2160 |
| Aspect Ratio | 16: 9 |
| Pixel Pitch (mm) | 0.372 (H) * 0.372(V) mm |
| Pixel Per Inch (PPI) | 67.78 |
| Pixel Arrangement | RGBW Vertical strip |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Contrast Ratio | 1200:1 |
| Display Colors | 10-bit , 1.07 B |
| Response Time (Typical) | 9 (Typ.) (G to G) ms |
| Input Power | DC 24V for Backlight /12V for V-by-One |
| Power Consumption | 270 W |
| Driver Element | a-Si TFT - LCD |
| Surface Treatment | Haze 3%,Hard coating (2H) |
| Interface | V-by-One 8 lanes ,51 pins 0.5 mm |
| Weight (Net) | 19 kg |
| Operating Temperature | -20 ℃ ~ 70 ℃ |
| Storage Temperature | -20 ℃ ~ 70 ℃ |
| Backlight life | 50K(Typ.) |
Product Overview

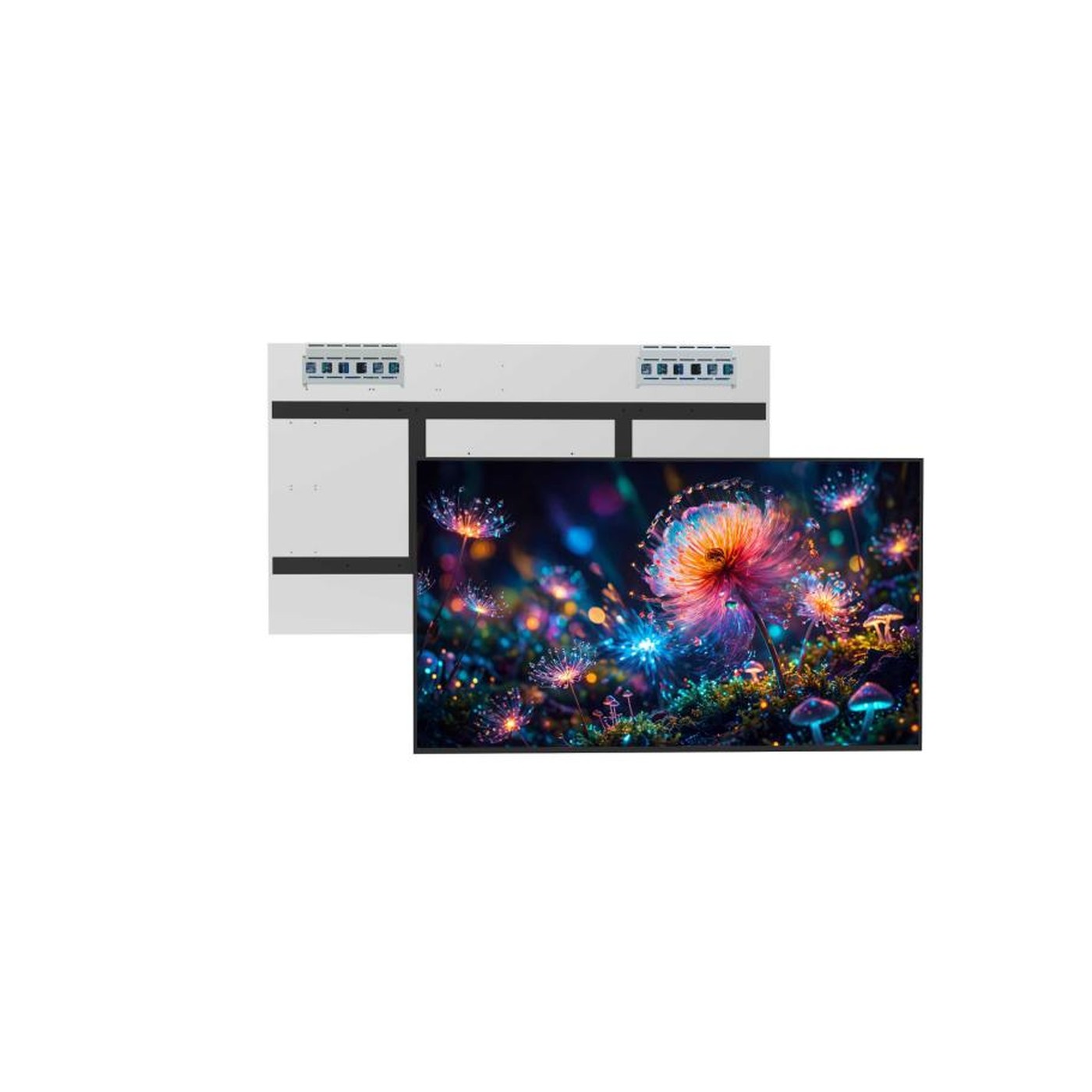

The 65 inch High Brightness TFT LCD Panel RS650EGY-GD20 from RisingStar is a 65 inch 4K panel for retail window walls, airport information boards and advertising displays. 2000 cd/m2 of brightness, 3840 x2160 resolution and a 89/89/89/89 viewing angle make it a dependable building block for equipment makers that need a readable panel without a full enclosure.
Key Features
- Brightness 2000nits
- LED Backlight
- Low Power Consumption
- BL MTBF: 50,000 hours
Typical Applications
Typical uses include digital signage controllers, industrial HMIs, transport information displays, retail POS terminals and in-store video walls. Custom brightness, interface and bezel options are available on request.
