28" Stretchen bar Passenger Information LCD Display
OEM / ODM Manufacturer
Factory Direct
Order & Lead Time
Need 50+ units? for framework agreements.
Global Shipping Options
Samples ship in ~10 working days; Bulk orders in 15-25 working days.
- Express: DHL/FedEx door-to-door delivery (5-7 days)
- Sea Freight: Cost-optimized bulk shipping (30-45 days)
- Rush Orders: Available upon request for urgent projects
1-3 Year Standard Warranty
3 years for Display Units and 1 year for LCD modules. Extendable to 5 years. Includes 24/7 support, remote troubleshooting, and long-term spare parts availability.
All products are manufactured in our ISO 9001-certified facility.
CE, FCC, RoHS Certified

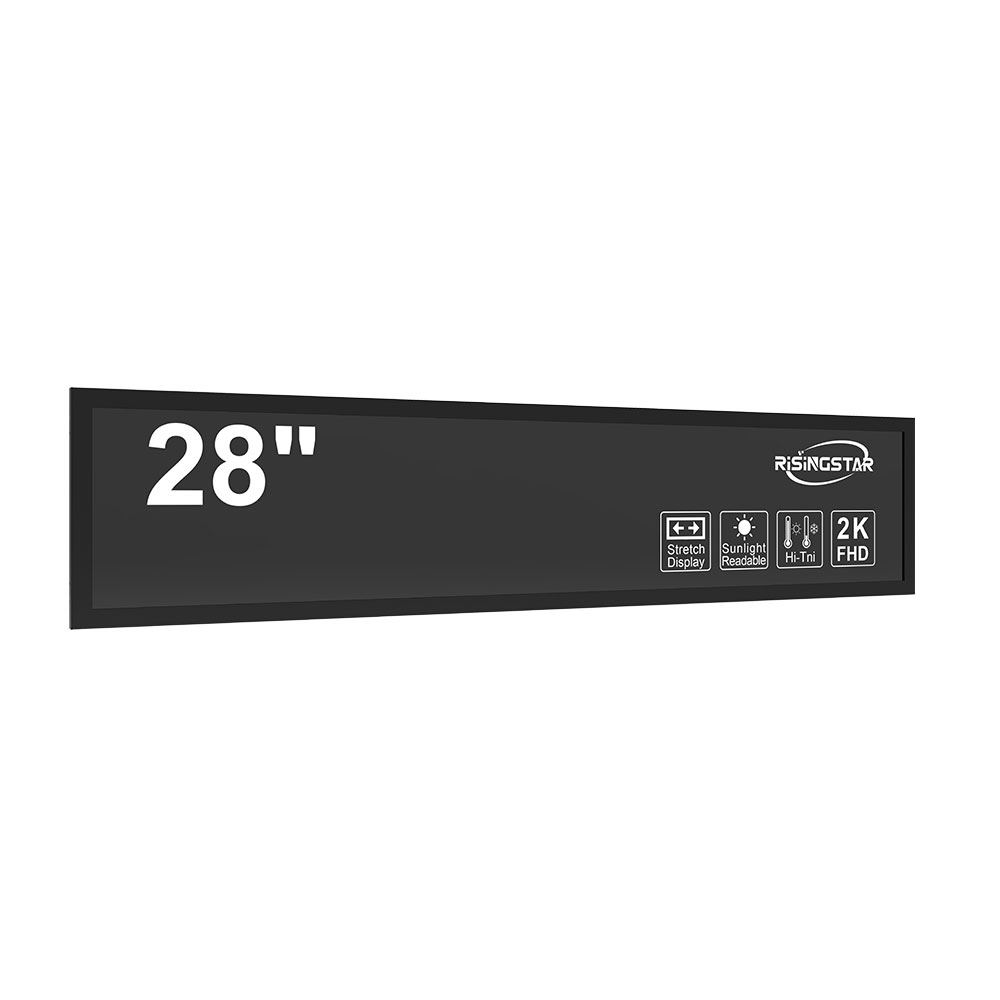

RisingStar’s 28-inch stretched bar passenger information display is engineered for high-demand public transportation environments that require crisp, wide-format visuals in space-constrained areas. Featuring an a-Si TFT-LCD panel with an ultra-wide 1920×360 resolution, this display delivers clear and legible information with 69 PPI pixel density and a wide 89° viewing angle in all directions, ensuring optimal readability from any position.
Designed with advanced AMVA3 technology and a high contrast ratio of 4000:1, the display maintains sharp visuals with deep blacks and vivid colors. With typical brightness levels available at 2500, 3000, 4000, and up to 5000 nits, it excels in both indoor and outdoor settings—especially under direct sunlight. The matte surface treatment with 3H hard coating further reduces glare while providing excellent durability.
Built for 24/7 operation, the panel integrates a long-life WLED backlight with up to 70,000 hours lifespan and an embedded LED driver. It supports MEMC for motion enhancement up to 240Hz for smooth content playback and can operate in temperatures from -20 ~ 70 °C, making it ideal for extreme environments.
Its lightweight structure (2.4kg), low power consumption, and 12V driving voltage make integration effortless for system designers and installers. The LVDS interface ensures stable signal transmission, and the slim profile suits narrow space applications.
Key Applications
Railway Station Platforms
Subway and Metro Systems
Airport Shuttle & Transit Areas
EV Charging Stations & Fuel Pumps
Passenger Buses and Coaches
Smart Bus Stop Shelters
Shopping Mall Transit Points
Outdoor Digital Signage & Advertising
Real Estate Display Panels
28 Inch Stretchen bar Passenger Information Display Specification
| Item | Specification |
|---|---|
| Panel Size | 28.0 inch |
| Panel Type | a-Si TFT-LCD, LCD Module |
| Resolution | 1920 (RGB) × 360, 69 PPI |
| Pixel Arrangement | RGB Vertical Stripe |
| Display Area (W×H) | 698.4 × 130.95 mm |
| Active Area (W×H) | 702.4 × 134.95 mm |
| Surface Treatment | Matte (Haze 28%), Hard Coating (3H) |
| Brightness (Typ.) | 2500 / 3000 / 4000 / 5000 nits |
| Contrast Ratio (Typ.) | 4000:1 (TM) |
| Viewing Angle (CR≥10) | 89°/89°/89°/89° (L/R/U/D) |
| Display Mode | AMVA3, Transmissive, Normally Black |
| Panel Technology | VA-based: AMVA3 (Soft VA) |
| Response Time (Typ.) | 8 ms (G to G) |
| Display Colors | 16.7M Colors, 72% NTSC |
| Backlight Type | WLED, 70,000 hours lifespan, with LED driver included |
| Refresh Rate | 60Hz (Standard) |
| Advanced Frequency | - 120Hz (MEMC built-in, 60Hz input) - 120Hz+120Hz (panel + backlight) - 240Hz (MEMC built-in, 60Hz input) |
| Touch Panel | No Touch |
| Panel Weight | 2.40 kg (Typ.) |
| Application | Outdoor High Brightness Digital Signage, Stretched Bar LCD |
| Signal Interface | LVDS (2 ch, 8-bit), 51 pins, Terminal Connector |
| Driving Voltage | 12.0V (Typ.) |
| Operating Temperature | -20 ~ 70 °C |
| Storage Temperature | -30 ~ 80 °C |
28 Inch Stretchen bar Passenger Information Display Application Cases
28 Inch Stretchen bar Passenger Information Display Specification
| Item | Specification |
|---|---|
| Panel Size | 28.0 inch |
| Panel Type | a-Si TFT-LCD, LCD Module |
| Resolution | 1920 (RGB) × 360, 69 PPI |
| Pixel Arrangement | RGB Vertical Stripe |
| Display Area (W×H) | 698.4 × 130.95 mm |
| Active Area (W×H) | 702.4 × 134.95 mm |
| Surface Treatment | Matte (Haze 28%), Hard Coating (3H) |
| Brightness (Typ.) | 2500 / 3000 / 4000 / 5000 nits |
| Contrast Ratio (Typ.) | 4000:1 (TM) |
| Viewing Angle (CR≥10) | 89°/89°/89°/89° (L/R/U/D) |
| Display Mode | AMVA3, Transmissive, Normally Black |
| Panel Technology | VA-based: AMVA3 (Soft VA) |
| Response Time (Typ.) | 8 ms (G to G) |
| Display Colors | 16.7M Colors, 72% NTSC |
| Backlight Type | WLED, 70,000 hours lifespan, with LED driver included |
| Refresh Rate | 60Hz (Standard) |
| Advanced Frequency | - 120Hz (MEMC built-in, 60Hz input) - 120Hz+120Hz (panel + backlight) - 240Hz (MEMC built-in, 60Hz input) |
| Touch Panel | No Touch |
| Panel Weight | 2.40 kg (Typ.) |
| Application | Outdoor High Brightness Digital Signage, Stretched Bar LCD |
| Signal Interface | LVDS (2 ch, 8-bit), 51 pins, Terminal Connector |
| Driving Voltage | 12.0V (Typ.) |
| Operating Temperature | -20 ~ 70 °C |
| Storage Temperature | -30 ~ 80 °C |
01 / Chassis & Materials
Structural integrity for extreme environments.
| Enclosure Grade | Medical and Food grade SUS316L Stainless Steel, AL5052 Aluminum, or SECC Galvanized Steel. |
| Protection Rating | Certified IP65 / IP69K waterproof sealing. Mechanical impact protection rated at IK10. |
| Surface Finish | Industrial powder coating (RAL spectrum), sandblasting, and anti-acid marine painting. |
| Format Architecture | Chassis-mount, Open-frame, Panel-mount, and VESA-integrated configurations. |
03 / Interface & I/O
Industrial signal and power regulation.
| Connectors | Support for M12 Aviation Circular Connectors, DB9/RS232, and waterproof RJ45/USB. |
| Power Regulation | Wide voltage DC 9V - 36V input with integrated surge and polarity protection. |
| Sensor Suite | Integrated ambient light sensors, thermal probes, and custom GPIO control protocols. |
02 / Optical & Display
Visibility optimization for extreme ambient lighting.
| Luminance Output | Scalable 1500 - 5000 Nits with integrated Hi-Tni (110°C) anti-blackening technology. |
| Optical Bonding | Full Vacuum Optical Bonding (OCR) — eliminates air gaps, fogging, and maximizes contrast ratio. |
| Advanced Coating | Integrated AR (Anti-Reflective), AG (Anti-Glare), and AF (Anti-Fingerprint) nano-films. |
04 / Embedded & Data
Software architecture and data sync.
| Operating Systems | Full compatibility with Windows 7, 10/11 IoT; Linux support covering the last 3 generations (Ubuntu 20.04, 22.04, 24.04 LTS) and Debian; as well as comprehensive support for Android 11 through 14. |
| Communication | High-speed 4G/5G LTE modules, Dual-band Wi-Fi 6, and Gigabit Ethernet. |
