37" high brightness stretch LCD bar for passenger information display
OEM / ODM Manufacturer
Factory Direct
Order & Lead Time
Need 50+ units? for framework agreements.
Global Shipping Options
Samples ship in ~10 working days; Bulk orders in 15-25 working days.
- Express: DHL/FedEx door-to-door delivery (5-7 days)
- Sea Freight: Cost-optimized bulk shipping (30-45 days)
- Rush Orders: Available upon request for urgent projects
1-3 Year Standard Warranty
3 years for Display Units and 1 year for LCD modules. Extendable to 5 years. Includes 24/7 support, remote troubleshooting, and long-term spare parts availability.
All products are manufactured in our ISO 9001-certified facility.
CE, FCC, RoHS Certified
Specification
| Parameter | Specification |
|---|---|
| Screen Size | 37 inch |
| Panel Type | a-Si TFT-LCD, LCD Module |
| Resolution | 1920(RGB) × 540, 53 PPI |
| Pixel Arrangement | RGB Vertical Stripe |

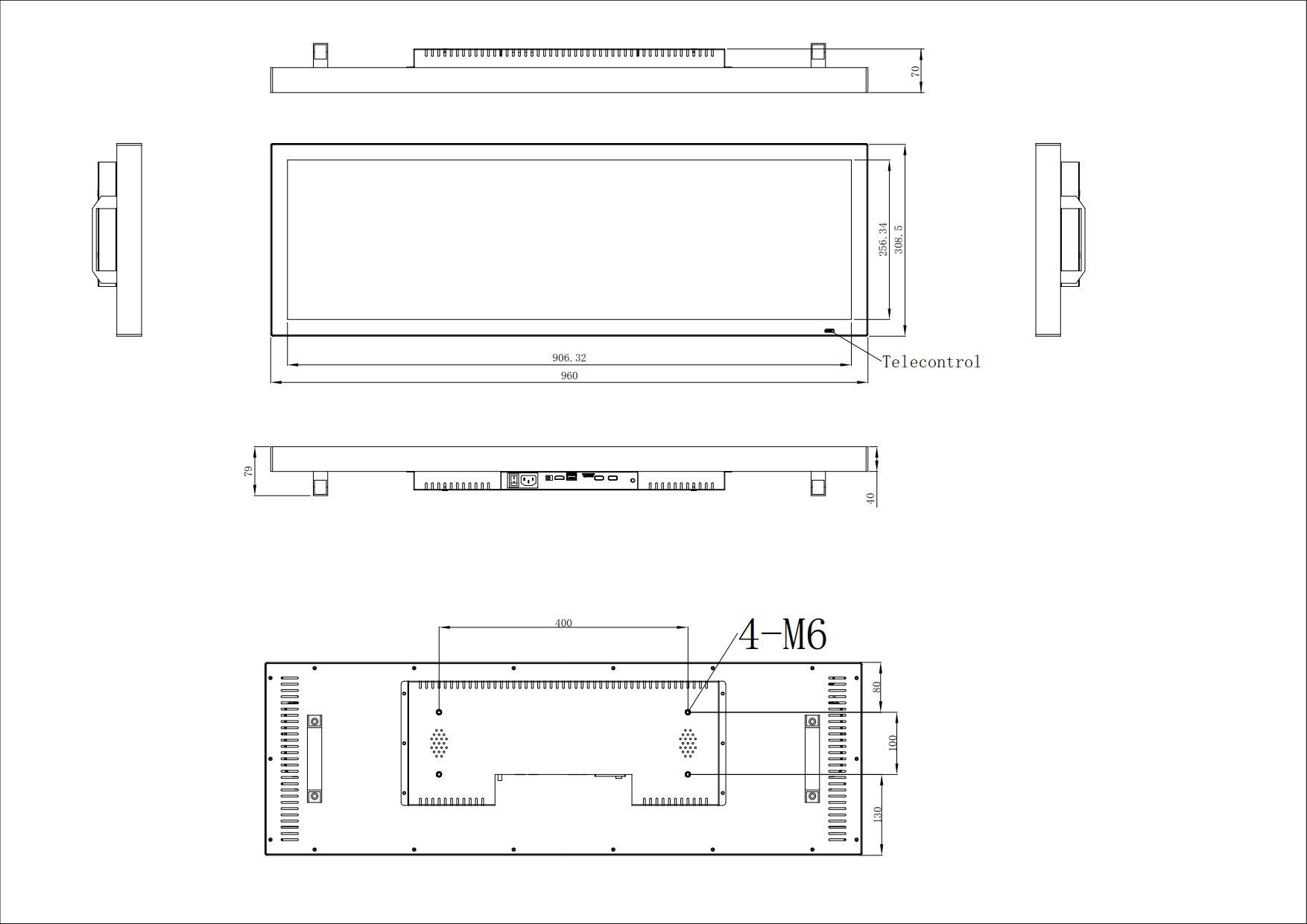

| Active Area | 904.32(W) × 254.34(H) mm |
| Viewable Area | 907.5(W) × 257.5(H) mm |
| Surface Treatment | Anti-glare (Haze 1%), Hard Coating 3H |
| Brightness | 500~5000 cd/m² |
| Contrast Ratio | 5000:1 (Typ.) [Transmissive] |
| Optimal Viewing Angle | Full Viewing Angle |
| Optical Mode | Super MVA, Normally Black, Transmissive |
| IPS Hard Screen Series | AAS, ADS, AHVA, FFS, HFS, HIS, IPS, New Mode2, PLS, SFT, Vistarich |
| VA Soft Screen Series | ASV, FSA, HVA, MVA, PVA, SVA, UV²A, VA |
| Viewing Angle (CR≥10) | 89° / 89° / 89° / 89° (L/R/U/D) |
| Response Time (G to G) | 11 ms (Typ.) |
| Color | 16.7M, 72% NTSC |
| Backlight Type | WLED, 50K hours, with LED driver |
| Weight | 4.67 ± 0.23 kg |
| Recommended Applications | Digital Signage, Outdoor High-Brightness Displays, Cut Bar Displays |
| Refresh Rate | 60 Hz, 120 Hz (60Hz input, with MEMC), 120 Hz+120 Hz, 240 Hz (60Hz input, with MEMC) |
| Touch Function | None |
| Signal System | LVDS (2 ch, 8-bit), 51 pins |
| Supply Voltage | 12 V (Typ.) |
| Storage Temperature | -30 ~ 80 °C |
| Operating Temperature | -20 ~ 70 °C |
Description & Applications
The 37-inch a-Si TFT-LCD module is designed for high-brightness outdoor applications, including digital signage and specialized cut-bar displays. With a 1920 × 540 resolution and Super MVA optical mode, it delivers deep blacks, high contrast (5000:1 typ.), and wide viewing angles (89° all directions). Its WLED backlight provides 500–5000 nits brightness, ideal for outdoor sunlight readability. The panel supports 60–240 Hz refresh rates with MEMC for smooth motion and is robust enough to operate in temperatures from -20 ~ 70 °C, with storage up to 70°C. The thin, lightweight design (4.67 kg) and durable anti-glare hard coating make it suitable for industrial digital signage, outdoor displays, and customized bar screens.
Specification
| Parameter | Specification |
|---|---|
| Screen Size | 37 inch |
| Panel Type | a-Si TFT-LCD, LCD Module |
| Resolution | 1920(RGB) × 540, 53 PPI |
| Pixel Arrangement | RGB Vertical Stripe |
| Active Area | 904.32(W) × 254.34(H) mm |
| Viewable Area | 907.5(W) × 257.5(H) mm |
| Surface Treatment | Anti-glare (Haze 1%), Hard Coating 3H |
| Brightness | 500~5000 cd/m² |
| Contrast Ratio | 5000:1 (Typ.) [Transmissive] |
| Optimal Viewing Angle | Full Viewing Angle |
| Optical Mode | Super MVA, Normally Black, Transmissive |
| IPS Hard Screen Series | AAS, ADS, AHVA, FFS, HFS, HIS, IPS, New Mode2, PLS, SFT, Vistarich |
| VA Soft Screen Series | ASV, FSA, HVA, MVA, PVA, SVA, UV²A, VA |
| Viewing Angle (CR≥10) | 89° / 89° / 89° / 89° (L/R/U/D) |
| Response Time (G to G) | 11 ms (Typ.) |
| Color | 16.7M, 72% NTSC |
| Backlight Type | WLED, 50K hours, with LED driver |
| Weight | 4.67 ± 0.23 kg |
| Recommended Applications | Digital Signage, Outdoor High-Brightness Displays, Cut Bar Displays |
| Refresh Rate | 60 Hz, 120 Hz (60Hz input, with MEMC), 120 Hz+120 Hz, 240 Hz (60Hz input, with MEMC) |
| Touch Function | None |
| Signal System | LVDS (2 ch, 8-bit), 51 pins |
| Supply Voltage | 12 V (Typ.) |
| Storage Temperature | -30 ~ 80 °C |
| Operating Temperature | -20 ~ 70 °C |
01 / Chassis & Materials
Structural integrity for extreme environments.
| Enclosure Grade | Medical and Food grade SUS316L Stainless Steel, AL5052 Aluminum, or SECC Galvanized Steel. |
| Protection Rating | Certified IP65 / IP69K waterproof sealing. Mechanical impact protection rated at IK10. |
| Surface Finish | Industrial powder coating (RAL spectrum), sandblasting, and anti-acid marine painting. |
| Format Architecture | Chassis-mount, Open-frame, Panel-mount, and VESA-integrated configurations. |
03 / Interface & I/O
Industrial signal and power regulation.
| Connectors | Support for M12 Aviation Circular Connectors, DB9/RS232, and waterproof RJ45/USB. |
| Power Regulation | Wide voltage DC 9V - 36V input with integrated surge and polarity protection. |
| Sensor Suite | Integrated ambient light sensors, thermal probes, and custom GPIO control protocols. |
02 / Optical & Display
Visibility optimization for extreme ambient lighting.
| Luminance Output | Scalable 1500 - 5000 Nits with integrated Hi-Tni (110°C) anti-blackening technology. |
| Optical Bonding | Full Vacuum Optical Bonding (OCR) — eliminates air gaps, fogging, and maximizes contrast ratio. |
| Advanced Coating | Integrated AR (Anti-Reflective), AG (Anti-Glare), and AF (Anti-Fingerprint) nano-films. |
04 / Embedded & Data
Software architecture and data sync.
| Operating Systems | Full compatibility with Windows 7, 10/11 IoT; Linux support covering the last 3 generations (Ubuntu 20.04, 22.04, 24.04 LTS) and Debian; as well as comprehensive support for Android 11 through 14. |
| Communication | High-speed 4G/5G LTE modules, Dual-band Wi-Fi 6, and Gigabit Ethernet. |
