Designed for industrial environments and compact digital signage applications, the 10.1 inch TFT-LCD display delivers excellent performance in a slim and lightweight form. With a native WXGA resolution of 1280×800 and a high pixel density of 149 PPI, this screen ensures sharp and vivid visuals for both static and dynamic content.
Equipped with MVA technology and an ultra-wide viewing angle of 85°/85°/85°/85°, the display offers consistent image quality from any direction. The transmissive, normally black mode boosts contrast and color depth, while a typical contrast ratio of 1300:1 enhances readability even under strong ambient light. The 3H hard coating and low surface reflectivity of 1.5% (max) make it suitable for semi-outdoor or high-brightness environments.
The display achieves 300 cd/m² brightness, ideal for sunlight-readable kiosks, portable terminals, and HMI interfaces. Built-in WLED backlight with LED driver ensures up to 15,000 hours of reliable usage. The module supports 262K colors at 45% NTSC, and the fast 25ms response time guarantees smooth visual transitions.
With a compact footprint of 229.46 × 149.2 × 4.96 mm and LVDS 40-pin interface (1ch, 6-bit), this panel integrates easily into embedded systems. It operates in a wide temperature range from -20°C to 60°C, making it highly reliable for outdoor, transportation, and rugged industrial applications. Optional MEMC technology supports enhanced refresh rates up to 240Hz for optimized video playback.

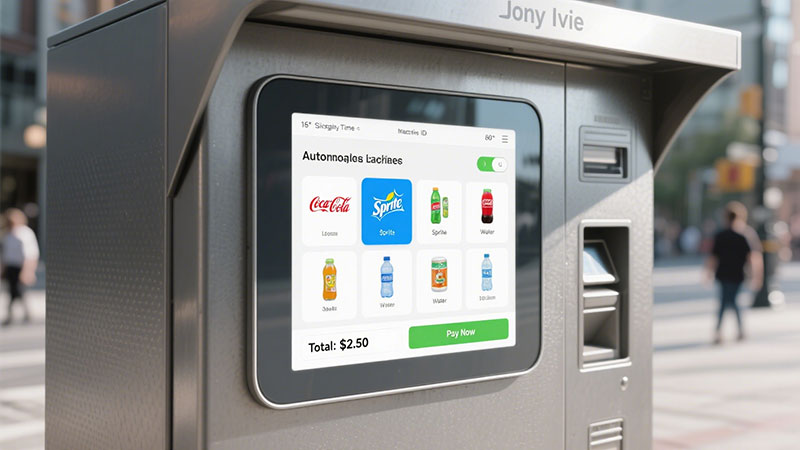

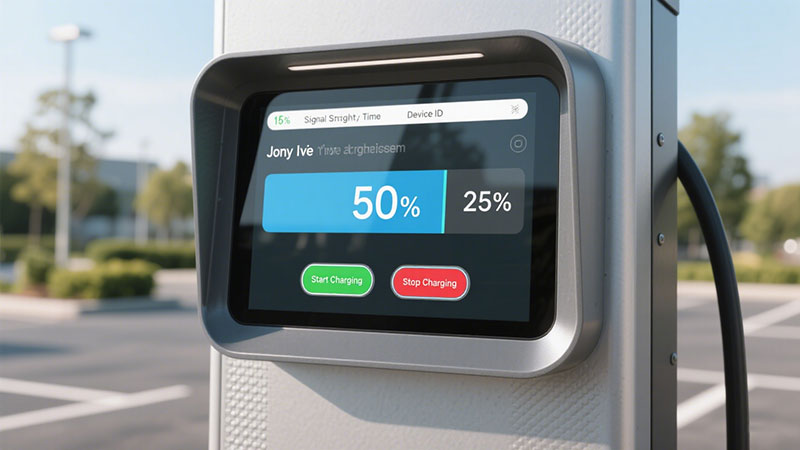

This 10.1" sunlight-readable LCD display is an ideal solution for compact digital signage, industrial control systems, and embedded display terminals where clarity and durability matter.

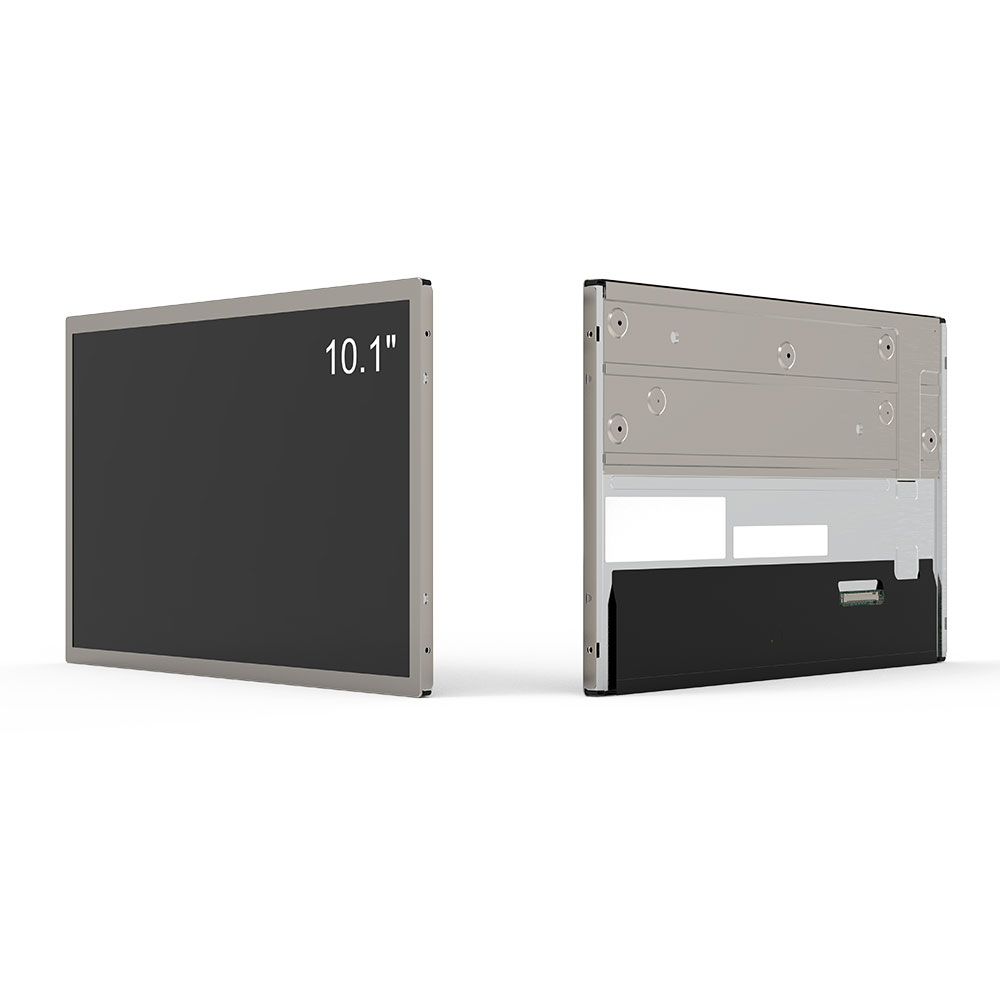

10.1-inch high-brightness LCD screen
10.1-inch high-brightness LCD screen case
| Item | Specification |
|---|---|
| Panel Size | 10.1 inch |
| Panel Type | a-Si TFT-LCD, Liquid Crystal Module |
| Resolution | 1280 (RGB) × 800 (WXGA), 149 PPI |
| Pixel Configuration | RGB Vertical Stripe |
| Active Area | 216.96 (W) × 135.6 (H) mm |
| Outline Dimensions | 229.46 (W) × 149.2 (H) × 4.96 (D) mm |
| Bezel Opening Area | 220.36 (W) × 139.1 (H) mm |
| Surface Treatment | Hard Coating (3H), Reflectivity ≤ 1.5% |
| Brightness | 2500/ 3000/ 4000/ 5000nits |
| Contrast Ratio | 1300:1 (Typ.) (Transmissive) |
| Viewing Angle (CR≥10) | 85/85/85/85 (L/R/U/D) |
| Display Mode | MVA, Normally Black, Transmissive |
| Response Time | 25 ms (Typ.) (Tr + Td) |
| Color Support | 262K Colors, 45% NTSC |
| Backlight Type | WLED, 15,000 Hours Lifetime, Integrated LED Driver |
| Frame Rate | 60Hz (Standard); Optional MEMC for 120Hz/240Hz Input |
| Touch Technology | None |
| Interface Type | 40 pins LVDS (1 ch, 6-bit), Terminal |
| Power Supply | 3.3V (Typ.) |
| Weight | Max. 187g |
| Operating Temperature | -20 ~ 60 °C |
| Storage Temperature | -30 ~ 70 °C |
| Application | Industrial, |
| Item | Specification |
|---|---|
| Panel Size | 10.1 inch |
| Panel Type | a-Si TFT-LCD, Liquid Crystal Module |
| Resolution | 1280 (RGB) × 800 (WXGA), 149 PPI |
| Pixel Configuration | RGB Vertical Stripe |
| Active Area | 216.96 (W) × 135.6 (H) mm |
| Outline Dimensions | 229.46 (W) × 149.2 (H) × 4.96 (D) mm |
| Bezel Opening Area | 220.36 (W) × 139.1 (H) mm |
| Surface Treatment | Hard Coating (3H), Reflectivity ≤ 1.5% |
| Brightness | 2500/ 3000/ 4000/ 5000nits |
| Contrast Ratio | 1300:1 (Typ.) (Transmissive) |
| Viewing Angle (CR≥10) | 85/85/85/85 (L/R/U/D) |
| Display Mode | MVA, Normally Black, Transmissive |
| Response Time | 25 ms (Typ.) (Tr + Td) |
| Color Support | 262K Colors, 45% NTSC |
| Backlight Type | WLED, 15,000 Hours Lifetime, Integrated LED Driver |
| Frame Rate | 60Hz (Standard); Optional MEMC for 120Hz/240Hz Input |
| Touch Technology | None |
| Interface Type | 40 pins LVDS (1 ch, 6-bit), Terminal |
| Power Supply | 3.3V (Typ.) |
| Weight | Max. 187g |
| Operating Temperature | -20 ~ 60 °C |
| Storage Temperature | -30 ~ 70 °C |
| Application | Industrial, Embedded Systems, Sunlight Readable Signage |
Ask a quote for the latest price and one of our team members will respond as soon as possible.
