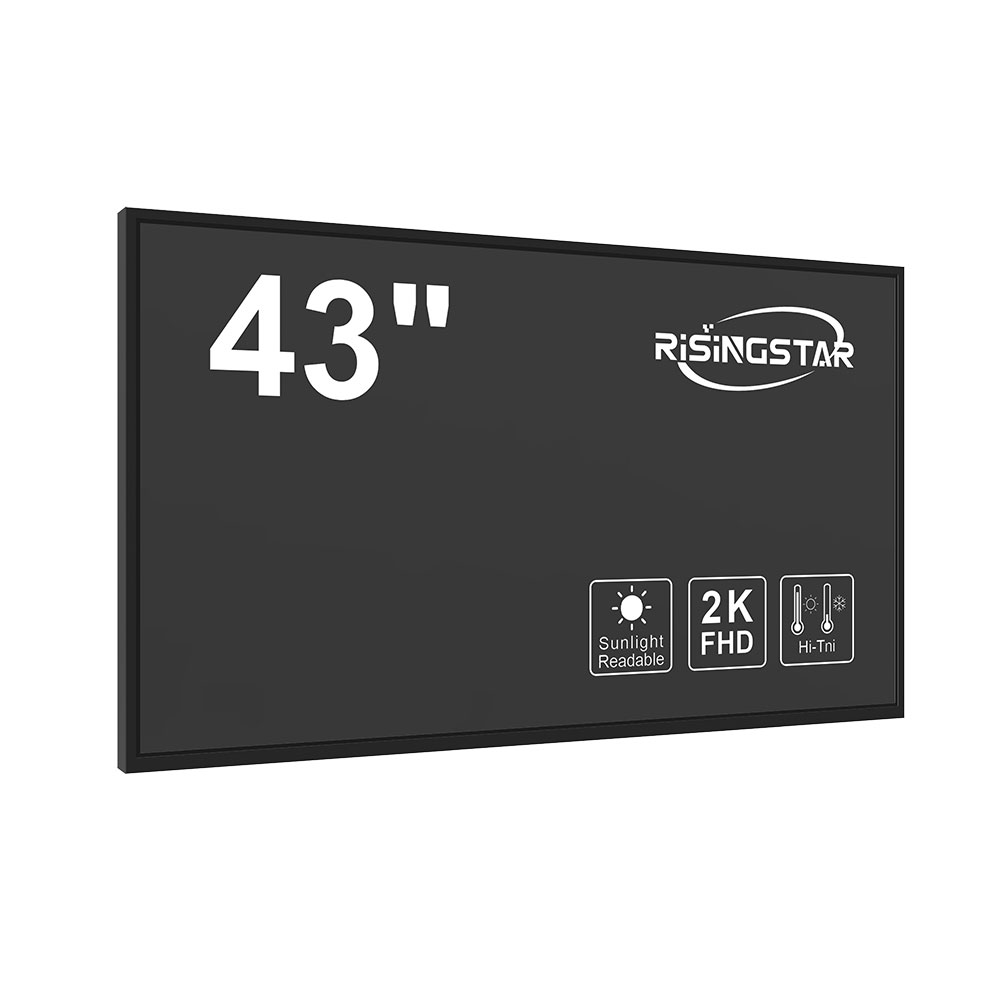

43 inch sunlight readable LCD panel for outdoor application
OEM / ODM Manufacturer
Factory Direct
Order & Lead Time
Need 50+ units? for framework agreements.
Global Shipping Options
Samples ship in ~10 working days; Bulk orders in 15-25 working days.
- Express: DHL/FedEx door-to-door delivery (5-7 days)
- Sea Freight: Cost-optimized bulk shipping (30-45 days)
- Rush Orders: Available upon request for urgent projects
1-3 Year Standard Warranty
3 years for Display Units and 1 year for LCD modules. Extendable to 5 years. Includes 24/7 support, remote troubleshooting, and long-term spare parts availability.
All products are manufactured in our ISO 9001-certified facility.
CE, FCC, RoHS Certified
Model: 43" High Brightness a-Si TFT-LCD Bar Display
| Category | Specification |
|---|---|
| Panel Size | 43 inch |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 3840 (RGB) × 720 |
| Pixel Density | 90 PPI |
| Pixel Arrangement | RGB Vertical Stripe |
| Active Area (mm) | 1073.78 (W) × 201.334 (H) |
| Viewing Area (mm) | 1076.3 (W) × 204.5 (H) |
| Surface Treatment | Matte (Haze 1%), Hard Coating (3H) |
| Brightness | 1000 ~ 5000 nits |
| Contrast Ratio | 5000:1 (Typ.) (TM) |
| Viewing Angle (CR ≥ 10) | 89/89/89/89 (L/R/U/D) |
| Display Mode | Super MVA, Normally Black, Transmissive |
| Color Depth | 1.07B, 72% NTSC |
| Response Time | 12 ms (Typ., G to G) |
| Backlight Type | WLED, 50,000 hours, Built-in LED Driver |
| Refresh Rate | 60 Hz |
| Enhanced Modes | 120Hz (60Hz input with MEMC) / 120Hz+120Hz (Panel + Backlight) / 240Hz (60Hz input with MEMC) |
| Touch Screen | No Touch |
| Panel Weight | 4.50 ± 0.3 kg |
| Interface | V-by-One (8 lanes), 51-pin Terminal |
| Driving Voltage | 12V (Typ.) |
| Operating Temperature | -20 ~ 70 °C |
| Storage Temperature | -30 ~ 80 °C |
| Applications | Digital Signage, Outdoor High Brightness Display, Bar-Type Stretched Display |
Panel Description
This 43-inch a-Si TFT-LCD bar-type display is engineered for outdoor and commercial digital signage applications that require ultra-wide format, high brightness, and excellent readability under direct sunlight. With up to 5000 nits luminance, Super MVA wide-viewing technology, and 72% NTSC color reproduction, this display ensures vivid images from all angles. The matte surface treatment and 3H hard coating enhance outdoor durability and reduce glare.
Designed for industrial and signage integrators, the panel includes a V-by-One interface, built-in LED driver, long-life WLED backlight, and support for multiple high-refresh solutions such as 120Hz/240Hz MEMC, delivering smooth motion for transportation displays and retail advertising.
Recommended Applications
This 43" stretched high-brightness LCD is ideal for:
Outdoor Digital Signage
Passenger Information Displays (Railway, Metro, Bus)
Retail Shelf Displays / Advertising Bar Screens
Outdoor Kiosks & Totems
EV Charger Displays
Fuel Dispenser Screens (Gas Stations)
Transportation Guidance & Wayfinding Systems
Industrial Control Panels Requiring Ultra-Wide Displays
Model: 43" High Brightness a-Si TFT-LCD Bar Display
| Category | Specification |
|---|---|
| Panel Size | 43 inch |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 3840 (RGB) × 720 |
| Pixel Density | 90 PPI |
| Pixel Arrangement | RGB Vertical Stripe |
| Active Area (mm) | 1073.78 (W) × 201.334 (H) |
| Viewing Area (mm) | 1076.3 (W) × 204.5 (H) |
| Surface Treatment | Matte (Haze 1%), Hard Coating (3H) |
| Brightness | 1000 ~ 5000 nits |
| Contrast Ratio | 5000:1 (Typ.) (TM) |
| Viewing Angle (CR ≥ 10) | 89/89/89/89 (L/R/U/D) |
| Display Mode | Super MVA, Normally Black, Transmissive |
| Color Depth | 1.07B, 72% NTSC |
| Response Time | 12 ms (Typ., G to G) |
| Backlight Type | WLED, 50,000 hours, Built-in LED Driver |
| Refresh Rate | 60 Hz |
| Enhanced Modes | 120Hz (60Hz input with MEMC) / 120Hz+120Hz (Panel + Backlight) / 240Hz (60Hz input with MEMC) |
| Touch Screen | No Touch |
| Panel Weight | 4.50 ± 0.3 kg |
| Interface | V-by-One (8 lanes), 51-pin Terminal |
| Driving Voltage | 12V (Typ.) |
| Operating Temperature | -20 ~ 70 °C |
| Storage Temperature | -30 ~ 80 °C |
| Applications | Digital Signage, Outdoor High Brightness Display, Bar-Type Stretched Display |
01 / Chassis & Materials
Structural integrity for extreme environments.
| Enclosure Grade | Medical and Food grade SUS316L Stainless Steel, AL5052 Aluminum, or SECC Galvanized Steel. |
| Protection Rating | Certified IP65 / IP69K waterproof sealing. Mechanical impact protection rated at IK10. |
| Surface Finish | Industrial powder coating (RAL spectrum), sandblasting, and anti-acid marine painting. |
| Format Architecture | Chassis-mount, Open-frame, Panel-mount, and VESA-integrated configurations. |
03 / Interface & I/O
Industrial signal and power regulation.
| Connectors | Support for M12 Aviation Circular Connectors, DB9/RS232, and waterproof RJ45/USB. |
| Power Regulation | Wide voltage DC 9V - 36V input with integrated surge and polarity protection. |
| Sensor Suite | Integrated ambient light sensors, thermal probes, and custom GPIO control protocols. |
02 / Optical & Display
Visibility optimization for extreme ambient lighting.
| Luminance Output | Scalable 1500 - 5000 Nits with integrated Hi-Tni (110°C) anti-blackening technology. |
| Optical Bonding | Full Vacuum Optical Bonding (OCR) — eliminates air gaps, fogging, and maximizes contrast ratio. |
| Advanced Coating | Integrated AR (Anti-Reflective), AG (Anti-Glare), and AF (Anti-Fingerprint) nano-films. |
04 / Embedded & Data
Software architecture and data sync.
| Operating Systems | Full compatibility with Windows 7, 10/11 IoT; Linux support covering the last 3 generations (Ubuntu 20.04, 22.04, 24.04 LTS) and Debian; as well as comprehensive support for Android 11 through 14. |
| Communication | High-speed 4G/5G LTE modules, Dual-band Wi-Fi 6, and Gigabit Ethernet. |
