105 inch ultra large size bar type high brightness passenger information LCD display

105 inch ultra large size bar type high brightness passenger information LCD display

Brand RisingStar
Model name RS105ENT-GD20
Screen size 105"
Screen type Stretch LCD Monitor
Brightness (cd/m²) 2000
Overview Specifications Customized Services Support & Shipping

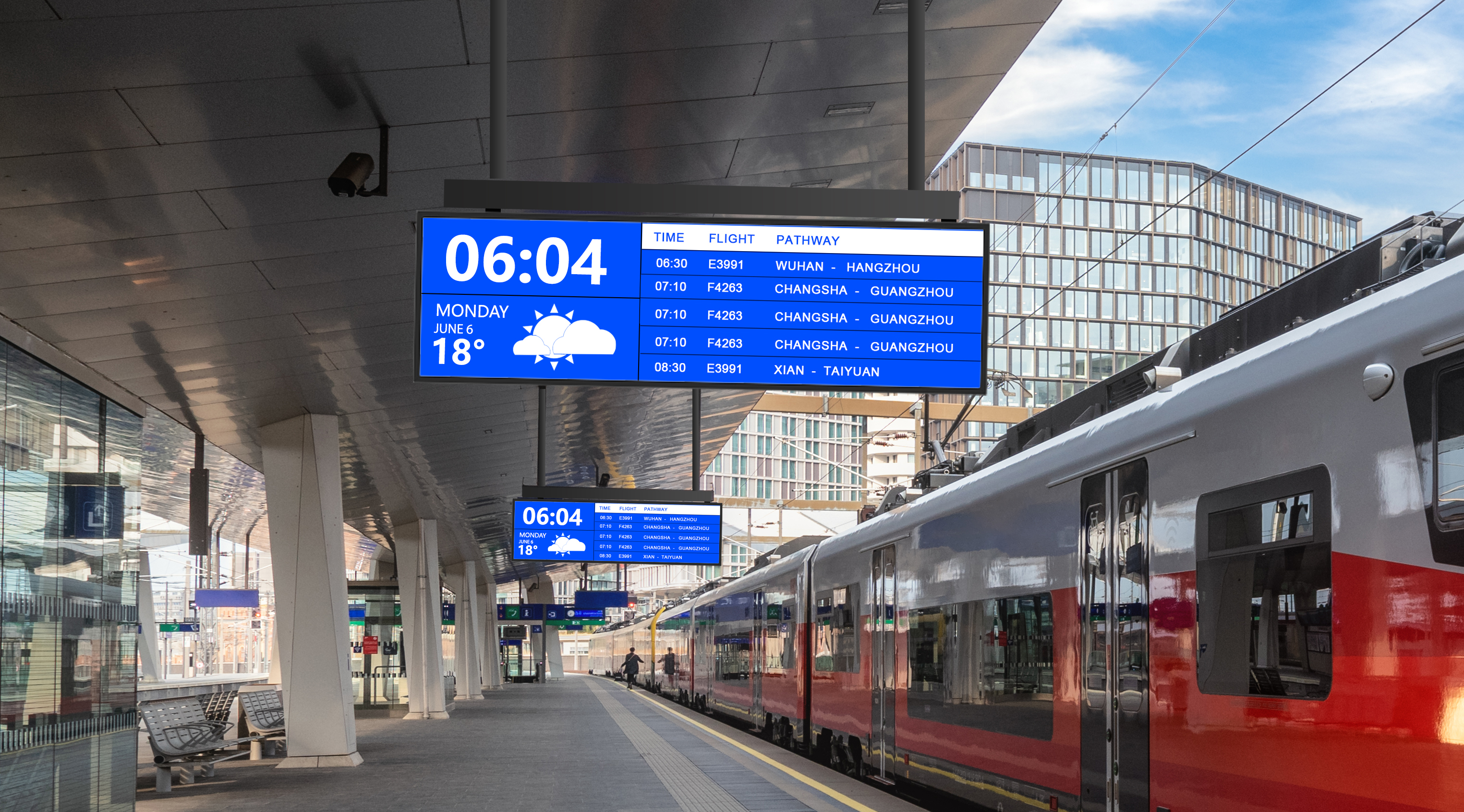

RisingStar 105 inch high brightness stretch LCD bar provides 5120*2160 ultra wide aspect ratios, 2000 nits high brightness, can be clearly visible under direct sunlight, and give perfect visual performance in a wide public application, especially for the passenger information on the public transport scuh as train.metro station

RisingStar 37 inch stretched LCD displays are using the original factory open cell instead of the resizing or 'cut' LCD panels, whcih is the standard size, and reduces the risk of broken glass, micro cracks, and any light leakages.
b295611dac264bbae8dbba499b6a0a9

Stretched bar LCD display is an innovative ultra-wide, sunlight readable LED backlight LCD display, it provides an LCD panel with specific rations for digital signage, public transportation, exhibition hall, department store, vending machine, POS and industrial applications, it is a high-quality full color video with energy-efficient.
Risingstar stretched LCD panel parameter

RisingStar high brightness stretch bar LCD display is with super-wide aspect ratios as wide as 16:1 and in sizes ranging 19inch, 24inch, 21 inch, 28inch, 37 inch,43.8inch, 48.5 inch, 58.4 inch, (customization sizes as you like), and with customized backlight, the brightness can achieve 3000nits, or even higher (more brightness are option, 1000nits, 1500nits, 2500nits, 3500nits, 4500nits, 5500 nits, high brightness makes these screen can read even in the directly sunlight, ideal for passenger information display, transport timetables, traffic messages, announcements and other important communications.

RS105ENT-GD20 105 inch high brightness display 105 inch sunlight readable LCD High brightness display Sunlight readable display Outdoor waterproof display
105" RS105ENT-GD20 Passenger information Monitor


Panel BrandRisingStar
Panel ItemRS105ENT-GD20
Size105 inch
Panel Typea-Si TFT-LCD,   LCM
Resolution: 5120(RGB)*2160 53PPI
Pixel FormatRGB Vertical   Stripe
Display Area2449.92 * 1033.56(H*V)mm

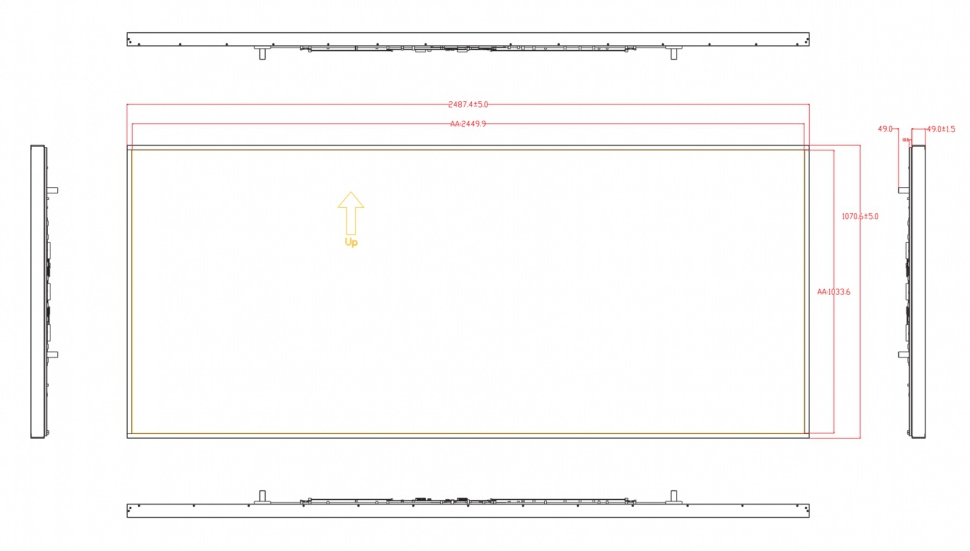

Outline   Size 2487.4 * 1070.6 * 98.0 (H*V*D)mm
Surface Treatment Antiglare (Haze 28%)   , Hard Coating (3H)
Brightness2000cd/m²
Constrast   Ratio.1000:1
View Angle89/89/89/89(Min)
Display ModelAMVA3, Normally   Black, transmissive Display
Best View   on Symmetry
Response Time8 (Typ.)(G to G)
Display Color16.7M/1.078  76% s RGB
BacklightWLED, 70K hours, With   LED Driver
Touch   Screen Without
Panel   Weight TBD
Frame Rate60Hz
Signal   Interface LVDS (2ch, 8-bit), 51   pins connector
Input   Voltage 12v(Typ.)
Operating Temperature-20 ~ 70 °C
Storage Temperature-30 ~ 80 °C
Current   State: In Production
inventory_2

01 / Chassis & Materials

Structural integrity for extreme environments.

Enclosure Grade

Medical and Food grade SUS316L Stainless Steel, AL5052 Aluminum, or SECC Galvanized Steel.

Protection Rating

Certified IP65 / IP69K waterproof sealing. Mechanical impact protection rated at IK10.

Surface Finish

Industrial powder coating (RAL spectrum), sandblasting, and anti-acid marine painting.

Format Architecture

Chassis-mount, Open-frame, Panel-mount, and VESA-integrated configurations.

blur_on

02 / Optical & Display

Visibility optimization for extreme ambient lighting.

Luminance Output

Scalable 1500 - 5000 Nits with integrated Hi-Tni (110掳C) anti-blackening technology.

Optical Bonding

Full Vacuum Optical Bonding (OCR) - eliminates air gaps, fogging, and maximizes contrast ratio.

Advanced Coating

Integrated AR (Anti-Reflective), AG (Anti-Glare), and AF (Anti-Fingerprint) nano-films.

settings_input_component

03 / Interface & I/O

Industrial signal and power regulation.

Connectors

Support for M12 Aviation Circular Connectors, DB9/RS232, and waterproof RJ45/USB.

Power Regulation

Wide voltage DC 9V - 36V input with integrated surge and polarity protection.

Sensor Suite

Integrated ambient light sensors, thermal probes, and custom GPIO control protocols.

dns

04 / Embedded & Data

Software architecture and data sync.

Operating Systems

Full compatibility with Windows 7, 10/11 IoT; Linux support covering the last 3 generations (Ubuntu 20.04, 22.04, 24.04 LTS) and Debian; as well as comprehensive support for Android 11 through 14.

Communication

High-speed 4G/5G LTE modules, Dual-band Wi-Fi 6, and Gigabit Ethernet.

Sampling
10-15 Working Days
Standard
SUS316L / IP69K
Certifications
CE / FCC / UKCA
Response
8H Expert Team
verified

01 / Warranty Policy

Industry-leading protection for your investment.

Complete System

3 Years Full Warranty for the complete machine assembly.

LCD Module

1 Year Warranty for the original LCD assembly.

Extended Support

Optional extended warranty programs (up to 5 years) available upon request.

support_agent

02 / Field Support

Expert guidance throughout the product lifecycle.

Remote Assistance

24/7 technical support and configuration guidance via video link or remote access.

On-site Services

Local on-site installation and maintenance available for large-scale deployments.

schedule

03 / Production Timeline

Scalable manufacturing for urgent project schedules.

Sample Prototyping

Verification and custom prototype delivery within 10 Working Days.

Bulk Production

Standard bulk order fulfillment in 15 - 25 Working Days.

public

04 / Global Distribution

Reliable logistics via air, sea, or rail.

Express & Air

Door-to-door global delivery in 5 - 7 Working Days (DHL, FedEx, UPS).

Ocean & Rail

Cost-optimized bulk shipping in 30 - 45 Days for global major ports.
