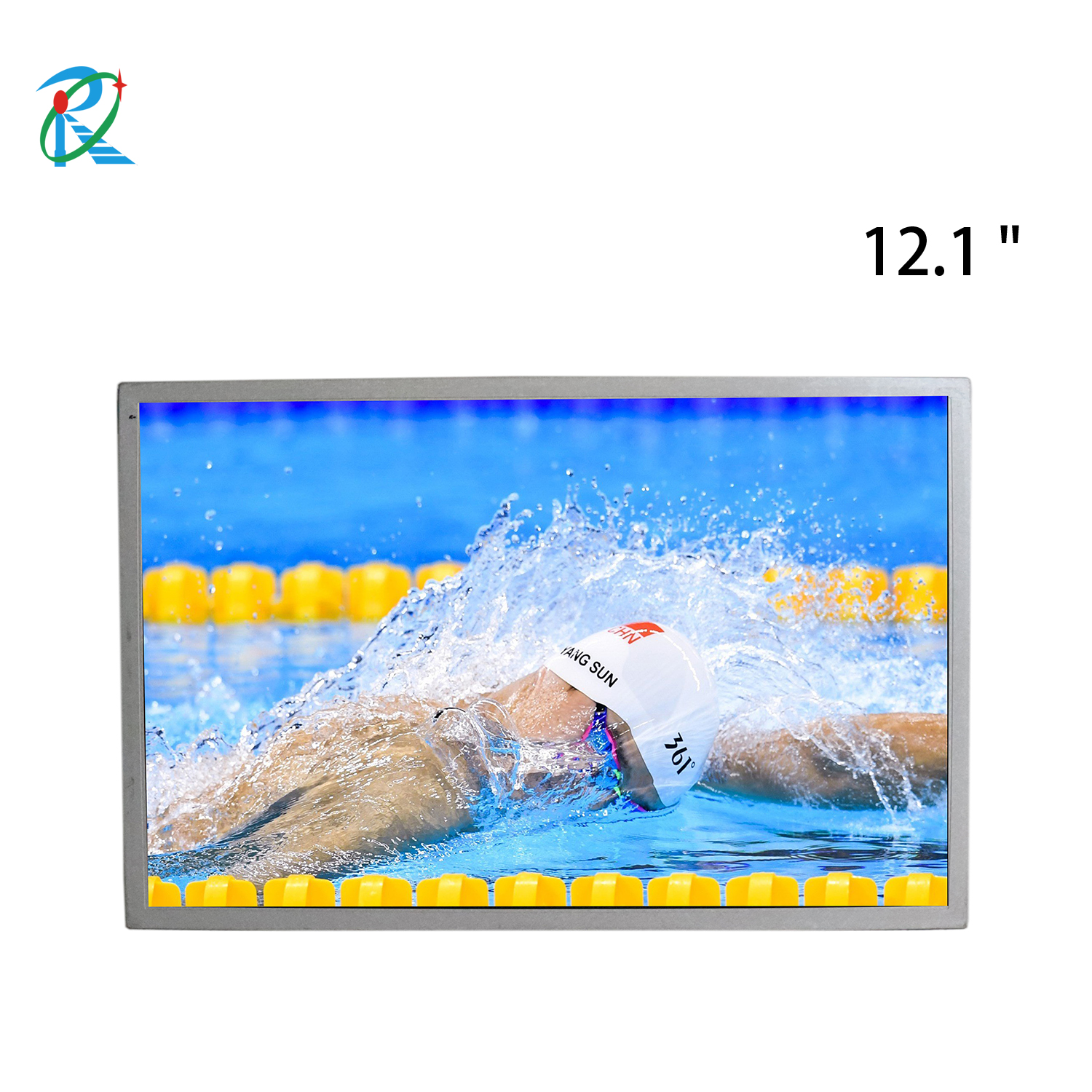

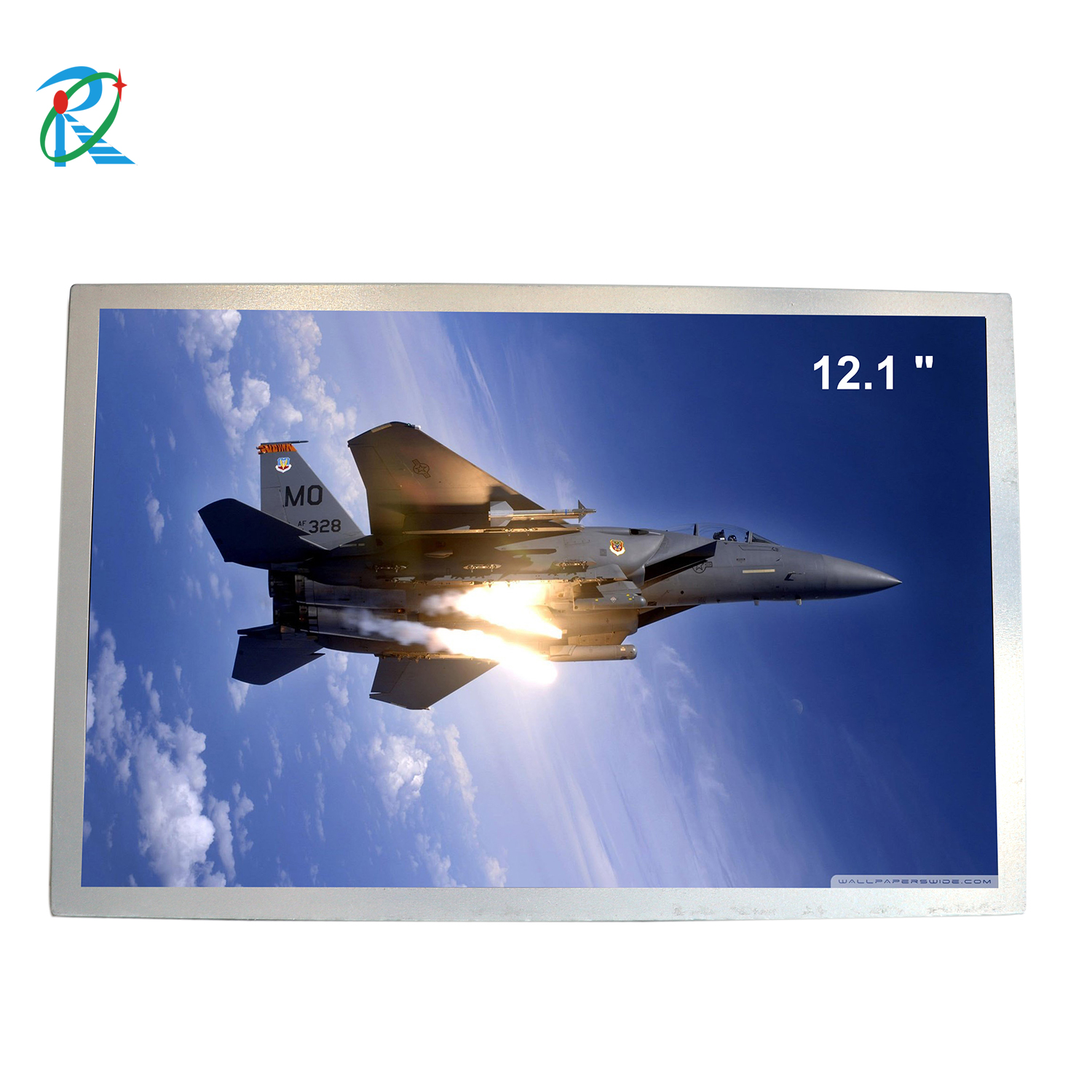

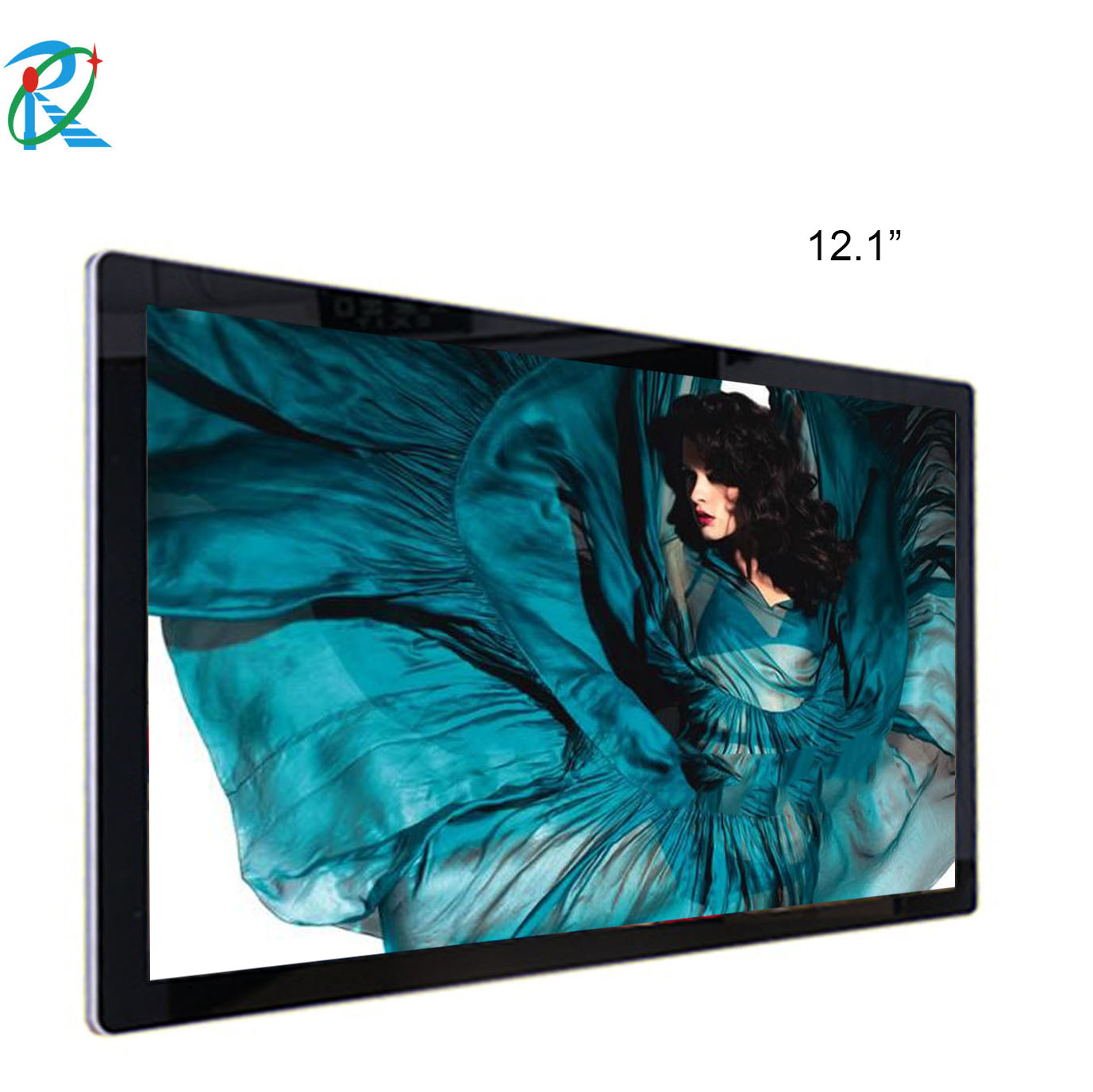

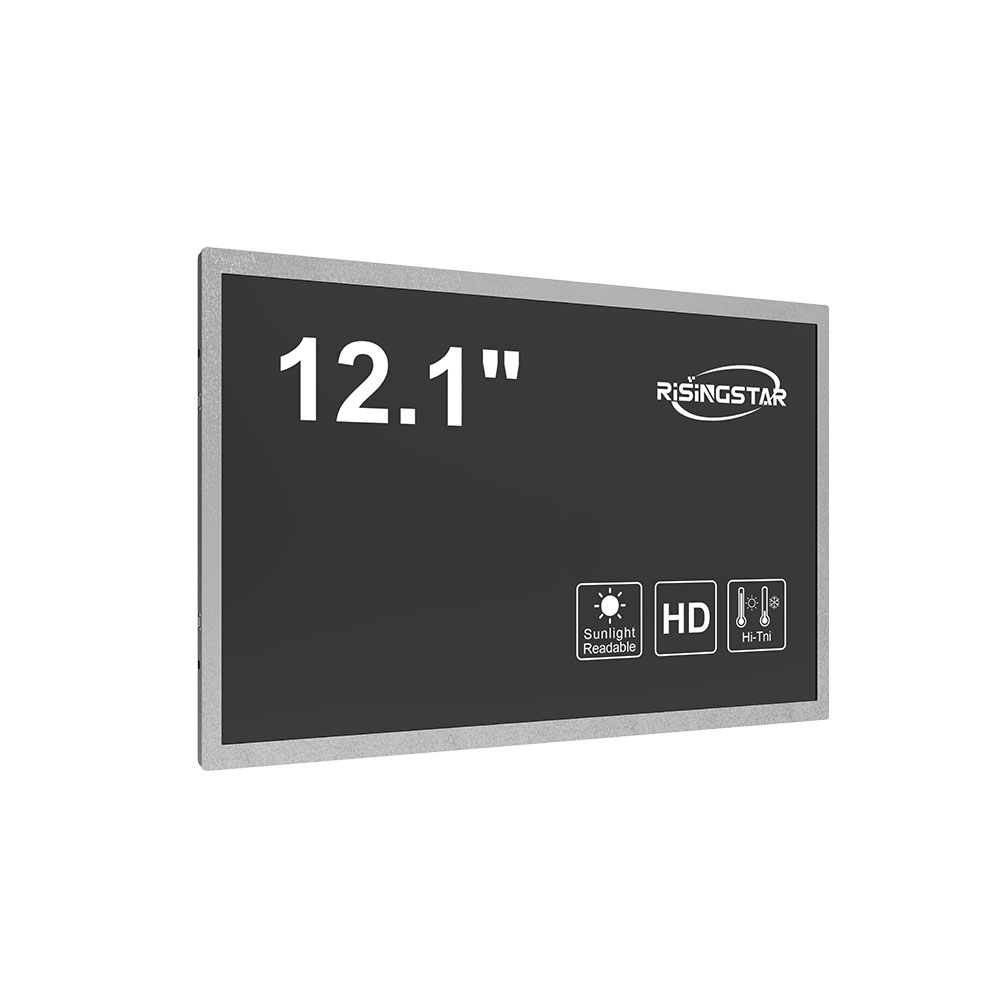

Panel Size 12.1 in. Panel Type A-SI TFT-LCD, LCD module
| Brand | RisingStar |
| Model name | RS121XCE-GE15 |
| Screen size | 12.1 " |
| Screen type | Outdoor LCD Monitor |
| Resolution | 1024(RGB)×768 |
| Brightness (cd/m²) | 1500 |
RS121XCE-GE15 is a 12.1 inch LCD panel from RisingStar with the LCD open cell from AUO directly, combined with our own deisgn backlight and structure, this panel can reach 1500 nits with ELED structure and keep working through -20℃ to 70℃, these feature allowed this LC panel could be used in outdoor working environment such as the interface panel of the vending machine, charging/gas pile, etc.
This panel is a suitable choice for the customers who are the manufacturer either, but need a LCD screen can working with their own products with the high brightness and keep working in complicate environment inside their products.
| Panel Brand | RisingStar |
| Panel Item | RS121XCE-GE15 |
| Size | 12.1 inch |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution: | 1024(RGB)*768 |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 245.76*184.32(H*V)mm |
| Outline Size | 249*187.5(H*V)mm |
| Surface Treatment | AG (Haze 28%) Hard coating(3H) |
| Brightness | 1500 cd/m² |
| Constrast Ratio. | 1000：1(Typ.)(TM) |
| View Angle | 89/89/89/89(Min) |
| Best View on | Symmetry |
| Response Time | 25 ms |
| Display Color | 16.7M 72% NTSC |
| Backlight | WLED, 50K hours |
| Touch Screen | N/A |
| Panel Weight | TBD |
| Frame Rate | 60Hz |
| Signal Interface | LVDS 20 pins |
| Input Voltage | 3.3V(Typ.) |
| Operating Temperature | -20 ~ 70 °C |
| Storage Temperature | -30 ~ 80 °C |
| Current State: | In Production |
01 / Chassis & Materials
Structural integrity for extreme environments.
Medical and Food grade SUS316L Stainless Steel, AL5052 Aluminum, or SECC Galvanized Steel.
Certified IP65 / IP69K waterproof sealing. Mechanical impact protection rated at IK10.
Industrial powder coating (RAL spectrum), sandblasting, and anti-acid marine painting.
Chassis-mount, Open-frame, Panel-mount, and VESA-integrated configurations.
02 / Optical & Display
Visibility optimization for extreme ambient lighting.
Scalable 1500 - 5000 Nits with integrated Hi-Tni (110掳C) anti-blackening technology.
Full Vacuum Optical Bonding (OCR) - eliminates air gaps, fogging, and maximizes contrast ratio.
Integrated AR (Anti-Reflective), AG (Anti-Glare), and AF (Anti-Fingerprint) nano-films.
03 / Interface & I/O
Industrial signal and power regulation.
Support for M12 Aviation Circular Connectors, DB9/RS232, and waterproof RJ45/USB.
Wide voltage DC 9V - 36V input with integrated surge and polarity protection.
Integrated ambient light sensors, thermal probes, and custom GPIO control protocols.
04 / Embedded & Data
Software architecture and data sync.
Full compatibility with Windows 7, 10/11 IoT; Linux support covering the last 3 generations (Ubuntu 20.04, 22.04, 24.04 LTS) and Debian; as well as comprehensive support for Android 11 through 14.
High-speed 4G/5G LTE modules, Dual-band Wi-Fi 6, and Gigabit Ethernet.
