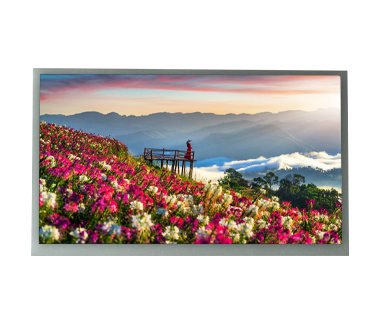

10.1 Inch 700nits HD Small Lcd Display Modules
| Display Size | 10.1 " |
| Model Number | RS101ENT-N07 |
| Brand Name | Risingstar |
| Panel type | a-Si TFT-LCD LED |
| Brightness | 700nits (500-2000nits optional) |
| Display ratio | 16:9 |
| Lifetime | 50000 hrs |
| Response Time | 6ms |

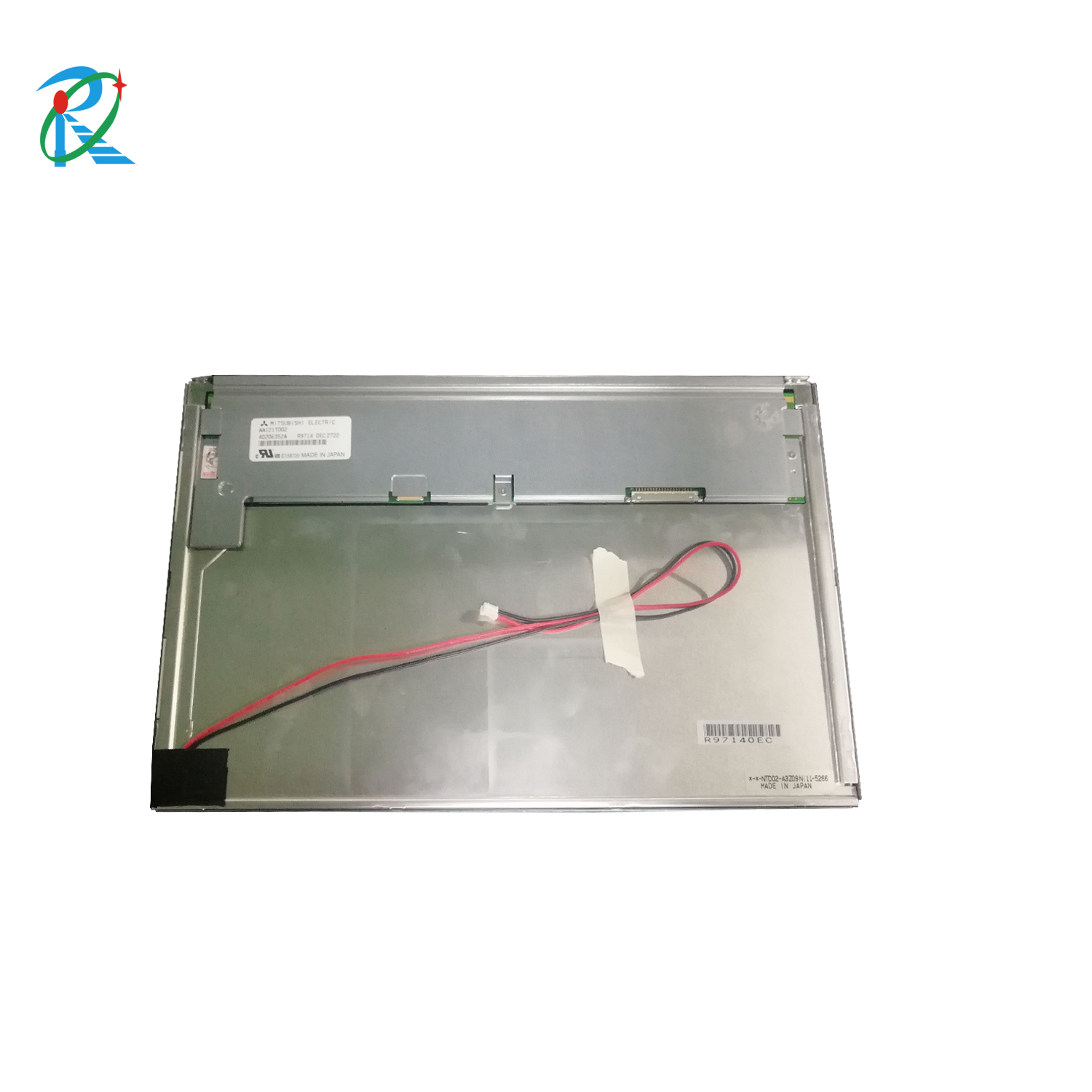

The full range of sizes produced by Risingstar can be 700nits. Risingstar uses original LCD modules from AUO, BOE, Innolux, Chimei and Mitsubishi. Equipped with a side-in LED backlight for uniform brightness.
On the basis of the original module, this model realizes the brightness change by changing the backlight bar, which ensures the stability of the panel performance. The brightness of the 700-1500 10.1 "LCD panel is currently the most popular in the medical equipment industry and industrial production industry. Welcome to risingstar order this product .
Size | 10.1 inch |
Panel type | a-Si TFT-LCD |
View area | 220.36 × 139.1 mm(H*V) |
Dispaly area | 216.96 × 135.6 mm(H*V) |
Outline size | 229.46 × 149.2 × 4.96 mm (H*V*D) |
Dispaly mode | IPS,Normally black,Transmissive |
Drive-screen Voltage | 3.3V (Typ) |
Resolution | 1280*800 , WXGA |
Display ratio | 16:9 |
Display brightness | 500- 5000cd/m2 |
Constrast Ratio | 1200:1 |
View angle | 89/89/89/89 |
Display color | 6.7M ,72% |
Working freqyency | 60Hz |
Surface Treatment | Haze ,Hard coating(3H) |
Light source type | WLED |
Backlight lifetime | up to 50,000 hoursrs |
01 / Chassis & Materials
Structural integrity for extreme environments.
Medical and Food grade SUS316L Stainless Steel, AL5052 Aluminum, or SECC Galvanized Steel.
Certified IP65 / IP69K waterproof sealing. Mechanical impact protection rated at IK10.
Industrial powder coating (RAL spectrum), sandblasting, and anti-acid marine painting.
Chassis-mount, Open-frame, Panel-mount, and VESA-integrated configurations.
02 / Optical & Display
Visibility optimization for extreme ambient lighting.
Scalable 1500 - 5000 Nits with integrated Hi-Tni (110掳C) anti-blackening technology.
Full Vacuum Optical Bonding (OCR) - eliminates air gaps, fogging, and maximizes contrast ratio.
Integrated AR (Anti-Reflective), AG (Anti-Glare), and AF (Anti-Fingerprint) nano-films.
03 / Interface & I/O
Industrial signal and power regulation.
Support for M12 Aviation Circular Connectors, DB9/RS232, and waterproof RJ45/USB.
Wide voltage DC 9V - 36V input with integrated surge and polarity protection.
Integrated ambient light sensors, thermal probes, and custom GPIO control protocols.
04 / Embedded & Data
Software architecture and data sync.
Full compatibility with Windows 7, 10/11 IoT; Linux support covering the last 3 generations (Ubuntu 20.04, 22.04, 24.04 LTS) and Debian; as well as comprehensive support for Android 11 through 14.
High-speed 4G/5G LTE modules, Dual-band Wi-Fi 6, and Gigabit Ethernet.
