75" 4000nits Semi Outdoor LCD Monitor
OEM / ODM Manufacturer
Factory Direct
Order & Lead Time
Need 50+ units? for framework agreements.
Global Shipping Options
Samples ship in ~10 working days; Bulk orders in 15-25 working days.
- Express: DHL/FedEx door-to-door delivery (5-7 days)
- Sea Freight: Cost-optimized bulk shipping (30-45 days)
- Rush Orders: Available upon request for urgent projects
1-3 Year Standard Warranty
3 years for Display Units and 1 year for LCD modules. Extendable to 5 years. Includes 24/7 support, remote troubleshooting, and long-term spare parts availability.
All products are manufactured in our ISO 9001-certified facility.
CE, FCC, RoHS Certified

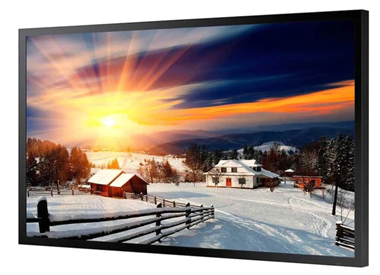

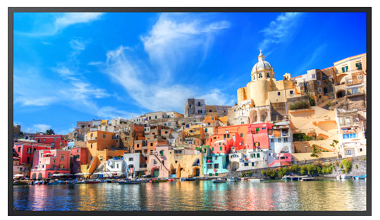

RisingStar 75" 4000nits Semi-Outdoor LCD Monitor
With 4,000 nits of brightness and a high contrast ratio of 5000:1, the LCD display stays bright and clear even in direct sunlight, delivering unparalleled Ultra HD resolution images that will attract the attention of potential customers. It supports a variety of installation methods: horizontal screen, vertical screen, floor, wall, and embedded light sensor with auto brightness adjustment function.
The 4K display effect advertising effect is better. Every detail of the product can be shown to the customer clearly, and it can be a powerful assistant for your product promotion and sales.
| Brand | RsingStar | Size | 75" |
| Panel Type | A-si TFT LCD | Panel Model | RS750OMR-ND40 |
| Resolution | 3840*2160 | Brightness | 4000 nits |
| View Angle | 89/89/89/89 | Contrast Ratio | 5000:1 |
| Display Colors | 16.7M 72% NTSC | Pixel Format | RGB Vertical Stripe |
| Display Area | 1650.24×928.26 | Display Mode | AMVA3, Normally Black |
| Backlight | White LED | Outline size | 1703.1 x 981.2 x 82.6 mm |
| Surface | AG, Hard coating 3H | Weight | 48.8 Kgs |
| Response Time | 6.5 ms | Refresh Rate | 60 Hz |
| Interface | LVDS | input voltage | 12.0 V |
| Operating | -20 ~ 70 °C | Storage | -20 ~ 70 °C |
01 / Chassis & Materials
Structural integrity for extreme environments.
| Enclosure Grade | Medical and Food grade SUS316L Stainless Steel, AL5052 Aluminum, or SECC Galvanized Steel. |
| Protection Rating | Certified IP65 / IP69K waterproof sealing. Mechanical impact protection rated at IK10. |
| Surface Finish | Industrial powder coating (RAL spectrum), sandblasting, and anti-acid marine painting. |
| Format Architecture | Chassis-mount, Open-frame, Panel-mount, and VESA-integrated configurations. |
03 / Interface & I/O
Industrial signal and power regulation.
| Connectors | Support for M12 Aviation Circular Connectors, DB9/RS232, and waterproof RJ45/USB. |
| Power Regulation | Wide voltage DC 9V - 36V input with integrated surge and polarity protection. |
| Sensor Suite | Integrated ambient light sensors, thermal probes, and custom GPIO control protocols. |
02 / Optical & Display
Visibility optimization for extreme ambient lighting.
| Luminance Output | Scalable 1500 - 5000 Nits with integrated Hi-Tni (110°C) anti-blackening technology. |
| Optical Bonding | Full Vacuum Optical Bonding (OCR) — eliminates air gaps, fogging, and maximizes contrast ratio. |
| Advanced Coating | Integrated AR (Anti-Reflective), AG (Anti-Glare), and AF (Anti-Fingerprint) nano-films. |
04 / Embedded & Data
Software architecture and data sync.
| Operating Systems | Full compatibility with Windows 7, 10/11 IoT; Linux support covering the last 3 generations (Ubuntu 20.04, 22.04, 24.04 LTS) and Debian; as well as comprehensive support for Android 11 through 14. |
| Communication | High-speed 4G/5G LTE modules, Dual-band Wi-Fi 6, and Gigabit Ethernet. |
