55 inch curve LCD display R1500 for casino gaming
OEM / ODM Manufacturer
Factory Direct
Order & Lead Time
Need 50+ units? for framework agreements.
Global Shipping Options
Samples ship in ~10 working days; Bulk orders in 15-25 working days.
- Express: DHL/FedEx door-to-door delivery (5-7 days)
- Sea Freight: Cost-optimized bulk shipping (30-45 days)
- Rush Orders: Available upon request for urgent projects
1-3 Year Standard Warranty
3 years for Display Units and 1 year for LCD modules. Extendable to 5 years. Includes 24/7 support, remote troubleshooting, and long-term spare parts availability.
All products are manufactured in our ISO 9001-certified facility.
CE, FCC, RoHS Certified

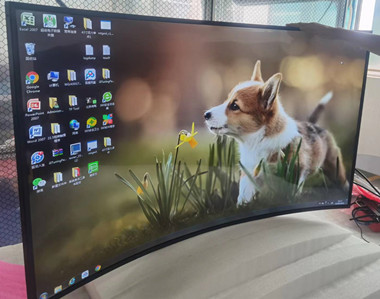

RS550ENT-N03CG is a RisingLCD new series, Curve LCD display. If you feel dull for facing the flat display every day we recommend you our curve LCD display for you, the curve display will give you an ultrawide viewing angle, and the 1500 radius is match well the curvature of the human eye for added immersion, see all the image and contents without to move your head from side to side.

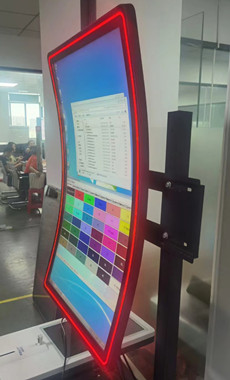

For the curve LCD display, RisingLCD can offer C curved as well as J curved solution, also can offer it with integrated touche screen if required.

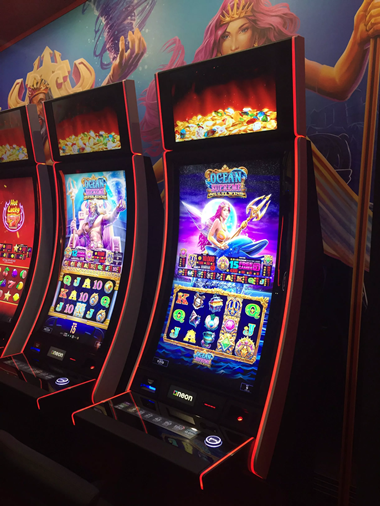

With curved LCD display, you will be more easily to push you casino gaming machine or kiosk with the new machine development to the next level for a true new generation look and feeling.
Specification:
55 inch curve LCD display R1500
Large format, deep curved sizes
VGA, HDMI terminals
Ultra HD (3840*2160)
Portrait or landscape mode supported
Enhanced solution for casino slot machines, gaming, signage, kiosks and other public information terminals
Integrated Projected Capacitive (PCAP) Multi-touch (option)
55 inch curve LCD display R1500 is widely uses for Casino Slot Machines, Information kiosks, Digital Advertising,Way-finders and Digital Assistants, Medical Gaming, we offer the customized curved display with various radius, 1000mm, 1500mm, 1800mm, and sizes are 32 inch, 43 inch and 55 inch.
| Item No | RS550ENT-N03CG |
| Panel Brand | LG Display |
| Size | 55 inch |
| Radius of Curvature | 1500 R |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 3840 × 2160 |
| Brightness | 350 nits |
| Pixel Format | RGB Horizontal Stripe |
| Display Area | 1209.6 × 680.4 (H×V) mm |
| Display Size | 1213 × 741 × 143.7 mm |
| Display Mode | IPS |
| Aspect Ratio | 16:9 |
| Contrast Ratio | 1300:1 |
| View Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Display Model | Normally Black, Transmissive |
| Surface Treatment | Hard Coating (2H), Antiglare |
| Display Color | 16.7B, 72% NTSC |
| Backlight | WLED, 50K hours, W/ LED Driver |
| Panel Weight | 2.5 kg (Typ./Max.) |
| Frame Rate | 60Hz |
| Operating Temperature | -20 ~ 70 °C |
| Storage Temperature | -30 ~ 80 °C |
01 / Chassis & Materials
Structural integrity for extreme environments.
| Enclosure Grade | Medical and Food grade SUS316L Stainless Steel, AL5052 Aluminum, or SECC Galvanized Steel. |
| Protection Rating | Certified IP65 / IP69K waterproof sealing. Mechanical impact protection rated at IK10. |
| Surface Finish | Industrial powder coating (RAL spectrum), sandblasting, and anti-acid marine painting. |
| Format Architecture | Chassis-mount, Open-frame, Panel-mount, and VESA-integrated configurations. |
03 / Interface & I/O
Industrial signal and power regulation.
| Connectors | Support for M12 Aviation Circular Connectors, DB9/RS232, and waterproof RJ45/USB. |
| Power Regulation | Wide voltage DC 9V - 36V input with integrated surge and polarity protection. |
| Sensor Suite | Integrated ambient light sensors, thermal probes, and custom GPIO control protocols. |
02 / Optical & Display
Visibility optimization for extreme ambient lighting.
| Luminance Output | Scalable 1500 - 5000 Nits with integrated Hi-Tni (110°C) anti-blackening technology. |
| Optical Bonding | Full Vacuum Optical Bonding (OCR) — eliminates air gaps, fogging, and maximizes contrast ratio. |
| Advanced Coating | Integrated AR (Anti-Reflective), AG (Anti-Glare), and AF (Anti-Fingerprint) nano-films. |
04 / Embedded & Data
Software architecture and data sync.
| Operating Systems | Full compatibility with Windows 7, 10/11 IoT; Linux support covering the last 3 generations (Ubuntu 20.04, 22.04, 24.04 LTS) and Debian; as well as comprehensive support for Android 11 through 14. |
| Communication | High-speed 4G/5G LTE modules, Dual-band Wi-Fi 6, and Gigabit Ethernet. |
