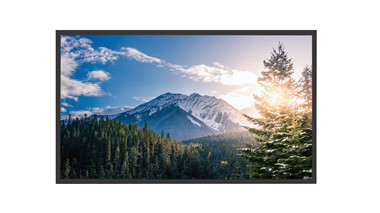

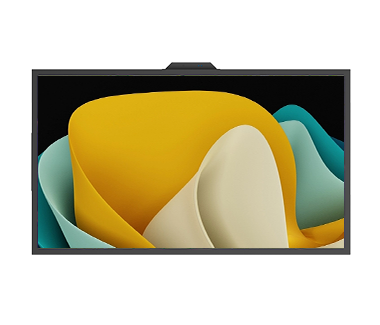

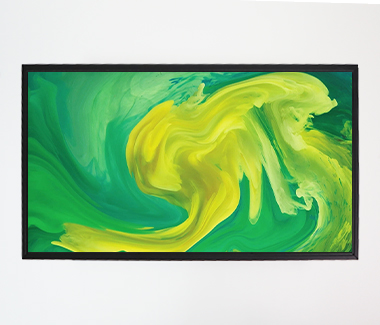

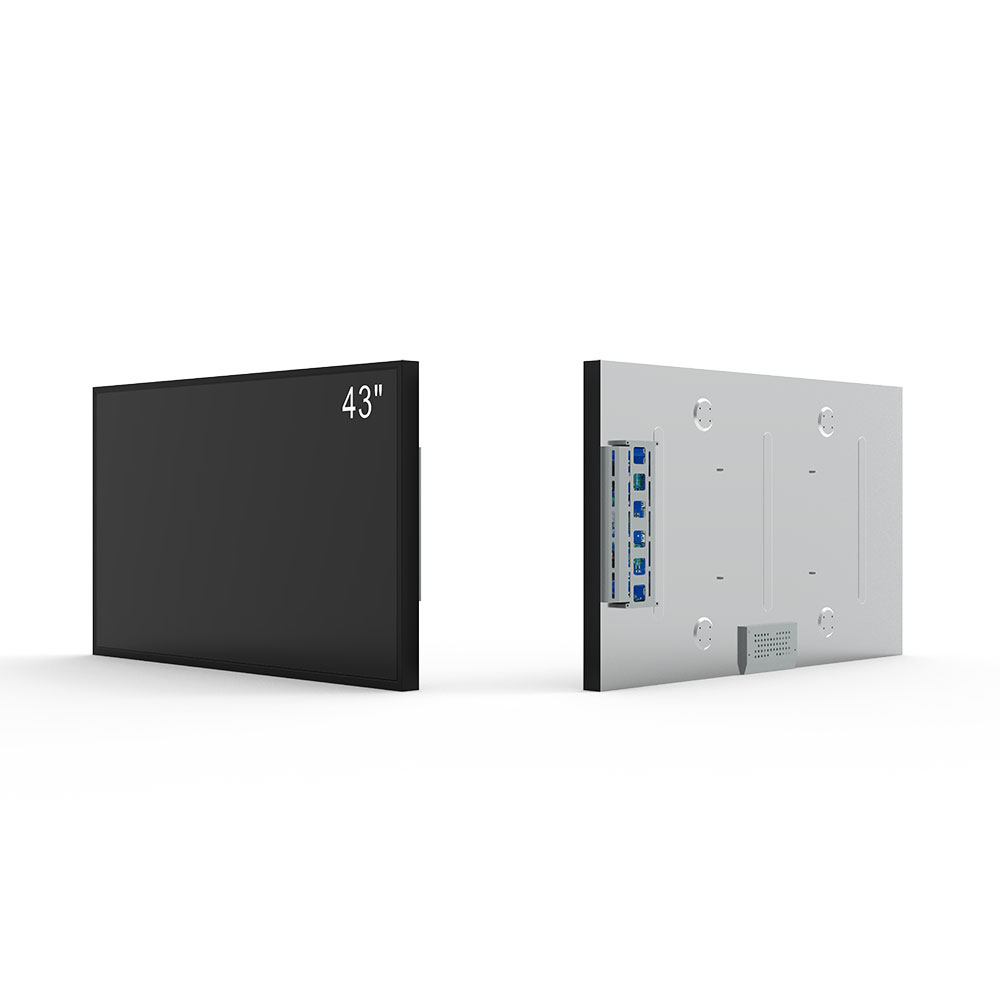

3500 nits high brightness 43 inch window facing display

3500 nits high brightness 43 inch window facing display

/: 43" 3500 nits large-format display. 1920x1080. Engineered for public kiosks and transit hubs.

OEM / ODM Manufacturer

Factory Direct

Order & Lead Time

Sample Order 1 Unit MOQ
Bulk Order 10+ Units Tiered Discounts

Need 50+ units? for framework agreements.

Global Shipping Options

Samples ship in ~10 working days; Bulk orders in 15-25 working days.

  • Express: DHL/FedEx door-to-door delivery (5-7 days)
  • Sea Freight: Cost-optimized bulk shipping (30-45 days)
  • Rush Orders: Available upon request for urgent projects

Flexible Warranty Options (1 to 5 Years)

As an OEM/ODM manufacturer, we offer highly customizable warranty plans. Choose the standard coverage for cost-sensitive projects, or opt for our premium 3-5 year extended warranty for mission-critical digital signage deployments.

All products are manufactured in our ISO 9001-certified facility.
CE, FCC, RoHS Certified

Get Started

RS430MNX01-T01BK is RisingLCD high brightness window facing display have a full HD 1920*1080 resolution, and 16:9 aspect ration, 1300:1 contrast ratio, the high bright LED backlight display provides over 3500nits of brightness, -20 ~ 70 °C wide operating temperature that makes the screen sunlight readable, ideal for window shop, retail store and outdoor application.

Main Features:

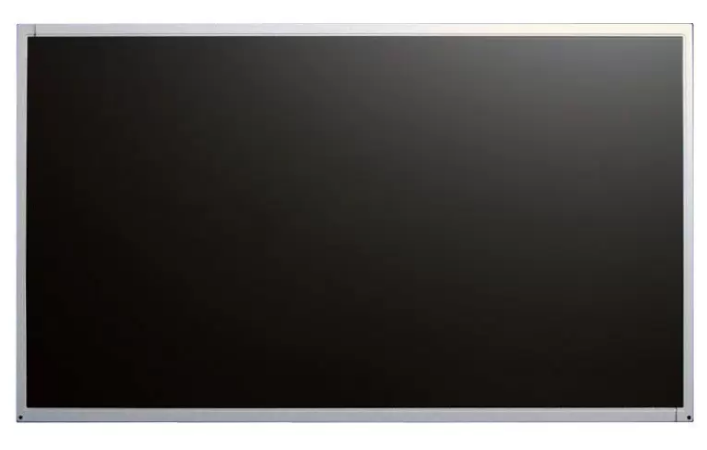

Original a grade LCD open cell

High resolution: 1920*1080

Brightness up to 700-3500 nits

Wide Operating Temperature: -20 ~ 70 °C

AR Glass, reduce reflection effect.

Built-in Auto Light sensor

Interface: HDMI(2)/DP/DVI-D/RJ45/RS232C/USB

2K Full HD resolution.

The 2K HD picture quality ensures great colour and rich details in all possible broadcasting surroundings, ranging from retail stores, to restaurants and office buildings. With 3500 nits maximum brightness, this window digital signage display captive viewers with superior messaging clarity it make your content vividly stand out in any commercial location.

Outstanding visibility,

Brilliant and bright, the industrial outdoor window facing series process powerful brightness of 3500nits, message remain clear and bright even in the outdoor direct sunlight in a store front and along with the extra wide 178° viewing angle is a perfect fit for shoppers, store, employees or visitors that will view Window Facing displays from diverse angles while passing by.

Auto brightness control

Different external lighting condition requires different brightness levels, an onboard light sensor that built-in our outdoor window facing display measures the ambient light in the area and automatically adjust the image light accordingly, offer a best experience to the viewer, and also can save the energy cost, reduce the heat and extends the life of the screen.

LCD PanelSize43 inch
BrandLG/AUO/BOE
Display Area (mm)941*529.4mm
Brightness (nits)

3500 nits

Resolution1920*1080
Aspect Ratio16:9
Contrast Ratio1300/1
Respond Time6/9 (Typ.)(Tr/Td) ms
View Angle89/89/89/89 (Min.)(CR≥10)
BacklightDLED Backlight
LifeTimeup to up to 50,000 hoursours
Control SystemIntelligent DimmingSupport
Intelligent Temperature ControlSupport
Remote Control FunctionSupport
Electric ParameterInput VoltageAC110V/220V, 50/60HZ
Maximum Power200W

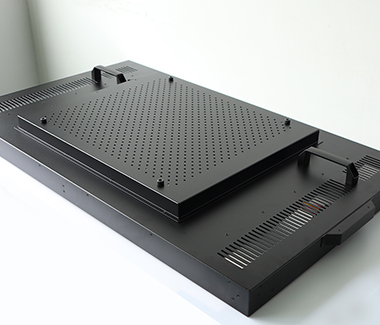

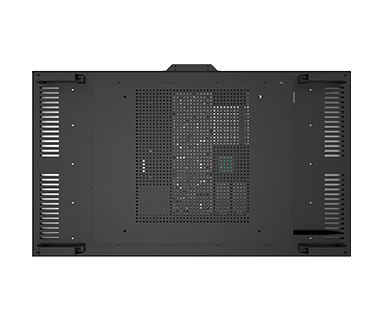

ShellShell MaterialMetal Sheet / Aluminum Alloy
Products Size(mm)986.5*574.5*89.5
Weight20kg
Service EnvironmentOperating EnvironmentSemi - Outdoor
Operating Temperature-20 ~ 70 °C
MultimediaMotherboardAndroid /PC/ HDMI Driver Board (optional)
IO InterfaceHDMI/VGA/DVI/USB/RJ45

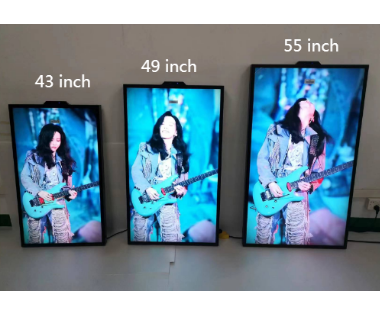

RS43-OEM 43 inch high brightness display 43 inch sunlight readable LCD High brightness display Sunlight readable display Outdoor waterproof display

01 / Chassis & Materials

Structural integrity for extreme environments.

Enclosure Grade Medical and Food grade SUS316L Stainless Steel, AL5052 Aluminum, or SECC Galvanized Steel.
Protection Rating Certified IP65 / IP69K waterproof sealing. Mechanical impact protection rated at IK10.
Surface Finish Industrial powder coating (RAL spectrum), sandblasting, and anti-acid marine painting.

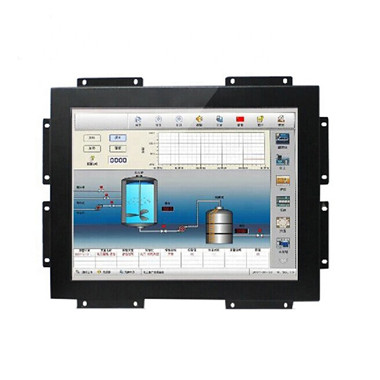

Format Architecture Chassis-mount, Open-frame, Panel-mount, and VESA-integrated configurations.

03 / Interface & I/O

Industrial signal and power regulation.

Connectors Support for M12 Aviation Circular Connectors, DB9/RS232, and waterproof RJ45/USB.
Power Regulation Wide voltage DC 9V - 36V input with integrated surge and polarity protection.
Sensor Suite Integrated ambient light sensors, thermal probes, and custom GPIO control protocols.

02 / Optical & Display

Visibility optimization for extreme ambient lighting.

Luminance Output Scalable 1500 - 5000 Nits with integrated Hi-Tni (110°C) anti-blackening technology.
Optical Bonding Full Vacuum Optical Bonding (OCR) — eliminates air gaps, fogging, and maximizes contrast ratio.
Advanced Coating Integrated AR (Anti-Reflective), AG (Anti-Glare), and AF (Anti-Fingerprint) nano-films.

04 / Embedded & Data

Software architecture and data sync.

Operating Systems Full compatibility with Windows 7, 10/11 IoT; Linux support covering the last 3 generations (Ubuntu 20.04, 22.04, 24.04 LTS) and Debian; as well as comprehensive support for Android 11 through 14.
Communication High-speed 4G/5G LTE modules, Dual-band Wi-Fi 6, and Gigabit Ethernet.
