Full Specifications
| Parameter | Value |
|---|---|
| Model Name | RS550MNX03D01 |
| Screen Size | 55" |
| Display Area (mm) | 1209.6(W)×680.4(H) mm |
| Brightness | 3000 cd/m2 |
| Resolution | 1920x1080 |
| Aspect Ratio | 16 : 9 |
| Contrast Ratio | 1200 : 1 |
| Response Time (Typical) | 8/10(Typ.)(Tr/Td) (ms) |
| Viewing Angle | 89/89/89/89 (Min.)(CR≥10) |
| Display Colors | 1.07B |
| Motherboard | Android/PC/Monitor(optional) |
| Tempered Glass | N/A |
| Touch Type | N/A |
| Input Power | AC100-240V |
| Power Consumption | 470W |
| Radiator System | The fan will automatically start to cool down when the temperature exceeds 35℃ |
| Input Interface | HDMI/VGA/DVI/USB/RJ45(optional) |
| Dimensions (mm) | 1234.6*705.4*50mm |
| Shell | Metal sheet/Aluminnum Alloy |
| Mounting | 400x400mm 4-M8,MAX_DEPTH=10mm |
| Weight (Net) | 27kg |
| IP（Ingress Protection） | N/A |
| Operating Temperature | 0℃~50℃ |
| Storage Temperature | -20℃~ 60℃ |
Product Overview

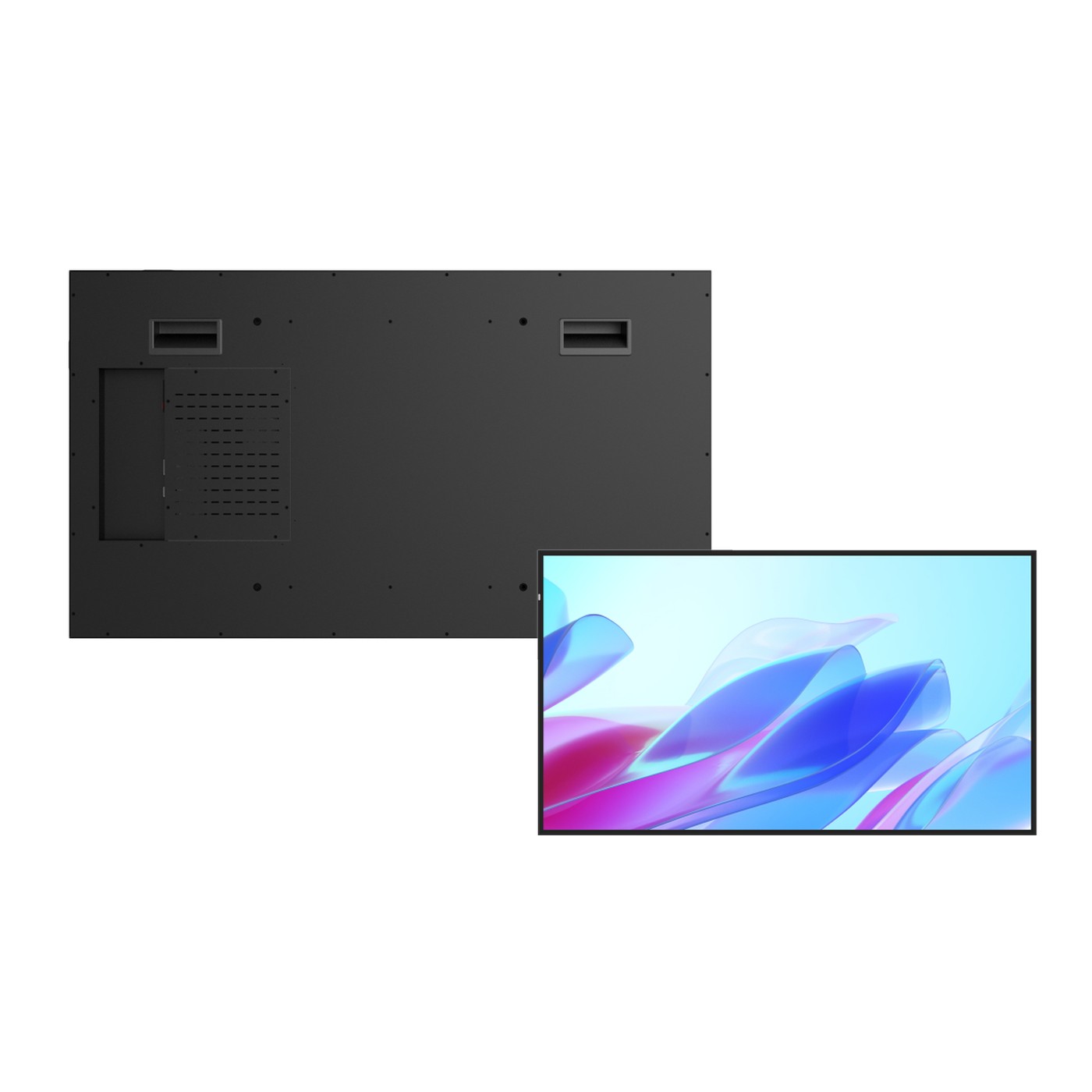

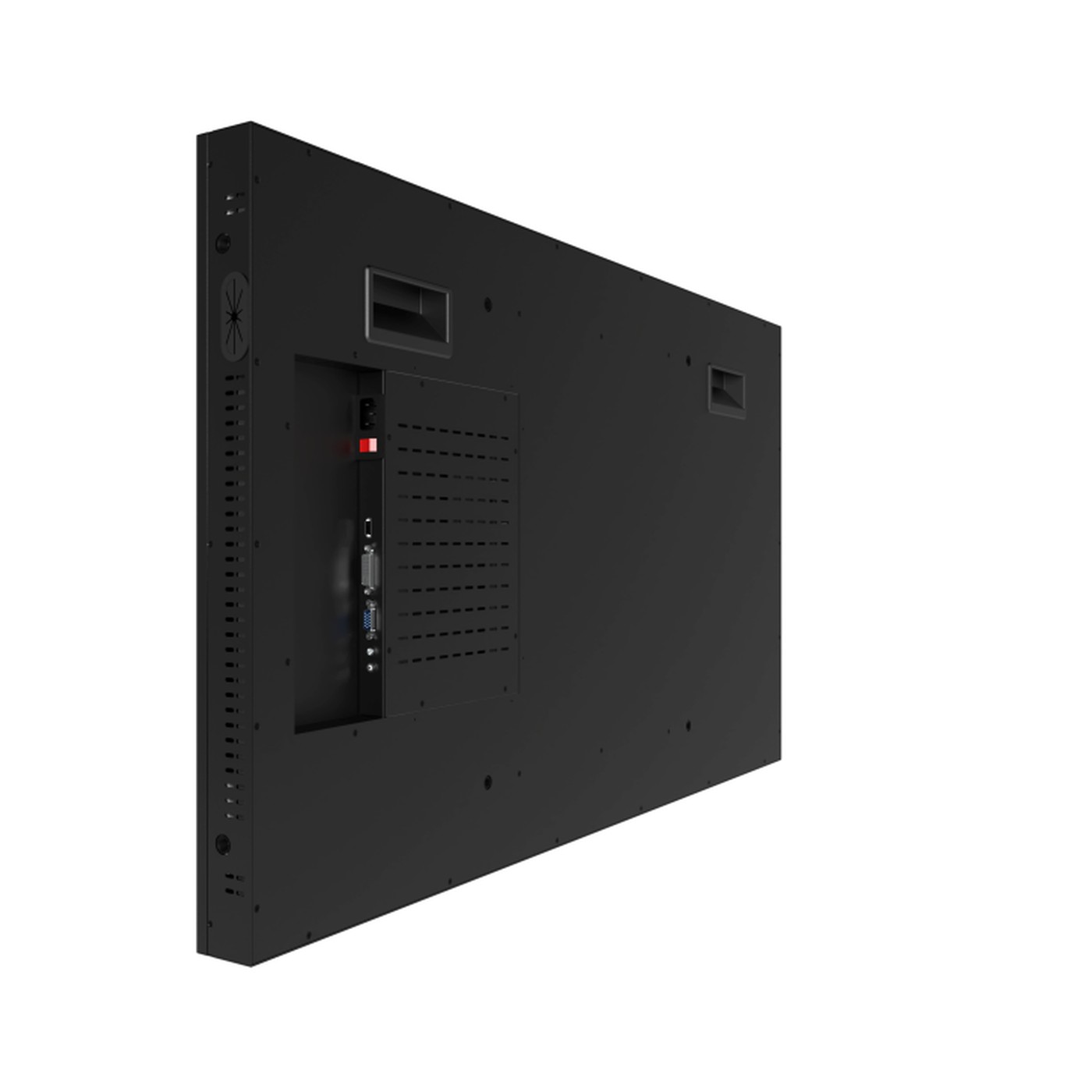

The 55-inch Window Facing LCD Display RS550MNX03D01 from RisingStar is the size most retail chains standardise on: 3000 cd/m2 of brightness and a 1209.6 x 680.4 mm picture area cover a typical double-door shop window while leaving room for window dressing around the screen.
The 1920 x 1080 panel delivers 1.07B colours and 1200:1 contrast, so campaign footage and product close-ups stay clean behind glass. Auto-brightness control tracks the daylight falling on the window, the metal housing supports landscape and portrait installation, and the fan stays off until the internal temperature passes 35 ℃.
Key FeaturesHigh brightness 3000nits
Ultra high contrast:1200:1
Sunlight Viewable Image
LCD Blacking Defect Free
Landscape and Portrait
Auto-brightness control
Low power consumption
BL MTBF: 100,000 hours
Typical Applications
- retail chain store windows
- restaurant and cafe street-facing menus
- telecom and phone store windows
- bank branch glass
- vehicle showrooms
