12.1 inch high brightness industrial LCD panel with 1280 X 800 resolution
OEM / ODM Manufacturer
Factory Direct
Order & Lead Time
Need 50+ units? for framework agreements.
Global Shipping Options
Samples ship in ~10 working days; Bulk orders in 15-25 working days.
- Express: DHL/FedEx door-to-door delivery (5-7 days)
- Sea Freight: Cost-optimized bulk shipping (30-45 days)
- Rush Orders: Available upon request for urgent projects
1-3 Year Standard Warranty
3 years for Display Units and 1 year for LCD modules. Extendable to 5 years. Includes 24/7 support, remote troubleshooting, and long-term spare parts availability.
All products are manufactured in our ISO 9001-certified facility.
CE, FCC, RoHS Certified

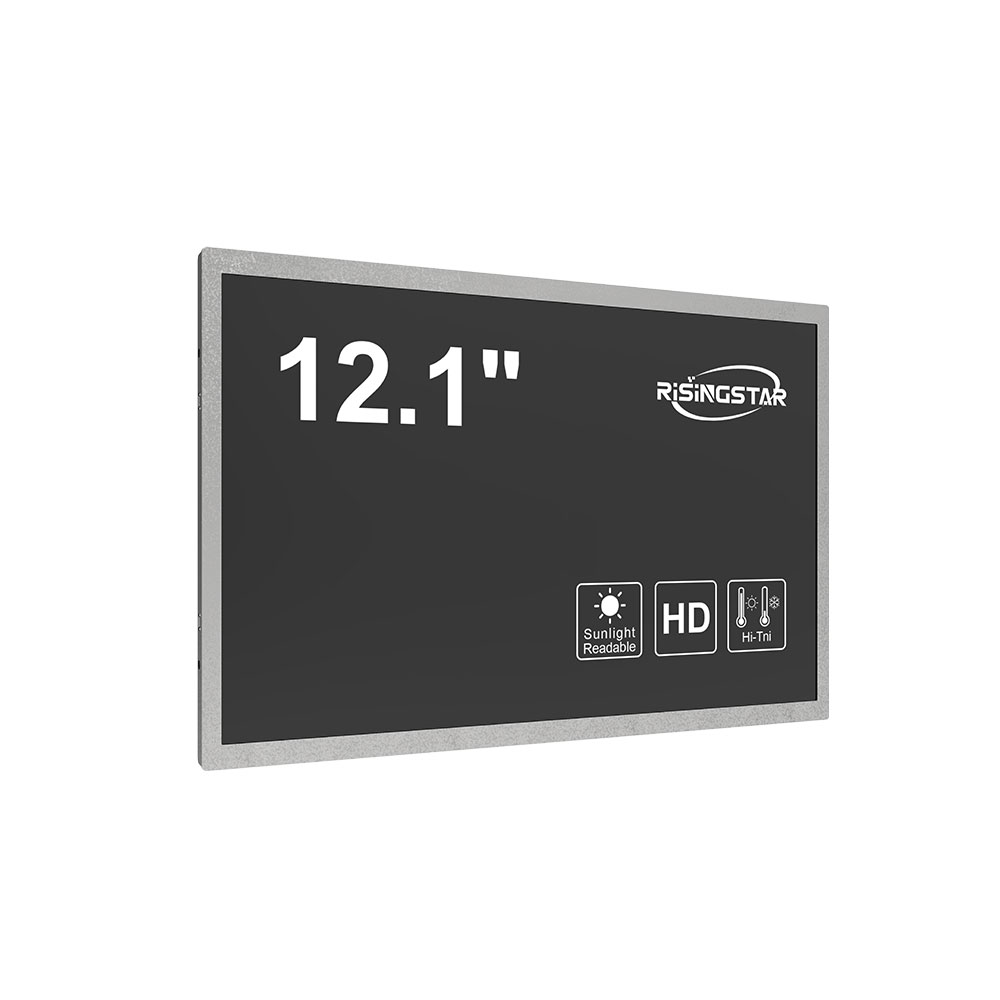

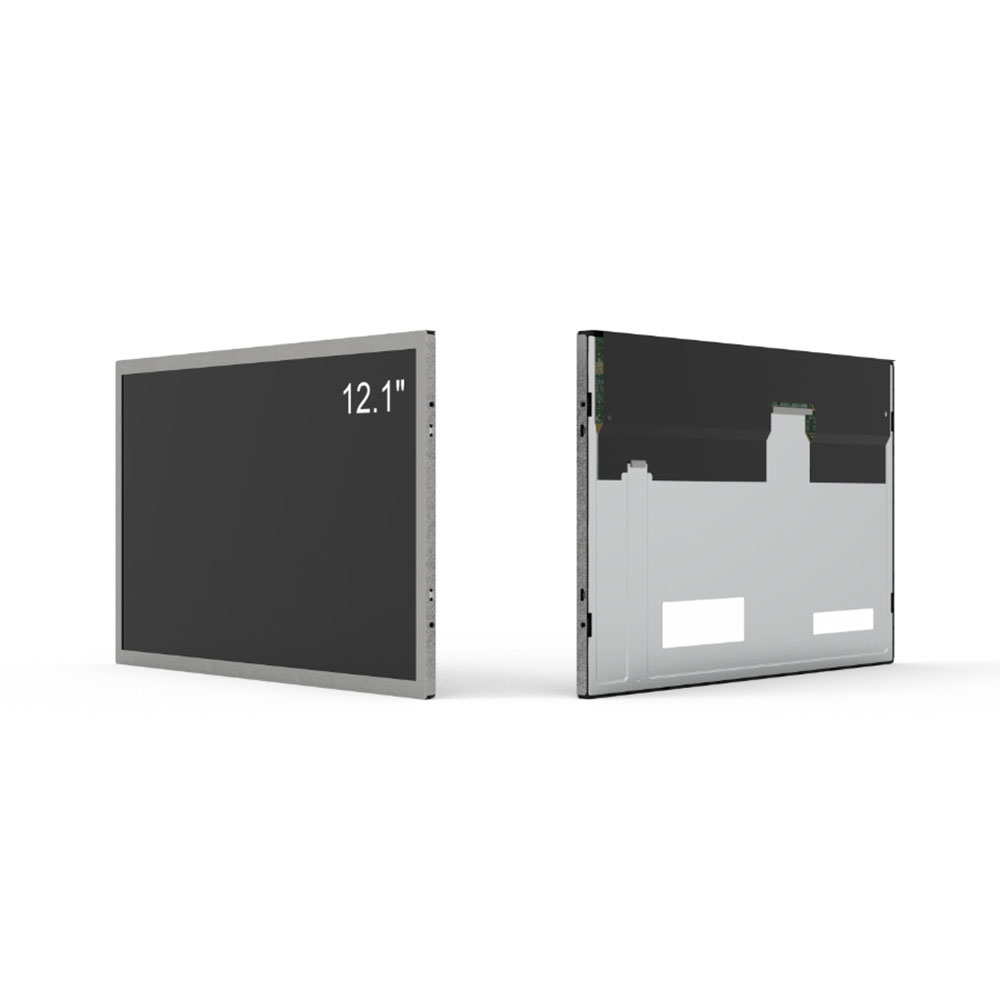

RS121TD02-GE08 RisingStar 12.1 inch TFT LCD module, 1280*800 resolution, with integrated LED driver, has a very wide industrial temperature range,a sunlight readable 800 nits brightness.
these rugged LCD module are rigorously tested to ensure compliance with various industry standards and are ideal for use in any high ambient light condition, and and will give you the intensity and brilliance your application requires.,
Sunlight readable 12.1 inch 800nits LCD module
Main Features:
True Industrial Grade LCD module
Long-Life Advanced LED Backlight, over 100,000 Hours Half-Life
800 nits (cd/m2) sunlight readable Brightness
Smart Brightness Control Exceptional Contrast for Improved Sunlight Readability
Wide Operational Temperature Range -30°C to 85°C (-22°F to 185°F)
Touch Screen Technologies Available (Optional)
Risingstar RS121AD02-GE08 is 12.1 inches, high resolution 1280*800 LCD panel, that boasts an impressive brightness level of 800nits can be comfortably viewed even in broad daylight. The module has an added advantage of an auto-brightness control feature that ensures optimal brightness levels at all times. A built-in light sensor detects ambient lighting conditions and adjusts image brightness accordingly, providing users with an unrivaled viewing experience. This functionality also helps in cost-saving by reducing energy consumption, heat output, and prolongs the lifespan of the module.
| Screen Diagonal | 12.1 inch |
| Model No | RS121TD02-GE08 |
| Active Area | 261.12(W)×163.2(H) mm |
| Resolution | 1280(RGB)×800, WXGA, 124PPI |
| Physical Size | 283(W)×185.1(H)×10.2(D) mm |
| Pixel Arrangement | R.G.B. Vertical Stripe |
| Display Mode | a-Si TFT-LCD, LCM |
| Contrast Ratio : | 700:1 |
| White Luminance ( Center ) | 800 nits |
| Optical Response Time | 4/12 (Typ.)(Tr/Td) ms |
| Nominal Input Voltage | 3.3V (Typ.) |
| Frame Rate | 60Hz |
| Viewing Angle | 80/80/80/60 (Typ.)(CR≥10) |
| Weight [g] | 620g(Typ.) |
| Interface Type | LVDS (1 ch, 6/8-bit) , 20 pins |
| Support Color | 262K/16.7M , 40% NTSC |
| Surface Treatment | Antiglare,Hard coating (2H) |
| RoHS Compliance | RoHS Compliance |
| Temperature Range | -20 ~70 °C |
| Storage (Non-Operating) | -30 ~ 80 °C |
01 / Chassis & Materials
Structural integrity for extreme environments.
| Enclosure Grade | Medical and Food grade SUS316L Stainless Steel, AL5052 Aluminum, or SECC Galvanized Steel. |
| Protection Rating | Certified IP65 / IP69K waterproof sealing. Mechanical impact protection rated at IK10. |
| Surface Finish | Industrial powder coating (RAL spectrum), sandblasting, and anti-acid marine painting. |
| Format Architecture | Chassis-mount, Open-frame, Panel-mount, and VESA-integrated configurations. |
03 / Interface & I/O
Industrial signal and power regulation.
| Connectors | Support for M12 Aviation Circular Connectors, DB9/RS232, and waterproof RJ45/USB. |
| Power Regulation | Wide voltage DC 9V - 36V input with integrated surge and polarity protection. |
| Sensor Suite | Integrated ambient light sensors, thermal probes, and custom GPIO control protocols. |
02 / Optical & Display
Visibility optimization for extreme ambient lighting.
| Luminance Output | Scalable 1500 - 5000 Nits with integrated Hi-Tni (110°C) anti-blackening technology. |
| Optical Bonding | Full Vacuum Optical Bonding (OCR) — eliminates air gaps, fogging, and maximizes contrast ratio. |
| Advanced Coating | Integrated AR (Anti-Reflective), AG (Anti-Glare), and AF (Anti-Fingerprint) nano-films. |
04 / Embedded & Data
Software architecture and data sync.
| Operating Systems | Full compatibility with Windows 7, 10/11 IoT; Linux support covering the last 3 generations (Ubuntu 20.04, 22.04, 24.04 LTS) and Debian; as well as comprehensive support for Android 11 through 14. |
| Communication | High-speed 4G/5G LTE modules, Dual-band Wi-Fi 6, and Gigabit Ethernet. |
