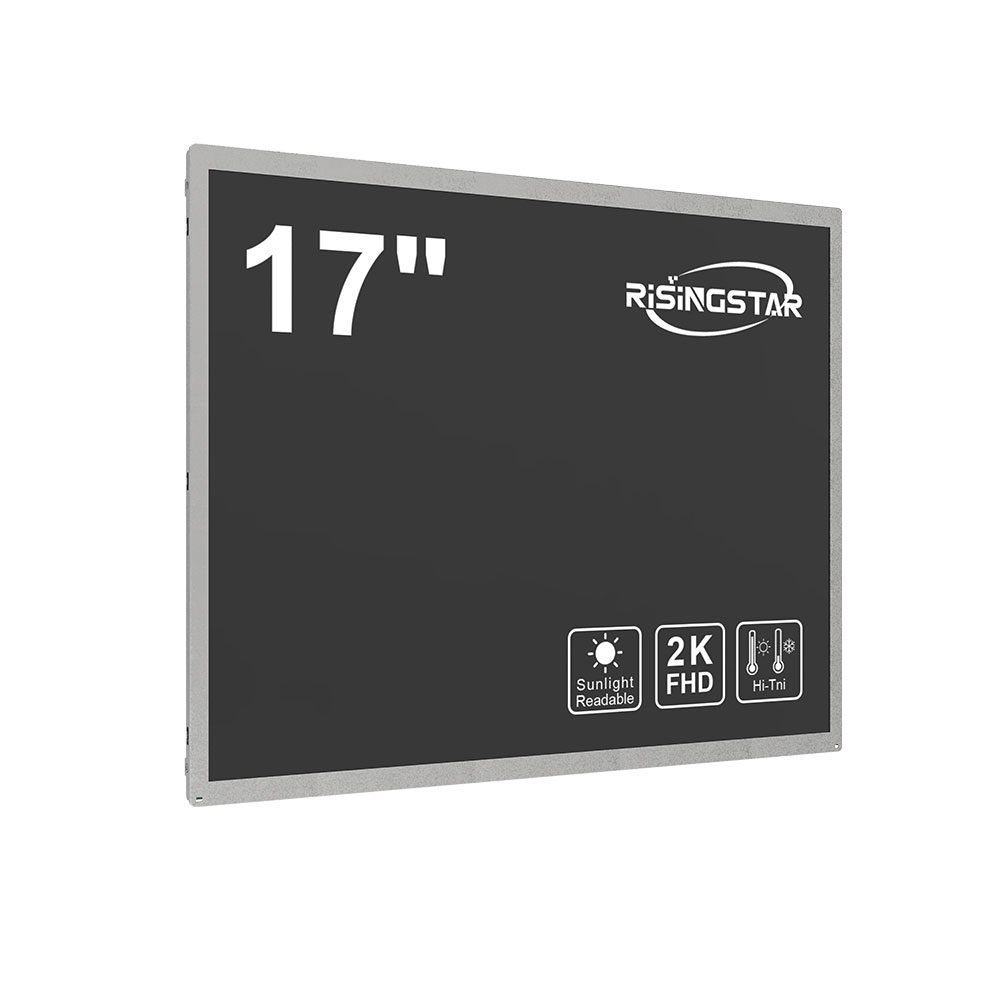

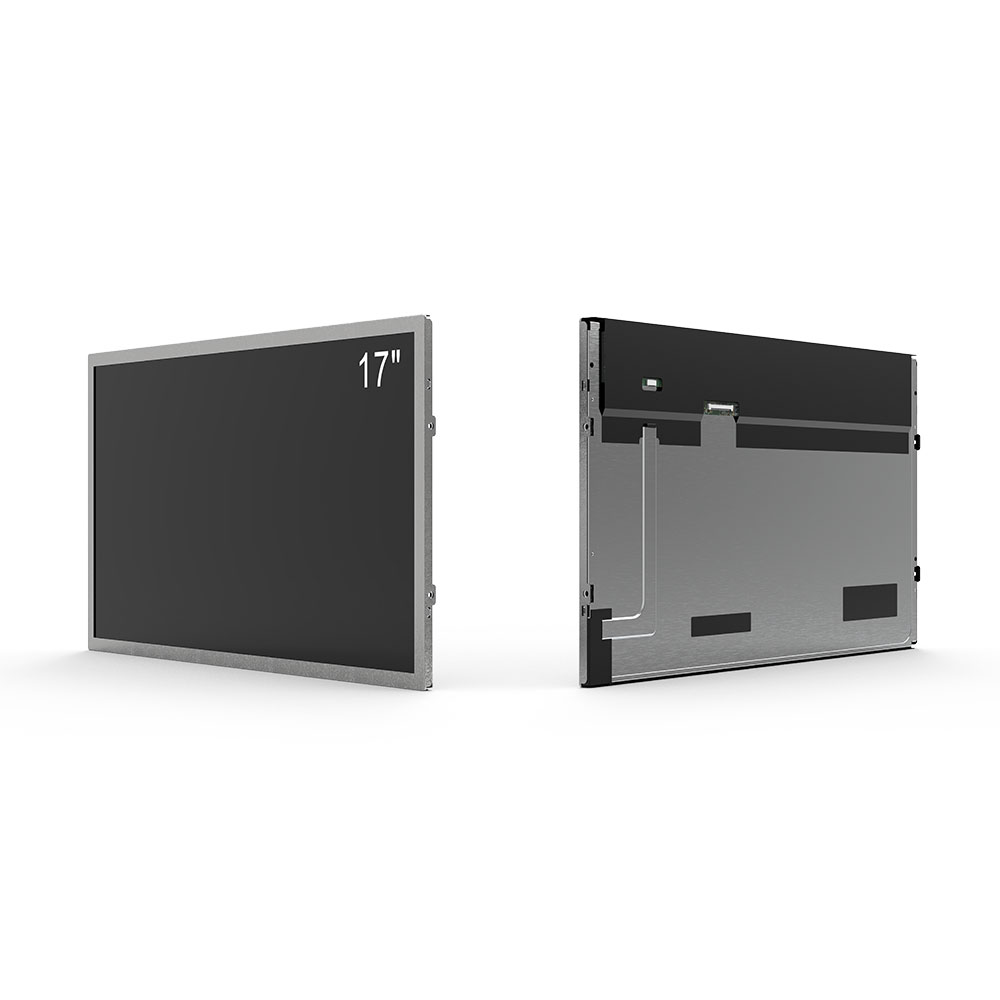

17 inch high brightness TFT LCD panek, 1500 nits high brightness, 1920*1080 resolution, LVDS interface, wide working temperature 0 ~ 70 °C , more than 50k working hours, commended for embedded industrial device, such as EV charging station, passenger information display, industrial testing display.
RS173HW01-NE15 is a high brightness TFT LCD panel, AUO original panel with Risingstar customized edge ledback light, with LED driver, FHD 1920*1080 resolution, wide operating temperature from 0 ~ 70°C , life time is over 50k hours, are ideal for embeded industrial device.
17 inch high brightness TFT LCD Panel Main features:
High brightness 1500nits
1920*1080 full high resolution
Edge LED Backlight
Wide Operation Temperature (0 ˚C~70˚C)
Low Power Consumption
BL MTBF: 50,000 hours
Multi capacitive touch is option.
Risingstar is a direct supplier for the high brightness LCD screen, various sizes 10.1 inch to 98 inch, and brightness from 700 nits to 5000 nits, high brightness displays provide a vibrant and bright solution for marine/military, transportation, industrial and manufacturing, self-service kiosk, mircoscopes, medical displays.
| Screen Diagonal | 17 inch |
| Brand | Risingstar |
| Model No | RS173HW01-NE15 |
| Active Area | 381.888(W)×214.812(H) mm |
| Resolution | 1920(RGB)×1080, FHD 127PPI |
| Physical Size | 403(H)×240(V) ×13(D) mm |
| Pixel Arrangement | R.G.B. Vertical Stripe |
| Display Mode | a-Si TFT-LCD, LCM |
| Contrast Ratio : | 600:1 |
| White Luminance ( Center ) | 1500 cd/m2 (Typ.) [cd/m2 ] |
| Optical Response Time | 8 (Typ.)(G to G) ms |
| Nominal Input Voltage | 3.3V (Typ.) |
| Frame Rate | 60Hz |
| Viewing Angle | 80/80/60/80 (Typ.)(CR≥10) |
| Weight [kg] | 1.1(Typ.) |
| Interface Type | 30 pins LVDS (2 ch, 8-bit) , |
| Support Color | 16.7M , |
| Surface Treatment | Glare , Hard coating (3H) |
| RoHS Compliance | RoHS Compliance |
| Temperature Range | 0 ~70 °C |
| Storage (Non-Operating) | -20 ~ 70 °C |
