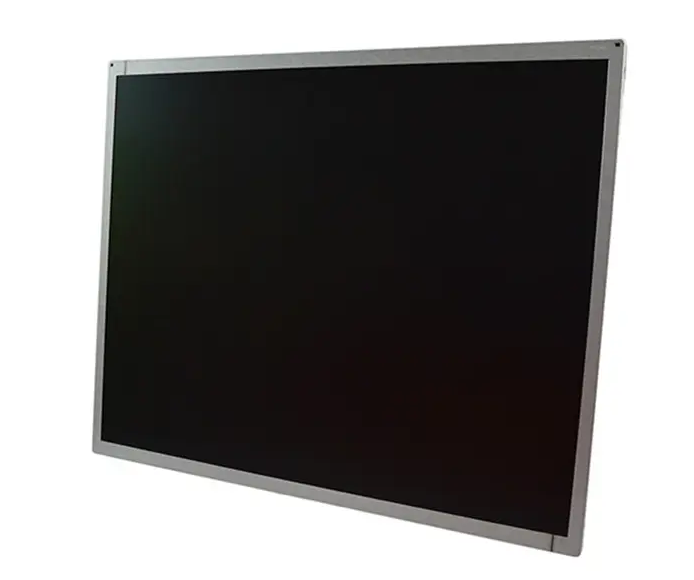

AUO M190ETN01.0 Ultra High Brightness LCD Module

Taiwan AUO original LCM M190ETN01.0 , resolution 1280*1024, display ratio 5:4, widely used in industrial equipment, bank self-service terminal, ticket self-service terminal, financial, taxation and other industrial equipment and self-service equipment.

Manufacturer：       AUO                                              Model Name：  M190ETN01.0

Screen Size：           19.0 inch                                       Screen Type:      LCM,   a-Si TFT-LCD

Pixel Number：       1280(RGB)×1024  [SXGA]  86PPI  Arrangement:    RGB Vertical Stripe

Active Area(mm)：  376.32(H)×301.056(V) mm           Outline(mm):     396(H)×324(V) ×11.4(D) mm

Bezel Area(mm)：   380.0(H)×305.08(V) mm               Treatment:         Antiglare

Luminance：           250 cd/m² (Typ.)                           Contrast Ratio:  1000 : 1 (Typ.) (TM)

Viewing Angle：      85/85/80/80 (Typ.)(CR≥10)          Response:          3.6/1.4 (Typ.)(Tr/Td)

Good View at:         Symmetry                                     Work Mode:       AHVA, Normally Black, Transmissive

Color Depth:           16.7M   72% NTSC                        Backlight:           WLED , 50K hours , With LED Driver

Mass:                      1.70Kgs (Typ.)                                Used for:            Industrial Outdoor High Brightness

Refresh Rate:           60Hz                                             Touchscreen:      Without

Signal Type:             LVDS , Connector 51 pins

Voltage Supply:       5.0V (Typ.)

Max. RatingsStorage Temp.: -20 ~ 60 °C    Operating Temp.: 0 ~ 50 °C
