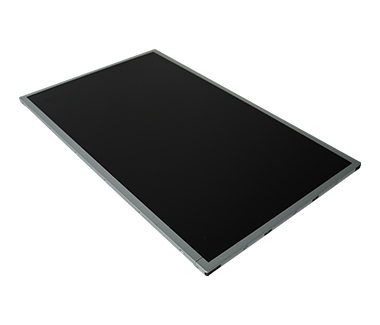

RS236HJJ-NE07 is a 23.6 inch diagonal a-si TFT LCD, with RisingLCD own ELED backlight, the brightness can achieve 700 nits, that makes it can be sunlight readable even under directly sunlight.
RS236HJJ-NE07 is 23.6 inch TFT LCD panel with 700 nits high brighness, 1920*1080 full HD resolution, 89/89/89/89 wide viewing angle, often used for any embedded systems, security and hand-held equipment which requires display in high quality.
RS236HJJ-NE07 high brightness main features:
1. High Brightness 1800 nits
2. Sunlight Readable
3. 3000 : 1 high contrast ratio
4. Wide Viewing Angle of 178°(H), 178°(V)
5. Low Power Consumption
6. BL MTBF: 15,000 hours
RisingLCD can offer the high brightness LCD screen from 10.1 inch to 110 inch, and brightness from 700 nits to 5000 nits, high brightness displays provide a vibrant and bright solution for embedded system, window advertising, traffic information, they are perfect for the outdoor digital signage application in airport, bus/train/raiway/ station and retail shop window.
| Screen Diagonal | 23.6 inch |
| Brand | RisingLCD |
| Model No | RS236HJJ-NE07 |
| Active Area | 521.28(W)×293.22(H) mm |
| Resolution | 1920(RGB)×1080, FHD 93PPI |
| Physical Size | 544.8×320.5×11.5 (H×V×D) |
| Pixel Arrangement | R.G.B. Vertical Stripe |
| Display Mode | a-Si TFT-LCD, LCM |
| Contrast Ratio : | 3000:1 |
| White Luminance ( Center ) | 700 cd/m2 (Typ.) [cd/m2 ] |
| Optical Response Time | 20 (Typ.)(G to G) ms |
| Nominal Input Voltage | 5.0V (Typ.) |
| Frame Rate | 60Hz |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Weight [kg] | 2.31kgs |
| Interface Type | LVDS (2 ch, 8-bit) , Connector 30 pins |
| Support Color | 16.7M 72% NTSC |
| Surface Treatment | Antiglare (Haze 25%), Hard coating (3H) |
| RoHS Compliance | RoHS Compliance |
| Temperature Range | 0 ~50 °C |
| Storage (Non-Operating) | -20 ~ 60 °C |
