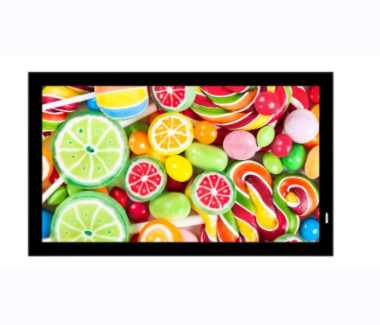

18.5 Inch Open Frame monitor with 2000 nits high brightness

18.5 Inch Open Frame monitor with 2000 nits high brightness

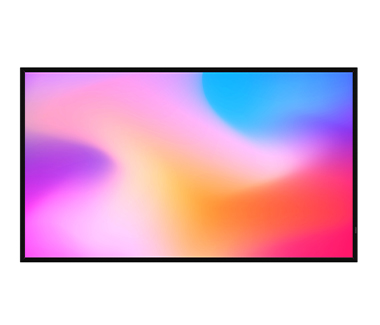

RS43-OEM: 43" open frame LCD. FHD 1920x1080, WLED, LVDS. Ready for digital signage, kiosks, and advertising displays.

OEM / ODM Manufacturer

Factory Direct

Order & Lead Time

Sample Order 1 Unit MOQ
Bulk Order 10+ Units Tiered Discounts

Need 50+ units? for framework agreements.

Global Shipping Options

Samples ship in ~10 working days; Bulk orders in 15-25 working days.

  • Express: DHL/FedEx door-to-door delivery (5-7 days)
  • Sea Freight: Cost-optimized bulk shipping (30-45 days)
  • Rush Orders: Available upon request for urgent projects

1-3 Year Standard Warranty

3 years for Display Units and 1 year for LCD modules. Extendable to 5 years. Includes 24/7 support, remote troubleshooting, and long-term spare parts availability.

All products are manufactured in our ISO 9001-certified facility.
CE, FCC, RoHS Certified

Get Started

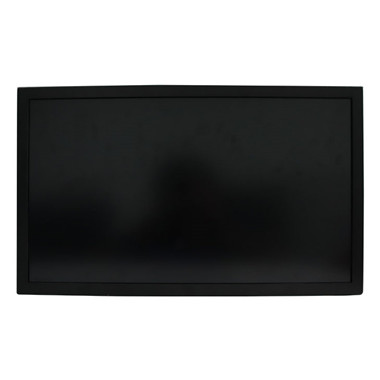

Risingstar 18.5 inch open frame monitor is with 2000 nits high brightness, it can be read in the directly sunlight, perfect for outdoor industrial applications. This open frame monitors come with HDMI, VGA, DVI video input and a rugged open frame metal construction.Open frame style is easy to assemble.

Description:

1) 18.5 inch - different sizes are available

2) Industrial A+ grade high brightness LCD panel

3) High brightness 2000 nits, High contrast, vivid image layout, bets details performance.

4) Open frame design, easy for assembling.

5) Multiple date-image adjustment circuit, low image distortion.

6) Intelligence temperature control fan design, green and quiet.

7) Wide visual angle 178°

8) Build-in stable power, low consumption, long life span>up to 50,000 hoursours

Open Frame Monitor

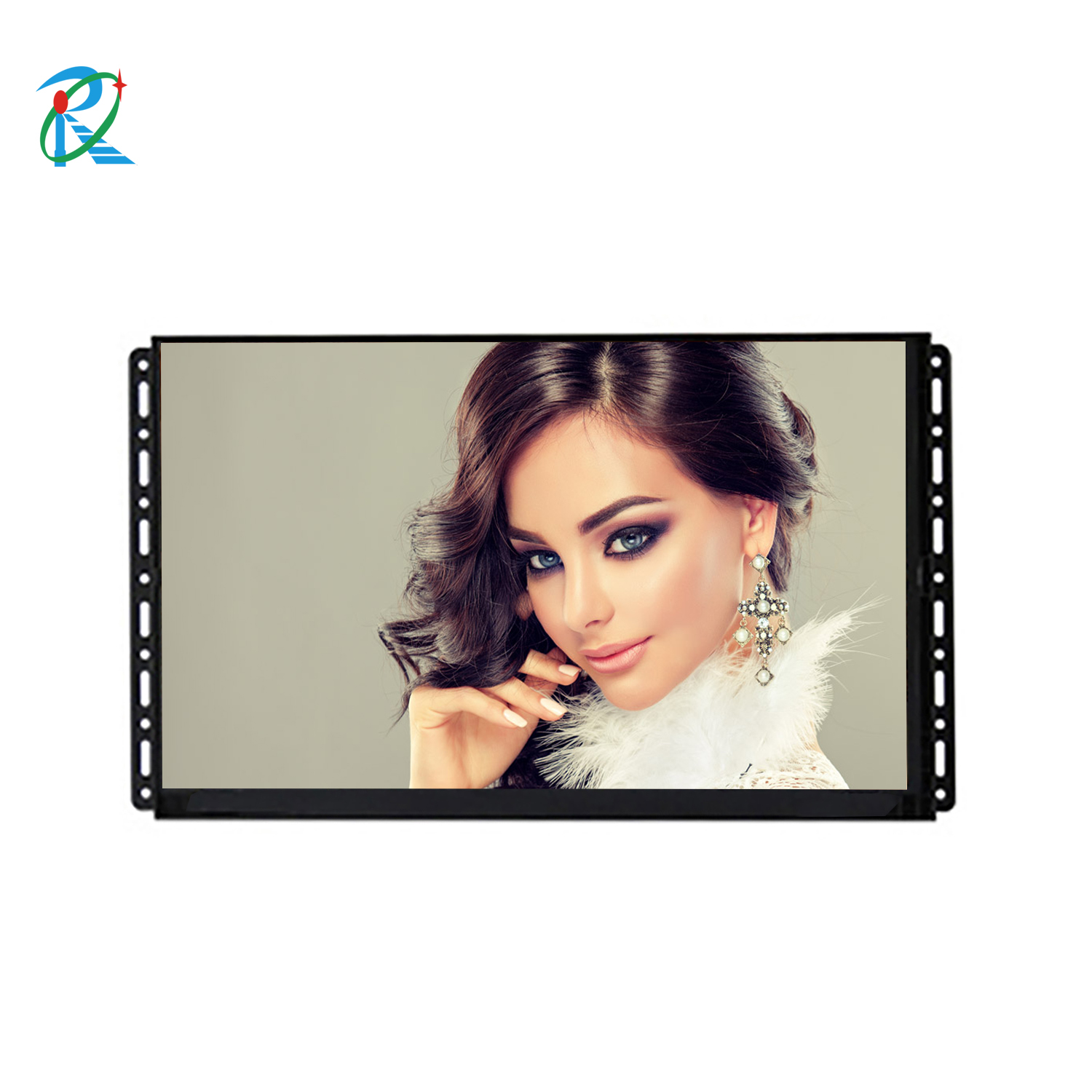

An Open Frame Monitor provides a LCD with the supporting structure to protect electronic components without using an enclosure or bezel. VESA mounting makes this open frame monitor easy to install, making it the perfect solution for ATMs, vending machines, casino monitors, airport information displays, and mall kiosks.

High Reliability for Various Industrial Applications

Risingstar industrial monitors are designed to provide superior picture quality and state-of-the-art features in a rugged enclosure, ensuring years of reliable operation in any factory environment. Available in various sizes, housing materials, and optional features make these displays highly versatile and fit different use cases.

Open Frame monitor applications:

Stock exchanges, Traffic control centers, metro, Airports, media centers, military systems, public space, shopping areas, banks, schools, hospitals, special circumstances etc.

Product model

RS185-N10

General Features

display

LCD module

Display size

18.5inch

Outline Dimension



408.96(H230.04(V) mm

Pixel Format



1920(RGB)×1080

display scale

16:9

Luminance, White



1000-3000cd/m² (Typ.)

contrast ratio

1000:1 (Typ.)

Viewing Angle (CR>10)



178°(V)/178°(H)(Typ.)(CR≥10)

response time

14(Typ.)(Tr/Td) ms

Color depth

16.7M , 98% sRGB

light sensation

support

Heat dissipation mode

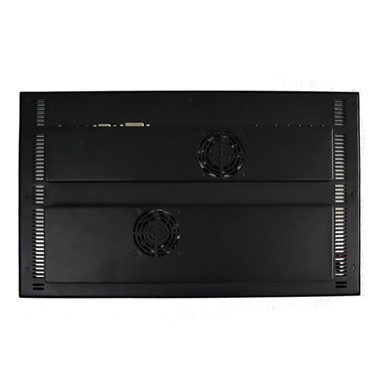

Active intelligent air cooling

service life

up to 50,000 hours

system configuration

Main board type

Display driver panel

Interface

Input interface

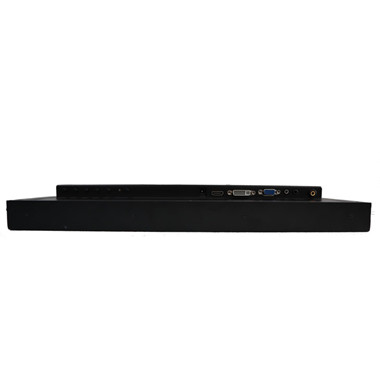

HDMI*1  VGA*1  DVI*1  PC AUDIO IN,EARPHONE OUT



Touch Type

NC(choosable

control mode

OSD

Power input

12V/6A,

power waste

Overall power consumption

55W Max

standby power

≦3W

Use environment

working temperature

-20-7-20°C

Storage temperature

-20-7-20°C

air humidity

<85%

other

Appearance dimension

443*264*62mm

Package size

NC

enclosure


Data Format



VESA  100*100MM



weight

NC

colour

black

after-sale service

NC

RS185-N10 18.5 inch Open Frame Monitor 2000 nits Ultra Bright Open Frame Display 18.5 inch Outdoor Open Frame LCD High Brightness Open Frame Monitor for Signage Compact Open Frame Display 2000nits High brightness display Sunlight readable display Outdoor waterproof display

01 / Chassis & Materials

Structural integrity for extreme environments.

Enclosure Grade Medical and Food grade SUS316L Stainless Steel, AL5052 Aluminum, or SECC Galvanized Steel.
Protection Rating Certified IP65 / IP69K waterproof sealing. Mechanical impact protection rated at IK10.
Surface Finish Industrial powder coating (RAL spectrum), sandblasting, and anti-acid marine painting.
Format Architecture Chassis-mount, Open-frame, Panel-mount, and VESA-integrated configurations.

03 / Interface & I/O

Industrial signal and power regulation.

Connectors Support for M12 Aviation Circular Connectors, DB9/RS232, and waterproof RJ45/USB.
Power Regulation Wide voltage DC 9V - 36V input with integrated surge and polarity protection.
Sensor Suite Integrated ambient light sensors, thermal probes, and custom GPIO control protocols.

02 / Optical & Display

Visibility optimization for extreme ambient lighting.

Luminance Output Scalable 1500 - 5000 Nits with integrated Hi-Tni (110°C) anti-blackening technology.
Optical Bonding Full Vacuum Optical Bonding (OCR) — eliminates air gaps, fogging, and maximizes contrast ratio.
Advanced Coating Integrated AR (Anti-Reflective), AG (Anti-Glare), and AF (Anti-Fingerprint) nano-films.

04 / Embedded & Data

Software architecture and data sync.

Operating Systems Full compatibility with Windows 7, 10/11 IoT; Linux support covering the last 3 generations (Ubuntu 20.04, 22.04, 24.04 LTS) and Debian; as well as comprehensive support for Android 11 through 14.
Communication High-speed 4G/5G LTE modules, Dual-band Wi-Fi 6, and Gigabit Ethernet.
