    49 inch high brightness TFT LCD panel

    RisingLCD manufactures widest variety of ultra-high brightness display for business and industry, size from 10.1 inch to 110 inch, and brightness level from 500 to 5500nits, meet your different requests.



    Model No.:


    Screen size:

    49 inch


    3840(3)×2160, UHD, 90PPI

    Brightness (cd/m²):

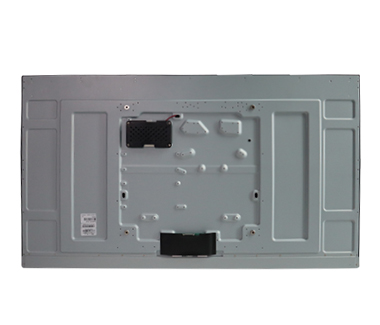

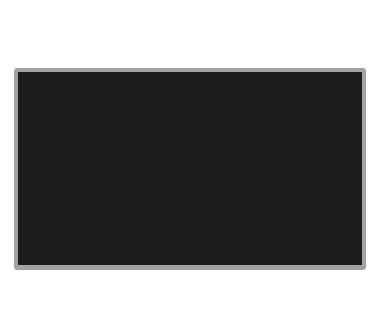

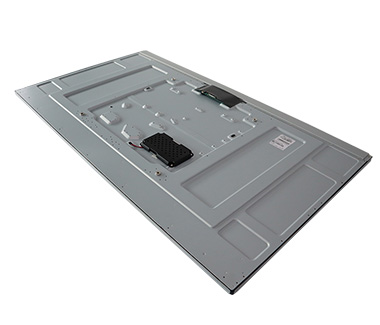

    RS490EGY-NE08 is a 49 inch high brightness TFT LCD panel, with LG original a grade open cell, RisingLCD own designed edge backlight, 800 nits high brightness, lightweight, ideal for any embedded outdoor devices.

    RS490EGY-NE08 main features:

    Ultra high resolution 3840*2160

    High brightness: 700nits,

    Screen Type: LCM a-Si TFT-LCD

    Display size: 49 inch (all sizes optional from 21.5 inch to 86 inch)

    Wide Viewing Angle (H x V) 178 x 178

    Constrast: 1300:1

    Auto brightness control, manual brightness adjustment are all available.

    Ultra thin thickness, around 17mm thickness.

    Application: Advertising publish, retail store, shopping mall

    All, bus station. Window facing display

    Hot Tags: 49 inch high brightness TFT LCD panel, manufacturers, suppliers, factory, Customized
    Screen Diagonal49 inch
    Brand Risingstar
    Model NoRS490EGY-NE08
    Active Area1073.78(W)×604(H) mm
    Resolution3840(3)×2160, UHD, 90PPI
    Physical Size1094(H)*625.4(V)*17.7(D)mm
    Pixel ArrangementR.G.B. Vertical Stripe
    Display Modea-Si TFT-LCD, LCM
    Contrast Ratio :1100:1
    White Luminance ( Center )800 cd/m2 (Typ.)  [cd/m2 ]
    Optical Response Time6 (Typ.)(G to G) ms
    Nominal Input Voltage12.0V (Typ.)
    Frame Rate60Hz
    Viewing Angle89/89/89/89 (Typ.)(CR≥10)
    Weight [kg]7(Typ.)
    Interface TypeV-by-One 8 lane , 51 pins
    Support Color1.07B , 63% NTSC
    Surface TreatmentAntiglare (Haze 1%),Hard coating (3H)
    RoHS ComplianceRoHS Compliance
    Temperature Range0 ~50 °C
    Storage (Non-Operating)-20 ~ 65 °C
