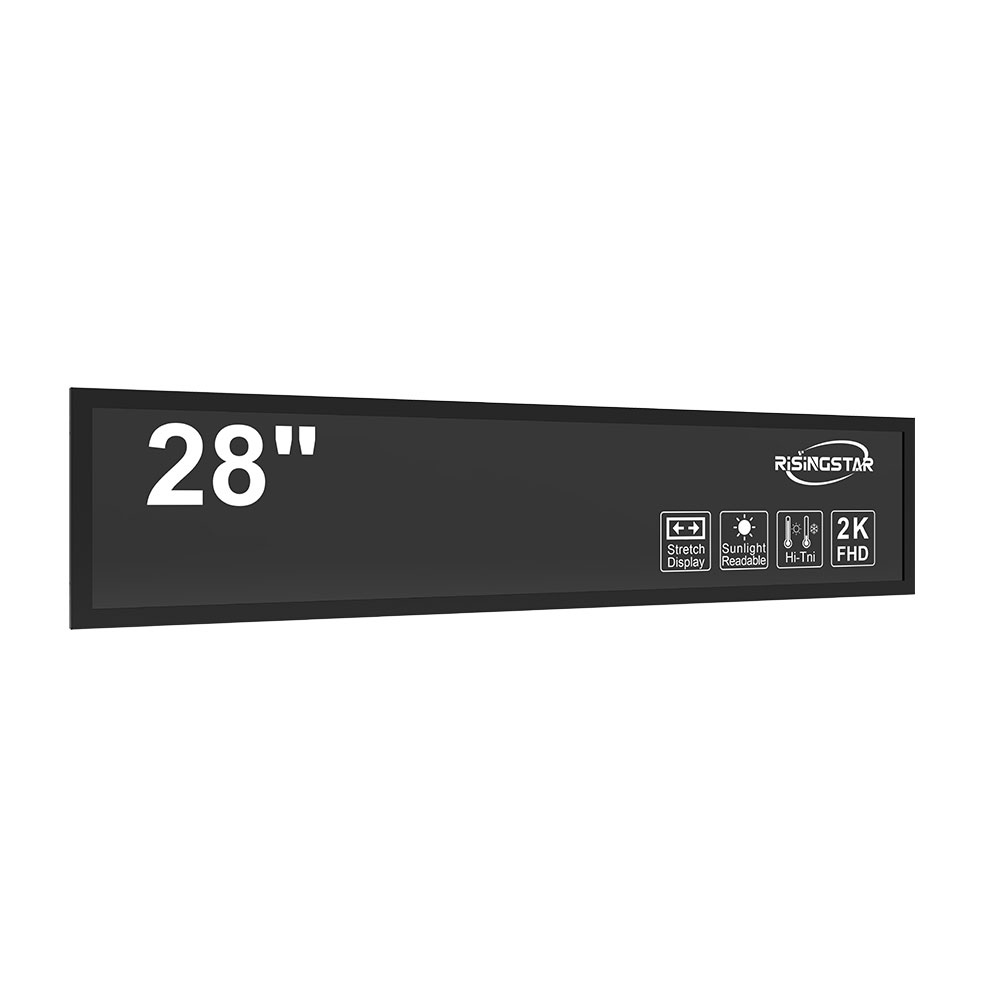

RisingStar’s 28-inch stretched bar passenger information display is engineered for high-demand public transportation environments that require crisp, wide-format visuals in space-constrained areas. Featuring an a-Si TFT-LCD panel with an ultra-wide 1920×360 resolution, this display delivers clear and legible information with 69 PPI pixel density and a wide 89° viewing angle in all directions, ensuring optimal readability from any position.
Designed with advanced AMVA3 technology and a high contrast ratio of 4000:1, the display maintains sharp visuals with deep blacks and vivid colors. With typical brightness levels available at 2500, 3000, 4000, and up to 5000 nits, it excels in both indoor and outdoor settings—especially under direct sunlight. The matte surface treatment with 3H hard coating further reduces glare while providing excellent durability.
Built for 24/7 operation, the panel integrates a long-life WLED backlight with up to 70,000 hours lifespan and an embedded LED driver. It supports MEMC for motion enhancement up to 240Hz for smooth content playback and can operate in temperatures from -20°C to 60°C, making it ideal for extreme environments.
Its lightweight structure (2.4kg), low power consumption, and 12V driving voltage make integration effortless for system designers and installers. The LVDS interface ensures stable signal transmission, and the slim profile suits narrow space applications.
Railway Station Platforms
Subway and Metro Systems
Airport Shuttle & Transit Areas
EV Charging Stations & Fuel Pumps
Passenger Buses and Coaches
Smart Bus Stop Shelters
Shopping Mall Transit Points
Outdoor Digital Signage & Advertising
Real Estate Display Panels
| Item | Specification |
|---|---|
| Panel Size | 28.0 inch |
| Panel Type | a-Si TFT-LCD, LCD Module |
| Resolution | 1920 (RGB) × 360, 69 PPI |
| Pixel Arrangement | RGB Vertical Stripe |
| Display Area (W×H) | 698.4 × 130.95 mm |
| Active Area (W×H) | 702.4 × 134.95 mm |
| Surface Treatment | Matte (Haze 28%), Hard Coating (3H) |
| Brightness (Typ.) | 2500 / 3000 / 4000 / 5000 nits |
| Contrast Ratio (Typ.) | 4000:1 (TM) |
| Viewing Angle (CR≥10) | 89°/89°/89°/89° (L/R/U/D) |
| Display Mode | AMVA3, Transmissive, Normally Black |
| Panel Technology | VA-based: AMVA3 (Soft VA) |
| Response Time (Typ.) | 8 ms (G to G) |
| Display Colors | 16.7M Colors, 72% NTSC |
| Backlight Type | WLED, 70,000 hours lifespan, with LED driver included |
| Refresh Rate | 60Hz (Standard) |
| Advanced Frequency | - 120Hz (MEMC built-in, 60Hz input) - 120Hz+120Hz (panel + backlight) - 240Hz (MEMC built-in, 60Hz input) |
| Touch Panel | No Touch |
| Panel Weight | 2.40 kg (Typ.) |
| Application | Outdoor High Brightness Digital Signage, Stretched Bar LCD |
| Signal Interface | LVDS (2 ch, 8-bit), 51 pins, Terminal Connector |
| Driving Voltage | 12.0V (Typ.) |
| Operating Temp. | -20 ~ 60°C |
| Storage Temp. | -20 ~ 60°C |

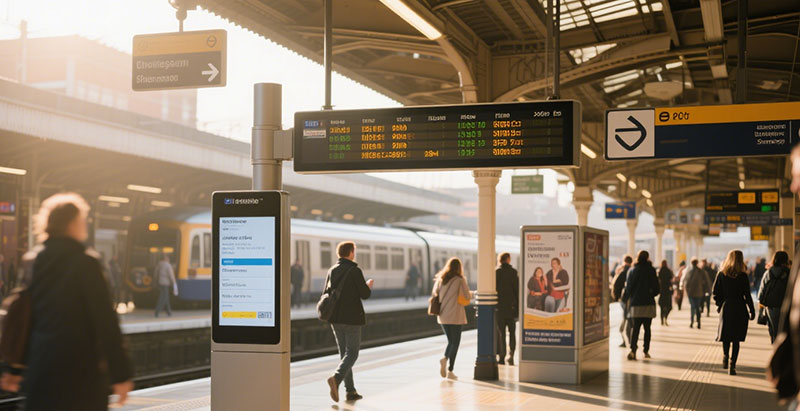

28 Inch Stretchen bar Passenger Information Display Application Cases
| Item | Specification |
|---|---|
| Panel Size | 28.0 inch |
| Panel Type | a-Si TFT-LCD, LCD Module |
| Resolution | 1920 (RGB) × 360, 69 PPI |
| Pixel Arrangement | RGB Vertical Stripe |
| Display Area (W×H) | 698.4 × 130.95 mm |
| Active Area (W×H) | 702.4 × 134.95 mm |
| Surface Treatment | Matte (Haze 28%), Hard Coating (3H) |
| Brightness (Typ.) | 2500 / 3000 / 4000 / 5000 nits |
| Contrast Ratio (Typ.) | 4000:1 (TM) |
| Viewing Angle (CR≥10) | 89°/89°/89°/89° (L/R/U/D) |
| Display Mode | AMVA3, Transmissive, Normally Black |
| Panel Technology | VA-based: AMVA3 (Soft VA) |
| Response Time (Typ.) | 8 ms (G to G) |
| Display Colors | 16.7M Colors, 72% NTSC |
| Backlight Type | WLED, 70,000 hours lifespan, with LED driver included |
| Refresh Rate | 60Hz (Standard) |
| Advanced Frequency | - 120Hz (MEMC built-in, 60Hz input) - 120Hz+120Hz (panel + backlight) - 240Hz (MEMC built-in, 60Hz input) |
| Touch Panel | No Touch |
| Panel Weight | 2.40 kg (Typ.) |
| Application | Outdoor High Brightness Digital Signage, Stretched Bar LCD |
| Signal Interface | LVDS (2 ch, 8-bit), 51 pins, Terminal Connector |
| Driving Voltage | 12.0V (Typ.) |
| Operating Temp. | -20 ~ 60°C |
| Storage Temp. | -20 ~ 60°C |
