Specifications
| Specification | Details |
|---|---|
| Brand | RisingStar |
| Model Name | RS101ENT-GE10 |
| Screen Size | 10.1" |
| Screen Type | LCD module, a-Si TFT-LCD |
| Resolution | 1280 (RGB) × 800 [WXGA], 149 PPI |
| Pixel Configuration | RGB vertical stripe |
| Active Display Area | 216.96 × 135.6 mm (H × V) |
| Outline Dimension (Visual Size) | 218.96 × 137.6 mm (H × V) |
| Surface Treatment | Matte, Hard Coating (3H) |
| Brightness | 1000 nits standard, up to 1500 nits optional |
| Contrast Ratio | 800:1 |
| Optimal Viewing Angle | Full viewing angle |
| Optical Mode | AAS, Normally Black, Transmissive |
| Viewing Angle (L/R/U/D) | 85° / 85° / 85° / 85° |
| Response Time (R/F) | 14 / 11 ms |
| Number of Colors | 262K / 16.7M, 52% NTSC |
| Backlight Type | WLED, 50,000 hours lifetime, with LED driver |
| Screen Weight | 360 / 375 g |
| Refresh Rate | 60 Hz |
| Touch Function | No touch |
| Signal System | LVDS (1 ch, 6/8-bit), terminal, 40 pins |
| Supply Voltage | 3.3 V |
| Storage Temperature | -30~80 °C |
| Operating Temperature | -20~70 °C |
RS101ENT-GE10 is a 10.1-inch LCD display with 1,000 nits brightness, 1280×800 resolution and 800:1 contrast ratio. Its operating temperature range is -20 °C to 70 °C.

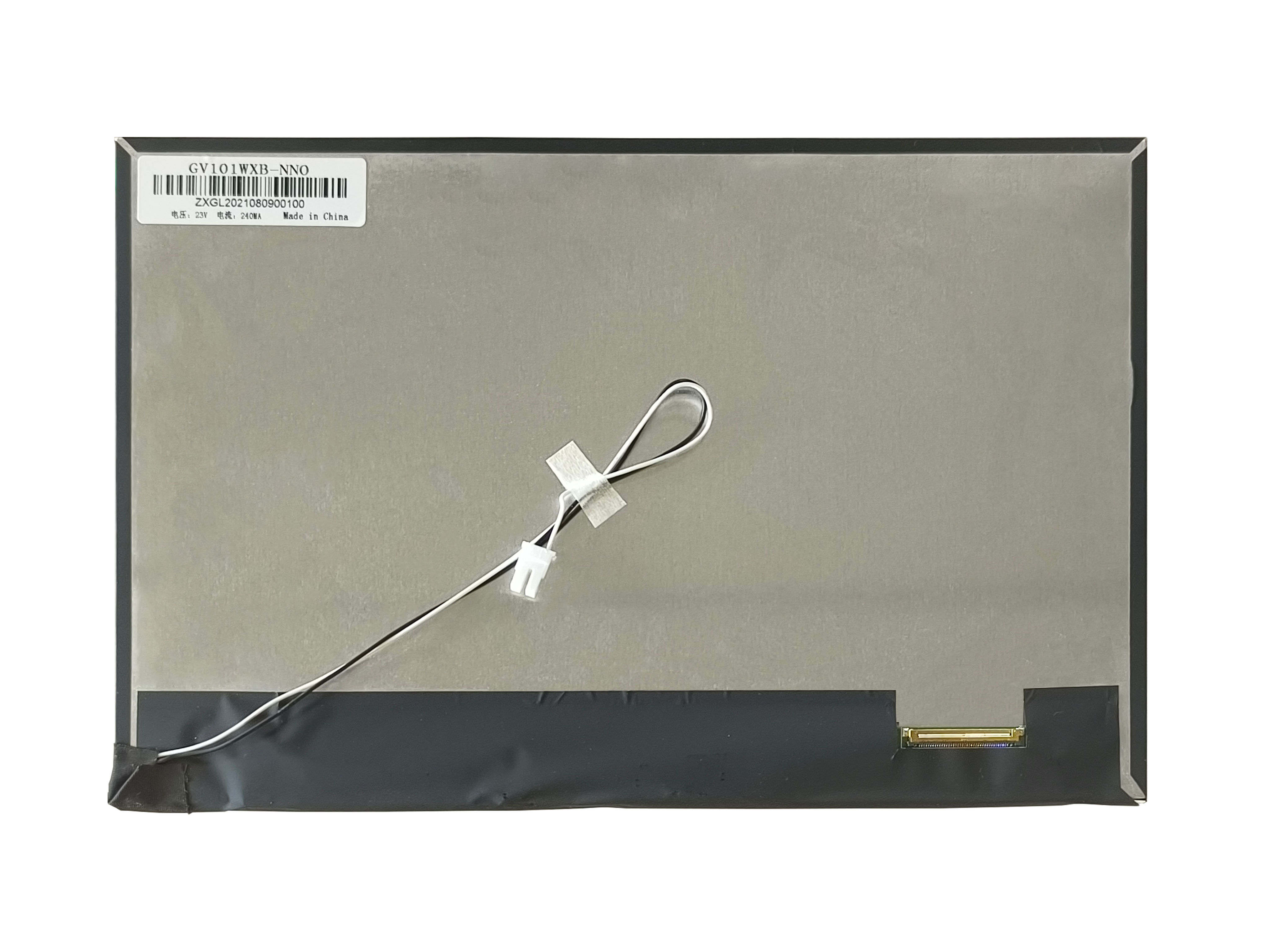

The RS101ENT-GE10 is a 10.1-inch wide-temperature LCD panel from RisingStar, featuring A+ grade LCD glass from AU Optronics. Combined with RisingStar's own design backlight, it can achieve 1000 nits of brightness and maintain operation from -20℃ to 70℃ without any issues.
Capacative touch (Optional)
This LCD panel is widely used in both industrial and commercial sectors as part of user interfaces. With advanced P-CAP touch technology, it will not be interrupted by high temperatures like IR-touch, making it a suitable choice for outdoor applications.\r\n\r\n\r\n

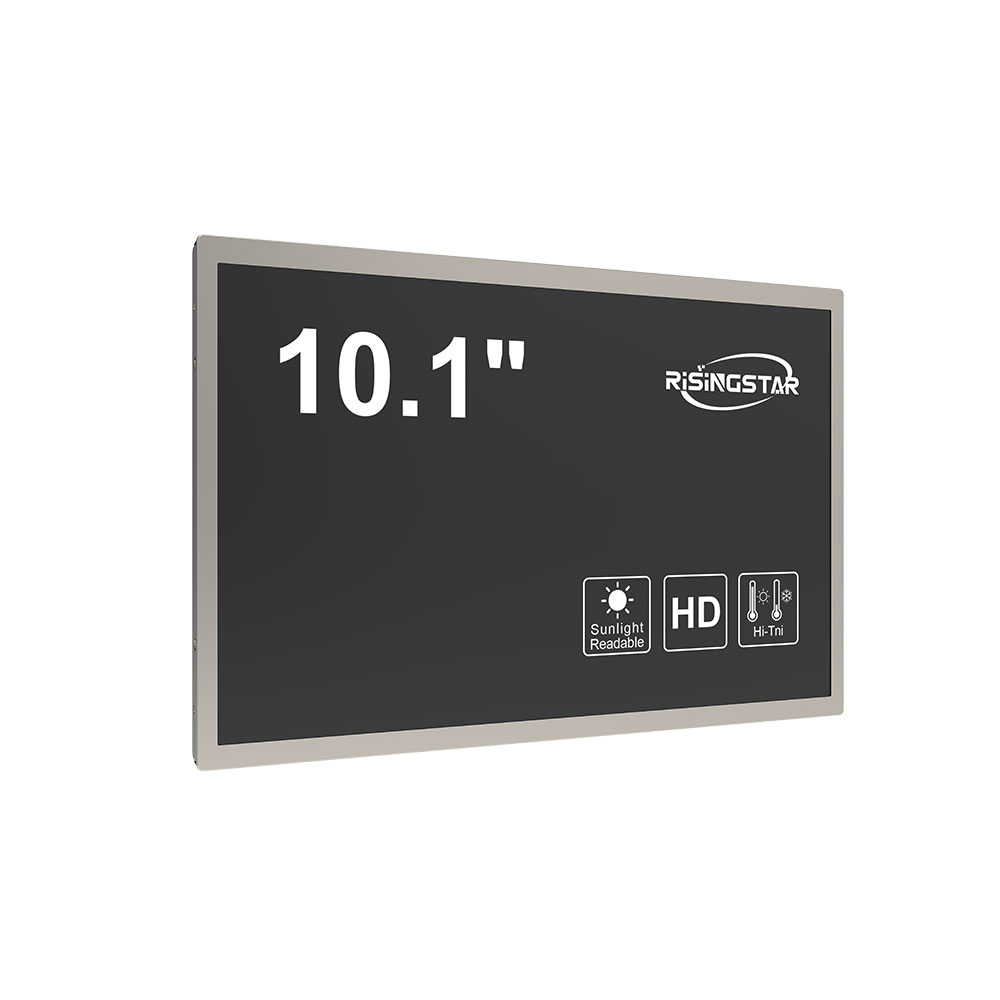

10.1-inch high-brightness LCD screen

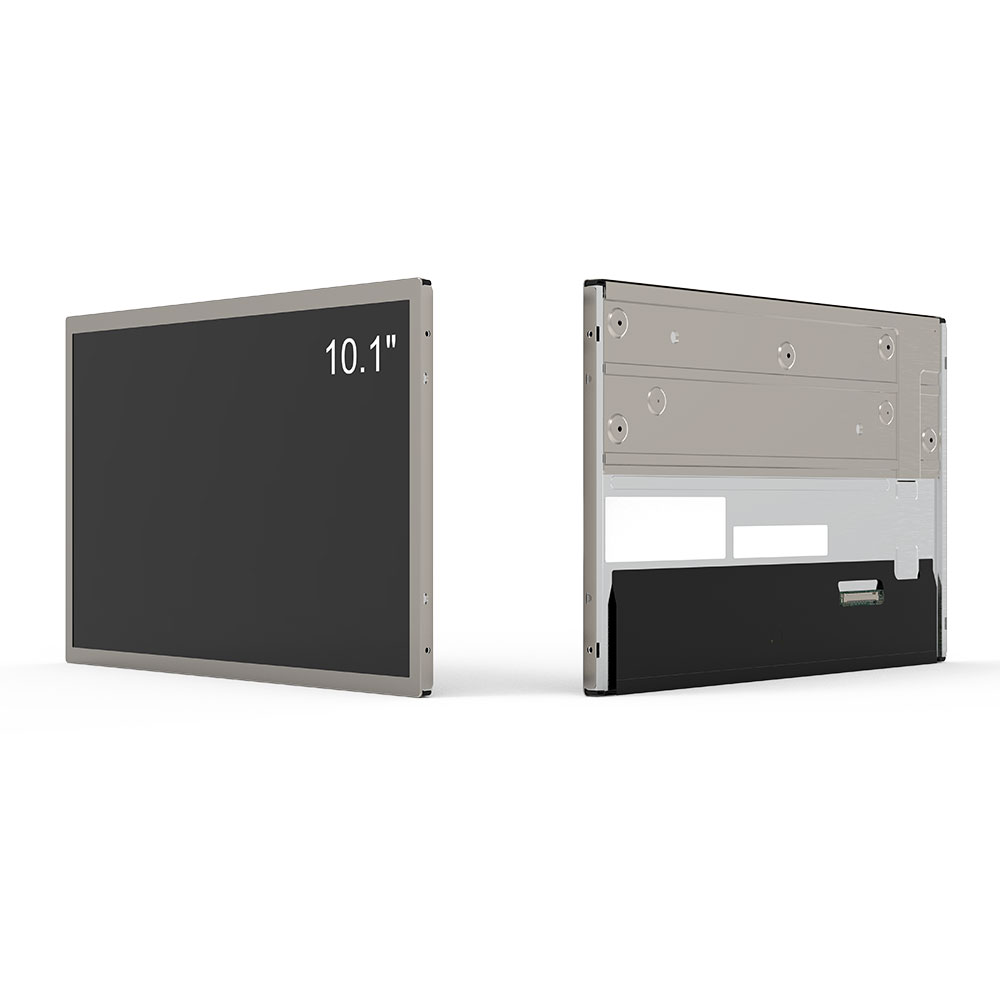

10.1-inch high-brightness LCD screen case

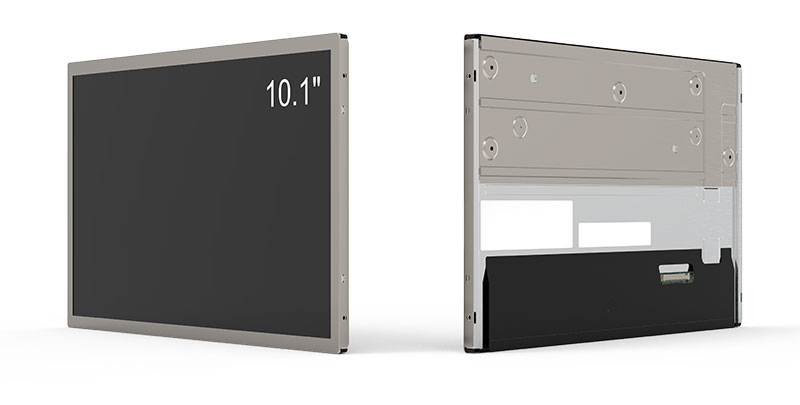

The RisingStar 10.1-inch Sunlight-Readable LCD TFT Module is engineered for crystal-clear visibility even under direct sunlight. With up to 5000 nits brightness, industrial-grade durability, and an ultra-thin aluminum housing, this display delivers exceptional performance for outdoor digital signage, passenger information systems, EV charging kiosks, and rugged industrial environments.
Designed for 24/7 operation, the module features low power consumption, excellent heat dissipation, and a long service life exceeding 50,000 hours.
Key Features
High Brightness: Up to 5000 nits for perfect sunlight readability.
Full HD Resolution: 1920(RGB) × 1080 for sharp and vibrant visuals.
Wide Operating Temperature: Tested for extreme environments (-25°C to +70°C).
Industrial-Grade Reliability: Low heat, low power, and robust aluminum structure.
Slim & Lightweight Design: Easy integration into various enclosures.
Long Lifespan: Over 50,000 hours of continuous use.
Full Waterproofing Available: Optional IP65+ protection for outdoor installation.
Application Areas
Passenger Information Display for bus, train, and metro stations
Outdoor Digital Signage Displays for retail and advertising
EV Charging Station Screens with sunlight readability
Gas Pump Displays for clear visibility day and night
Industrial Control Panels for rugged environments
Marine & Navigation Systems requiring high brightness
Why Choose RisingStar?
Over 15 Years in industrial LCD display manufacturing
Trusted by leading transportation, energy, and retail brands worldwide
Certified quality: CE, RoHS, ISO9001
In-house R&D team with extensive display engineering expertise
Proven success in extreme temperature and high-vibration conditions
Customer Success Story

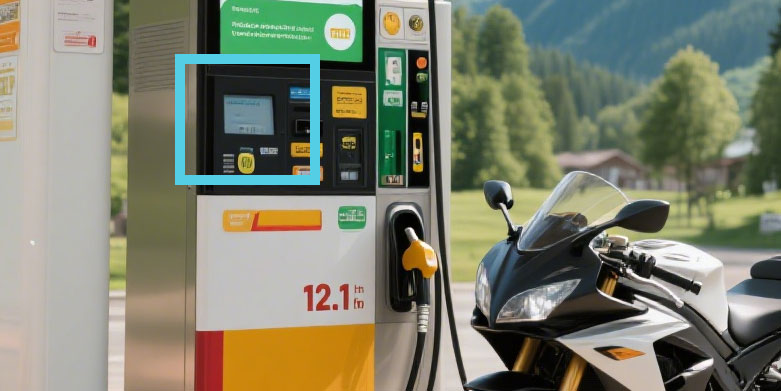

In 2024, RisingStar provided high brightness LCD modules for a city-wide gas pump in Europe. Despite exposure to heavy sunlight and winter snow, the displays maintained perfect visibility and zero downtime, earning praise from both operators and passengers.
FAQ
Q1: Can this display operate in direct sunlight without overheating?
Yes. Our industrial-grade backlight design ensures stable performance even in extreme heat, with low power consumption to minimize thermal buildup.
Q2: Is the screen waterproof?
The base model is splash-resistant, and we offer IP65+ fully sealed versions for outdoor applications.
Q3: Can I customize the brightness or size?
Yes. We provide customization for brightness, interface type, housing design, and more.
Contact Us
? Phone: +86-15889469208
? Email: ai@risinglcd.com
? Address: 10 Floor, Building H, Chuangxinyungu Industrial Park, Lisonglang village, Gongming Street, Guangming District, Shenzhen, China
? Website: https://www.risinglcd.com
Product FAQs
How bright is the RS101ENT-GE10?
It is rated at 1,000 nits (cd/m²) brightness.
What are the main display specifications?
It uses a 10.1-inch panel, 1280×800 resolution, 800:1 contrast ratio.
What is the operating temperature range?
The operating temperature range is -20 °C to 70 °C.
Is this product available for OEM or ODM customization?
Yes. RisingStar is an OEM/ODM manufacturer and accepts customization requirements for volume orders; contact the sales team with your target specification.
What is the power input requirement for the RS101ENT-GE10?
The power input requirement is 3.3 V.
What is the viewing angle?
The viewing angle is 85° / 85° / 85° / 85°.
Is the RS101ENT-GE10 suitable for outdoor or high-ambient-light use?
Yes. Rated at 1,000 nits, it is a high-brightness panel built for sunlight-readable and outdoor applications.
How is the screen surface treated?
The panel surface treatment is Matte, Hard Coating (3H).
What panel technology does the RS101ENT-GE10 use?
It uses LCD module, a-Si TFT-LCD.
