27.0" AUO G270ZAN01.1

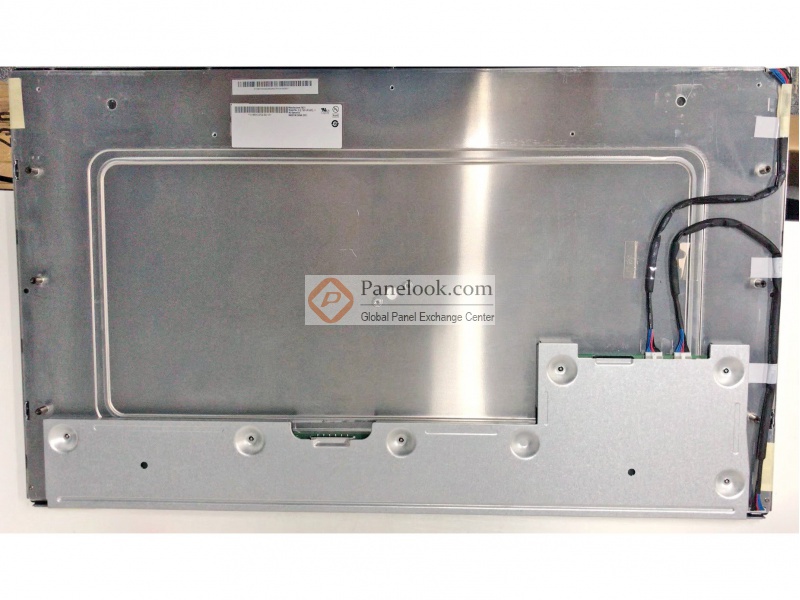

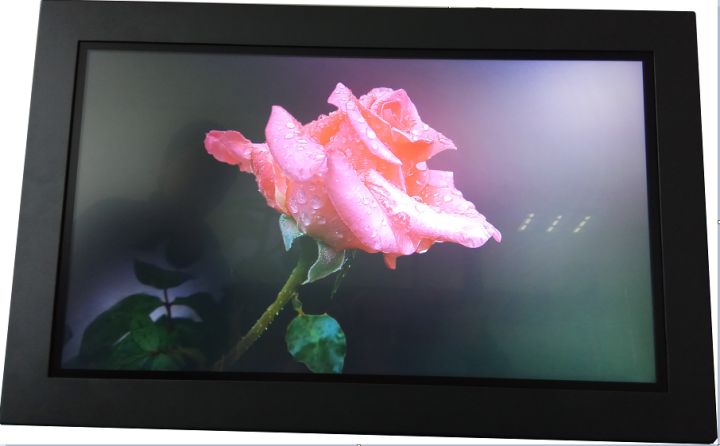

OUTDOOR SCREEN 27’’ TFT LCD AUO G270ZAN01.1
G270HAN01.0 is a 27 inch TFT LCD display module from Auo, it with a built-in WLED backlight, with LED driver, without touch screen. This TFT LCD is with 1920(RGB)×1080, FHD, 81PPI resolution, G270HAN01.0 LCD characterizes with brightness of 1000 cd/m², a static contrast ratio of 1000:1 and antiglare surface treament, transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) Viewing Angle,G270HAN01.0 TFT LCD is with consumer LCD display, due to it is high brightness, and 50k hours working life time and wide viewing angle, it is widely used in industrial control display, medical device, car custom screen, tanker.
We are china orginal factory, can use the original AUO display to customize what your want. Quality and delivery are guaranteed
Hot Tags: 27 inch a-si tft lcd module, China, factory, cheap, price, customized, quotation, window facing LCD, Outdoor Suspended Advertising Player, Smart LCD Advertising Player, transparent lcd panel, lcd splicing display, hight brightness,
ref G270QAN01.1, G270ZAN01.0, G270ZAN01.2,G270ZAN01.1
| 27" AUO G270ZAN1.1 TFT LCD SCREEN | |
| Panel Brand | AUO |
| Panel Item | G270ZAN1.0 |
| Size | 27 inch |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution: | 1920(RGB)*1080 81PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 597.888*336.312(H*V)mm |
| Outline Size | 630*368*2*23.4(H*V*D)mm |
| Bezel Area | 602*340.4(H*V)mm |
| Surface Treatment | Antiglare |
| Brightness | 1000cd/m² |
| Constrast Ratio. | 1000:1 |
| View Angle | 89/89/89/89(Min) |
| Display Model | AHVA, Normally Black, transmissive Display |
| Best View on | Symmetry |
| Response Time | 14 (Typ.)(Tr+Td) |
| Display Color | 1.07B, 87% NTSC |
| Backlight | WLED, 50K hours, With LED Driver |
| Touch Screen | Without |
| Panel Weight | 3.40Kgs (Typ.) |
| Frame Rate | 60Hz |
| Signal Interface | LVDS (2ch, 8-bit), 51 pins connector |
| Input Voltage | 12v(Typ.) |
| Working Temperature | 0-+50 ﾟC |
| Storage Temperature | -20-+60 ﾟC |
| Current State: | In Production |
Ask a quote for the latest price and one of our team members will respond as soon as possible.
