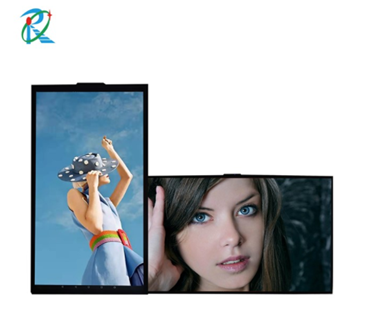

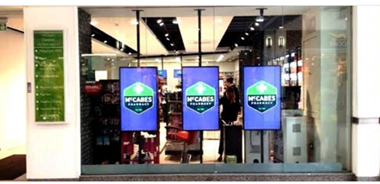

Window Facing LCD Digital Signage Display RISINGLCD
OEM / ODM Manufacturer
Factory Direct
Order & Lead Time
Need 50+ units? for framework agreements.
Global Shipping Options
Samples ship in ~10 working days; Bulk orders in 15-25 working days.
- Express: DHL/FedEx door-to-door delivery (5-7 days)
- Sea Freight: Cost-optimized bulk shipping (30-45 days)
- Rush Orders: Available upon request for urgent projects
1-3 Year Standard Warranty
3 years for Display Units and 1 year for LCD modules. Extendable to 5 years. Includes 24/7 support, remote troubleshooting, and long-term spare parts availability.
All products are manufactured in our ISO 9001-certified facility.
CE, FCC, RoHS Certified
Size range: 32" 43" 49" 55" 65" 75" 86" 98"
Display mode: single-sided display; double-sided display
Installation method: hanging; standing; wall hanging
Function: Android system, support wifi, 4G, 5G, RJ45, HDMI;
content update method: single-machine one-button screen function, network cluster release;
Resolution: 2K/4K,
Max brightness: 4000 cd/㎡;
Shell material: stainless steel
LCD panel: LG
Cooling method: air-cooled active cooling
Packing: carton/wooden box
Panel Brand: LG Display Panel Model: LD430
Panel Size: 43" Panel Type:a-Si TFT-LCD, LCM
Resolution：1920(RGB)×1080, FHD, 51PPI Pixel Format： RGB Vertical Stripe
Display Area：941.184(W)×529.416(H) mm Bezel Opening：945.8(W)×534.02(H) mm
Outline Size：963.6(W)×567.9(H) ×29.6(D) mm SurfaceAntiglare (Haze 1%), Hard coating (3H)
Brightness：450 cd/m² (Typ.) Contrast Ratio1100:1 (Typ.) (TM)
Viewing Angle：89/89/89/89 (Min.)(CR≥10) Display Mode： S-IPS, Normally Black, Transmissive
Best View on：Symmetry Response Time：12 (Typ.)(Tr+Td)
Display Colors：16.7M 68% NTSC Lamp Type2 strings WLED , 50K hours , Without Driver
Frequency：60Hz Embedded MEMC CircuitTouch ScreenWithout
Panel Weight：17.50Kgs (Typ.) Application：Digital Signage
Signal Interface：LVDS (2 ch, 8-bit) , 51 pins Connector
Input Voltage：12.0V (Typ.)
EnvironmentOperating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C
01 / Chassis & Materials
Structural integrity for extreme environments.
| Enclosure Grade | Medical and Food grade SUS316L Stainless Steel, AL5052 Aluminum, or SECC Galvanized Steel. |
| Protection Rating | Certified IP65 / IP69K waterproof sealing. Mechanical impact protection rated at IK10. |
| Surface Finish | Industrial powder coating (RAL spectrum), sandblasting, and anti-acid marine painting. |
| Format Architecture | Chassis-mount, Open-frame, Panel-mount, and VESA-integrated configurations. |
03 / Interface & I/O
Industrial signal and power regulation.
| Connectors | Support for M12 Aviation Circular Connectors, DB9/RS232, and waterproof RJ45/USB. |
| Power Regulation | Wide voltage DC 9V - 36V input with integrated surge and polarity protection. |
| Sensor Suite | Integrated ambient light sensors, thermal probes, and custom GPIO control protocols. |
02 / Optical & Display
Visibility optimization for extreme ambient lighting.
| Luminance Output | Scalable 1500 - 5000 Nits with integrated Hi-Tni (110°C) anti-blackening technology. |
| Optical Bonding | Full Vacuum Optical Bonding (OCR) — eliminates air gaps, fogging, and maximizes contrast ratio. |
| Advanced Coating | Integrated AR (Anti-Reflective), AG (Anti-Glare), and AF (Anti-Fingerprint) nano-films. |
04 / Embedded & Data
Software architecture and data sync.
| Operating Systems | Full compatibility with Windows 7, 10/11 IoT; Linux support covering the last 3 generations (Ubuntu 20.04, 22.04, 24.04 LTS) and Debian; as well as comprehensive support for Android 11 through 14. |
| Communication | High-speed 4G/5G LTE modules, Dual-band Wi-Fi 6, and Gigabit Ethernet. |
