13.3 Inch Industrial High Brightness LCD Screen
OEM / ODM Manufacturer
Factory Direct
Order & Lead Time
Need 50+ units? for framework agreements.
Global Shipping Options
Samples ship in ~10 working days; Bulk orders in 15-25 working days.
- Express: DHL/FedEx door-to-door delivery (5-7 days)
- Sea Freight: Cost-optimized bulk shipping (30-45 days)
- Rush Orders: Available upon request for urgent projects
1-3 Year Standard Warranty
3 years for Display Units and 1 year for LCD modules. Extendable to 5 years. Includes 24/7 support, remote troubleshooting, and long-term spare parts availability.
All products are manufactured in our ISO 9001-certified facility.
CE, FCC, RoHS Certified
13.3″ Industrial High Brightness TFT LCD Panel — Sunlight-Readable Outdoor Display
Product Overview
The RisingStar 13.3-inch Industrial High Brightness TFT LCD Panel (Model: RS133HAN-GE10) delivers exceptional visibility with brightness, FHD resolution, and a rugged aluminum housing. Engineered to withstand harsh environments, it excels in fuel dispensers, EV charging kiosks, outdoor information terminals, and rugged industrial displays.
Key Features
Brightness – Remarkable clarity even in direct sunlight
Full HD Resolution (1920×1080) – Sharp visuals with 166 PPI
Robust Aluminum Housing – Durable, corrosion-resistant, and lightweight
Wide Operating Temperature – -20 °C to +70 °C; storage: -20 °C to +70 °C
Industrial-Grade Reliability – Edge-LED backlight, IPS panel, long lifespan
Slim & Integrated Design – 309.7 × 184.1 × 10.1 mm, ideal for embedded applications

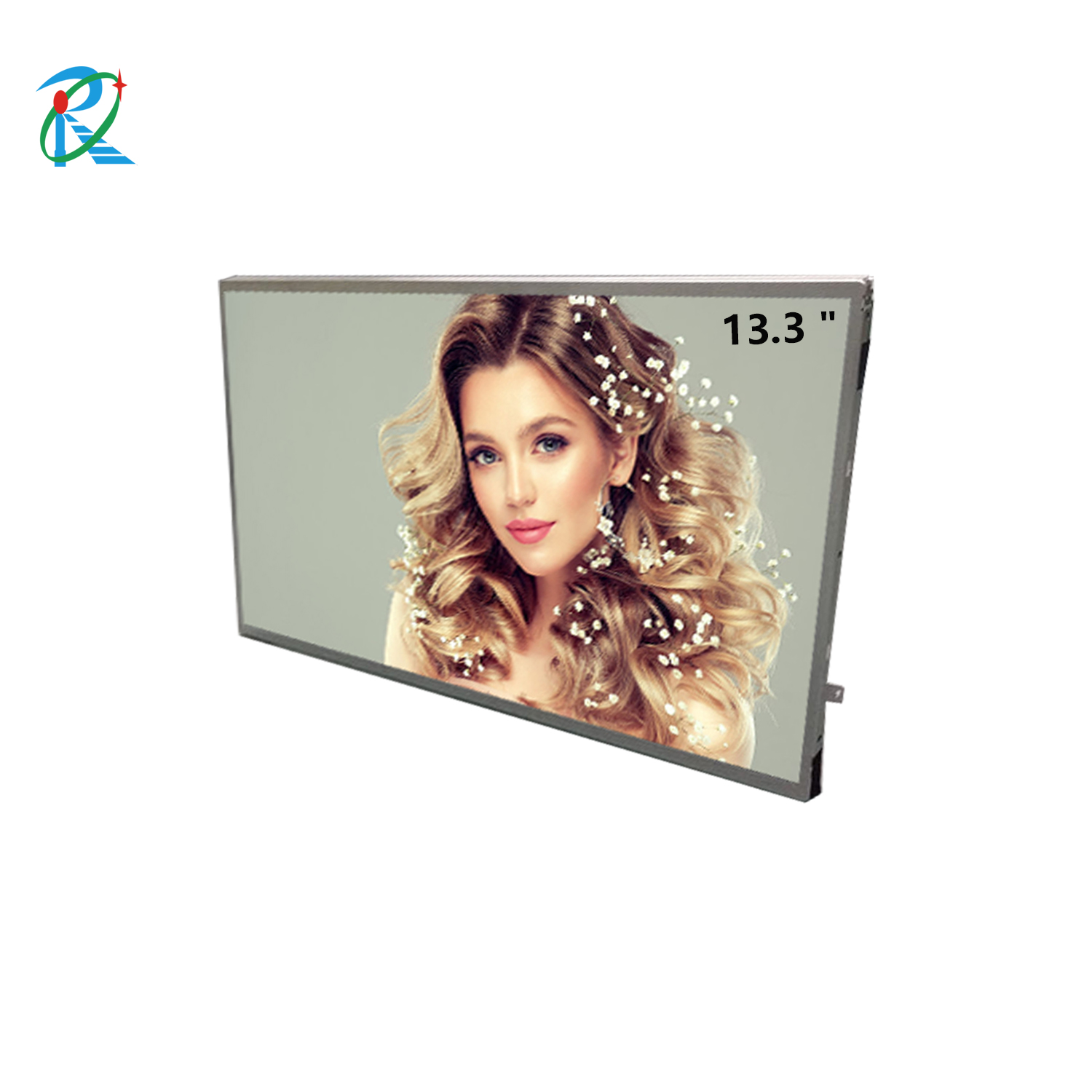

13.3-inch high-brightness LCD screen actual picture

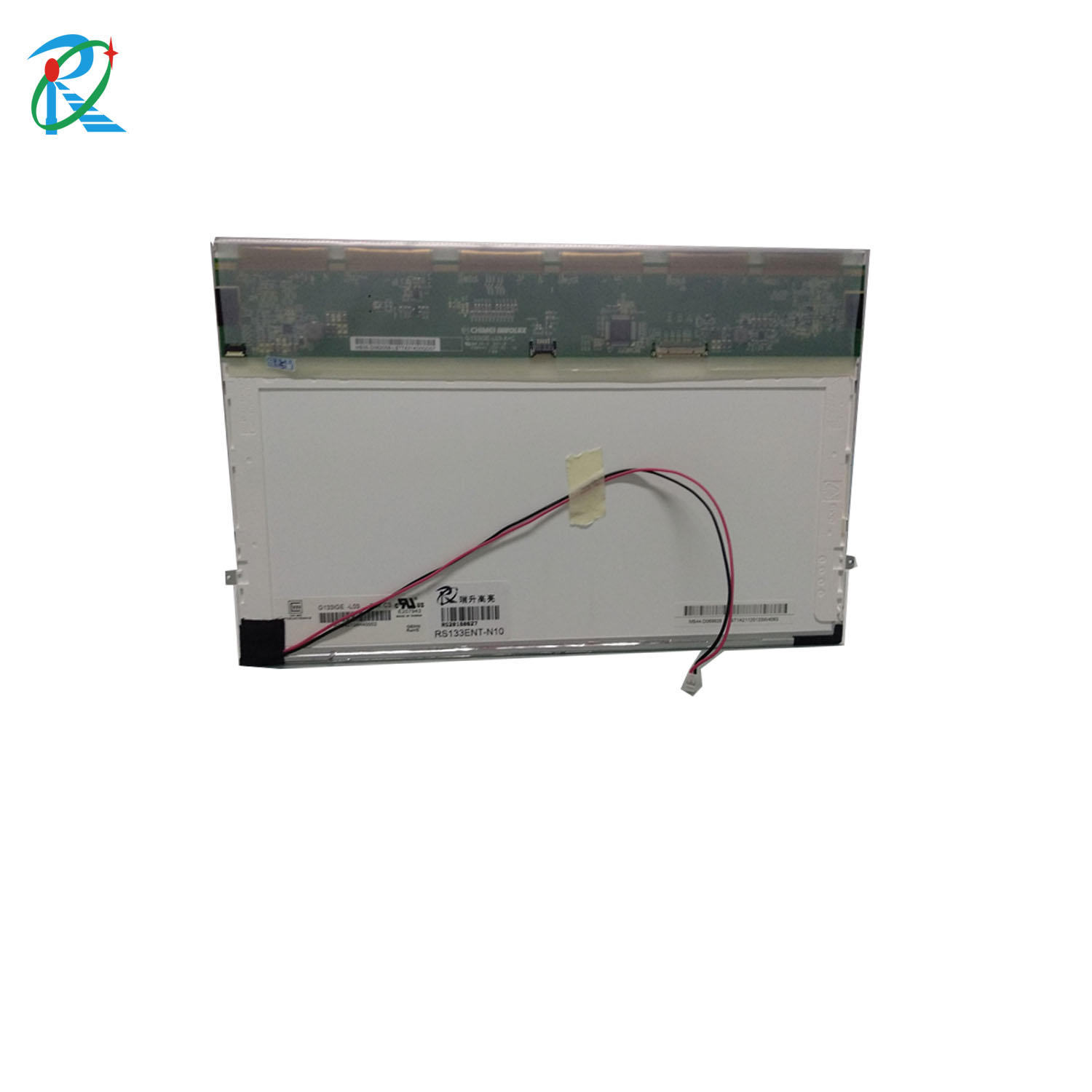

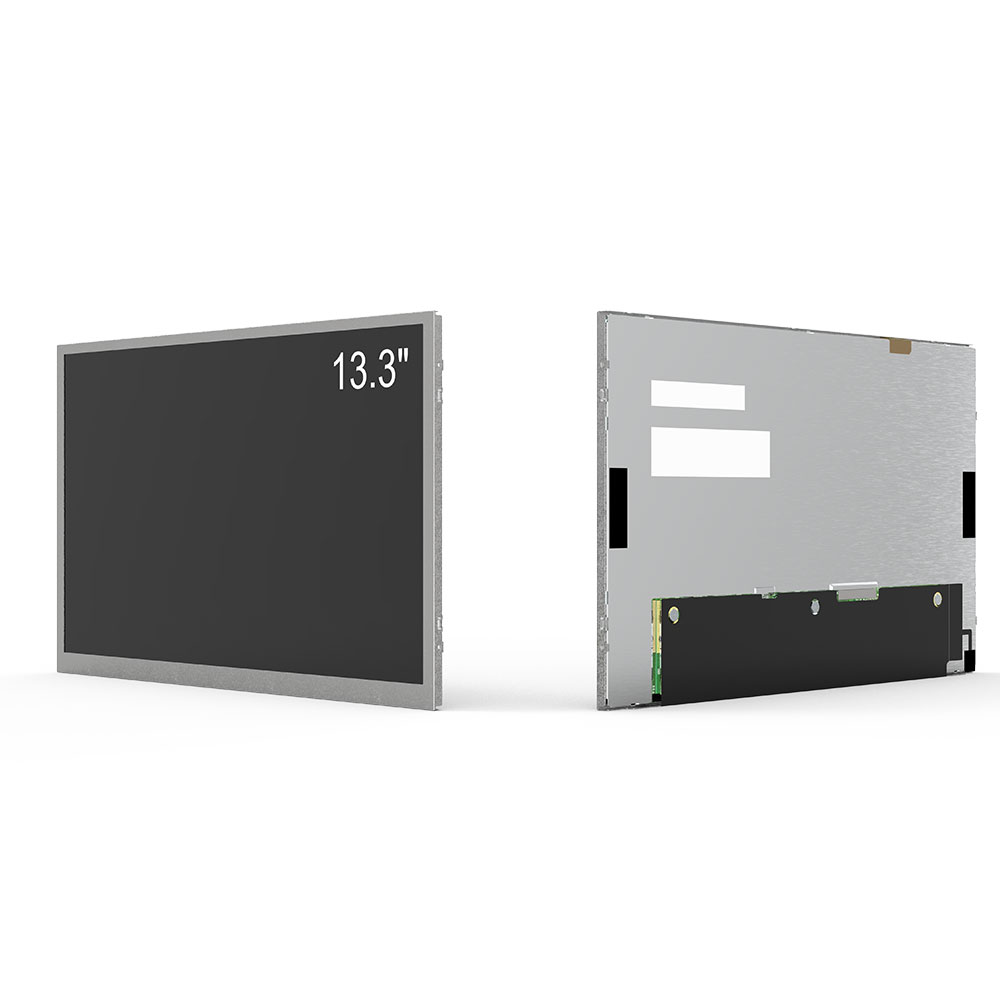

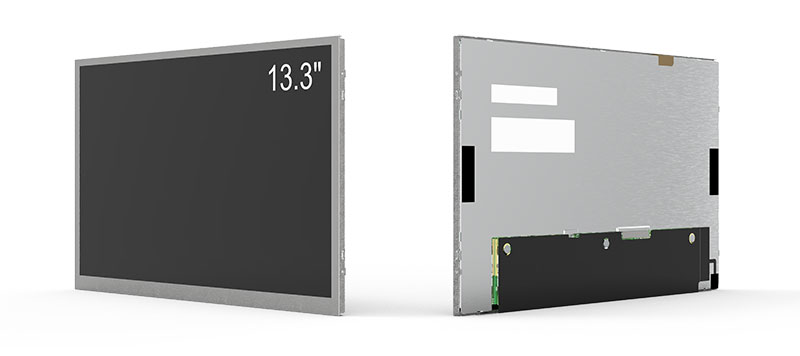

13.3-inch high-brightness LCD screen case
Technical Specifications – 13.3" High Brightness Industrial TFT-LCD Module
| Parameter | Specification |
|---|---|
| Panel Size | 13.3 inches |
| Panel Type | a-Si TFT-LCD, LCD Module |
| Resolution | 1920 (RGB) × 1080 (FHD), 166 PPI |
| Pixel Arrangement | RGB vertical stripe |
| Active Display Area | 293.76 (W) × 165.24 (H) mm |
| Brightness | 1000 to 5000 nits |
| Contrast Ratio | 800:1 (Typ.) (Transmissive) |
| Viewing Angle | 85/85/85/85 (Typ., CR≥10) — Left/Right/Up/Down |
| Display Mode | ADS, Normally Black, Transmissive |
| Panel Technology | IPS Hard Screen Series: AAS, ADS, AHVA, FFS, HFS, HIS, IPS, New Mode2, PLS, SFT, Vistarich; VA Soft Screen Series: ASV, FSA, HVA, MVA, PVA, SVA, UV²A, VA |
| Colors Supported | 262K, 72% NTSC |
| Backlight Type | WLED [9S4P], 15K hours lifespan, with LED driver |
| Appearance | Ultra-thin screen (PCBA flat, thickness ≤ 3.2 mm) |
| Recommended Applications | Notebook, Industrial Equipment |
| Response Time | 30 ms (Typ., Tr+Td) |
| Refresh Rate | 60Hz standard; 120Hz (60Hz input) with built-in MEMC; 120Hz + 120Hz (Panel + Backlight); 240Hz (60Hz input) with built-in MEMC |
| Touch Technology | None |
| Interface Type | 30 pins, eDP (2 Lanes), HBR1 (2.7G/lane), Terminal |
| Supply Voltage | 3.3V (Typ.) |
| Operating Temperature | -20 ~ 70 °C |
| Storage Temperature | -30 ~ 80 °C |
Ideal Applications

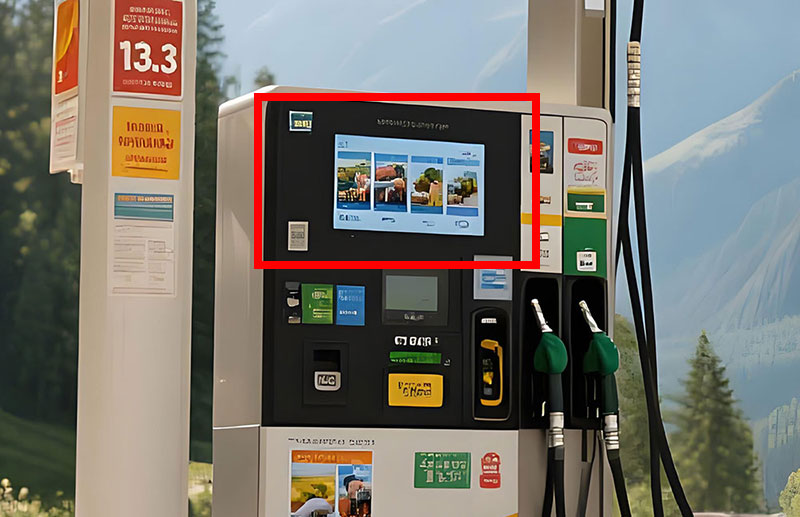

Outdoor fuel dispenser displays
EV charging station screens

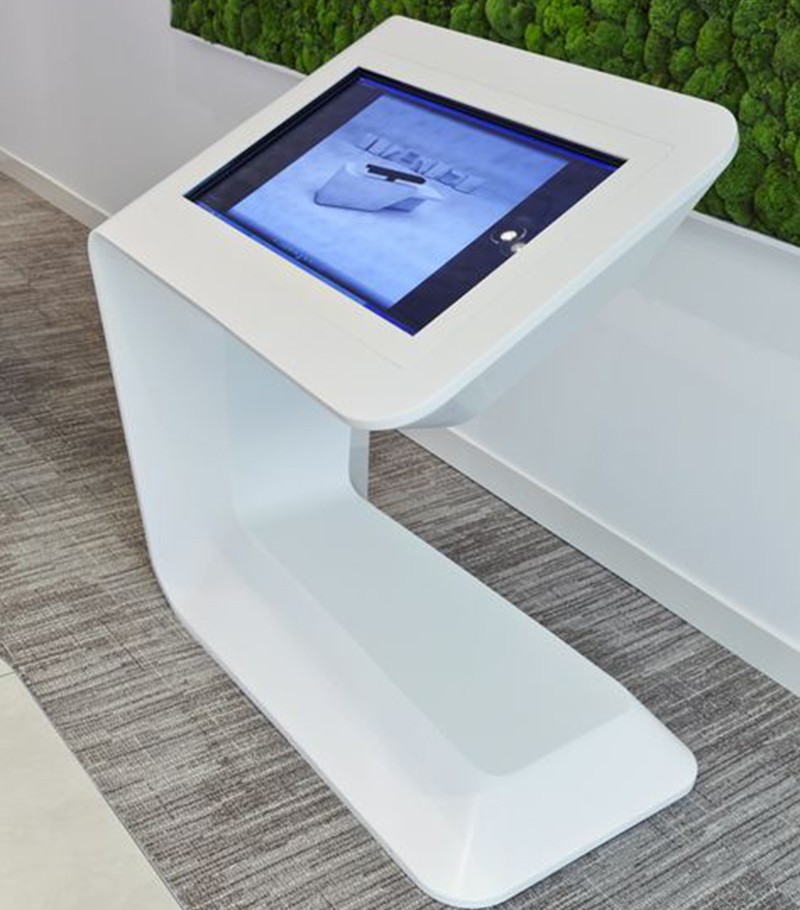

Interactive kiosks, self-service terminals
Rugged industrial and transportation panels
Why Choose RisingStar?
With proprietary backlight design and industrial-grade components, RisingStar delivers displays tailored for outdoor and challenging environments. Rigorous testing—including cold–heat cycling and extended aging—ensures dependable reliability.
Case Study
In 2025, our 13.3″ high-brightness panel was selected by a leading fuel dispenser brand after successful field trials. The screens maintained readability in rain and direct sunlight, delivering high customer satisfaction and prompting broader deployment in EV charging and transit display systems.
FAQ
Q: Can the panel withstand sunlight without glare?
Yes. With brightness and IPS anti-glare coating, it provides excellent visibility even in bright daylight.
Q: Is this unit ready for outdoor use?
Yes. Built with industrial-grade hardware and environmental resilience, it fits well in outdoor cabinets and kiosks.
Q: Customization available?
Absolutely. We offer options for higher brightness, touch integration, mounting, enclosures, and extended temperature models.
Technical Specifications – 13.3" High Brightness Industrial TFT-LCD Module
| Parameter | Specification |
|---|---|
| Panel Size | 13.3 inches |
| Panel Type | a-Si TFT-LCD, LCD Module |
| Resolution | 1920 (RGB) × 1080 (FHD), 166 PPI |
| Pixel Arrangement | RGB vertical stripe |
| Active Display Area | 293.76 (W) × 165.24 (H) mm |
| Brightness | 8000 to 1500 nits |
| Contrast Ratio | 800:1 (Typ.) (Transmissive) |
| Viewing Angle | 85/85/85/85 (Typ., CR≥10) — Left/Right/Up/Down |
| Display Mode | ADS, Normally Black, Transmissive |
| Panel Technology | IPS Hard Screen Series: AAS, ADS, AHVA, FFS, HFS, HIS, IPS, New Mode2, PLS, SFT, Vistarich; VA Soft Screen Series: ASV, FSA, HVA, MVA, PVA, SVA, UV²A, VA |
| Colors Supported | 262K, 72% NTSC |
| Backlight Type | WLED [9S4P], 15K hours lifespan, with LED driver |
| Appearance | Ultra-thin screen (PCBA flat, thickness ≤ 3.2 mm) |
| Recommended Applications | Notebook, Industrial Equipment |
| Response Time | 30 ms (Typ., Tr+Td) |
| Refresh Rate | 60Hz standard; 120Hz (60Hz input) with built-in MEMC; 120Hz + 120Hz (Panel + Backlight); 240Hz (60Hz input) with built-in MEMC |
| Touch Technology | None |
| Interface Type | 30 pins, eDP (2 Lanes), HBR1 (2.7G/lane), Terminal |
| Supply Voltage | 3.3V (Typ.) |
| Operating Temperature | -20 ~ 70 °C |
| Storage Temperature | -30 ~ 80 °C |
01 / Chassis & Materials
Structural integrity for extreme environments.
| Enclosure Grade | Medical and Food grade SUS316L Stainless Steel, AL5052 Aluminum, or SECC Galvanized Steel. |
| Protection Rating | Certified IP65 / IP69K waterproof sealing. Mechanical impact protection rated at IK10. |
| Surface Finish | Industrial powder coating (RAL spectrum), sandblasting, and anti-acid marine painting. |
| Format Architecture | Chassis-mount, Open-frame, Panel-mount, and VESA-integrated configurations. |
03 / Interface & I/O
Industrial signal and power regulation.
| Connectors | Support for M12 Aviation Circular Connectors, DB9/RS232, and waterproof RJ45/USB. |
| Power Regulation | Wide voltage DC 9V - 36V input with integrated surge and polarity protection. |
| Sensor Suite | Integrated ambient light sensors, thermal probes, and custom GPIO control protocols. |
02 / Optical & Display
Visibility optimization for extreme ambient lighting.
| Luminance Output | Scalable 1500 - 5000 Nits with integrated Hi-Tni (110°C) anti-blackening technology. |
| Optical Bonding | Full Vacuum Optical Bonding (OCR) — eliminates air gaps, fogging, and maximizes contrast ratio. |
| Advanced Coating | Integrated AR (Anti-Reflective), AG (Anti-Glare), and AF (Anti-Fingerprint) nano-films. |
04 / Embedded & Data
Software architecture and data sync.
| Operating Systems | Full compatibility with Windows 7, 10/11 IoT; Linux support covering the last 3 generations (Ubuntu 20.04, 22.04, 24.04 LTS) and Debian; as well as comprehensive support for Android 11 through 14. |
| Communication | High-speed 4G/5G LTE modules, Dual-band Wi-Fi 6, and Gigabit Ethernet. |
